UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )UCK31,41

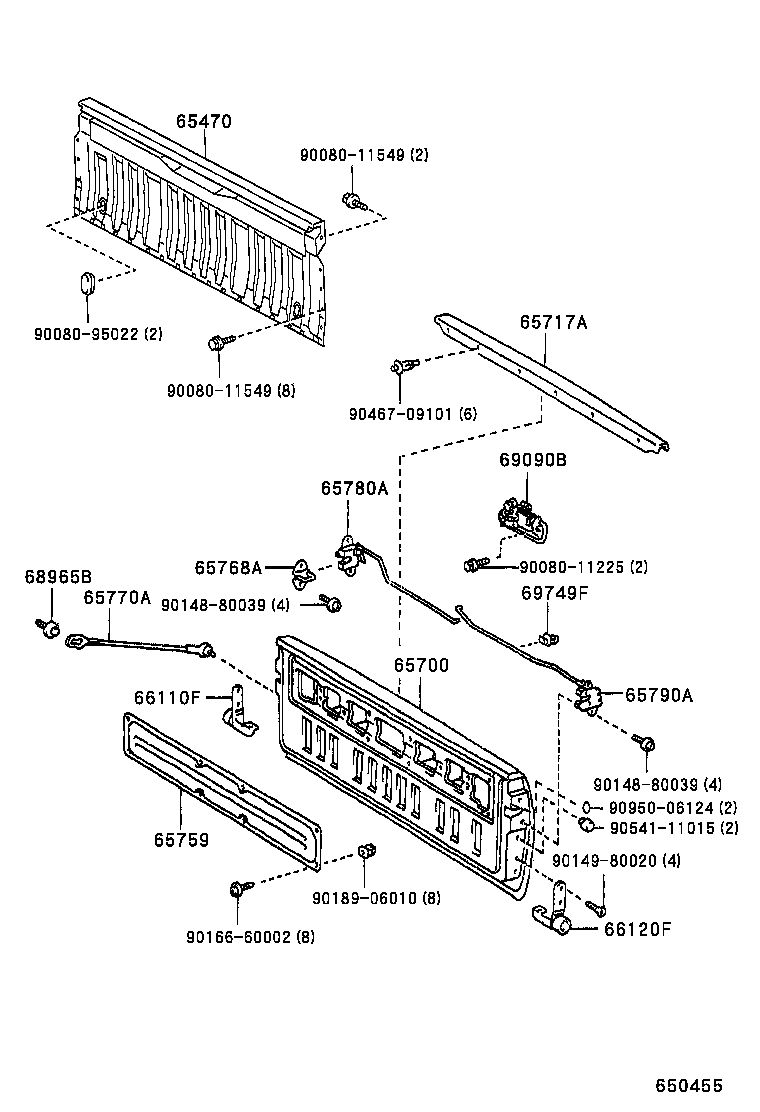

Click highlighted areas on diagram

diagram 65470 65700 65717A 65759 65768A 65770A 65780A 65790A 66110F 66120F 68965B 69090B 69749F 9008011225 9008011549 9008011549 9008095022 9014880039 9014880039 9014980020 9016660002 9018906010 9046709101 9054111015 9095006124
Part # Description Qty Price
65470 - BOARD ASSY, HEADER
65405-0C030

UCK31,41

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-0C060

UCK31,41

 1
65717A - PROTECTOR, TAIL GATE, RH
65717-0C030

UCK31,41

 1
65770A - STAY ASSY, TAIL GATE
65770-0C040

UCK31,41

LH

 1
65770-0C050

UCK31,41

RH

 1
65780A - LOCK ASSY, TAIL GATE, RH
65780-0C030

UCK31,41

 1
65790A - LOCK ASSY, TAIL GATE, LH
65790-0C030

UCK31,41

 1
66110F - HINGE ASSY, TAIL GATE, RH
66110-0C012

UCK3#,4#,VCK30,40

 1
66120F - HINGE ASSY, TAIL GATE, LH
66120-0C012

UCK3#,4#,VCK30,40

 1
Common parts
90080-11225
90080-11549
90080-95022
90148-80039
90149-80020
90166-60002
90189-06010
90467-09101
90541-11015
90950-06124
