UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )UCK31,41

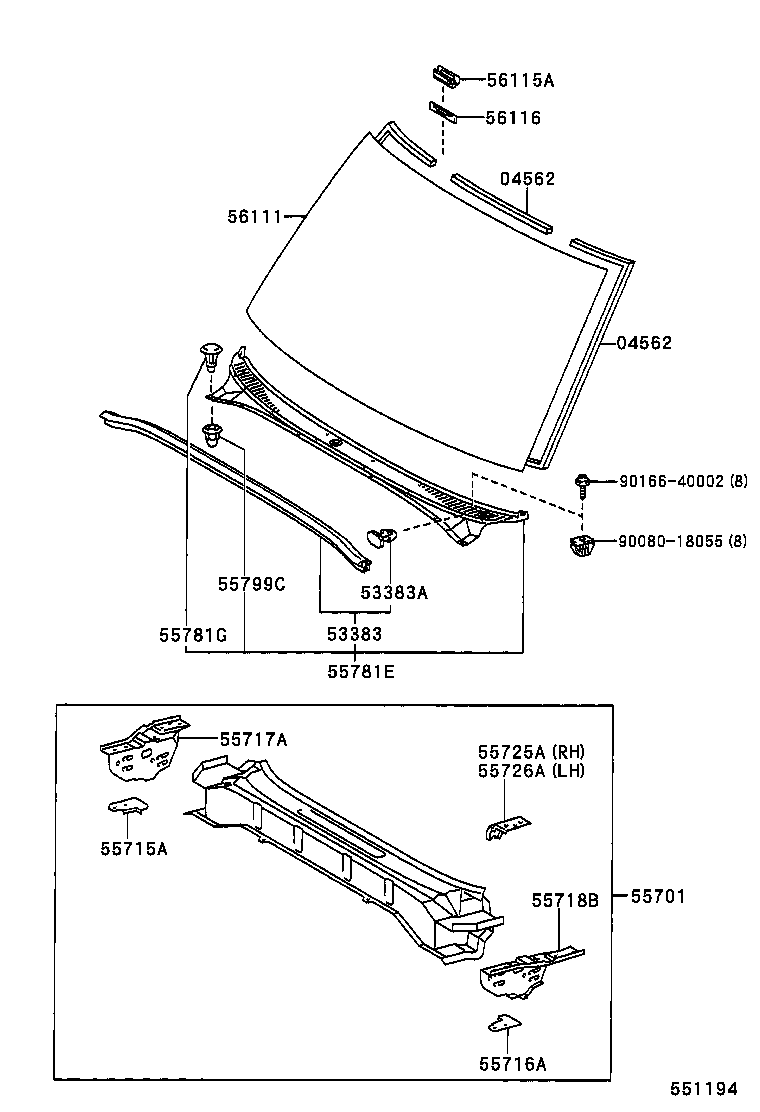

Click highlighted areas on diagram

diagram 04562 04562 53383 53383A 55701 55715A 55716A 55717A 55718B 55725A 55726A 55781E 55781G 55799C 56111 56115A 56116 9008018055 9016640002
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
90998-91003

UCK31,41

L=750

 1
90998-91004

UCK31,41

L=3500

 1
04562 - DAM KIT, WINDSHIELD GLASS
90998-91003

UCK31,41

L=750

 1
90998-91004

UCK31,41

L=3500

 1
55701 - PANEL SUB-ASSY, COWL
55700-0C012

UCK3#,4#,VCK30,40

 1
55725A - REINFORCEMENT, HOOD HINGE MOUNTING, RH
55725-34020

UCK3#,4#,VCK30,40

 1
55726A - REINFORCEMENT, HOOD HINGE MOUNTING, LH
55726-34020

UCK3#,4#,VCK30,40

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0C040

UCK31,41

 1
56111 - GLASS, WINDSHIELD
56101-0C031

UCK31,41

*LAM,T=5.3,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

UCK31,41

 2
56116 - SPACER, WINDSHIELD GLASS
56116-22050

UCK31,41

 2
Common parts
90080-18055
90166-40002
