UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9902-0408) ; (0408- )

Click highlighted areas on diagram

W(LSPV)

diagram 04477 31478D 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47924 47924 47926 47931 47933 47935 47935A 47935C 47936 47937 9008011180 9008011180 9017008016 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9413000802 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-34070

UCK31,41

 1
Common parts
90080-11180
90170-08016
90201-23360
91131-50840
94130-00802
94512-00800
94612-10800

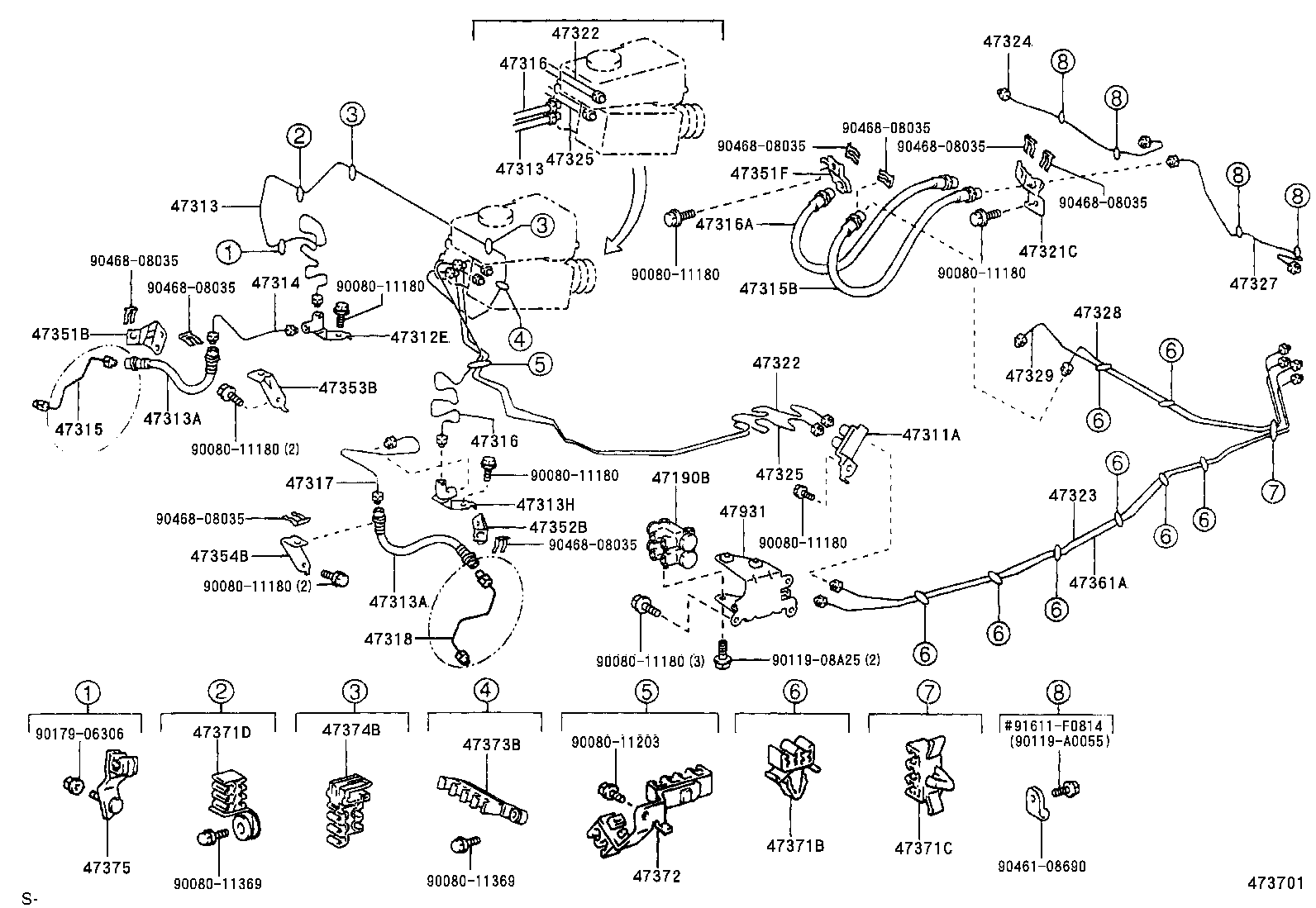

ILLUST NO. 1 OF 3(0310-0408)UCK31,41

Click highlighted areas on diagram

W(VSC)

diagram 47190B 47311A 47312E 47313 47313 47313A 47313A 47313H 47314 47315 47315B 47316 47316 47316A 47317 47318 47321C 47322 47322 47323 47324 47325 47325 47327 47328 47329 47351B 47351F 47352B 47353B 47354B 47361A 47371B 47371C 47371D 47372 47373B 47374B 47375 47931 9008011180 9008011180 9008011180 9008011180 9008011180 9008011180 9008011180 9008011180 9008011203 9008011369 9008011369 9011908A25 90119A0055 9017906306 9046108690 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 91611F0814
Part # Description Qty Price
47313 - TUBE, FRONT BRAKE, NO.3
47313-0C050

UCK31,41

W(VSC)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0C050

UCK31,41

W(VSC)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0C020

UCK31,41

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0C060

UCK31,41

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0C060

UCK31,41

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0C020

UCK31,41

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0C050

UCK31,41

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0C050

UCK31,41

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0C040

UCK31,41

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0C050

UCK31,41

W(VSC)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0C070

UCK31,41

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0C070

UCK31,41

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-0C030

UCK31,41

 1
47361A - TUBE, FRONT BRAKE, NO.10
47361-0C020

UCK31,41

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01C06

UCK31,41

 6
90949-01C06

UCK31,41

W(VSC)

 8
Common parts
90080-11180
90080-11203
90080-11369
90119-08A25
90119-A0055
90179-06306
90461-08690
90468-08035
91611-F0814

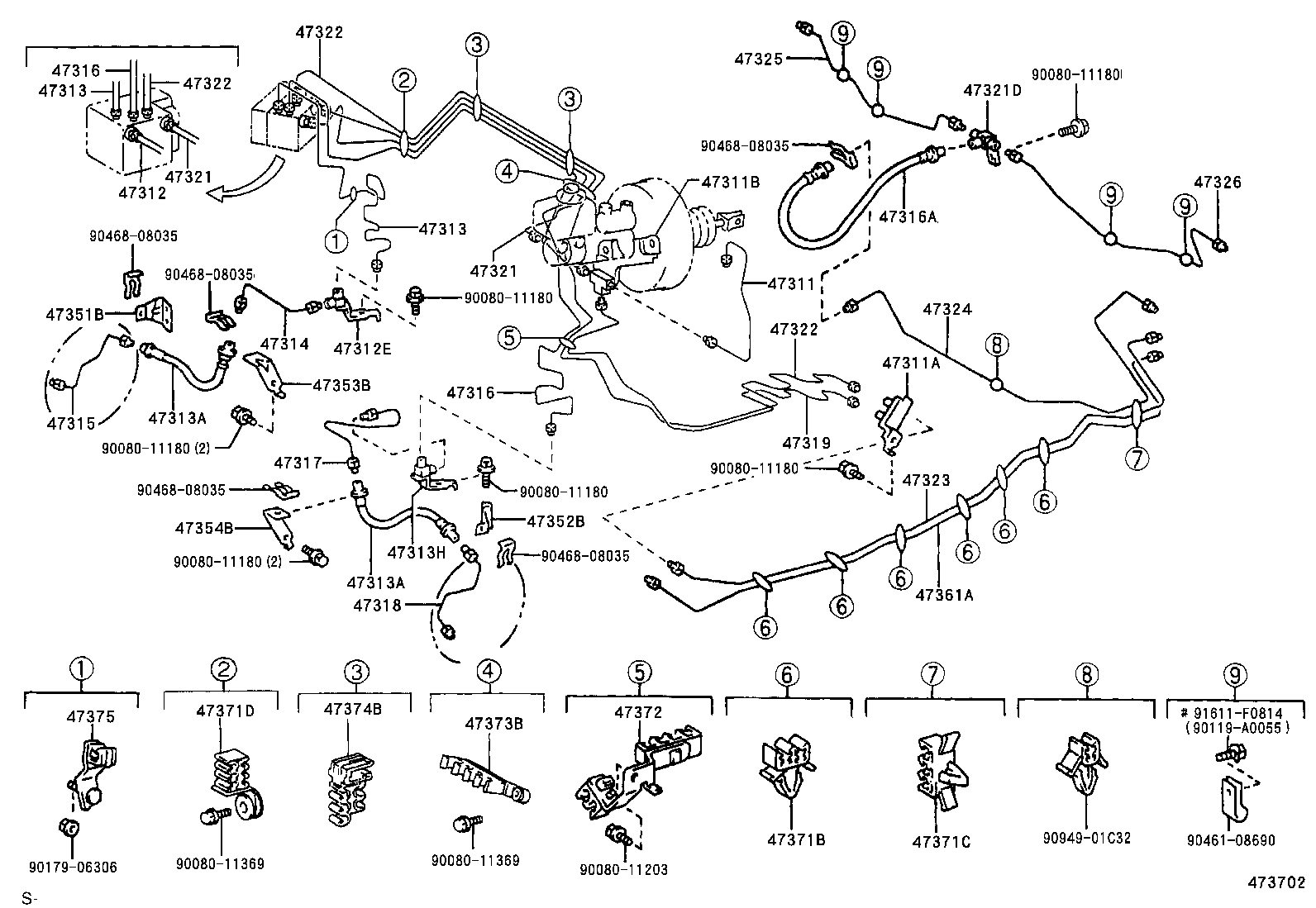

ILLUST NO. 1 OF 3(0310-0408)UCK31,41 ; (0408- )UCK31,41

Click highlighted areas on diagram

W(ABS)

diagram 47311 47311A 47311B 47312 47312E 47313 47313 47313A 47313A 47313H 47314 47315 47316 47316 47316A 47317 47318 47319 47321 47321 47321D 47322 47322 47322 47323 47324 47325 47326 47351B 47352B 47353B 47354B 47361A 47371B 47371C 47371D 47372 47373B 47374B 47375 9008011180 9008011180 9008011180 9008011180 9008011180 9008011180 9008011203 9008011369 9008011369 90119A0055 9017906306 9046108690 9046808035 9046808035 9046808035 9046808035 9046808035 9094901C32 91611F0814
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0C020

UCK31,41

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10304

UCK31,41

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0C060

UCK31,41

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0C050

UCK31,41

W(VSC)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0C050

UCK31,41

W(VSC)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0C020

UCK31,41

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0C060

UCK31,41

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0C060

UCK31,41

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0C020

UCK31,41

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-0C030

UCK31,41

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0C070

UCK31,41

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0C070

UCK31,41

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0C050

UCK31,41

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0C050

UCK31,41

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0C050

UCK31,41

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0C040

UCK31,41

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0C050

UCK31,41

W(VSC)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0C070

UCK31,41

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-0C060

UCK31,41

 1
47361A - TUBE, FRONT BRAKE, NO.10
47361-0C020

UCK31,41

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01C06

UCK31,41

 6
90949-01C06

UCK31,41

W(VSC)

 8
Common parts
90080-11180
90080-11203
90080-11369
90119-A0055
90179-06306
90461-08690
90468-08035
90949-01C32
91611-F0814

ILLUST NO. 2 OF 3(0310-0408) ; (0408- )

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905278 9017906074 9017908237
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0C090

UCK4#,VCK40

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0C040

UCK3#,4#,VCK30,40

 1
Common parts
90099-05278
90179-06074
90179-08237
