UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)UCK4#,VCK40

Click highlighted areas on diagram

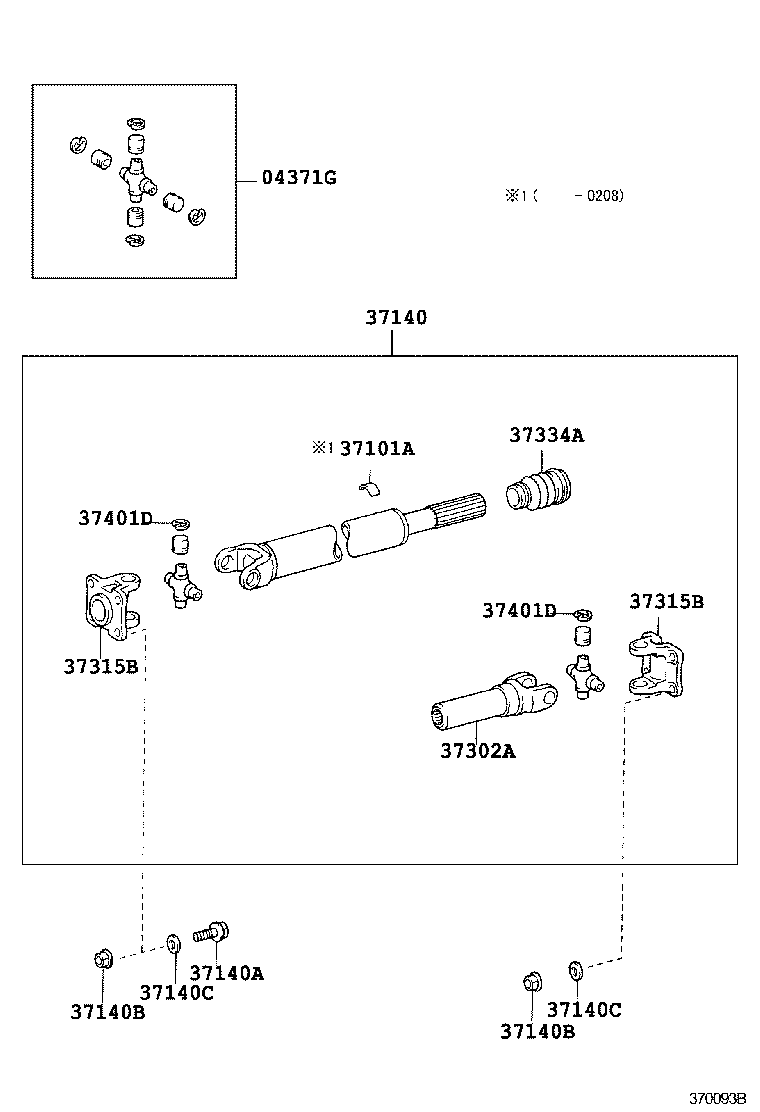

FRONT

diagram 04371G 37101A 37140 37140A 37140B 37140B 37140C 37140C 37302A 37315B 37315B 37334A 37401D 37401D
Part # Description Qty Price

(9902-0408)UCK4#,VCK40

Click highlighted areas on diagram

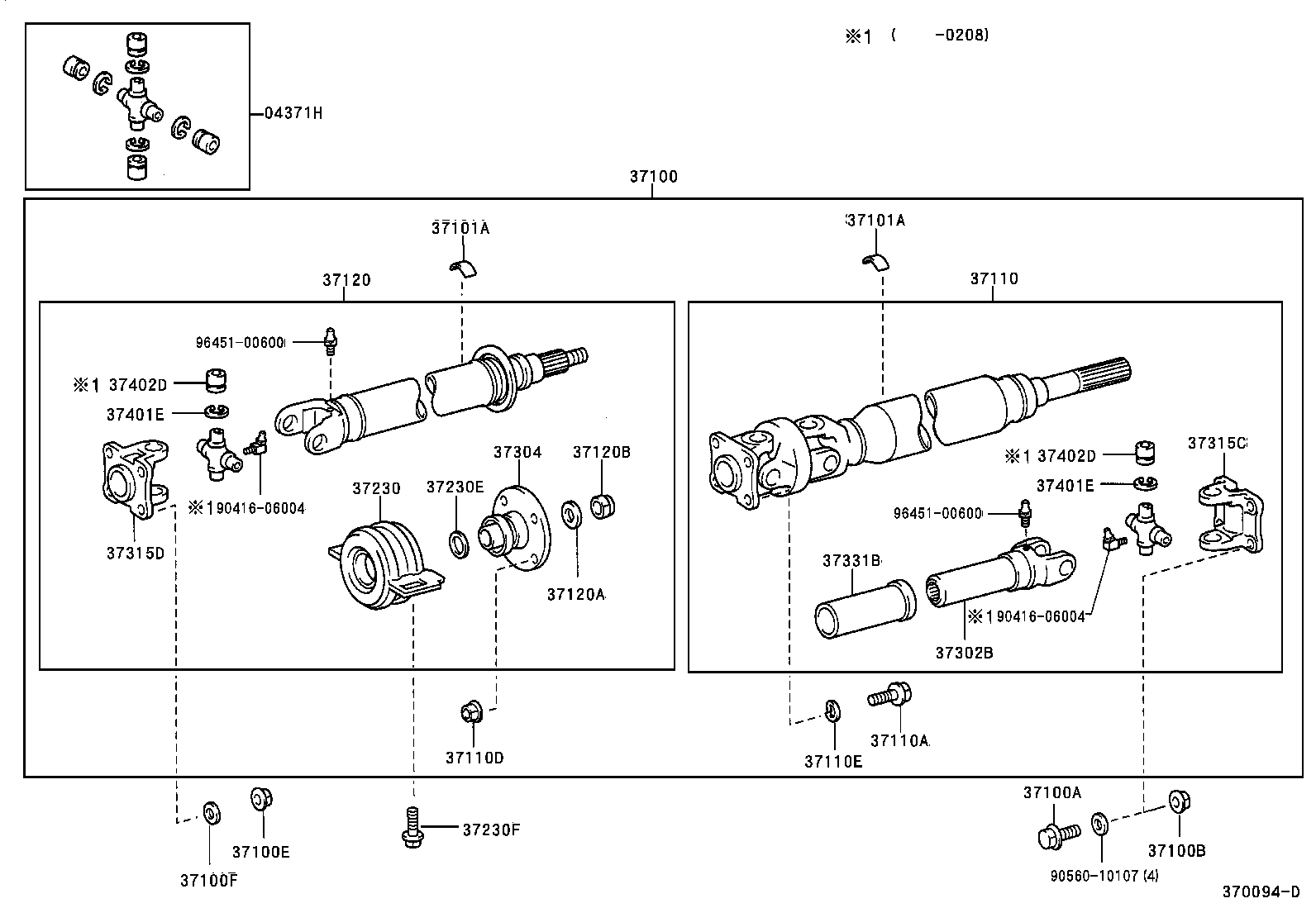

REAR

diagram 04371H 37100 37100A 37100B 37100E 37100F 37101A 37101A 37110 37110A 37110D 37110E 37120 37120A 37120B 37230 37230E 37230F 37302B 37304 37315C 37315D 37331B 37401E 37401E 37402D 37402D 9041606004 9041606004 9056010107 9645100600 9645100600
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-34110

UCK41

 1
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-34110

UCK41

 1
37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV
37302-35050

UCK4#,VCK40

 1
37302-60080

UCK4#,VCK40

 1
Common parts
90416-06004
90560-10107
96451-00600
