UCK41L-PRSLKK (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

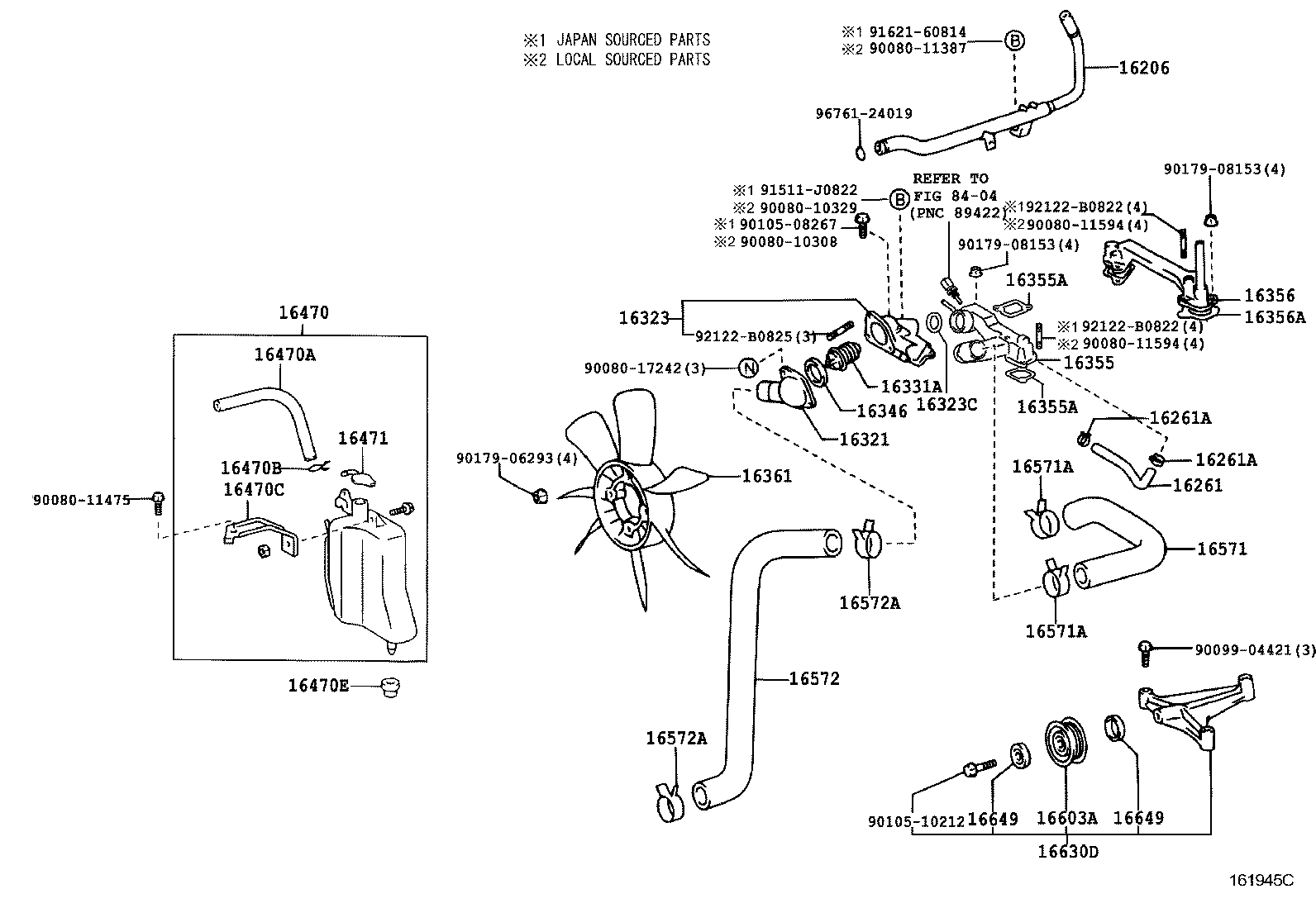

ILLUST NO. 1 OF 2(0310-0408)2UZFE..UCK31,41

Click highlighted areas on diagram

diagram 16206 16261 16261A 16261A 16321 16323 16323C 16331A 16346 16355 16355A 16355A 16356 16356A 16361 16470 16470A 16470B 16470C 16470E 16471 16571 16571A 16571A 16572 16572A 16572A 16603A 16630D 16649 16649 8404 9008010308 9008010329 9008011387 9008011475 9008011594 9008011594 9008017242 9009904421 9010508267 9010510212 9017906293 9017908153 9017908153 91511J0822 9162160814 92122B0822 92122B0822 92122B0825 9676124019
Part # Description Qty Price
16470 - TANK ASSY, RADIATOR RESERVE
16470-0F010

2UZFE..UCK31,41

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-12058

2UZFE..UCK31,41

 1
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-0F010

2UZFE..UCK31,41

 1
Common parts
90080-10308
90080-10329
90080-11387
90080-11475
90080-11594
90080-17242
90099-04421
90105-08267
90105-10212
90179-06293
90179-08153
91511-J0822
91621-60814
92122-B0822
92122-B0825
96761-24019
Linked diagrams
8404

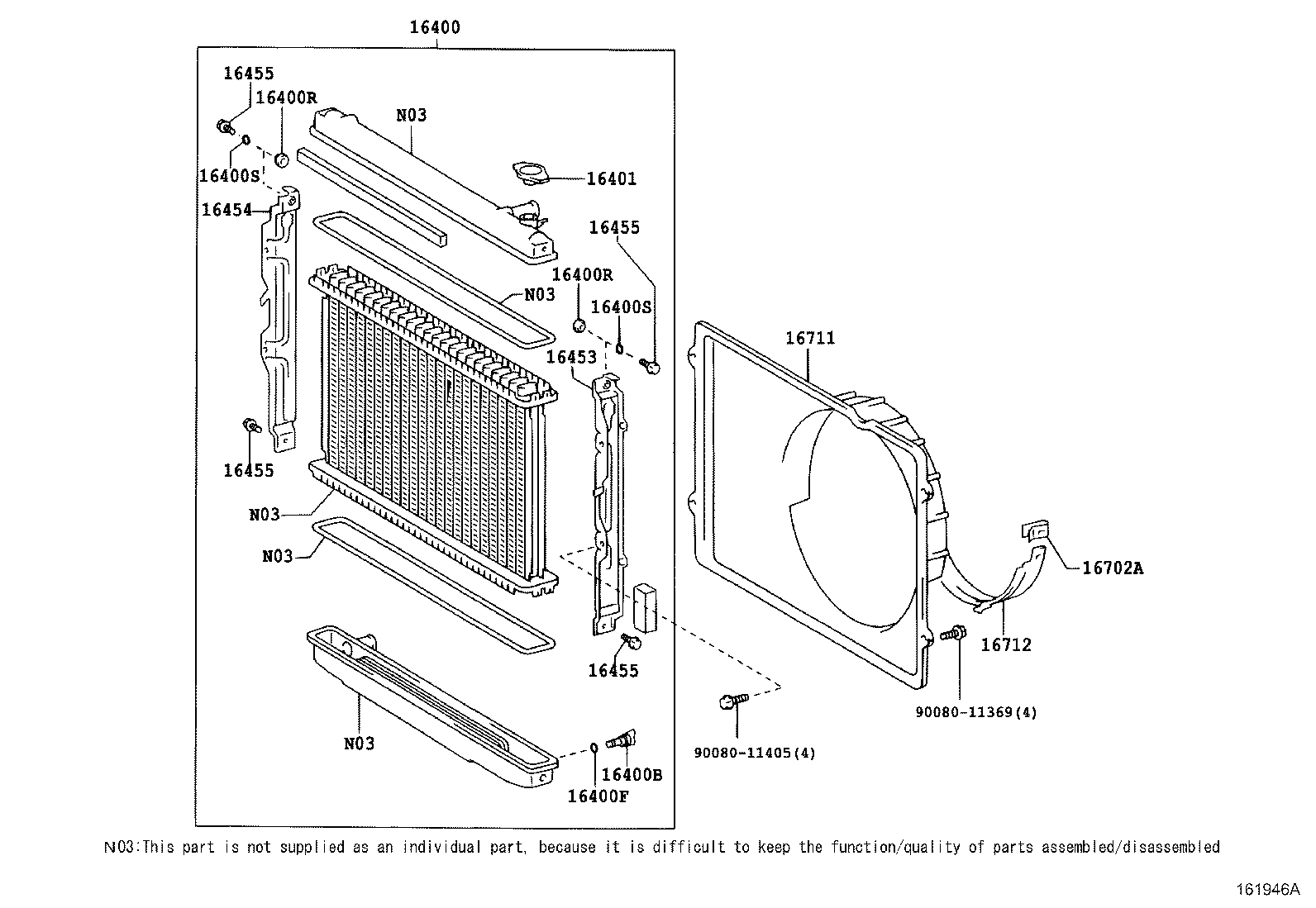

ILLUST NO. 2 OF 2(0310-0408)2UZFE..UCK31,41

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16400R 16400R 16400S 16400S 16401 16453 16454 16455 16455 16455 16455 16702A 16711 16712 9008011369 9008011405
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-0F030

2UZFE..UCK31,41

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

2UZFE..UCK31,41

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

2UZFE..UCK31,41

 1
16400R - BUSHING(FOR RADIATOR)
16444-0F020

2UZFE..UCK31,41

 2
16400R - BUSHING(FOR RADIATOR)
16444-0F020

2UZFE..UCK31,41

 2
16400S - COLLAR(FOR RADIATOR)
16445-75180

2UZFE..UCK31,41

 2
16400S - COLLAR(FOR RADIATOR)
16445-75180

2UZFE..UCK31,41

 2
16453 - PLATE, RADIATOR SIDE
16453-0F030

2UZFE..UCK31,41

 1
16454 - PLATE, RADIATOR SIDE
16454-0F030

2UZFE..UCK31,41

 1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
91651-B0820

2UZFE..UCK31,41

 4
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
91651-B0820

2UZFE..UCK31,41

 4
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
91651-B0820

2UZFE..UCK31,41

 4
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
91651-B0820

2UZFE..UCK31,41

 4
16711 - SHROUD, FAN
16711-0F030

2UZFE..UCK31,41

 1
Common parts
90080-11369
90080-11405
