UCK41L-PRBSKK (2004)

Toyota Tundra

Production Aug 2004 - Dec 2006
Engine 2UZFE
Transmission 5HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

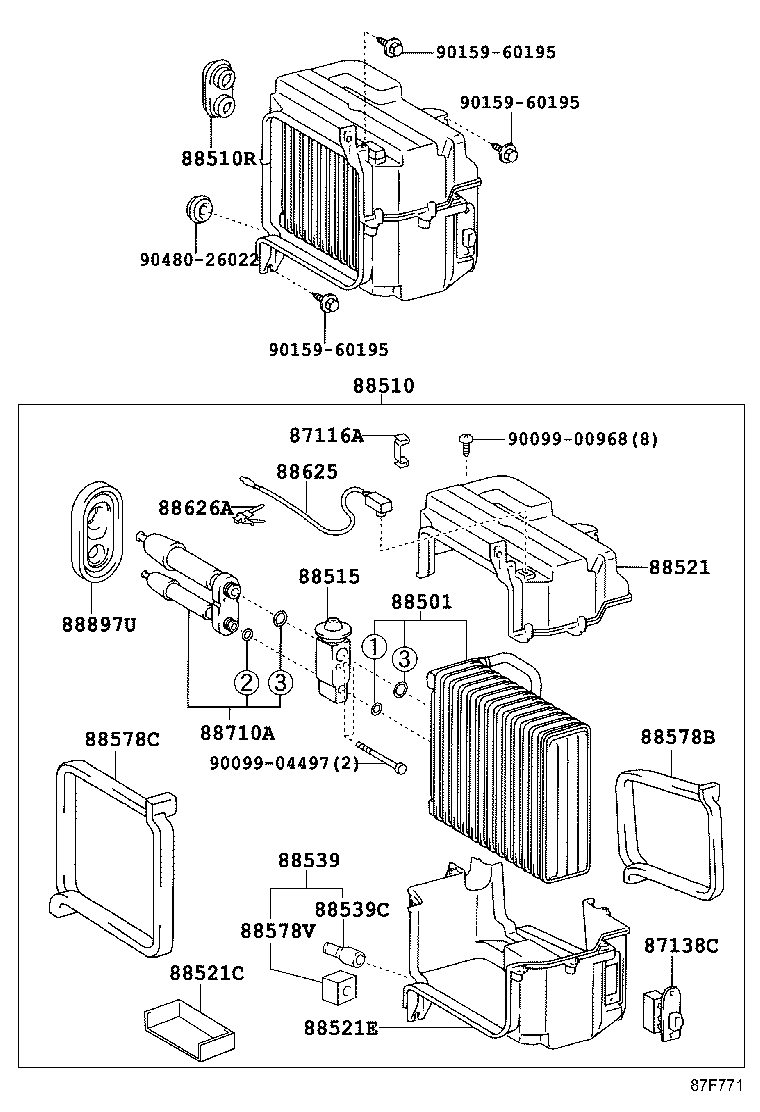

ILLUST NO. 1 OF 2(0408- )UCK31,41

Click highlighted areas on diagram

diagram 87116A 87138C 88501 88510 88510R 88515 88521 88521C 88521E 88539 88539C 88578B 88578C 88578V 88625 88626A 88710A 88897U 9009900968 9009904497 9015960195 9015960195 9015960195 9048026022
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-04020

UCK31,41

 1
87138C - RESISTOR, BLOWER
87138-0C010

GSK30,UCK3#,4#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0C060

UCK31,41

 1
88510 - UNIT ASSY, COOLER
88510-0C090

UCK31,41

 1
88510R - GROMMET (FOR COOLER UNIT)
90080-48069

GSK30,UCK3#,4#

 1
88515 - VALVE, COOLER EXPANSION
88515-02100

GSK30,UCK3#,4#

 1
88521 - CASE, COOLER UNIT
88521-0C090

UCK31,41

 1
88521C - CASE, COOLING UNIT
88578-0C080

UCK31,41

 1
88521E - CASE SUB-ASSY, COOLING UNIT
88521-0C100

UCK31,41

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0C030

GSK30,UCK3#,4#

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0C040

UCK31,41

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-0C070

GSK30,UCK3#,4#

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-0C060

GSK30,UCK3#,4#

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-0C010

UCK31,41

 1
88625 - THERMISTOR, COOLER, NO.1
88625-0C010

GSK30,UCK3#,4#

 1
88626A - HOLDER, THERMISTOR
88626-28010

GSK30,UCK3#,4#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-0C070

GSK30,UCK3#,4#

 1
88897U - PIPE, ASPIRATOR
88897-60050

GSK30,UCK3#,4#

 1
Common parts
90099-00968
90099-04497
90159-60195
90480-26022
