UCK41L-PRBSKK (2004)

Toyota Tundra

Production Aug 2004 - Dec 2006
Engine 2UZFE
Transmission 5HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )CND

Click highlighted areas on diagram

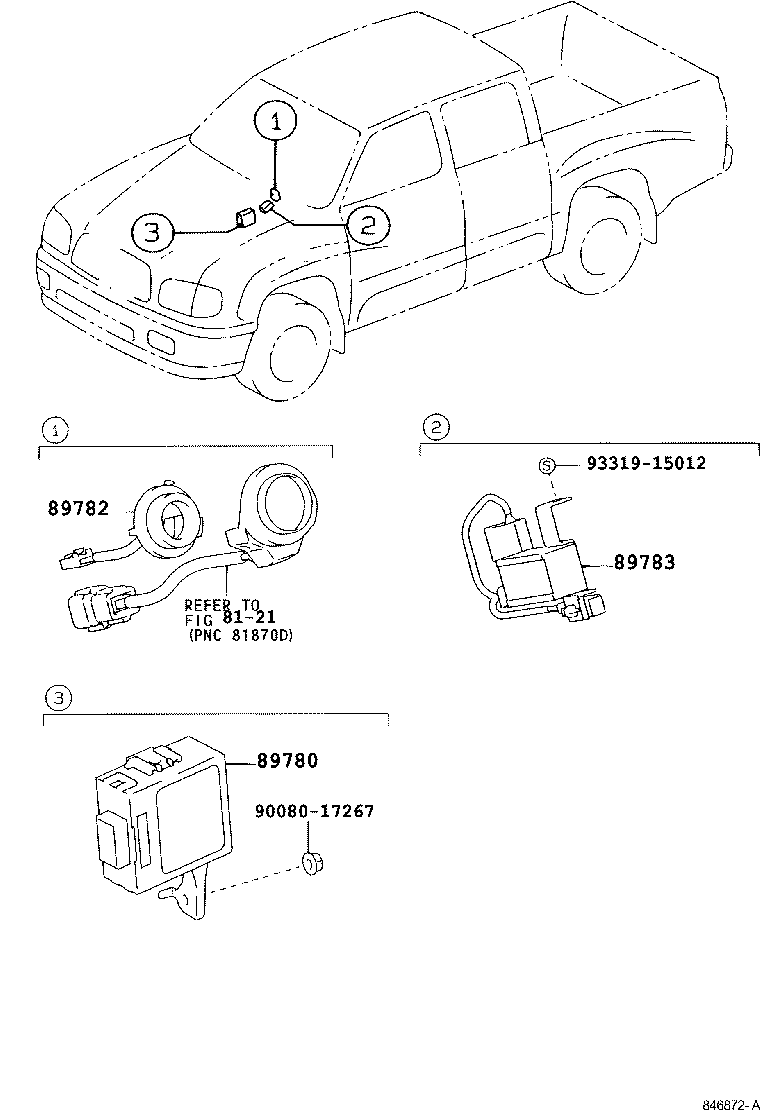

diagram 8121 89780 89782 89783 9008017267 9331915012
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-34020

GSK30,UCK3#,4#..CND

 1
89782 - COIL, TRANSPONDER KEY
89782-34010

GSK30,UCK3#,4#..CND

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-34020

GSK30,UCK3#,4#..CND

 1
Common parts
90080-17267
93319-15012
Linked diagrams
8121
