UCK41L-PRBSKK (2004)
Toyota Tundra

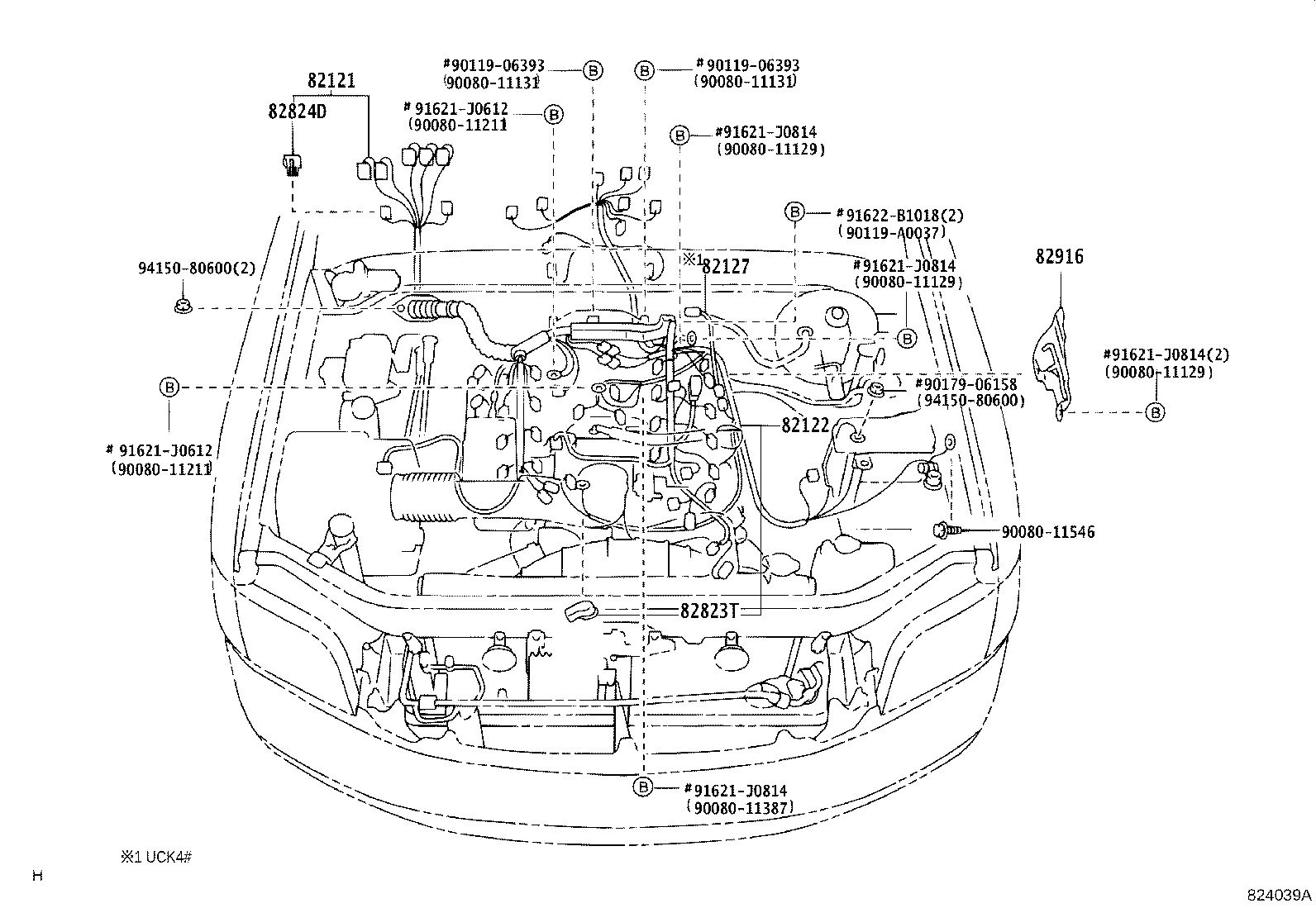

ILLUST NO. 2 OF 8(0408- )UCK3#,4#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0C080 |
UCK4# |
1 | ||
| 82121-0C081 |
UCK4# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-34150 |
UCK4# (J) |
1 | ||
| 82122-0C090 |
UCK4# (L) |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-0C010 |
UCK4# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22080 |
UCK3#,4# |
1 | ||
| 82916 - INSULATOR, WIRING HARNESS HEAT, NO.2 | ||||
| 82916-34020 |
UCK3#,4# (J) |
1 | ||
| 82916-0C020 |
UCK3#,4# (L) |
1 | ||
| Common parts | ||||
| 90080-11129 | ||||
| 90080-11131 | ||||
| 90080-11211 | ||||
| 90080-11387 | ||||
| 90080-11546 | ||||
| 90119-06393 | ||||
| 90119-A0037 | ||||
| 90179-06158 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91622-B1018 | ||||
| 94150-80600 | ||||

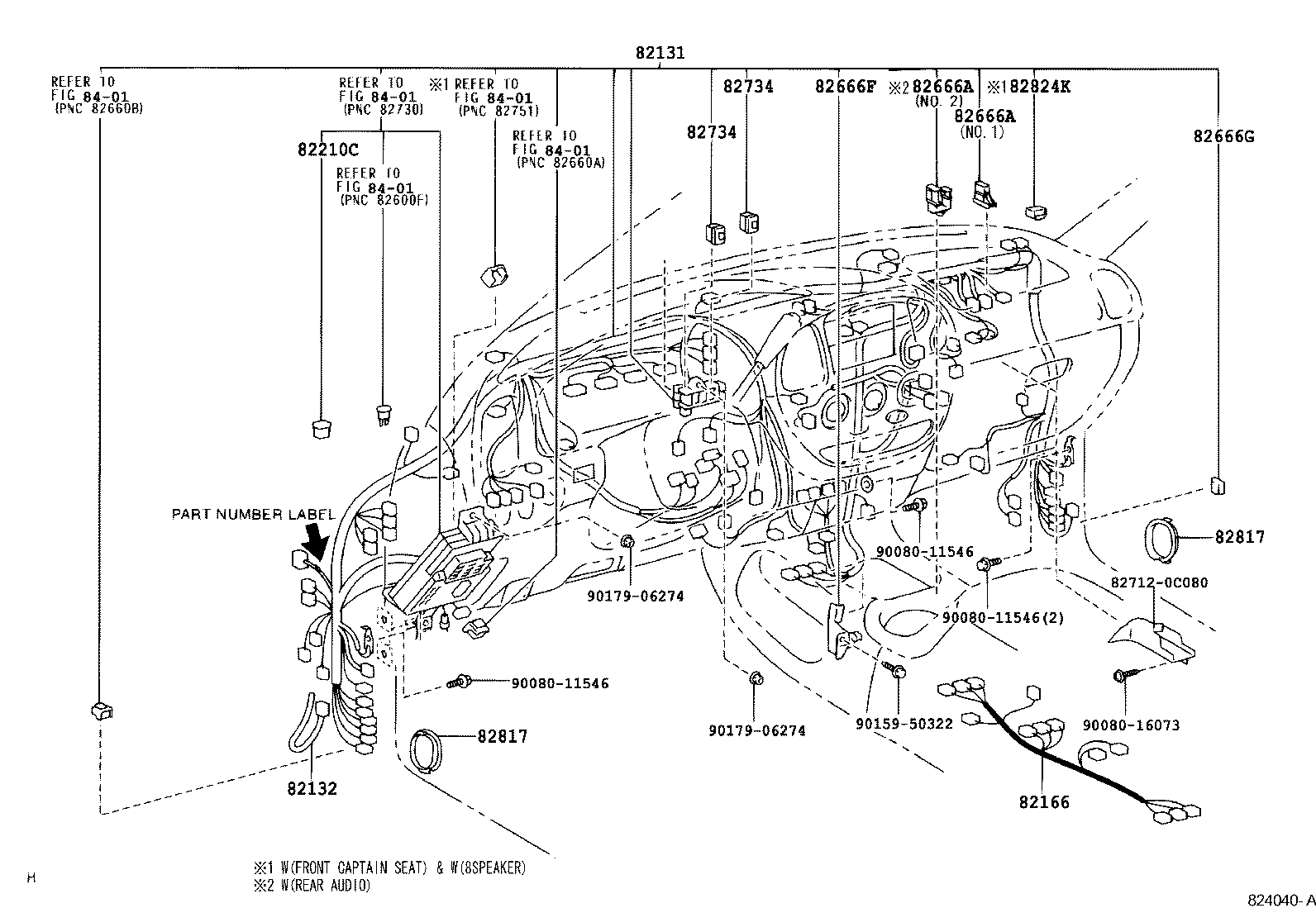

ILLUST NO. 3 OF 8(0408- )UCK31,41
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-0CB10 |
UCK31,41..SR5 PART NUMBER LABEL=82131-0CB10 |
1 | ||
| 82131-0CB40 |
UCK31,41 PART NUMBER LABEL=82131-0CB40 |
1 | ||
| 82131-0CB60 |
UCK31,41 PART NUMBER LABEL=82131-0CB60 |
1 | ||
| 82131-0CB90 |
UCK31,41..SR5 PART NUMBER LABEL=82131-0CB90 |
1 | ||
| 82131-0CB80 |
UCK31,41 PART NUMBER LABEL=82131-0CB80 |
1 | ||
| 82131-0CC10 |
UCK31,41 PART NUMBER LABEL=82131-0CC10 |
1 | ||
| 82131-0CB20 |
UCK31,41 PART NUMBER LABEL=82131-0CB20 |
1 | ||
| 82131-0CB50 |
UCK31,41 PART NUMBER LABEL=82131-0CB50 |
1 | ||
| 82131-0CB70 |
UCK31,41..SR5 PART NUMBER LABEL=82131-0CB70 |
1 | ||
| 82131-0CB30 |
UCK31,41..SR5 PART NUMBER LABEL=82131-0CB30 |
1 | ||
| 82131-0CC00 |
UCK31,41 PART NUMBER LABEL=82131-0CC00 |
1 | ||
| 82131-0CC20 |
UCK31,41 PART NUMBER LABEL=82131-0CC20 |
1 | ||
| 82131-0CB11 |
UCK31,41..SR5 PART NUMBER LABEL=82131-0CB11 |
1 | ||
| 82131-0CB31 |
UCK31,41..SR5..CND PART NUMBER LABEL=82131-0CB31 |
1 | ||
| 82131-0CB71 |
UCK31,41..SR5 PART NUMBER LABEL=82131-0CB71 |
1 | ||
| 82131-0CC11 |
UCK31,41 PART NUMBER LABEL=82131-0CC11 |
1 | ||
| 82131-0CB41 |
UCK31,41..CND PART NUMBER LABEL=82131-0CB41 |
1 | ||
| 82131-0CC01 |
UCK31,41 PART NUMBER LABEL=82131-0CC01 |
1 | ||
| 82131-0CB51 |
UCK31,41..CND PART NUMBER LABEL=82131-0CB51 |
1 | ||
| 82131-0CB91 |
UCK31,41..SR5 PART NUMBER LABEL=82131-0CB91 |
1 | ||
| 82131-0CB61 |
UCK31,41..CND PART NUMBER LABEL=82131-0CB61 |
1 | ||
| 82131-0CC21 |
UCK31,41 PART NUMBER LABEL=82131-0CC21 |
1 | ||
| 82131-0CB81 |
UCK31,41 PART NUMBER LABEL=82131-0CB81 |
1 | ||
| 82131-0CB21 |
UCK31,41 PART NUMBER LABEL=82131-0CB21 |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-0C010 |
UCK3#,4# |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-0C080 |
UCK31,41 W(REAR SEAT AUDIO SYSTEM) |
1 | ||
| 82166-0C091 |
UCK31,41 W(REAR SEAT ENTERTAINMENT) |
1 | ||
| 82166-0C070 |
UCK31,41 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08283 |
UCK31,41 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
UCK31,41 40A,TERM.:FEMALE,GRN |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0C170 |
UCK31,41 NO.2 |
1 | ||
| 82666-0C090 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0C170 |
UCK31,41 NO.2 |
1 | ||
| 82666-0C090 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-0C210 |
UCK31,41 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-35250 |
UCK31,41 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-44030 |
UCK31,41 |
2 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-44030 |
UCK31,41 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
GSK30,UCK3#,4# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
GSK30,UCK3#,4# |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 82712-0C080 | ||||
| 90080-11546 | ||||
| 90080-16073 | ||||
| 90159-50322 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||

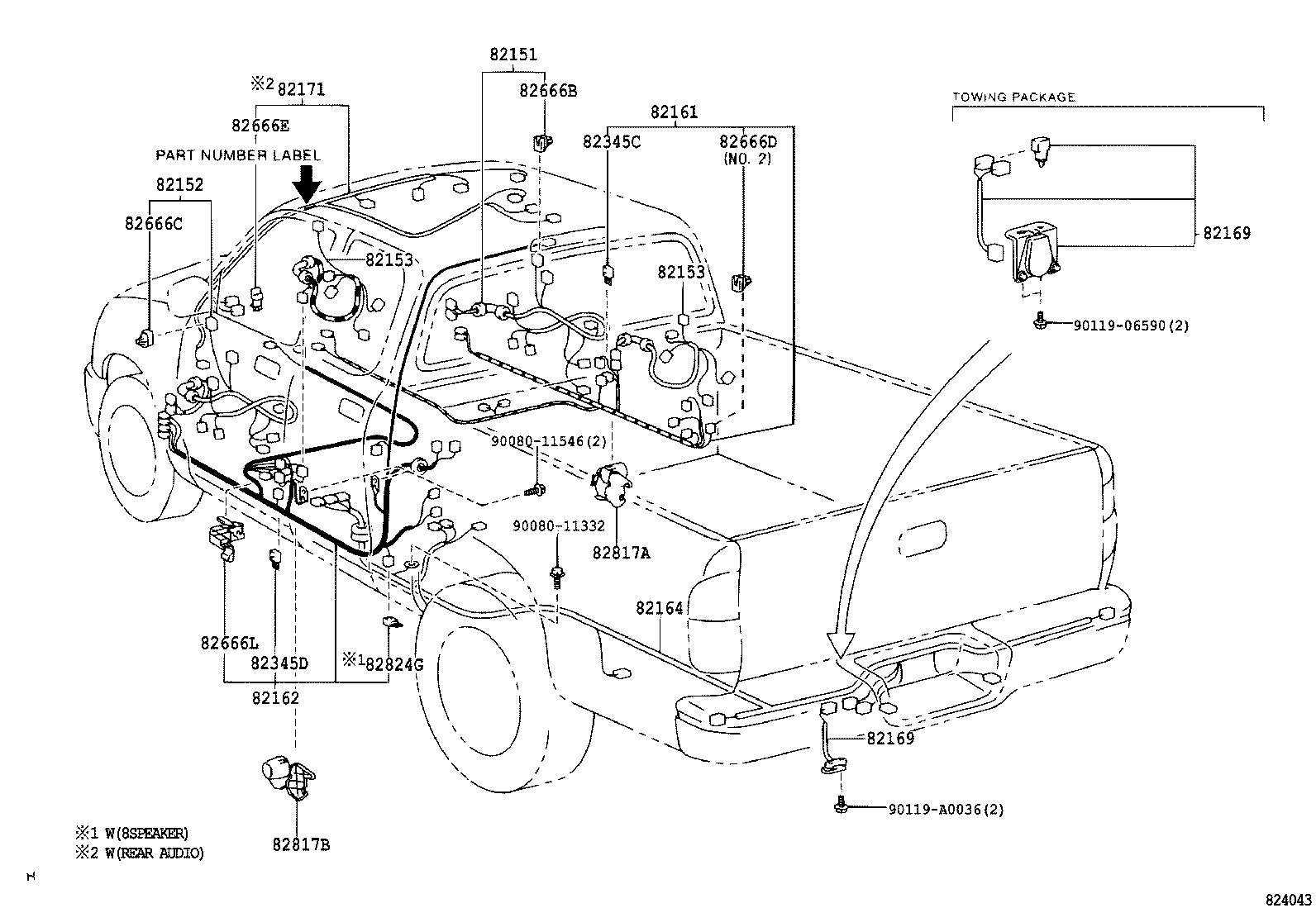

ILLUST NO. 4 OF 8(0408- )UCK31,41
DOOR,FLOOR,ROOF,FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0C150 |
UCK31,41 W(HEATER MIRROR & 8 SPEAKER) |
1 | ||
| 82151-0C140 |
UCK31,41..SR5 W(HEATER MIRROR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0C140 |
UCK31,41 W(HEATER MIRROR & 8 SPEAKER) |
1 | ||
| 82152-0C130 |
UCK31,41..SR5 W(HEATER MIRROR) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0C040 |
UCK31,41 |
1 | ||
| 82153-0C110 |
UCK31,41 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0C040 |
UCK31,41 |
1 | ||
| 82153-0C110 |
UCK31,41 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-0C120 |
UCK31,41 W(CAPTAIN SEAT) |
1 | ||
| 82161-0C130 |
UCK31,41 W(CAPTAIN SEAT & SRS AIR BAG) |
1 | ||
| 82161-0C110 |
UCK31,41 W(SRS AIR BAG) |
1 | ||
| 82161-0C100 |
UCK31,41 |
1 | ||
| 82161-0C111 |
UCK31,41 W(SRS AIR BAG) |
1 | ||
| 82161-0C101 |
UCK31,41 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0C140 |
UCK31,41 W(SRS AIR BAG & SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG & 8 SPEAKER) |
1 | ||
| 82162-0C110 |
UCK31,41..SR5 |
1 | ||
| 82162-0C130 |
UCK31,41..SR5 W(SRS AIR BAG & SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG) |
1 | ||
| 82162-0C120 |
UCK31,41 W(8 SPEAKER) |
1 | ||
| 82162-0C180 |
UCK31,41 W(CAPTAIN SEAT & SRS AIR BAG & SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG & 8 SPEAKER) |
1 | ||
| 82162-0C160 |
UCK31,41 W(CAPTAIN SEAT & 8 SPEAKER) |
1 | ||
| 82162-0C170 |
UCK31,41..SR5 W(CAPTAIN SEAT & SRS AIR BAG & SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG) |
1 | ||
| 82162-0C150 |
UCK31,41..SR5 W(CAPTAIN SEAT) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-0C150 |
UCK31,41 |
1 | ||
| 82164-0C160 |
UCK31,41 TOWING PACKAGE |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-34020 |
GSK30,UCK3#,4# |
1 | ||
| 82169-0C020 |
UCK3#,4# TOWING PACKAGE |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-34020 |
GSK30,UCK3#,4# |
1 | ||
| 82169-0C020 |
UCK3#,4# TOWING PACKAGE |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0C221 |
UCK31,41 PART NUMBER LABEL=82171-0C221 |
1 | ||
| 82171-0C112 |
UCK31,41 PART NUMBER LABEL=82171-0C112 |
1 | ||
| 82171-0C380 |
UCK31,41 PART NUMBER LABEL=82171-0C380 |
1 | ||
| 82171-0C231 |
UCK31,41..SR5 PART NUMBER LABEL=82171-0C231 |
1 | ||
| 82171-0C480 |
UCK31,41 PART NUMBER LABEL=82171-0C480 |
1 | ||
| 82171-0C390 |
UCK31,41 PART NUMBER LABEL=82171-0C390 |
1 | ||
| 82171-0C211 |
UCK31,41 PART NUMBER LABEL=82171-0C211 |
1 | ||
| 82345C - DIODE | ||||
| 82345-20040 |
UCK31,41 |
1 | ||
| 82345D - DIODE | ||||
| 82345-20040 |
UCK31,41 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-22080 |
UCK31,41 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-22080 |
UCK31,41 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-22080 |
UCK31,41 NO.2 |
1 | ||
| 82666-20270 |
UCK31,41 NO.1 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-0C160 |
UCK31,41 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-0C200 |
UCK31,41 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-2A450 |
UCK31,41 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2A460 |
UCK31,41 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 90080-11332 | ||||
| 90080-11546 | ||||
| 90119-06590 | ||||
| 90119-A0036 | ||||

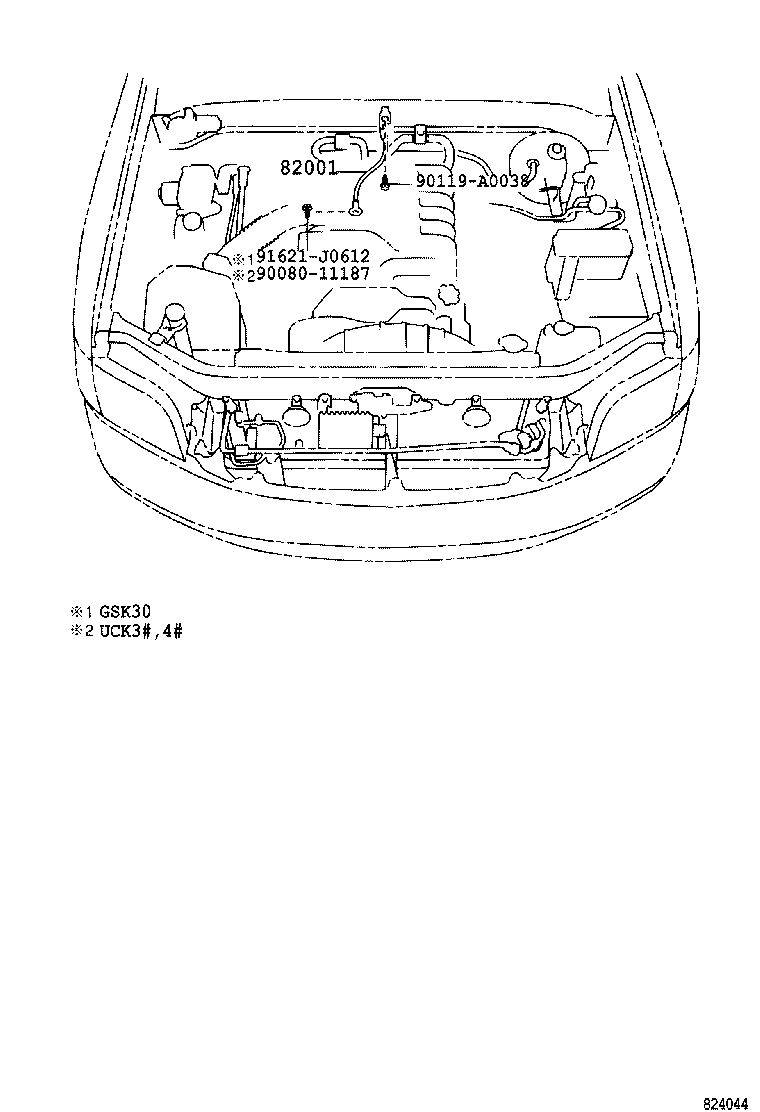

ILLUST NO. 7 OF 8(0408- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82124-0C020 |
UCK3#,4# |
1 | ||
| Common parts | ||||
| 90080-11187 | ||||
| 90119-A0038 | ||||
| 91621-J0612 | ||||

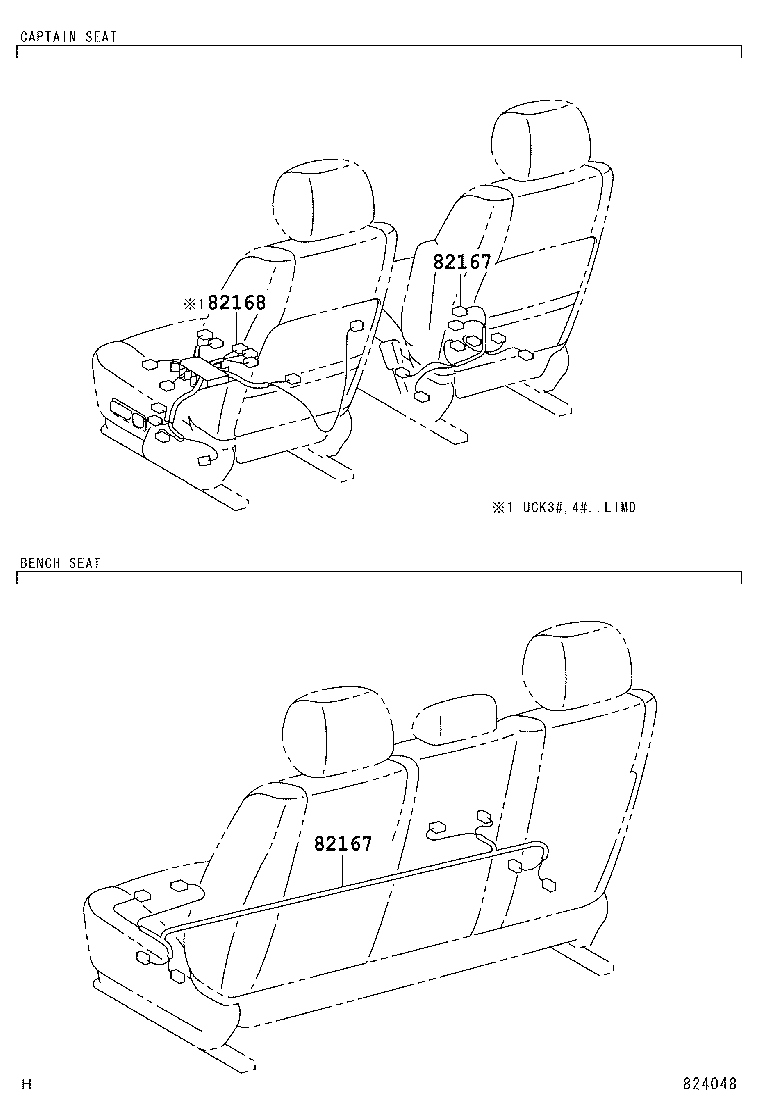

ILLUST NO. 5 OF 8(0408- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-0C090 |
GSK30,UCK3#,4#..LIMD,SR5 W(CAPTAIN SEAT) |
1 | ||
| 82167-0C080 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-0C090 |
GSK30,UCK3#,4#..LIMD,SR5 W(CAPTAIN SEAT) |
1 | ||
| 82167-0C080 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||

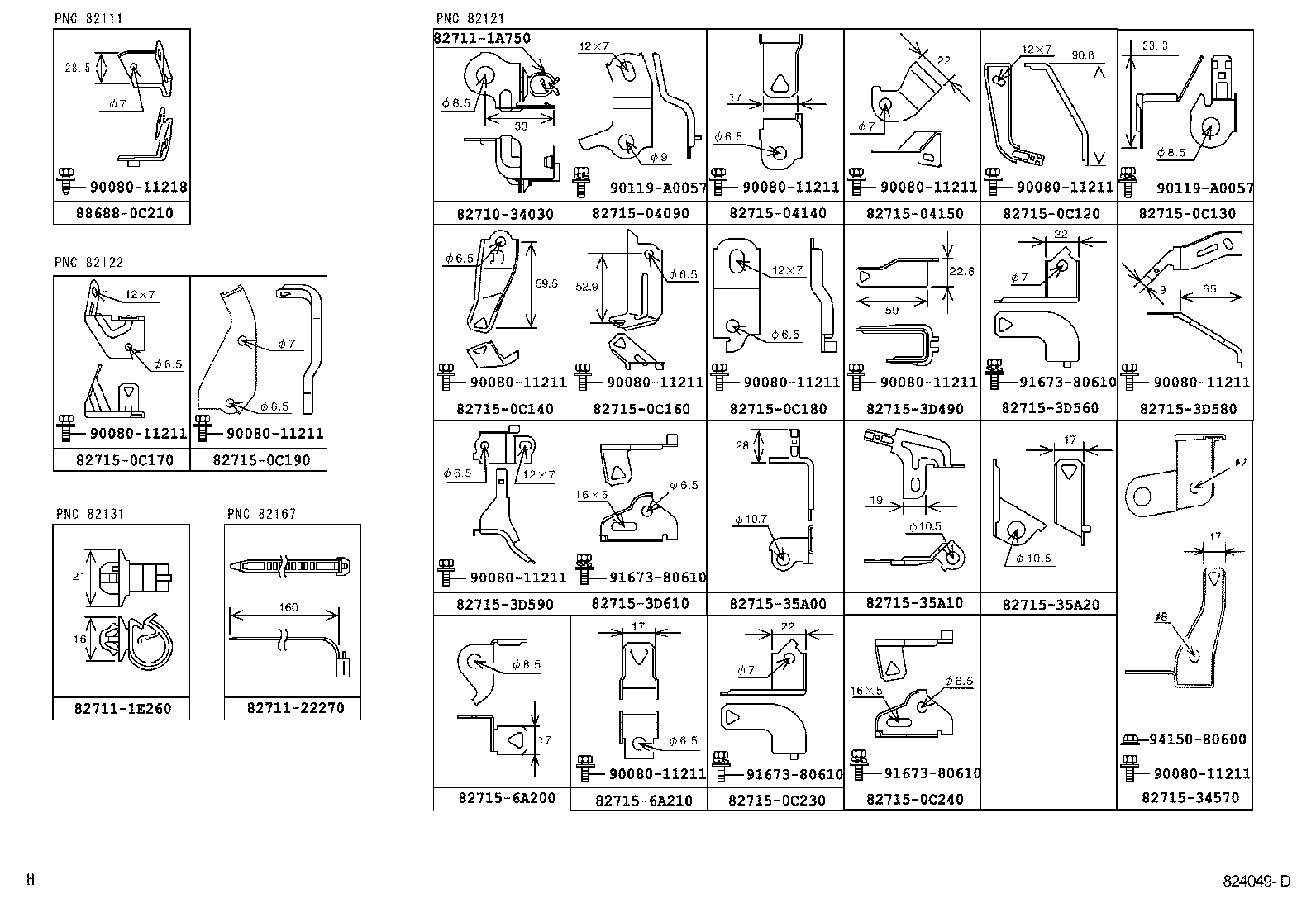

ILLUST NO. 6 OF 8(0408- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-34030 | ||||
| 82711-1A750 | ||||
| 82711-1E260 | ||||
| 82711-22270 | ||||
| 82715-04090 | ||||
| 82715-04140 | ||||
| 82715-04150 | ||||
| 82715-0C120 | ||||
| 82715-0C130 | ||||
| 82715-0C140 | ||||
| 82715-0C160 | ||||
| 82715-0C170 | ||||
| 82715-0C180 | ||||
| 82715-0C190 | ||||
| 82715-0C230 | ||||
| 82715-0C240 | ||||
| 82715-34570 | ||||
| 82715-35A00 | ||||
| 82715-35A10 | ||||
| 82715-35A20 | ||||
| 82715-3D490 | ||||
| 82715-3D560 | ||||
| 82715-3D580 | ||||
| 82715-3D590 | ||||
| 82715-3D610 | ||||
| 82715-6A200 | ||||
| 82715-6A210 | ||||
| 88688-0C210 | ||||
| 90080-11211 | ||||
| 90080-11218 | ||||
| 90119-A0057 | ||||
| 91673-80610 | ||||
| 94150-80600 | ||||

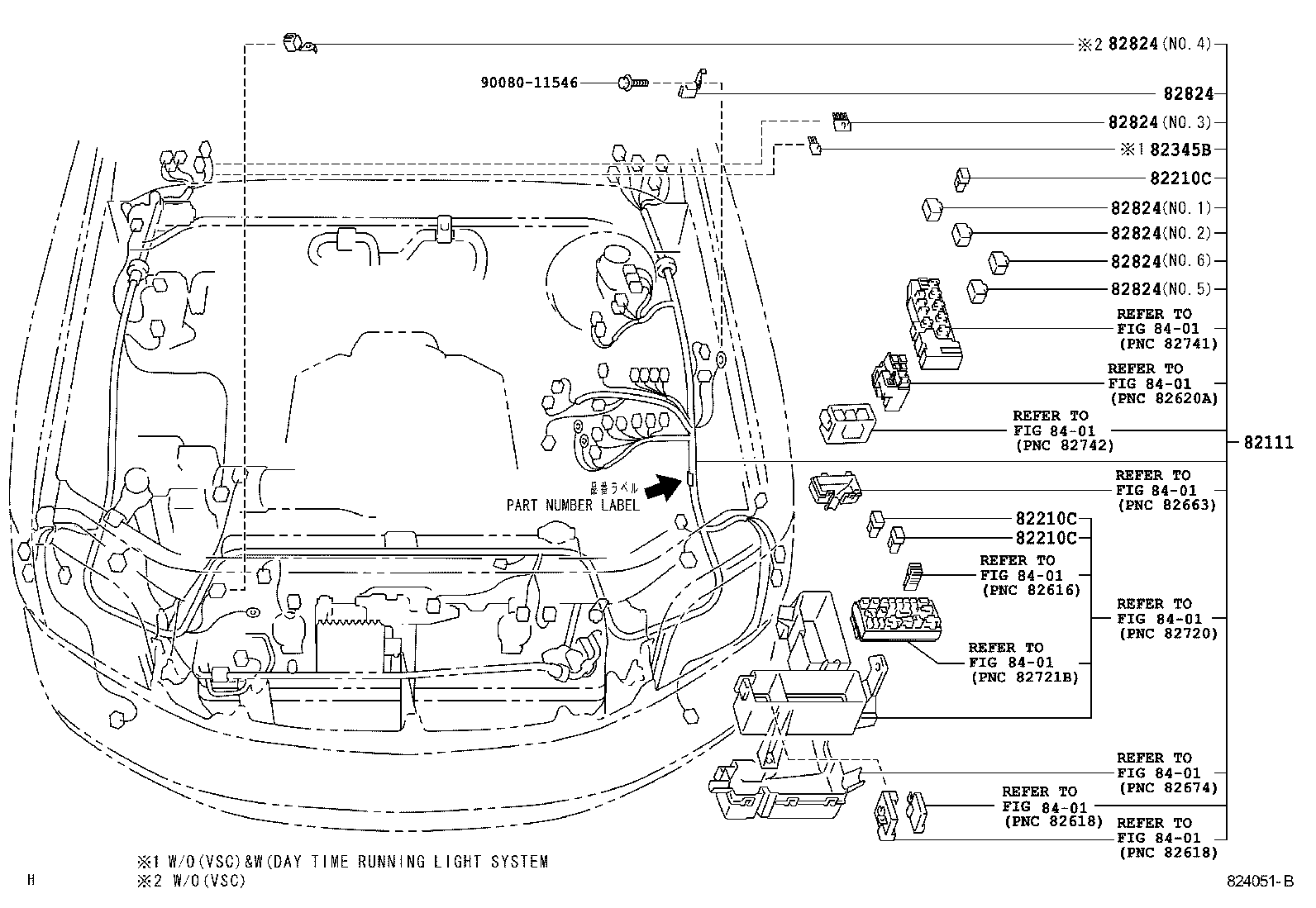

ILLUST NO. 1 OF 8(0408- )UCK31,41
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0C390 |
UCK31,41 PART NUMBER LABEL=82111-0C390 |
1 | ||
| 82111-0C380 |
UCK31,41 PART NUMBER LABEL=82111-0C380 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08283 |
UCK31,41 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
UCK31,41 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08283 |
UCK31,41 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
UCK31,41 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08283 |
UCK31,41 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
UCK31,41 40A,TERM.:FEMALE,GRN |
1 | ||
| 82345B - DIODE | ||||
| 82345-32010 |
UCK31,41 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
UCK31,41 NO.6 |
1 | ||
| 82824-50110 |
UCK31,41 NO.5 |
1 | ||
| 82824-20110 |
UCK31,41 NO.1 |
1 | ||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-48020 |
UCK31,41 NO.4 |
2 | ||
| 82824-22080 |
UCK31,41 NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
UCK31,41 NO.6 |
1 | ||
| 82824-50110 |
UCK31,41 NO.5 |
1 | ||
| 82824-20110 |
UCK31,41 NO.1 |
1 | ||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-48020 |
UCK31,41 NO.4 |
2 | ||
| 82824-22080 |
UCK31,41 NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
UCK31,41 NO.6 |
1 | ||
| 82824-50110 |
UCK31,41 NO.5 |
1 | ||
| 82824-20110 |
UCK31,41 NO.1 |
1 | ||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-48020 |
UCK31,41 NO.4 |
2 | ||
| 82824-22080 |
UCK31,41 NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
UCK31,41 NO.6 |
1 | ||
| 82824-50110 |
UCK31,41 NO.5 |
1 | ||
| 82824-20110 |
UCK31,41 NO.1 |
1 | ||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-48020 |
UCK31,41 NO.4 |
2 | ||
| 82824-22080 |
UCK31,41 NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
UCK31,41 NO.6 |
1 | ||
| 82824-50110 |
UCK31,41 NO.5 |
1 | ||
| 82824-20110 |
UCK31,41 NO.1 |
1 | ||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-48020 |
UCK31,41 NO.4 |
2 | ||
| 82824-22080 |
UCK31,41 NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
UCK31,41 NO.6 |
1 | ||
| 82824-50110 |
UCK31,41 NO.5 |
1 | ||
| 82824-20110 |
UCK31,41 NO.1 |
1 | ||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-48020 |
UCK31,41 NO.4 |
2 | ||
| 82824-22080 |
UCK31,41 NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
UCK31,41 NO.6 |
1 | ||
| 82824-50110 |
UCK31,41 NO.5 |
1 | ||
| 82824-20110 |
UCK31,41 NO.1 |
1 | ||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-48020 |
UCK31,41 NO.4 |
2 | ||
| 82824-22080 |
UCK31,41 NO.2 |
1 | ||
| Common parts | ||||
| 90080-11546 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
