UCK41L-PRBSKK (2004)
Toyota Tundra

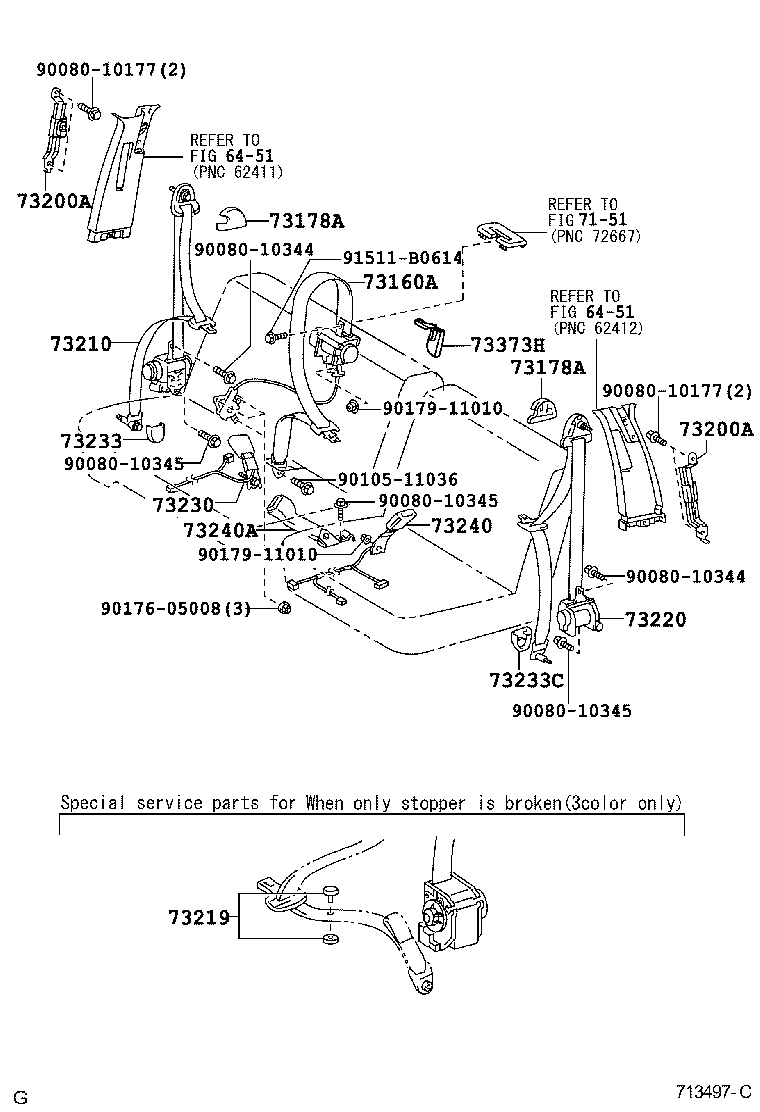

ILLUST NO. 1 OF 2(0408- )UCK31,41
FRONT SEAT(4:6 SPLIT SEAT TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73160A - SEAT BELT ASSY, FRONT CENTER, RH | ||||
| 73160-0C020B2 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 73160-0C020B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 73160-0C020E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 73178-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C020E0 |
GSK30,UCK3#,4#..DCB,RCB FAWN,TRIM42,43 |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 73178-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C020E0 |
GSK30,UCK3#,4#..DCB,RCB FAWN,TRIM42,43 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C010 |
UCK31,41 |
4 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C010 |
UCK31,41 |
4 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0C040B0 |
UCK31,41 SHADOW GRAY,TRIM12 |
1 | ||
| 73210-0C040E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 73210-0C040B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02030 |
GSK30,UCK3#,4# BEIGE |
1 | ||
| 73219-02020 |
GSK30,UCK3#,4# GRAY |
1 | ||
| 73219-02010 |
GSK30,UCK3#,4# BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0C040B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 73220-0C040B0 |
UCK31,41 SHADOW GRAY,TRIM12 |
1 | ||
| 73220-0C040E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0C090B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(4:6 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C060E0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 73230-0C130B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 73230-0C090B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(4:6 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 73230-0C060B1 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 73230-0C060B0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C130E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4# |
1 | ||
| 73230-0C090E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(4:6 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 73230-0C130B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-AA010B2 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 73233-AA010E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 73233-AA010B3 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 73233C - COVER, LAP BELT OUTER ANCHOR, LH | ||||
| 73233-AA010B2 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 73233-AA010B3 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 73233-AA010E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-0C030B0 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73240-0C030E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
1 | ||
| 73240-0C030B1 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 73240A - BELT ASSY, FRONT SEAT INNER LH | ||||
| 73240-0C070E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 73240-0C070B0 |
UCK31,41 SHADOW GRAY,TRIM12 |
1 | ||
| 73240-0C070B1 |
UCK31,41 CHARCOAL,TRIM11 |
1 | ||
| 73373H - COVER, FRONT SEAT SHOULDER BELT | ||||
| 73373-0E011 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| Common parts | ||||
| 90080-10177 | ||||
| 90080-10344 | ||||
| 90080-10345 | ||||
| 90105-11036 | ||||
| 90176-05008 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 6451 | ||||
| 7151 | ||||
