UCK41L-PRBSKK (2004)
Toyota Tundra

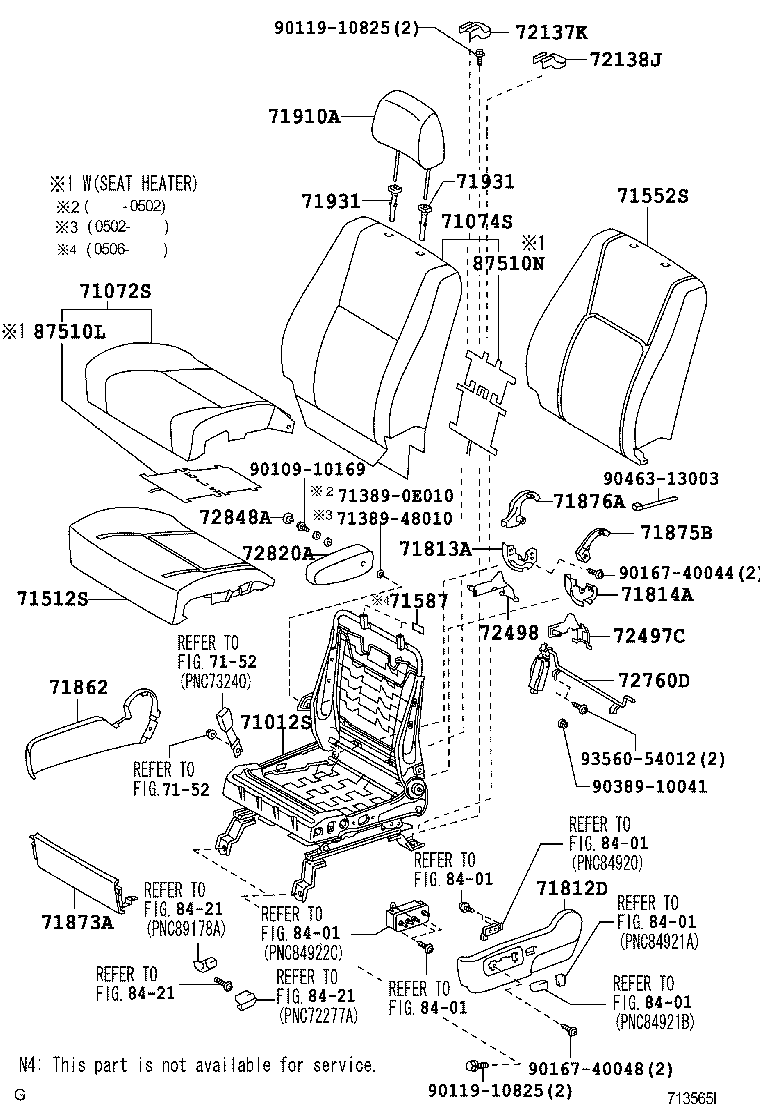

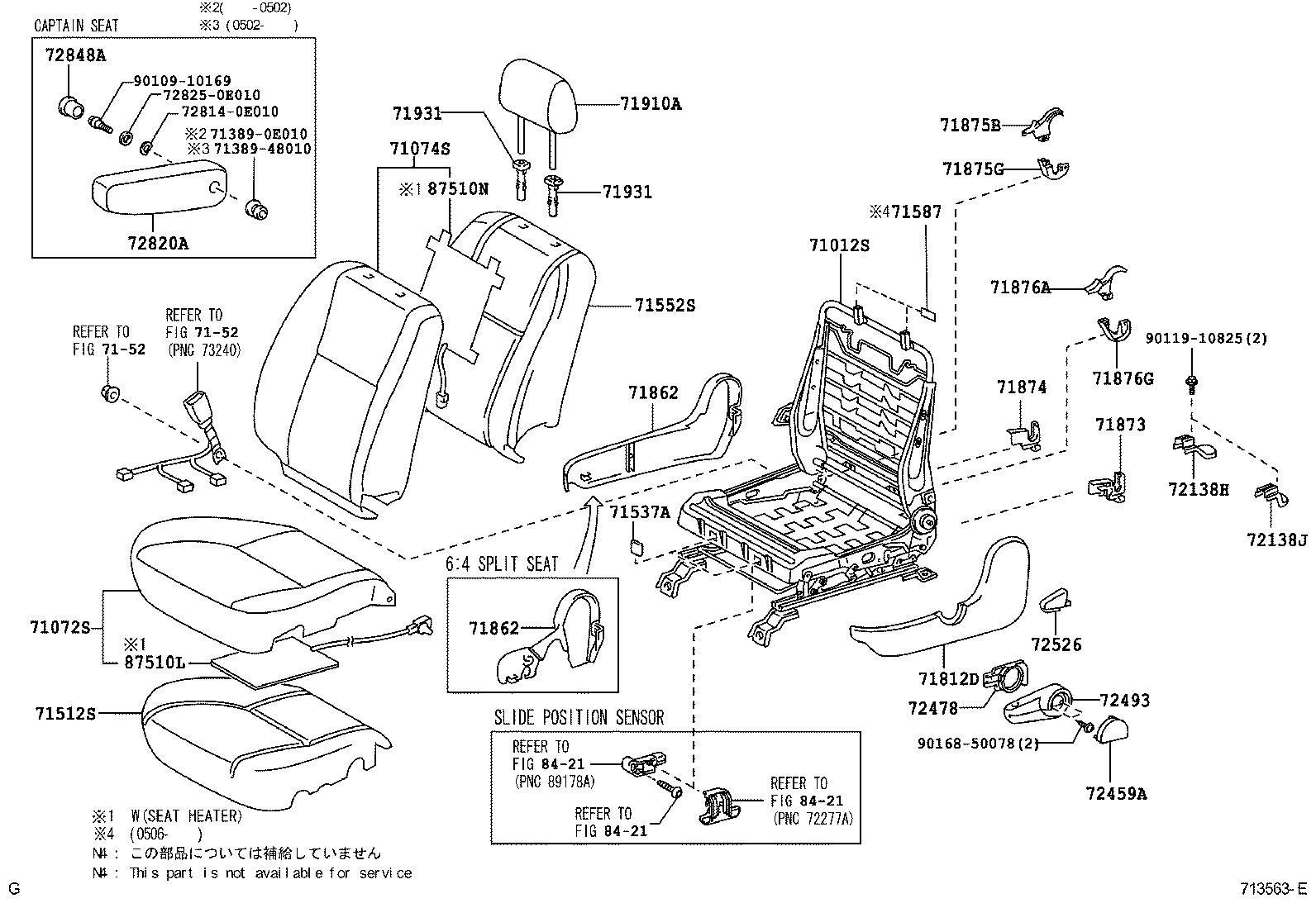

ILLUST NO. 1 OF 2(0408- )UCK31,41
CAPTAIN OR 6:4 SPRIT(LH)-W(AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C200B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C200E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180B5 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180E2 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C200B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C300B1 |
GSK30,UCK3#,4#..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71072-0C300B0 |
GSK30,UCK3#,4#..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072-0C320B1 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MEDIUM GRAY,TRIM12 |
1 | ||
| 71072-0C320B0 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C300E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
1 | ||
| 71072-0C320E0 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C290B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C250B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C330E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C320B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C320B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C250E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C320E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C290B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C250B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C290B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C330B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C330B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C480B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C480B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C480E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C490B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C490B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C490E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71074-0C530E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C540B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C530B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C530B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C540E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71074-0C540B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0C360E4 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM43 |
1 | ||
| 71200-0C360B8 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD. CHARCOAL,TRIM11 |
1 | ||
| 71200-0C440B1 |
UCK31,41..SR5 MD. GRAY,TRIM12 |
1 | ||
| 71200-0C440B0 |
UCK31,41..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 71200-0C360B9 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD. GRAY,TRIM12 |
1 | ||
| 71200-0C360E5 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM43 |
1 | ||
| 71200-0C360P1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD. GRAY,TRIM12 |
1 | ||
| 71200-0C440E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71200-0C440E5 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71200-0C440P0 |
UCK31,41..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 71200-0C360P0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD. CHARCOAL,TRIM11 |
1 | ||
| 71200-0C790B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MED CHARCOAL,TRIM11 |
1 | ||
| 71200-0C440P1 |
UCK31,41..SR5 MD. GRAY,TRIM12 |
1 | ||
| 71200-0C850B0 |
UCK31,41..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 71200-0C790E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71200-0C850B1 |
UCK31,41..SR5 MED GRAY,TRIM12 |
1 | ||
| 71200-0C790B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MED GRAY,TRIM12 |
1 | ||
| 71200-0C850E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0C010 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71512-0C030 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-04050 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT),LH SEAT |
3 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0C010 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0C090E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71812-0C090B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71812-0C090E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71812-AA140B4 |
GSK30,UCK3#,4#..SR5 MC.CHARCOAL,TRIM12 |
1 | ||
| 71812-AA140E1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71812-0C090B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71812-AA140B3 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0C030B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C030E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71862-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71862-0C060B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C060B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71862-0C060E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71862-0C030B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0C030B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C030E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71862-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71862-0C060B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C060B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71862-0C060E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71862-0C030B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0C030E0 |
UCK31,41 FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-0C030B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71873-0C030B1 |
UCK31,41 MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-58020 |
UCK31,41..SR5 RH SEAT,LH SEAT |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C030B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71875-AA050E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 71875-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-AA060 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71876-AA050E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 71876-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AA060 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60020B4 |
GSK30,UCK3#,4#..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72459-60020E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM42,43 |
1 | ||
| 72459-60020B0 |
GSK30,UCK3#,4#..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
GSK30,UCK3#,4#..SR5 |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-60020B0 |
GSK30,UCK3#,4#..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72493-60020E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM42,43 |
1 | ||
| 72493-60020B4 |
GSK30,UCK3#,4#..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-AA030B5 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 72526-AA030B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72526-AA030E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-0C110B0 |
GSK30,UCK3#,4#..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 72820-0C110B1 |
GSK30,UCK3#,4#..SR5 MD GRAY,TRIM12 |
1 | ||
| 72820-0C110E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM42,43 |
1 | ||
| 72820-0C130B0 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 72820-0C130B1 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
1 | ||
| 72820-0C130E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-0E010B2 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GARY,TRIM12 |
2 | ||
| 72848-0E010B1 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72848-0E010E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
2 | ||
| Common parts | ||||
| 71389-0E010 | ||||
| 71389-48010 | ||||
| 72814-0E010 | ||||
| 72825-0E010 | ||||
| 82711-52070 | ||||
| 90109-10169 | ||||
| 90119-10825 | ||||
| 90168-50078 | ||||
| 90467-10201 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||

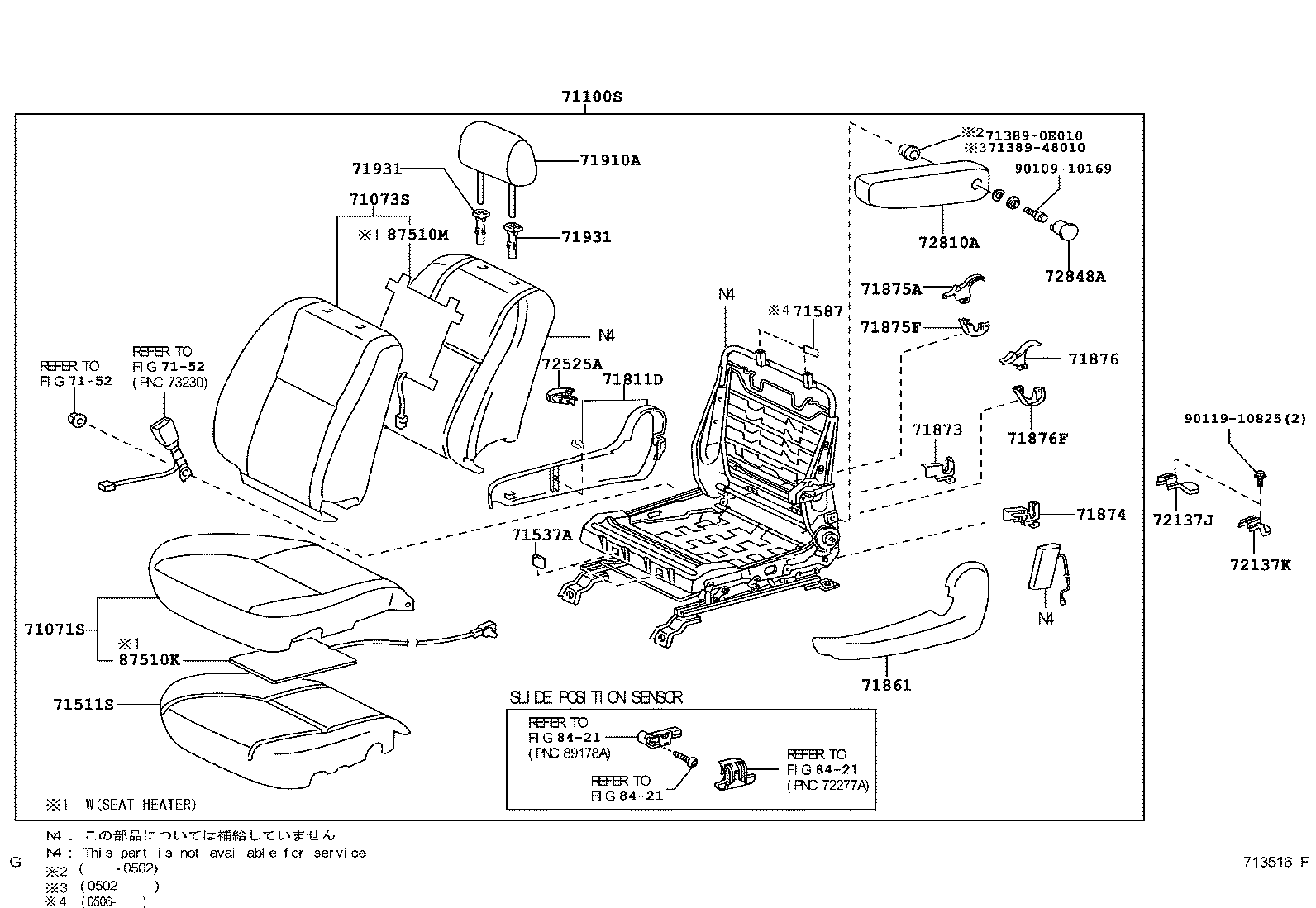

ILLUST NO. 1 OF 2(0408- )UCK31,41
CAPTAIN SEAT(RH)-W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C320B4 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71071-0C320E2 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43 |
1 | ||
| 71071-0C260B5 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71071-0C260B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71071-0C480B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-0C320B5 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71071-0C480E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71071-0C480B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C260E2 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71071-0C520E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71071-0C520B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71071-0C520B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0C350B3 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MD.GRAY,TRIM11 |
1 | ||
| 71073-0C350B2 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MD.CHARCOAL,TRIM12 |
1 | ||
| 71073-0C390B3 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71073-0C390B2 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 71073-0C390E1 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71073-0C350E1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71073-0C380B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C300B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C300E1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71073-0C300B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71073-0C380B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71073-0C380E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71073-0C430E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C430B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C460B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. CHARCOAL,TRIM11 |
1 | ||
| 71073-0C460E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM43 |
1 | ||
| 71073-0C460B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C430B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. CHARCOAL,TRIM11 |
1 | ||
| 71073-0C650B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C660B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C650E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71073-0C660B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C650B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C720B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C710B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C710B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C710E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71073-0C720E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C660E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C720B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0C420B8 |
UCK31,41..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 71100-0C420E4 |
UCK31,41..SR5 FAWN,TRIM43 |
1 | ||
| 71100-0C420P0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71100-0C420B9 |
UCK31,41..SR5 MD. GRAY,TRIM12 |
1 | ||
| 71100-0C420E5 |
UCK31,41..SR5 FAWN,TRIM43 |
1 | ||
| 71100-0C870E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71100-0C870B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MED CHARCOAL,TRIM11 |
1 | ||
| 71100-0C870B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MED GRAY,TRIM12 |
1 | ||
| 71100-0CA50E0 |
UCK31,41..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71100-0CA50B0 |
UCK31,41..SR5 W(FRONT 6:4 SPRIT SEAT),MED CHARCOAL,TRIM11 |
1 | ||
| 71100-0CA50B1 |
UCK31,41..SR5 W(FRONT 6:4 SPRIT SEAT),MED GRAY,TRIM12 |
1 | ||
| 71100-0C420P1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71511-0C130 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-04050 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT),LH SEAT |
3 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0C010 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C070E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71811-0C070B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-0C070B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71811-AA090B2 |
UCK31,41 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-AA090E0 |
UCK31,41 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71811-0C070E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71811-AA090B3 |
UCK31,41 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C070B1 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861-0C070E0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71861-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71861-0C040B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861-0C070B0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C040B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0C030E0 |
UCK31,41 FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-0C030B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71873-0C030B1 |
UCK31,41 MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-58020 |
UCK31,41..SR5 RH SEAT,LH SEAT |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C030B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B3 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-AA050B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71875-0C080B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71875-0C080B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C080E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71875-0C080E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71875-AA050E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-AA060 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
1 | ||
| 71876-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-AA060 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240E0 |
UCK31,41..SR5 FAWN,TRIM42,43 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C260B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C260B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72137-0C260E0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240E0 |
UCK31,41..SR5 FAWN,TRIM42,43 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C370B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72137-0C370E0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 72137-0C370B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AA040B5 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 72525-AA040B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72525-AA040E0 |
UCK31,41;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-0C190B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD. CHARCOAL,TRIM11 |
1 | ||
| 72810-0C210B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72810-0C190E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 72810-0C190B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD. GRAY,TRIM12 |
1 | ||
| 72810-0C210E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 72810-0C210B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72810-0C120E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 72810-0C120B0 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 72810-0C240B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 72810-0C120B1 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
1 | ||
| 72810-0C240B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12 |
1 | ||
| 72810-0C240E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-0E010B2 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GARY,TRIM12 |
2 | ||
| 72848-0E010B1 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72848-0E010E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
2 | ||
| Common parts | ||||
| 71389-0E010 | ||||
| 71389-48010 | ||||
| 90109-10169 | ||||
| 90119-10825 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||

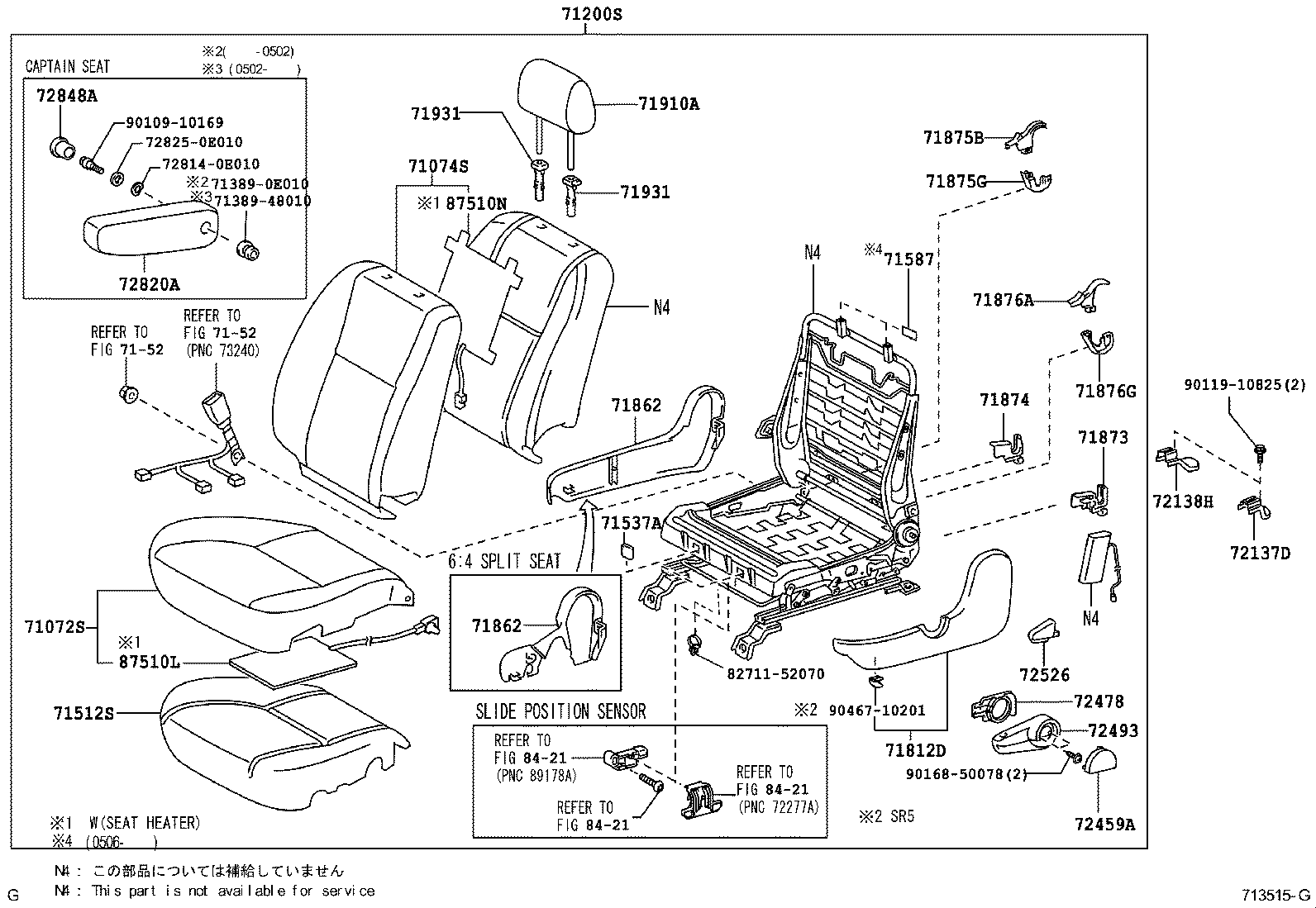

ILLUST NO. 1 OF 2(0408- )UCK31,41
CAPTAIN(LH)-W(POWER SEAT & AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C200B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C200E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180B5 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180E2 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C200B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C300B1 |
GSK30,UCK3#,4#..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71072-0C300B0 |
GSK30,UCK3#,4#..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072-0C320B1 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MEDIUM GRAY,TRIM12 |
1 | ||
| 71072-0C320B0 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C300E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
1 | ||
| 71072-0C320E0 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C290B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C250B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C330E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C320B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C320B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C250E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C320E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C290B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C250B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C290B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C330B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C330B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C480B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C480B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C480E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C490B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C490B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C490E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71074-0C530E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C540B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C530B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C530B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C540E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71074-0C540B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0C360E4 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM43 |
1 | ||
| 71200-0C360B8 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD. CHARCOAL,TRIM11 |
1 | ||
| 71200-0C440B1 |
UCK31,41..SR5 MD. GRAY,TRIM12 |
1 | ||
| 71200-0C440B0 |
UCK31,41..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 71200-0C360B9 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD. GRAY,TRIM12 |
1 | ||
| 71200-0C360E5 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM43 |
1 | ||
| 71200-0C360P1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD. GRAY,TRIM12 |
1 | ||
| 71200-0C440E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71200-0C440E5 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71200-0C440P0 |
UCK31,41..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 71200-0C360P0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD. CHARCOAL,TRIM11 |
1 | ||
| 71200-0C790B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MED CHARCOAL,TRIM11 |
1 | ||
| 71200-0C440P1 |
UCK31,41..SR5 MD. GRAY,TRIM12 |
1 | ||
| 71200-0C850B0 |
UCK31,41..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 71200-0C790E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71200-0C850B1 |
UCK31,41..SR5 MED GRAY,TRIM12 |
1 | ||
| 71200-0C790B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MED GRAY,TRIM12 |
1 | ||
| 71200-0C850E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0C010 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71512-0C030 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0C010 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0C090E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71812-0C090B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71812-0C090E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71812-AA140B4 |
GSK30,UCK3#,4#..SR5 MC.CHARCOAL,TRIM12 |
1 | ||
| 71812-AA140E1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71812-0C090B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71812-AA140B3 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0C030B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C030E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71862-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71862-0C060B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C060B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71862-0C060E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71862-0C030B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0C040B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C040B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-58020E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43,LH SEAT |
1 | ||
| 71873-0C040B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C040B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71873-58020B2 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12,LH SEAT |
1 | ||
| 71873-58020C0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) BLACK,TRIM11,LH SEAT |
1 | ||
| 71873-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C040E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71875-AA050E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 71875-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71876-AA050E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 71876-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-0C110B0 |
GSK30,UCK3#,4#..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 72820-0C110B1 |
GSK30,UCK3#,4#..SR5 MD GRAY,TRIM12 |
1 | ||
| 72820-0C110E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM42,43 |
1 | ||
| 72820-0C130B0 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 72820-0C130B1 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
1 | ||
| 72820-0C130E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-0E010B2 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GARY,TRIM12 |
2 | ||
| 72848-0E010B1 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72848-0E010E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
2 | ||
| Common parts | ||||
| 71389-0E010 | ||||
| 71389-48010 | ||||
| 90109-10169 | ||||
| 90119-10825 | ||||
| 90389-10041 | ||||
| 90463-13003 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 2(0408- )UCK31,41
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66995 - RETAINER, CUP HOLDER | ||||
| 66995-0C010 |
UCK31,41 |
6 | ||
| 66995 - RETAINER, CUP HOLDER | ||||
| 66995-0C010 |
UCK31,41 |
6 | ||
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-0C040 |
UCK31,41 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-0C080 |
UCK31,41 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0C021 |
UCK31,41 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0C010 |
UCK31,41 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-0C190E1 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71075-0C190B2 |
UCK31,41..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71075-0C190B3 |
UCK31,41..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71075-0C280B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71075-0C280B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71075-0C280E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-0C180E1 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71076-0C280B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71076-0C180B2 |
UCK31,41..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71076-0C180B3 |
UCK31,41..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71076-0C280B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71076-0C280E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0C170B2 |
UCK31,41..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71077-0C170B3 |
UCK31,41..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71077-0C170E1 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71077-0C270B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71077-0C270E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71077-0C270B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0C040E2 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71078-0C040B4 |
UCK31,41..SR5 MED GRAY,TRIM12 |
1 | ||
| 71078-0C040B5 |
UCK31,41..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 71078-0C170B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71078-0C170B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71078-0C170E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-0C020 |
UCK31,41 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-0C020 |
UCK31,41 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0C060 |
UCK31,41 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0C030 |
UCK31,41 |
1 | ||
| 71881D - BOARD, REAR SEAT BACK, RH | ||||
| 71881-0C030 |
UCK31,41 |
1 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-0C040 |
UCK31,41 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71930-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E1 |
UCK31,41 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71931-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71930-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E1 |
UCK31,41 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71931-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71930-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E1 |
UCK31,41 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71931-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71930-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E1 |
UCK31,41 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71931-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71930-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E1 |
UCK31,41 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71931-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71930-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E1 |
UCK31,41 W(LOCK),FAWN,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71931-0C010B1 |
UCK31,41;GSK30,UCK30,40..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0C150B0 |
UCK31,41..SR5 MED GRAY,TRIM12 |
2 | ||
| 71940-0C150B1 |
UCK31,41..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71940-0C150E0 |
UCK31,41..SR5 FAWN,TRIM4# |
2 | ||
| 71940-0C260B0 |
UCK31,41..SR5 MED. GRAY,TRIM12 |
2 | ||
| 71940-0C260E0 |
UCK31,41..SR5 FAWN,TRIM4# |
2 | ||
| 71940-0C260B1 |
UCK31,41..SR5 MED. CHARCOAL,TRIM11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0C150B0 |
UCK31,41..SR5 MED GRAY,TRIM12 |
2 | ||
| 71940-0C150B1 |
UCK31,41..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71940-0C150E0 |
UCK31,41..SR5 FAWN,TRIM4# |
2 | ||
| 71940-0C260B0 |
UCK31,41..SR5 MED. GRAY,TRIM12 |
2 | ||
| 71940-0C260E0 |
UCK31,41..SR5 FAWN,TRIM4# |
2 | ||
| 71940-0C260B1 |
UCK31,41..SR5 MED. CHARCOAL,TRIM11 |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0C140B1 |
UCK31,41..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 71960-0C170B1 |
UCK31,41..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71960-0C140B0 |
UCK31,41..SR5 MED GRAY,TRIM12 |
1 | ||
| 71960-0C170B0 |
UCK31,41..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71960-0C140E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71960-0C170E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0C150B6 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72830-0C150E3 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 72830-0C150B7 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72830-0C240B0 |
UCK31,41..SR5 MED. GRAY,TRIM12 |
1 | ||
| 72830-0C240B1 |
UCK31,41..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 72830-0C240E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 72833A - PLATE, SEAT CENTER ARMREST, INNER | ||||
| 72833-0C030 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
2 | ||
| 72833A - PLATE, SEAT CENTER ARMREST, INNER | ||||
| 72833-0C030 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
2 | ||
| Common parts | ||||
| 90084-46024 | ||||
| 90109-08168 | ||||
ILLUST NO. 2 OF 2(0408- )UCK31,41
REAR SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-0C010 |
UCK31,41 |
2 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-0C010 |
UCK31,41 |
2 | ||
| 71321B - HINGE, REAR SEAT CUSHION, RH | ||||
| 71321-0C040 |
UCK31,41 |
1 | ||
| 71322C - HINGE, REAR SEAT CUSHION, LH | ||||
| 71322-0C030 |
UCK31,41 |
1 | ||
| 71324D - CUSHION, REAR SEAT, RH | ||||
| 71324-0C010 |
UCK31,41 |
1 | ||
| 71331B - PIN, REAR SEAT HINGE, RH | ||||
| 71331-0C020 |
UCK31,41 |
2 | ||
| 71357A - PLATE, REAR SEAT HINGE SET, RH | ||||
| 71357-0C010 |
UCK31,41 |
4 | ||
| 71357A - PLATE, REAR SEAT HINGE SET, RH | ||||
| 71357-0C010 |
UCK31,41 |
4 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-0C040 |
UCK31,41 |
2 | ||
| 71628G - SPACER, REAR SEAT CUSHION, RH | ||||
| 71628-0C010 |
UCK31,41 |
2 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71691-0C020E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71691-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
3 | ||
| 71692-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
3 | ||
| 71692-0C010E1 |
UCK31,41 FAWN,TRIM42,43 |
3 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-0C011E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71833-0C011B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71833-0C011B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71834-0C010E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71834-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72501F - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-0C040 |
UCK31,41 |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-0C021E2 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72525-0C021B3 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72525-0C021B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0C010 |
UCK31,41 |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-0C030 |
UCK31,41 |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-0C030 |
UCK31,41 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-34020 |
UCK31,41 LH |
1 | ||
| 72740-0C070 |
UCK31,41 RH |
1 | ||
| 72907B - COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH | ||||
| 72907-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72907-0C030E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72907-0C030B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 78920B - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH | ||||
| 78910-0C010E3 |
UCK31,41 FAWN,TRIM42,43,LH |
1 | ||
| 78910-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH |
1 | ||
| 78910-0C020E1 |
UCK31,41 FAWN,TRIM42,43,RH |
1 | ||
| 78910-0C010B2 |
UCK31,41 MD.GRAY,TRIM12,LH |
1 | ||
| 78910-0C020B1 |
UCK31,41 MD.GRAY,TRIM12,RH |
1 | ||
| 78910-0C010B1 |
UCK31,41 MD.CHARCOAL,TRIM11,LH |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0C010B3 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 78950-0C010B2 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 78950-0C010E2 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| Common parts | ||||
| 72702-0C010 | ||||
| 82711-12120 | ||||
| 90080-10248 | ||||
| 90084-16010 | ||||
| 90105-A0018 | ||||
| 90119-10825 | ||||
| 90119-A0034 | ||||
| 90178-10001 | ||||
| 90183-04057 | ||||
| 93240-56025 | ||||
| 93560-54012 | ||||
| 93560-56014 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(0408- )UCK31,41
REAR SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64618B - CLAMP, BACK DOOR LOCK CONTROL CABLE | ||||
| 64618-22020 |
UCK31,41 |
2 | ||
| 71270 - BRACKET ASSY, SEAT, INNER RH | ||||
| 71270-0C010 |
UCK31,41 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71301-0C020 |
UCK31,41 |
2 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71301-0C020 |
UCK31,41 |
2 | ||
| 71305C - STAY SUB-ASSY, REAR SEAT | ||||
| 71305-34020 |
UCK31,41 |
1 | ||
| 71321C - HINGE, REAR SEAT CUSHION | ||||
| 71321-0C050 |
UCK31,41 |
1 | ||
| 71322E - HINGE, REAR SEAT CUSHION, LH | ||||
| 71322-0C040 |
UCK31,41 |
1 | ||
| 71324E - CUSHION, REAR SEAT, LH | ||||
| 71324-0C010 |
UCK31,41 |
1 | ||
| 71331C - PIN, REAR SEAT HINGE, LH | ||||
| 71331-0C020 |
UCK31,41 |
2 | ||
| 71357B - PLATE, REAR SEAT HINGE SET, LH | ||||
| 71357-0C010 |
UCK31,41 |
4 | ||
| 71357B - PLATE, REAR SEAT HINGE SET, LH | ||||
| 71357-0C010 |
UCK31,41 |
4 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-0C040 |
UCK31,41 |
2 | ||
| 71628H - SPACER, REAR SEAT CUSHION, LH | ||||
| 71628-0C010 |
UCK31,41 |
2 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
3 | ||
| 71692-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
3 | ||
| 71692-0C010E1 |
UCK31,41 FAWN,TRIM42,43 |
3 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
3 | ||
| 71692-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
3 | ||
| 71692-0C010E1 |
UCK31,41 FAWN,TRIM42,43 |
3 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-0C010 |
UCK31,41 |
2 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-0C010 |
UCK31,41 |
2 | ||
| 71833H - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71833-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71833-0C020E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71834G - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71834-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71834-0C020E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71878-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71878-0C010E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71879-0C010E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71879-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-0C010 |
UCK31,41 |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72526-0C010E2 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72526-0C010B3 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72551A - COVER, RECLINING HINGE | ||||
| 72551-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 72551-0C020E1 |
UCK31,41 FAWN,TRIM42,43 |
2 | ||
| 72551-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 72551A - COVER, RECLINING HINGE | ||||
| 72551-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 72551-0C020E1 |
UCK31,41 FAWN,TRIM42,43 |
2 | ||
| 72551-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0C010 |
UCK31,41 |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-0C020 |
UCK31,41 |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-0C020 |
UCK31,41 |
2 | ||
| 72720B - ADJUSTER ASSY, REAR SEAT BACK, INNER LH | ||||
| 72720-34020 |
UCK31,41 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-34020 |
UCK31,41 LH |
1 | ||
| 72740-0C070 |
UCK31,41 RH |
1 | ||
| 72745 - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60050B3 |
UCK31,41 MD.GRAY,TRIM12 |
4 | ||
| 72745-60050B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
4 | ||
| 72745-60050E1 |
UCK31,41 FAWN,TRIM42,43 |
4 | ||
| 72745 - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60050B3 |
UCK31,41 MD.GRAY,TRIM12 |
4 | ||
| 72745-60050B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
4 | ||
| 72745-60050E1 |
UCK31,41 FAWN,TRIM42,43 |
4 | ||
| 72908B - COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH | ||||
| 72908-0C010E3 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72908-0C010B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72908-0C010B2 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72995-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72995-0C030B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72995-0C030E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72998B - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72998-0C020E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72998-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72999B - COVER, REAR SEAT CUSHION SIDE, LH | ||||
| 72999-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72999-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72999-0C020E1 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 78920B - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH | ||||
| 78910-0C010E3 |
UCK31,41 FAWN,TRIM42,43,LH |
1 | ||
| 78910-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH |
1 | ||
| 78910-0C020E1 |
UCK31,41 FAWN,TRIM42,43,RH |
1 | ||
| 78910-0C010B2 |
UCK31,41 MD.GRAY,TRIM12,LH |
1 | ||
| 78910-0C020B1 |
UCK31,41 MD.GRAY,TRIM12,RH |
1 | ||
| 78910-0C010B1 |
UCK31,41 MD.CHARCOAL,TRIM11,LH |
1 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78950-0C010B2 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 78950-0C010E2 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 78950-0C010B3 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 79121 - BRACKET, NO.1 SEAT CUSHION | ||||
| 79121-0C010 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 68961-23010 | ||||
| 72702-0C010 | ||||
| 72702-60030 | ||||
| 82711-12120 | ||||
| 90084-16010 | ||||
| 90105-11033 | ||||
| 90119-10825 | ||||
| 90119-12154 | ||||
| 90119-A0034 | ||||
| 90167-40044 | ||||
| 90179-08153 | ||||
| 90183-04057 | ||||
| 93240-56025 | ||||
| 93560-54012 | ||||
| 93560-56014 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 2(0408- )LIMD,SR5
CAPTAIN OR 6:4 SPLIT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-0C010 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71120-0C080 |
UCK31,41..SR5 W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C200B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C200E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180B5 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180E2 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C200B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C300B1 |
GSK30,UCK3#,4#..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71072-0C300B0 |
GSK30,UCK3#,4#..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072-0C320B1 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MEDIUM GRAY,TRIM12 |
1 | ||
| 71072-0C320B0 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C300E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
1 | ||
| 71072-0C320E0 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C290B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C250B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C330E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C320B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C320B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C250E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C320E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C290B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C250B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C290B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C330B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C330B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C480B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C480B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C480E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C490B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C490B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C490E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71074-0C530E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C540B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C530B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C530B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C540E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71074-0C540B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0C010 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71512-0C030 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-04050 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT),LH SEAT |
3 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0C110 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71552-0C120 |
UCK31,41 |
1 | ||
| 71552-0C080 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0C010 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0C090E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71812-0C090B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71812-0C090E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71812-AA140B4 |
GSK30,UCK3#,4#..SR5 MC.CHARCOAL,TRIM12 |
1 | ||
| 71812-AA140E1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71812-0C090B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71812-AA140B3 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0C030B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C030E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71862-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71862-0C060B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C060B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71862-0C060E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71862-0C030B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0C030B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C030E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71862-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71862-0C060B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C060B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71862-0C060E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71862-0C030B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0C030E0 |
UCK31,41 FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-0C030B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71873-0C030B1 |
UCK31,41 MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-58020 |
UCK31,41..SR5 RH SEAT,LH SEAT |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C030B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71875-AA050E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 71875-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-AA060 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71876-AA050E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 71876-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AA060 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60020B4 |
GSK30,UCK3#,4#..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72459-60020E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM42,43 |
1 | ||
| 72459-60020B0 |
GSK30,UCK3#,4#..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
GSK30,UCK3#,4#..SR5 |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-60020B0 |
GSK30,UCK3#,4#..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72493-60020E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM42,43 |
1 | ||
| 72493-60020B4 |
GSK30,UCK3#,4#..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-AA030B5 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 72526-AA030B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72526-AA030E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-0C110B0 |
GSK30,UCK3#,4#..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 72820-0C110B1 |
GSK30,UCK3#,4#..SR5 MD GRAY,TRIM12 |
1 | ||
| 72820-0C110E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM42,43 |
1 | ||
| 72820-0C130B0 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 72820-0C130B1 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
1 | ||
| 72820-0C130E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-0E010B2 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GARY,TRIM12 |
2 | ||
| 72848-0E010B1 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72848-0E010E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
2 | ||
| Common parts | ||||
| 71389-0E010 | ||||
| 71389-48010 | ||||
| 72814-0E010 | ||||
| 72825-0E010 | ||||
| 90109-10169 | ||||
| 90119-10825 | ||||
| 90168-50078 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 2(0408- )LIMD,SR5
CAPTAIN(LH)-W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-0C010 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71120-0C080 |
UCK31,41..SR5 W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C200B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C200E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180B5 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180E2 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71072-0C180B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C200B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71072-0C300B1 |
GSK30,UCK3#,4#..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71072-0C300B0 |
GSK30,UCK3#,4#..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072-0C320B1 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MEDIUM GRAY,TRIM12 |
1 | ||
| 71072-0C320B0 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71072-0C200B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C300E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
1 | ||
| 71072-0C320E0 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C290B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C250B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C330E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C320B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C320B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C250E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C320E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C290B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C250B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C290B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71074-0C290E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71074-0C330B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C330E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C330B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71074-0C480B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C480B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C480E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C490B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C490B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C490E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71074-0C530E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71074-0C540B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C530B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71074-0C530B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71074-0C540E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71074-0C540B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0C010 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71512-0C030 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0C110 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71552-0C120 |
UCK31,41 |
1 | ||
| 71552-0C080 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0C010 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0C090E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71812-0C090B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71812-0C090E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71812-AA140B4 |
GSK30,UCK3#,4#..SR5 MC.CHARCOAL,TRIM12 |
1 | ||
| 71812-AA140E1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71812-0C090B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71812-AA140B3 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0C030B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C030E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71862-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71862-0C060B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71862-0C060B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71862-0C060E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71862-0C030B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0C040B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C040B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-58020E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43,LH SEAT |
1 | ||
| 71873-0C040B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C040B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71873-58020B2 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12,LH SEAT |
1 | ||
| 71873-58020C0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) BLACK,TRIM11,LH SEAT |
1 | ||
| 71873-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C040E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71875-AA050E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 71875-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71876-AA050E0 |
UCK31,41..SR5;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 71876-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240E0 |
UCK31,41..SR5 FAWN,TRIM42,43 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C370B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72137-0C370E0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 72137-0C370B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-0C110B0 |
GSK30,UCK3#,4#..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 72820-0C110B1 |
GSK30,UCK3#,4#..SR5 MD GRAY,TRIM12 |
1 | ||
| 72820-0C110E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM42,43 |
1 | ||
| 72820-0C130B0 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 72820-0C130B1 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
1 | ||
| 72820-0C130E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-0E010B2 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GARY,TRIM12 |
2 | ||
| 72848-0E010B1 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72848-0E010E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
2 | ||
| Common parts | ||||
| 71389-0E010 | ||||
| 71389-48010 | ||||
| 90109-10169 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 90463-13003 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 2(0408- )LIMD,SR5
CAPTAIN SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-0C170 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71110-0C010 |
UCK31,41 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71610-0C140 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C320B4 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71071-0C320E2 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43 |
1 | ||
| 71071-0C260B5 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71071-0C260B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71071-0C480B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-0C320B5 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71071-0C480E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71071-0C480B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C260E2 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71071-0C520E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71071-0C520B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71071-0C520B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0C350B3 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MD.GRAY,TRIM11 |
1 | ||
| 71073-0C350B2 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MD.CHARCOAL,TRIM12 |
1 | ||
| 71073-0C390B3 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71073-0C390B2 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 71073-0C390E1 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71073-0C350E1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71073-0C380B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C300B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C300E1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71073-0C300B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71073-0C380B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71073-0C380E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71073-0C430E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C430B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C460B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. CHARCOAL,TRIM11 |
1 | ||
| 71073-0C460E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM43 |
1 | ||
| 71073-0C460B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C430B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. CHARCOAL,TRIM11 |
1 | ||
| 71073-0C650B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C660B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C650E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71073-0C660B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C650B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C720B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C710B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C710B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C710E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71073-0C720E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C660E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C720B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71511-0C130 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-04050 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT),LH SEAT |
3 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0C090 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71551-0C130 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0C010 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C070E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71811-0C070B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-0C070B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71811-AA090B2 |
UCK31,41 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-AA090E0 |
UCK31,41 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71811-0C070E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71811-AA090B3 |
UCK31,41 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C070B1 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861-0C070E0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71861-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71861-0C040B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861-0C070B0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C040B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0C030E0 |
UCK31,41 FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-0C030B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71873-0C030B1 |
UCK31,41 MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-58020 |
UCK31,41..SR5 RH SEAT,LH SEAT |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C030B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B3 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-AA050B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71875-0C080B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71875-0C080B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C080E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71875-0C080E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71875-AA050E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-AA060 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
1 | ||
| 71876-AA050B3 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876-AA050B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-AA060 |
GSK30,UCK3#,4#..LIMD,SR5 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 72137H - COVER, FRONT SEAT TRACK, RH FRONT OUTER | ||||
| 72137-0C260E0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 72137-0C260B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 72137-0C260B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER | ||||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C370B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72137-0C370E0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 72137-0C370B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AA040B5 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 72525-AA040B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72525-AA040E0 |
UCK31,41;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-0C190B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD. CHARCOAL,TRIM11 |
1 | ||
| 72810-0C210B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72810-0C190E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 72810-0C190B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD. GRAY,TRIM12 |
1 | ||
| 72810-0C210E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 72810-0C210B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72810-0C120E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 72810-0C120B0 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 72810-0C240B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 72810-0C120B1 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
1 | ||
| 72810-0C240B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12 |
1 | ||
| 72810-0C240E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-0E010B2 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GARY,TRIM12 |
2 | ||
| 72848-0E010B1 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72848-0E010E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
2 | ||
| Common parts | ||||
| 71389-0E010 | ||||
| 71389-48010 | ||||
| 72814-0E010 | ||||
| 72825-0E010 | ||||
| 90109-10169 | ||||
| 90119-10825 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 2(0408- )LIMD,SR5
6:4 SPLIT SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55450D - BOX ASSY, COIN | ||||
| 55450-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-0C170 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71110-0C010 |
UCK31,41 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71610-0C140 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C320B4 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71071-0C320E2 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43 |
1 | ||
| 71071-0C260B5 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71071-0C260B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71071-0C480B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-0C320B5 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71071-0C480E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71071-0C480B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C260E2 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71071-0C520E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71071-0C520B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71071-0C520B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0C350B3 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MD.GRAY,TRIM11 |
1 | ||
| 71073-0C350B2 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MD.CHARCOAL,TRIM12 |
1 | ||
| 71073-0C390B3 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71073-0C390B2 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 71073-0C390E1 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71073-0C350E1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71073-0C380B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C300B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C300E1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71073-0C300B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71073-0C380B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71073-0C380E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71073-0C430E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C430B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C460B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. CHARCOAL,TRIM11 |
1 | ||
| 71073-0C460E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM43 |
1 | ||
| 71073-0C460B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C430B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. CHARCOAL,TRIM11 |
1 | ||
| 71073-0C650B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C660B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C650E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71073-0C660B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C650B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C720B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C710B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C710B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C710E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71073-0C720E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C660E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C720B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71149A - COVER, FRONT SEAT LEG, LH | ||||
| 71149-0C030 |
UCK31,41 |
1 | ||
| 71149-0C030B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71149-0C030E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71149-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71161B - PLATE, FRONT CENTER SEAT BACK | ||||
| 71161-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71397-0C010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71397-0C010B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71397-0C010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4# |
1 | ||
| 71397-0C010B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71511-0C130 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-04050 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT),LH SEAT |
3 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0C090 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71551-0C130 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0C010 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
4 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0C070 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C070E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71811-0C070B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-0C070B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71811-AA090B2 |
UCK31,41 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-AA090E0 |
UCK31,41 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71811-0C070E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71811-AA090B3 |
UCK31,41 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-0C060E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71831-0C060E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4# |
1 | ||
| 71831-0C060B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71831-0C060B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C070B1 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861-0C070E0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71861-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71861-0C040B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861-0C070B0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C040B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0C030E0 |
UCK31,41 FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-0C030B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71873-0C030B1 |
UCK31,41 MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-58020 |
UCK31,41..SR5 RH SEAT,LH SEAT |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C030B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0C040B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C040B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-58020E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43,LH SEAT |
1 | ||
| 71873-0C040B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C040B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71873-58020B2 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12,LH SEAT |
1 | ||
| 71873-58020C0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) BLACK,TRIM11,LH SEAT |
1 | ||
| 71873-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C040E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B3 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-AA050B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71875-0C080B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71875-0C080B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C080E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71875-0C080E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71875-AA050E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-0C030 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72130-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240E0 |
UCK31,41..SR5 FAWN,TRIM42,43 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C260B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C260B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72137-0C260E0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240E0 |
UCK31,41..SR5 FAWN,TRIM42,43 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C370B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72137-0C370E0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 72137-0C370B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72139 - SPRING, SEAT TRACK COVER | ||||
| 72139-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) NO.2 |
1 | ||
| 72139-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) NO.1 |
1 | ||
| 72139 - SPRING, SEAT TRACK COVER | ||||
| 72139-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) NO.2 |
1 | ||
| 72139-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) NO.1 |
1 | ||
| 72141A - BRACKET, SEAT TRACK, LOWER FR | ||||
| 72141-0C020 |
UCK31,41 |
1 | ||
| 72143 - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-0C040 |
UCK31,41 |
1 | ||
| 72145A - BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT RH | ||||
| 72145-0C020 |
UCK31,41 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0C020 |
UCK31,41 |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72202-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72356 - NUT, SIDE SUPPORT, RH | ||||
| 72356-04010 |
UCK3#,4#;GSK30..DLX;GSK30..5HC..SR5 |
2 | ||
| 72356 - NUT, SIDE SUPPORT, RH | ||||
| 72356-04010 |
UCK3#,4#;GSK30..DLX;GSK30..5HC..SR5 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AA040B5 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 72525-AA040B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72525-AA040E0 |
UCK31,41;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72570-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-0E010E0 |
UCK31,41;GSK30,UCK30,40..5HC..SR5 FAWN,TRIM42,43 |
1 | ||
| 72667-0E010E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 72667-0E010B1 |
UCK31,41;GSK30,UCK30,40..5HC..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72667-0E010B2 |
UCK31,41;GSK30,UCK30,40..5HC..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72802 - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72809B - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-AC010B2 |
GSK30,UCK3#,4#..5HC..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72809-AC010E3 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4# |
1 | ||
| 72809-AC010B1 |
GSK30,UCK3#,4#..5HC..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72809-AC010E3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-0C190B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD. CHARCOAL,TRIM11 |
1 | ||
| 72810-0C210B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72810-0C190E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 72810-0C190B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD. GRAY,TRIM12 |
1 | ||
| 72810-0C210E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 72810-0C210B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72810-0C120E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 72810-0C120B0 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 72810-0C240B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 72810-0C120B1 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
1 | ||
| 72810-0C240B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12 |
1 | ||
| 72810-0C240E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4# |
1 | ||
| 72833 - PLATE, SEAT CENTER ARMREST, INNER RH | ||||
| 72833-0C030 |
UCK31,41 |
2 | ||
| 72833 - PLATE, SEAT CENTER ARMREST, INNER RH | ||||
| 72833-0C030 |
UCK31,41 |
2 | ||
| 89953A - SENSOR, BELT WARNING OCCUPANT DETECTION | ||||
| 89953-35060 |
UCK3#,4#;GSK30..DLX;GSK30..5HC..SR5 |
1 | ||
| Common parts | ||||
| 64618-22020 | ||||
| 72702-44070 | ||||
| 78738-0C010 | ||||
| 78899-04010 | ||||
| 78899-48040 | ||||
| 78899-48050 | ||||
| 82711-22270 | ||||
| 90084-16010 | ||||
| 90109-08150 | ||||
| 90109-08168 | ||||
| 90179-10212 | ||||
| 90179-12044 | ||||
| 90386-12005 | ||||
| 90463-12014 | ||||
| 93219-54010 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(0408- )UCK31,41
6:4 SPLIT SEAT(RH)-W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55450D - BOX ASSY, COIN | ||||
| 55450-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-0C170 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71110-0C010 |
UCK31,41 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71610-0C140 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C320B4 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71071-0C320E2 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43 |
1 | ||
| 71071-0C260B5 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. CHARCOAL,TRIM11 |
1 | ||
| 71071-0C260B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MED. GRAY,TRIM12 |
1 | ||
| 71071-0C480B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-0C320B5 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71071-0C480E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71071-0C480B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71071-0C260E2 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71071-0C520E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71071-0C520B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71071-0C520B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0C350B3 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MD.GRAY,TRIM11 |
1 | ||
| 71073-0C350B2 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MD.CHARCOAL,TRIM12 |
1 | ||
| 71073-0C390B3 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 71073-0C390B2 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 71073-0C390E1 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71073-0C350E1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71073-0C380B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C300B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C300E1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM42,43 |
1 | ||
| 71073-0C300B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71073-0C380B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL-TYLER,TRIM11 |
1 | ||
| 71073-0C380E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71073-0C430E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C430B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C460B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. CHARCOAL,TRIM11 |
1 | ||
| 71073-0C460E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM43 |
1 | ||
| 71073-0C460B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MED. GRAY,TRIM12 |
1 | ||
| 71073-0C430B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MED. CHARCOAL,TRIM11 |
1 | ||
| 71073-0C650B0 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C660B0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C650E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71073-0C660B1 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C650B1 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C720B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C710B1 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM GRAY,TRIM12 |
1 | ||
| 71073-0C710B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71073-0C710E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SEAT BACK POCKET),FAWN,TRIM4# |
1 | ||
| 71073-0C720E0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C660E0 |
UCK31,41..SR5 W(FRONT CAPTAIN SEAT & SRS SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 71073-0C720B0 |
UCK31,41..SR5 W(FRONT 6:4 SPLIT SEAT & SRS SIDE AIR BAG),MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71149A - COVER, FRONT SEAT LEG, LH | ||||
| 71149-0C030 |
UCK31,41 |
1 | ||
| 71149-0C030B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71149-0C030E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 71149-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71161B - PLATE, FRONT CENTER SEAT BACK | ||||
| 71161-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 71397A - COVER, CENTER SEAT HINGE | ||||
| 71397-0C010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71397-0C010B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71397-0C010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4# |
1 | ||
| 71397-0C010B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-0C290B0 |
UCK31,41..SR5 MD. CHARCOAL,TRIM11 |
1 | ||
| 71430-0C290B1 |
UCK31,41..SR5 MD. GRAY,TRIM12 |
1 | ||
| 71430-0C340B0 |
UCK31,41..SR5 MEDIUM GRAY,TRIM11 |
1 | ||
| 71430-0C290E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71430-0C340E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 71430-0C340B3 |
UCK31,41..SR5 MEDIUM GRAY,TRIM12 |
1 | ||
| 71430-0C340E1 |
UCK31,41..SR5 FAWN,TRIM43 |
1 | ||
| 71430-0C340B1 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71430-0C340B2 |
UCK31,41..SR5 MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT) |
1 | ||
| 71511-0C130 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-04050 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT CAPTAIN SEAT),LH SEAT |
3 | ||
| 71537-AA020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(6:4 SPRIT FRONT SEAT),RH SEAT |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-0C010 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT) |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0C070E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71811-0C070B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-0C070B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71811-AA090B2 |
UCK31,41 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71811-AA090E0 |
UCK31,41 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71811-0C070E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71811-AA090B3 |
UCK31,41 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-0C060E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71831-0C060E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4# |
1 | ||
| 71831-0C060B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71831-0C060B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0C070B1 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861-0C070E0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM4# |
1 | ||
| 71861-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71861-0C040B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71861-0C070B0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C040B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71861-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-0C030E0 |
UCK31,41 FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-0C030B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 71873-0C030B1 |
UCK31,41 MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-58020 |
UCK31,41..SR5 RH SEAT,LH SEAT |
1 | ||
| 71873-0C030E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C030B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0C040B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11,RH SEAT |
1 | ||
| 71873-0C040B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12,RH SEAT |
1 | ||
| 71873-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43,RH SEAT |
1 | ||
| 71873-58020E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43,LH SEAT |
1 | ||
| 71873-0C040B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71873-0C040B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71873-58020B2 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12,LH SEAT |
1 | ||
| 71873-58020C0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) BLACK,TRIM11,LH SEAT |
1 | ||
| 71873-0C040E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4#,RH SEAT |
1 | ||
| 71873-0C040E0 |
UCK31,41 FAWN,TRIM42,43 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B3 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-AA050B4 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71875-0C080B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 71875-0C080B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C080E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 71875-0C080E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 71875-AA050E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM42,43,CENTER |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM4# |
2 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
2 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C151B0 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
2 | ||
| 71910-0C190B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..SR5 MED. GRAY,TRIM12 |
1 | ||
| 71910-0C190B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71910-0C190E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM43,LH SEAT |
1 | ||
| 71910-0C260E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 71910-0C151B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C260B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,LH SEAT |
1 | ||
| 71910-0C151E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,LH SEAT |
1 | ||
| 71910-0C260B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,LH SEAT |
1 | ||
| 71910-0C300B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12,CENTER |
1 | ||
| 71910-0C300E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4#,CENTER |
1 | ||
| 71910-0C300B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..SR5 W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..SR5 W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM42,43,CENTER |
1 | ||
| 71931-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM42,43 |
1 | ||
| 71930-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71930-42020B6 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
2 | ||
| 71956-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),FAWN,TRIM4#,CENTER |
1 | ||
| 71931-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B7 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.GRAY,TRIM12 |
1 | ||
| 71970-47010E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W(BUTTON),W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
2 | ||
| 71970-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(LOCK),MD.CHARCOAL,TRIM11 |
1 | ||
| 71931-42020B1 |
UCK31,41;GSK30,UCK30,40..SR5 W(LOCK)&W/O(BUTTON),W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
2 | ||
| 71956-47010B3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.CHARCOAL,TRIM11,CENTER |
1 | ||
| 71956-47010B8 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W/O(LOCK),MD.GRAY,TRIM12,CENTER |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-0C030 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72130-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72137H - COVER, FRONT SEAT TRACK, RH FRONT OUTER | ||||
| 72137-0C260E0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 72137-0C260B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 72137-0C260B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER | ||||
| 72137-0C240B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C240E0 |
UCK31,41 FAWN,TRIM4# |
1 | ||
| 72137-0C240B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C370B1 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72137-0C370E0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 72137-0C370B0 |
UCK31,41 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72139 - SPRING, SEAT TRACK COVER | ||||
| 72139-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) NO.2 |
1 | ||
| 72139-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) NO.1 |
1 | ||
| 72139 - SPRING, SEAT TRACK COVER | ||||
| 72139-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) NO.2 |
1 | ||
| 72139-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) NO.1 |
1 | ||
| 72141A - BRACKET, SEAT TRACK, LOWER FR | ||||
| 72141-0C020 |
UCK31,41 |
1 | ||
| 72143 - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-0C040 |
UCK31,41 |
1 | ||
| 72145A - BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT RH | ||||
| 72145-0C020 |
UCK31,41 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0C020 |
UCK31,41 |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72202-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72356 - NUT, SIDE SUPPORT, RH | ||||
| 72356-04010 |
UCK3#,4#;GSK30..DLX;GSK30..5HC..SR5 |
2 | ||
| 72356 - NUT, SIDE SUPPORT, RH | ||||
| 72356-04010 |
UCK3#,4#;GSK30..DLX;GSK30..5HC..SR5 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AA040B5 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 72525-AA040B4 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72525-AA040E0 |
UCK31,41;GSK30..6F..SR5 FAWN,TRIM42,43 |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72570-0C020 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-0E010E0 |
UCK31,41;GSK30,UCK30,40..5HC..SR5 FAWN,TRIM42,43 |
1 | ||
| 72667-0E010E0 |
UCK31,41..SR5 FAWN,TRIM4# |
1 | ||
| 72667-0E010B1 |
UCK31,41;GSK30,UCK30,40..5HC..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72667-0E010B2 |
UCK31,41;GSK30,UCK30,40..5HC..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72802 - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-0C010 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 72809B - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-AC010B2 |
GSK30,UCK3#,4#..5HC..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72809-AC010E3 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4# |
1 | ||
| 72809-AC010B1 |
GSK30,UCK3#,4#..5HC..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72809-AC010E3 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM42,43 |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-0C190B0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD. CHARCOAL,TRIM11 |
1 | ||
| 72810-0C210B5 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 72810-0C190E0 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 72810-0C190B1 |
GSK30,UCK3#,4#..SR5 W(FRONT CAPTAIN SEAT),MD. GRAY,TRIM12 |
1 | ||
| 72810-0C210E2 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),FAWN,TRIM4# |
1 | ||
| 72810-0C210B4 |
GSK30,UCK3#,4#..5HC..SR5 W(FRONT 6:4 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 72810-0C120E0 |
GSK30,UCK3#,4#..SR5 FAWN,TRIM43 |
1 | ||
| 72810-0C120B0 |
GSK30,UCK3#,4#..SR5 MED CHARCOAL,TRIM11 |
1 | ||
| 72810-0C240B1 |
GSK30,UCK3#,4#..5HC..SR5 MED. CHARCOAL,TRIM11 |
1 | ||
| 72810-0C120B1 |
GSK30,UCK3#,4#..SR5 MED GRAY,TRIM12 |
1 | ||
| 72810-0C240B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM12 |
1 | ||
| 72810-0C240E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4# |
1 | ||
| 72833 - PLATE, SEAT CENTER ARMREST, INNER RH | ||||
| 72833-0C030 |
UCK31,41 |
2 | ||
| 72833 - PLATE, SEAT CENTER ARMREST, INNER RH | ||||
| 72833-0C030 |
UCK31,41 |
2 | ||
| 89953A - SENSOR, BELT WARNING OCCUPANT DETECTION | ||||
| 89953-35060 |
UCK3#,4#;GSK30..DLX;GSK30..5HC..SR5 |
1 | ||
| Common parts | ||||
| 64618-22020 | ||||
| 72702-44070 | ||||
| 78738-0C010 | ||||
| 78899-04010 | ||||
| 78899-48040 | ||||
| 78899-48050 | ||||
| 82711-22270 | ||||
| 90084-16010 | ||||
| 90109-08150 | ||||
| 90109-08168 | ||||
| 90179-10212 | ||||
| 90386-12005 | ||||
| 90463-12014 | ||||
| 93219-54010 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
ILLUST NO. 2 OF 2(0508- )5HC..LIMD,SR5
6:4 SPRIT SEAT(RH) W(WEIGHT SENSER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71001-0CB40B0 |
GSK30,UCK3#,4#..5HC..SR5 MED GRAY,TRIM11 |
1 | ||
| 71001-0CB40B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM12 |
1 | ||
| 71001-0CB40E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4# |
1 | ||
| 71001-0CE70B1 |
GSK30,UCK3#,4#..5HC..SR5 MED CHARCOAL,TRIM12 |
1 | ||
| 71001-0CE70B0 |
GSK30,UCK3#,4#..5HC..SR5 MED. GRAY,TRIM11 |
1 | ||
| 71001-0CE70E0 |
GSK30,UCK3#,4#..5HC..SR5 FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 62648-37010 | ||||
| 82711-02130 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
