UCK41L-PRBSKK (2004)
Toyota Tundra
(0408-0508)UCK31,41..CND ; (0408- )UCK31,41..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-34040 |
UCK31,41 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-34040 |
UCK31,41 |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-34010 |
GSK30,UCK3#,4# |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0C010 |
GSK30,UCK3#,4# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-34050 |
UCK31,41..CND |
1 | ||
| 69057-34040 |
UCK31,41..CND |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0C040 |
UCK31,41..CND |
1 | ||
| 69005-0C060 |
UCK31,41..CND |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
GSK30,UCK3#,4# MASTER KEY |
1 | ||
| 90999-00185 |
GSK30,UCK3#,4# MASTER KEY,W(*68) |
1 | ||
| 90999-00188 |
GSK30,UCK3#,4#..CND SUB KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
GSK30,UCK3#,4# MASTER KEY |
1 | ||
| 90999-00185 |
GSK30,UCK3#,4# MASTER KEY,W(*68) |
1 | ||
| 90999-00188 |
GSK30,UCK3#,4#..CND SUB KEY |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
UCK31,41 ORANGE |
1 | ||
| 69759-22090 |
UCK31,41 PINK |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
UCK31,41 ORANGE |
1 | ||
| 69759-22090 |
UCK31,41 PINK |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-0C020 |
UCK31,41 |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50010 |
UCK31,41 |
2 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-34020 |
UCK30,40;GSK30..SR5;GSK30,UCK31,41..CND BLANK KEY |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-34020 |
UCK30,40;GSK30..SR5;GSK30,UCK31,41..CND BLANK KEY |
1 | ||

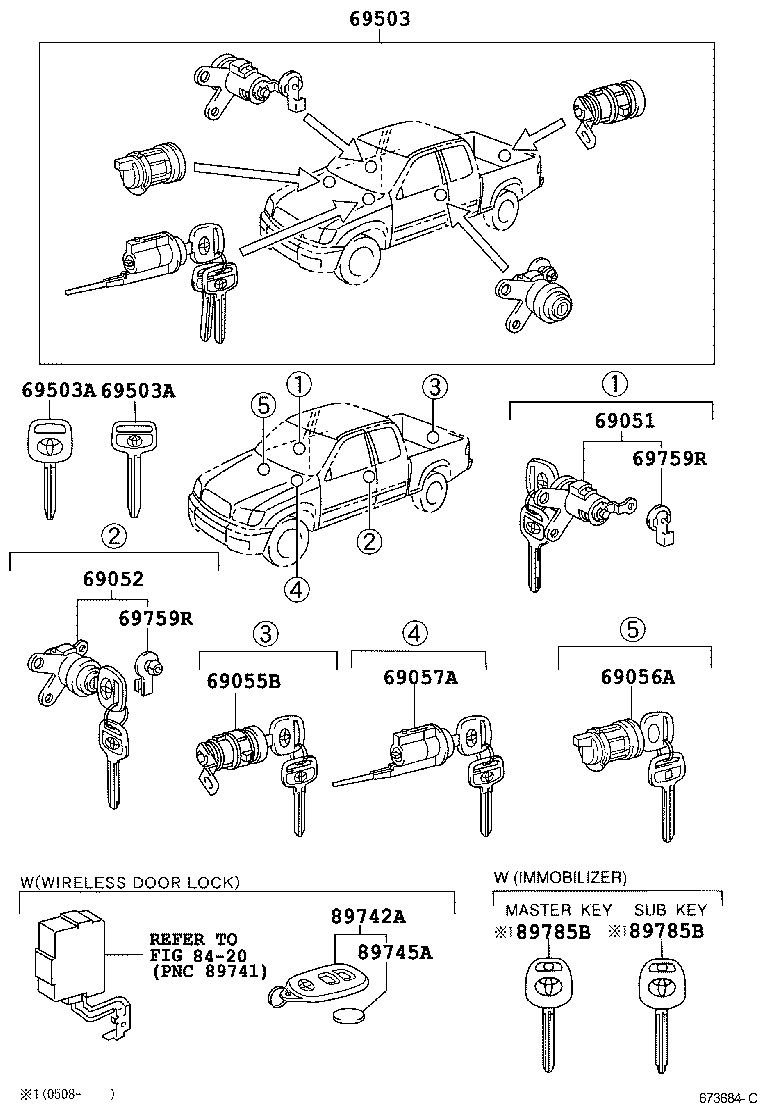

| Linked diagrams | ||||
| 8420 | ||||
(0508- )UCK31,41..CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-34040 |
UCK31,41 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-34040 |
UCK31,41 |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-34010 |
GSK30,UCK3#,4# |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0C010 |
GSK30,UCK3#,4# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-34050 |
UCK31,41..CND |
1 | ||
| 69057-34040 |
UCK31,41..CND |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0C040 |
UCK31,41..CND |
1 | ||
| 69005-0C060 |
UCK31,41..CND |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
GSK30,UCK3#,4# MASTER KEY |
1 | ||
| 90999-00185 |
GSK30,UCK3#,4# MASTER KEY,W(*68) |
1 | ||
| 90999-00188 |
GSK30,UCK3#,4#..CND SUB KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
GSK30,UCK3#,4# MASTER KEY |
1 | ||
| 90999-00185 |
GSK30,UCK3#,4# MASTER KEY,W(*68) |
1 | ||
| 90999-00188 |
GSK30,UCK3#,4#..CND SUB KEY |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
UCK31,41 ORANGE |
1 | ||
| 69759-22090 |
UCK31,41 PINK |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-22080 |
UCK31,41 ORANGE |
1 | ||
| 69759-22090 |
UCK31,41 PINK |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-0C020 |
UCK31,41 |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50010 |
UCK31,41 |
2 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-34020 |
UCK30,40;GSK30..SR5;GSK30,UCK31,41..CND BLANK KEY |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-34020 |
UCK30,40;GSK30..SR5;GSK30,UCK31,41..CND SUB KEY |
1 | ||

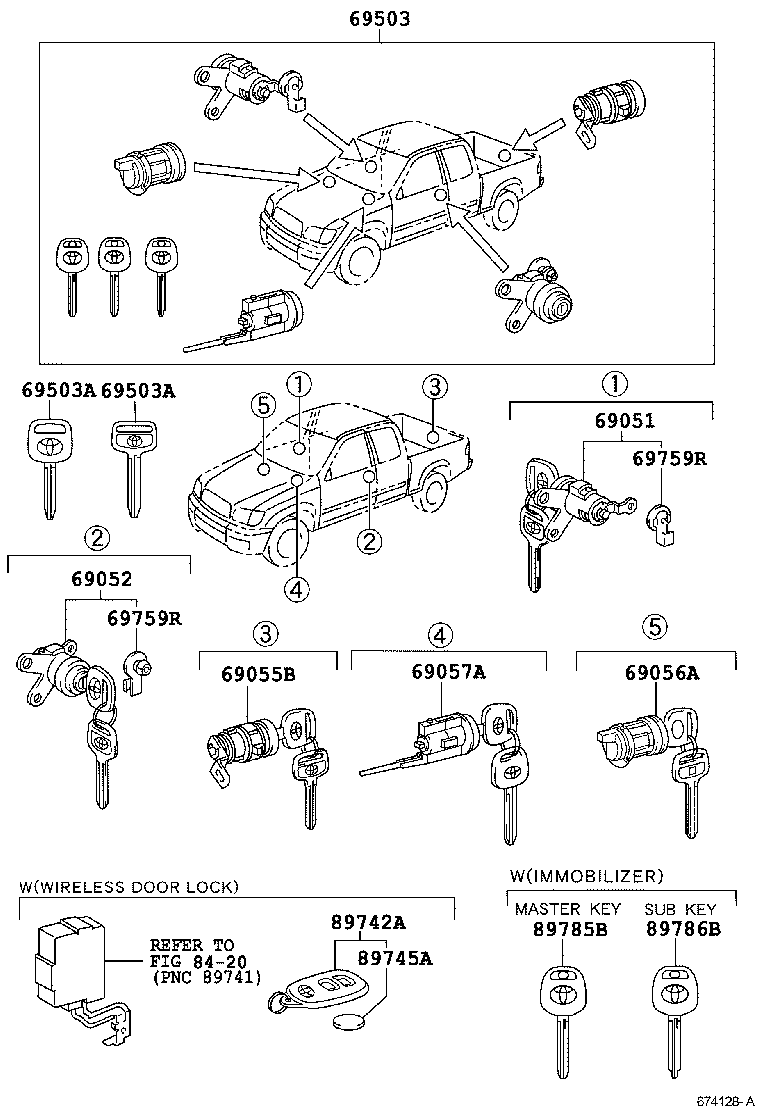

| Linked diagrams | ||||
| 8420 | ||||
