UCK40L-ASBLKA (2004)

Toyota Tundra

Production Aug 2004 - Dec 2006
Engine 2UZFE
Transmission 5HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

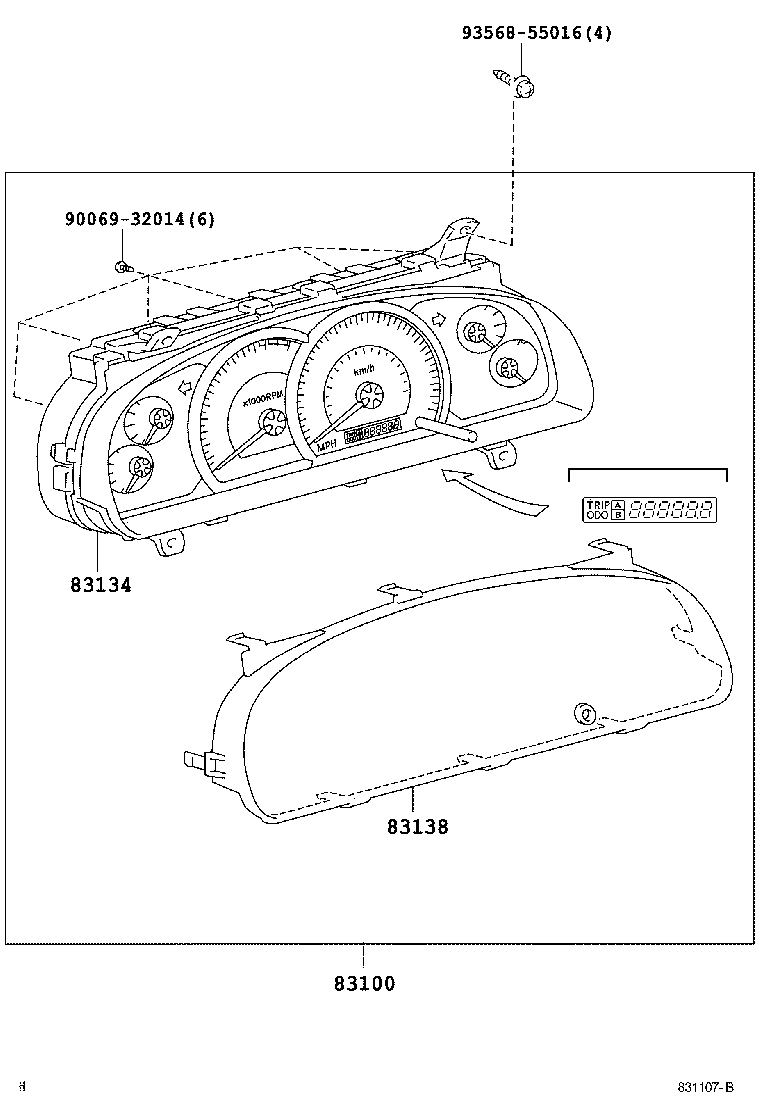

ILLUST NO. 1 OF 3(0408- )

Click highlighted areas on diagram

diagram 83100 83134 83138 9006932014 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-0C391

UCK3#,4#..USA

 1
83800-0C392

UCK3#,4#..USA

 1
83134 - COVER, COMBINATION METER, NO.1
83821-0C040

UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..4HC..(LIMD,SR5)

W(TACHOMETER)

 1
83821-0C280

GSK30,UCK3#,4#

 1
83138 - GLASS, SPEEDOMETER
83852-0C030

UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5

W(TACHOMETER)

 1
83852-0C310

UCK3#,4#;GSK30..CND;GSK30..SR5

 1
Common parts
90069-32014
93568-55016
