UCK40L-ARBSKA (2004)
Toyota Tundra
ILLUST NO. 2 OF 8(0408- )UCK3#,4#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-34330 |
UCK40 |
1 | ||
| 82121-0C080 |
UCK4# |
1 | ||
| 82121-0C081 |
UCK4# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-0C010 |
VCK30,40 |
1 | ||
| 82122-34080 |
UCK40 |
1 | ||
| 82122-34150 |
UCK4# (J) |
1 | ||
| 82122-0C090 |
UCK4# (L) |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-0C010 |
UCK4# |
1 | ||
| 82127-0C010 |
UCK40,VCK40 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
UCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82823-22050 |
VCK30,40 |
1 | ||
| 82823-22080 |
UCK3#,4# |
1 | ||
| 82916 - INSULATOR, WIRING HARNESS HEAT, NO.2 | ||||
| 82916-34020 |
UCK3#,4# (J) |
1 | ||
| 82916-34010 |
UCK30,40 (J) |
1 | ||
| 82916-0C020 |
UCK3#,4# (L) |
1 | ||
| Common parts | ||||
| 90080-11129 | ||||
| 90080-11131 | ||||
| 90080-11211 | ||||
| 90080-11387 | ||||
| 90080-11546 | ||||
| 90119-06393 | ||||
| 90119-A0037 | ||||
| 90179-06158 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91622-B1018 | ||||
| 94150-80600 | ||||

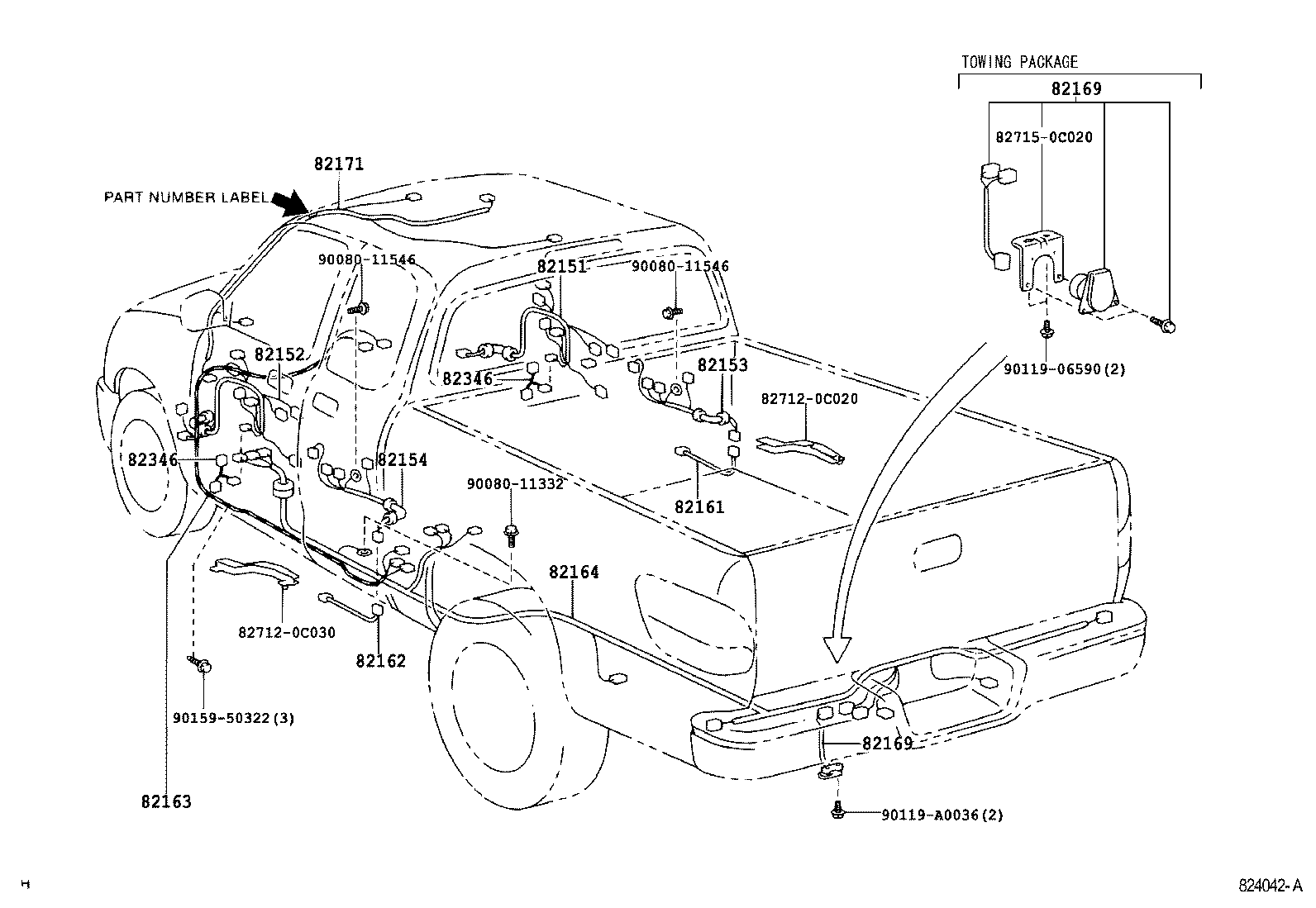

ILLUST NO. 4 OF 8(0408- )ACB
DOOR,FLOOR,ROOF,FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0C020 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82151-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 82151-0C120 |
UCK30;GSK30..SR5;UCK40..USA;UCK40..ACB..CND W(POWER WINDOW & HEATER MIRROR) |
1 | ||
| 82151-0C110 |
GSK30..SR5;UCK30,40..USA W(POWER WINDOW) |
1 | ||
| 82151-0C101 |
GSK30,UCK30,40..DLX,SR5 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82151-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
1 | ||
| 82152-0C100 |
GSK30..SR5;UCK30,40..USA W(POWER WINDOW) |
1 | ||
| 82152-0C110 |
UCK30;GSK30..SR5;UCK40..USA;UCK40..ACB..CND W(POWER WINDOW & HEATER MIRROR) |
1 | ||
| 82151-0C101 |
GSK30,UCK30,40..DLX,SR5 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0C012 |
GSK30,UCK30,40..ACB |
1 | ||
| 82153-0C010 |
UCK30,40,VCK30,40..ACB |
2 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0C021 |
GSK30,UCK30,40..ACB |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-0C010 |
UCK30,40,VCK30,40..ACB |
2 | ||
| 82161-0C070 |
UCK40..LIMD..CND;GSK30,UCK30,40..SR5 |
1 | ||
| 82161-0C080 |
GSK30,UCK30,40..ACB..5HC..USA W(BACK PANEL POWER WINDOW) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0C060 |
GSK30,UCK30,40..ACB |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-0C020 |
GSK30,UCK30,40..ACB |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-0C130 |
GSK30,UCK30,40 |
1 | ||
| 82164-0C020 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 82164-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 82164-0C140 |
UCK30,40 TOWING PACKAGE |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-34020 |
GSK30,UCK3#,4# |
1 | ||
| 82169-0C020 |
UCK3#,4# TOWING PACKAGE |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-34020 |
GSK30,UCK3#,4# |
1 | ||
| 82169-0C020 |
UCK3#,4# TOWING PACKAGE |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0C030 |
UCK30,40,VCK30,40..ACB..SR5 |
1 | ||
| 82171-0C040 |
UCK30,40,VCK30,40..ACB..SR5 W(SLIDE SUN VISOR) |
1 | ||
| 82171-0C450 |
GSK30,UCK30,40..SR5 PART NUMBER LABEL=82171-0C450 |
1 | ||
| 82171-0C440 |
GSK30,UCK30,40..SR5 PART NUMBER LABEL=82171-0C440 |
1 | ||
| 82171-0C430 |
GSK30,UCK30,40..SR5 PART NUMBER LABEL=82171-0C430 |
1 | ||
| 82346 - WIRE, SPEAKER TWEETER | ||||
| 82346-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
2 | ||
| 82346-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82346-0C010 |
GSK30,UCK30,40 |
1 | ||
| 82346 - WIRE, SPEAKER TWEETER | ||||
| 82346-0C010 |
UCK30,40,VCK30,40..DLX,SR5 |
2 | ||
| 82346-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82346-0C010 |
GSK30,UCK30,40 |
1 | ||
| Common parts | ||||
| 82712-0C020 | ||||
| 82712-0C030 | ||||
| 82715-0C020 | ||||
| 90080-11332 | ||||
| 90080-11546 | ||||
| 90119-06590 | ||||
| 90119-A0036 | ||||
| 90159-50322 | ||||
ILLUST NO. 7 OF 8(0408- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82124-0C020 |
UCK3#,4# |
1 | ||
| 90080-82040 |
VCK30,40 |
1 | ||
| 90080-82041 |
UCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11187 | ||||
| 90119-A0038 | ||||
| 91621-J0612 | ||||
ILLUST NO. 5 OF 8(0408- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-0C090 |
GSK30,UCK3#,4#..LIMD,SR5 W(CAPTAIN SEAT) |
1 | ||
| 82167-0C080 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-0C090 |
GSK30,UCK3#,4#..LIMD,SR5 W(CAPTAIN SEAT) |
1 | ||
| 82167-0C080 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
ILLUST NO. 6 OF 8(0408- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-34030 | ||||
| 82711-1A750 | ||||
| 82711-1E260 | ||||
| 82711-22270 | ||||
| 82715-04090 | ||||
| 82715-04140 | ||||
| 82715-04150 | ||||
| 82715-0C120 | ||||
| 82715-0C130 | ||||
| 82715-0C140 | ||||
| 82715-0C160 | ||||
| 82715-0C170 | ||||
| 82715-0C180 | ||||
| 82715-0C190 | ||||
| 82715-0C230 | ||||
| 82715-0C240 | ||||
| 82715-34570 | ||||
| 82715-35A00 | ||||
| 82715-35A10 | ||||
| 82715-35A20 | ||||
| 82715-3D490 | ||||
| 82715-3D560 | ||||
| 82715-3D580 | ||||
| 82715-3D590 | ||||
| 82715-3D610 | ||||
| 82715-6A200 | ||||
| 82715-6A210 | ||||
| 88688-0C210 | ||||
| 90080-11211 | ||||
| 90080-11218 | ||||
| 90119-A0057 | ||||
| 91673-80610 | ||||
| 94150-80600 | ||||

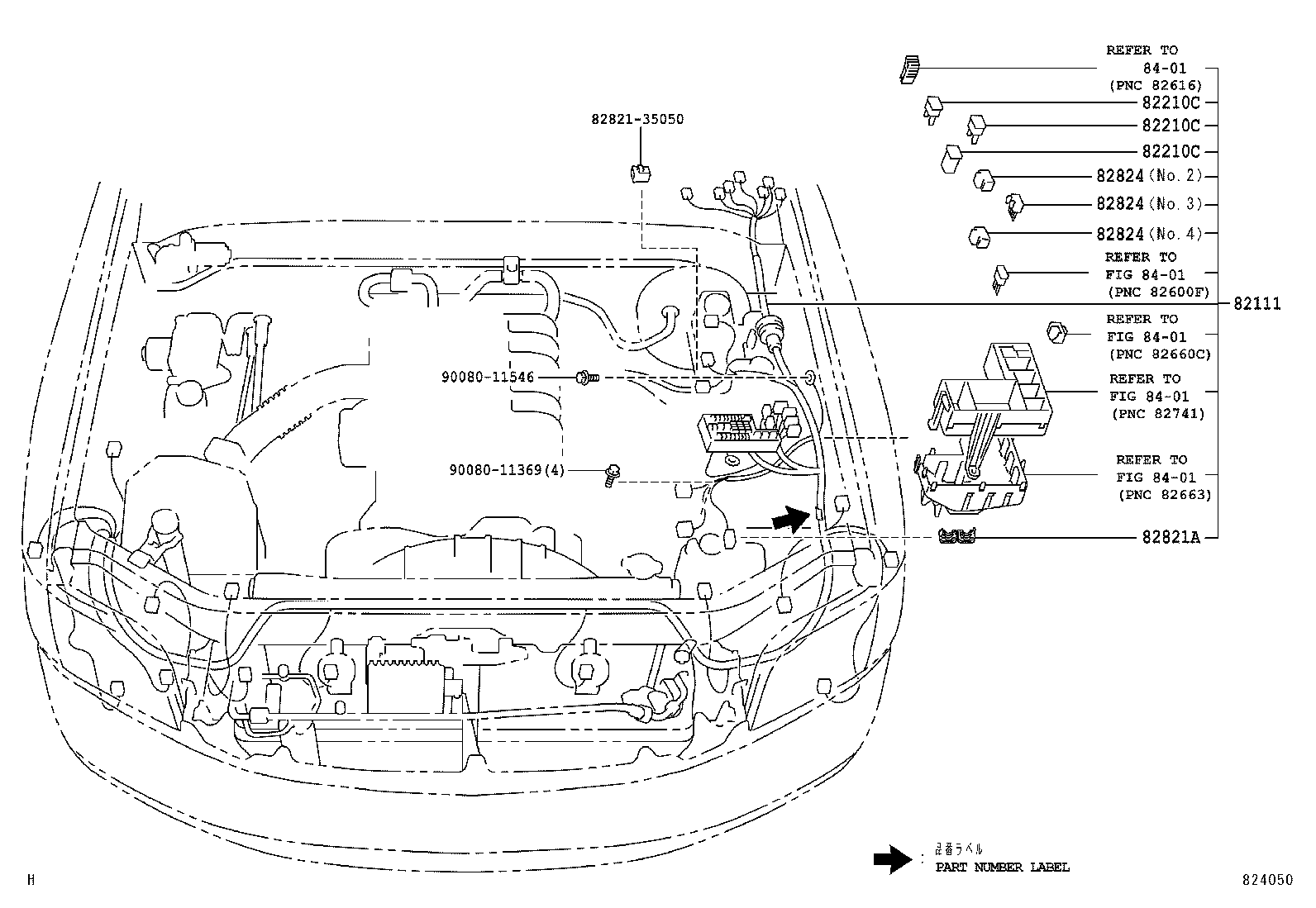

ILLUST NO. 1 OF 8(0408- )GSK30,UCK30,40
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0C050 |
VCK30,40 PART NUMBER LABEL=82111-0C050 |
1 | ||
| 82111-0C070 |
UCK30,40 PART NUMBER LABEL=82111-0C070 |
1 | ||
| 82111-0C080 |
UCK30,40 PART NUMBER LABEL=82111-0C080 |
1 | ||
| 82111-0C030 |
UCK30,40..USA PART NUMBER LABEL=82111-0C030 |
1 | ||
| 82111-0C060 |
VCK30,40 PART NUMBER LABEL=82111-0C060 |
1 | ||
| 82111-0C010 |
VCK30,40..USA PART NUMBER LABEL=82111-0C010 |
1 | ||
| 82111-0C330 |
UCK30,40 PART NUMBER LABEL=82111-0C330 |
1 | ||
| 82111-0C320 |
UCK30,40..USA PART NUMBER LABEL=82111-0C320 |
1 | ||
| 82111-0C310 |
UCK30,40..USA PART NUMBER LABEL=82111-0C310 |
1 | ||
| 82111-0C350 |
UCK30,40 PART NUMBER LABEL=82111-0C350 |
1 | ||
| 82111-0C360 |
UCK30,40 PART NUMBER LABEL=82111-0C360 |
1 | ||
| 82111-0C340 |
UCK30,40 PART NUMBER LABEL=82111-0C340 |
1 | ||
| 82111-0C331 |
UCK30,40 PART NUMBER LABEL=82111-0C331 |
1 | ||
| 82111-0C311 |
UCK30,40..USA PART NUMBER LABEL=82111-0C311 |
1 | ||
| 82111-0C351 |
UCK30,40 PART NUMBER LABEL=82111-0C351 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
3 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
UCK30,40,VCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08202 |
UCK30,40 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08280 |
GSK30,UCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
GSK30,UCK30,40 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
GSK30,UCK30,40 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
UCK30,40 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08274 |
GSK30,UCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08281 |
GSK30,UCK30,40 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
3 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
UCK30,40,VCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08202 |
UCK30,40 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08280 |
GSK30,UCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
GSK30,UCK30,40 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
GSK30,UCK30,40 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
UCK30,40 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08274 |
GSK30,UCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08281 |
GSK30,UCK30,40 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
3 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
UCK30,40,VCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08202 |
UCK30,40 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08280 |
GSK30,UCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
GSK30,UCK30,40 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
GSK30,UCK30,40 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
UCK30,40 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08274 |
GSK30,UCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08281 |
GSK30,UCK30,40 40A,TERM.:FEMALE,GRN |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
GSK30,UCK30,40 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-22080 |
GSK30,UCK30,40 NO.2 |
2 | ||
| 82824-50110 |
GSK30,UCK30,40 NO.4 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-22080 |
GSK30,UCK30,40 NO.2 |
2 | ||
| 82824-50110 |
GSK30,UCK30,40 NO.4 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
GSK30,UCK3#,4# NO.3 |
1 | ||
| 82824-22080 |
GSK30,UCK30,40 NO.2 |
2 | ||
| 82824-50110 |
GSK30,UCK30,40 NO.4 |
1 | ||
| Common parts | ||||
| 82821-35050 | ||||
| 90080-11369 | ||||
| 90080-11546 | ||||
| Linked diagrams | ||||
| 8401 | ||||

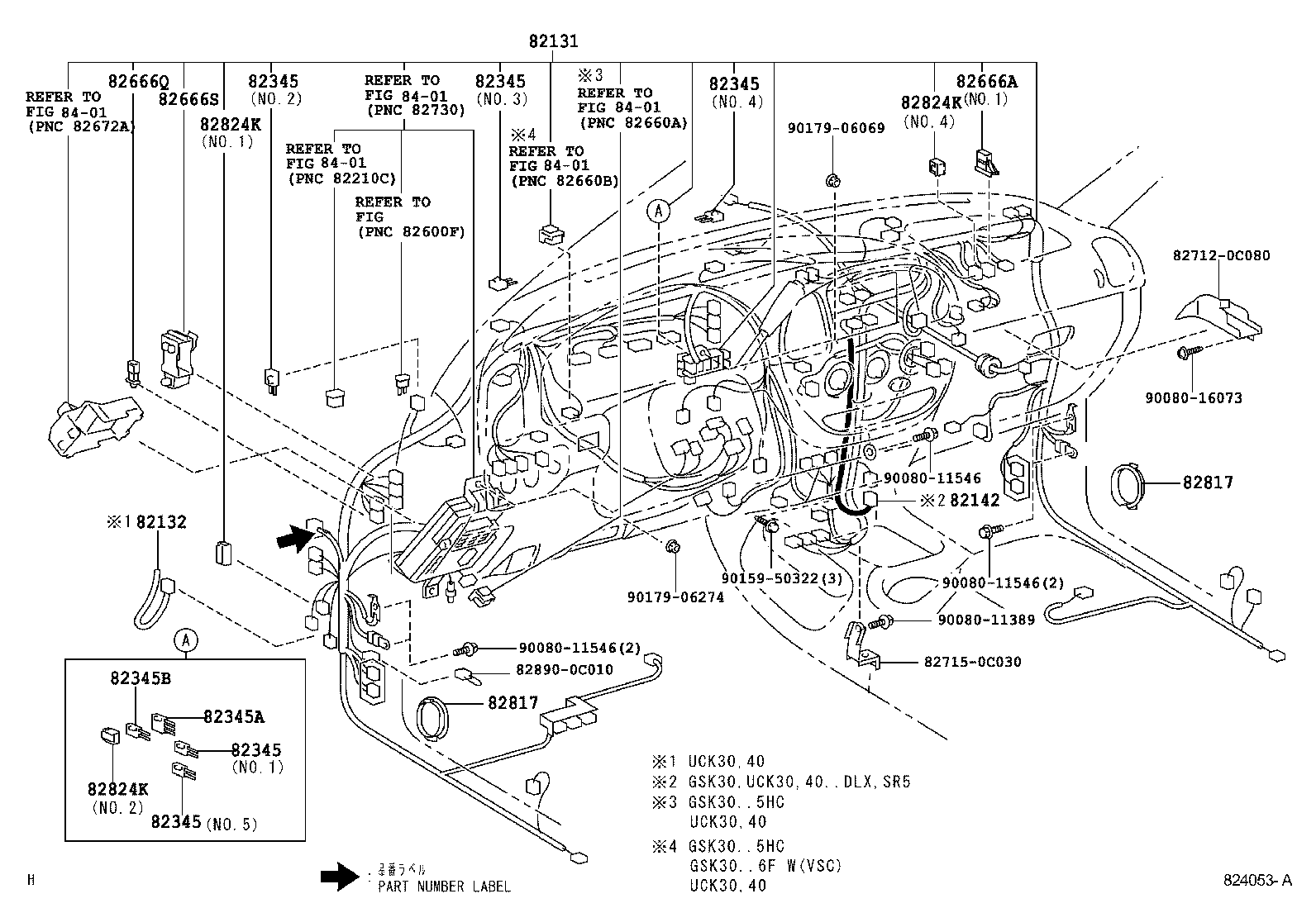

ILLUST NO. 3 OF 8(0408- )GSK30,UCK30,40
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-0C330 |
UCK30,40..SR5..USA PART NUMBER LABEL=82131-0C330 |
1 | ||
| 82131-0C370 |
UCK30,40..SR5 PART NUMBER LABEL=82131-0C370 |
1 | ||
| 82131-0C400 |
UCK30,40 PART NUMBER LABEL=82131-0C400 |
1 | ||
| 82131-0C380 |
UCK30,40..SR5 PART NUMBER LABEL=82131-0C380 |
1 | ||
| 82131-0C390 |
UCK30,40 PART NUMBER LABEL=82131-0C390 |
1 | ||
| 82131-0C350 |
UCK30,40..USA PART NUMBER LABEL=82131-0C350 |
1 | ||
| 82131-0CA80 |
UCK30,40..ACB PART NUMBER LABEL=82131-0CA80 |
1 | ||
| 82131-0CA60 |
UCK30,40..ACB..USA PART NUMBER LABEL=82131-0CA60 |
1 | ||
| 82131-0CB00 |
UCK30,40..ACB PART NUMBER LABEL=82131-0CB00 |
1 | ||
| 82131-0CC80 |
UCK30,40..ACB PART NUMBER LABEL=82131-0CC80 |
1 | ||
| 82131-0CC60 |
UCK30,40..ACB..USA PART NUMBER LABEL=82131-0CC60 |
1 | ||
| 82131-0CC70 |
UCK30,40..ACB PART NUMBER LABEL=82131-0CC70 |
1 | ||
| 82131-0CA81 |
UCK30,40..ACB PART NUMBER LABEL=82131-0CA81 |
1 | ||
| 82131-0CA61 |
UCK30,40..ACB..USA PART NUMBER LABEL=82131-0CA61 |
1 | ||
| 82131-0CB01 |
UCK30,40..ACB PART NUMBER LABEL=82131-0CB01 |
1 | ||
| 82131-0CC71 |
UCK30,40..ACB PART NUMBER LABEL=82131-0CC71 |
1 | ||
| 82131-0CC61 |
UCK30,40..ACB..USA PART NUMBER LABEL=82131-0CC61 |
1 | ||
| 82131-0CC81 |
UCK30,40..ACB PART NUMBER LABEL=82131-0CC81 |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-0C010 |
UCK3#,4# |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0C012 |
GSK30,UCK30,40..DLX,SR5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12050 |
GSK30,UCK30,40 NO.2 & NO.4 |
2 | ||
| 82345-12030 |
GSK30,UCK30,40 NO.1 |
1 | ||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC NO.2 & NO.4 |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12050 |
GSK30,UCK30,40 NO.2 & NO.4 |
2 | ||
| 82345-12030 |
GSK30,UCK30,40 NO.1 |
1 | ||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC NO.2 & NO.4 |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12050 |
GSK30,UCK30,40 NO.2 & NO.4 |
2 | ||
| 82345-12030 |
GSK30,UCK30,40 NO.1 |
1 | ||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC NO.2 & NO.4 |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12050 |
GSK30,UCK30,40 NO.2 & NO.4 |
2 | ||
| 82345-12030 |
GSK30,UCK30,40 NO.1 |
1 | ||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC NO.2 & NO.4 |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12050 |
GSK30,UCK30,40 NO.2 & NO.4 |
2 | ||
| 82345-12030 |
GSK30,UCK30,40 NO.1 |
1 | ||
| 82345-12050 |
GSK30..6F..SR5;GSK30,UCK30,40..5HC NO.2 & NO.4 |
2 | ||
| 82345A - DIODE | ||||
| 82345-32020 |
GSK30,UCK30,40..5HC |
1 | ||
| 82345B - DIODE | ||||
| 82345-12030 |
GSK30,UCK30,40 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0C090 |
GSK30,UCK3#,4# NO.1 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-0C220 |
GSK30,UCK30,40 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
UCK30,40,VCK30,40 |
2 | ||
| 82817-2D040 |
GSK30,UCK3#,4# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
UCK30,40,VCK30,40 |
2 | ||
| 82817-2D040 |
GSK30,UCK3#,4# |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GSK30,UCK30,40 NO.1 |
1 | ||
| 82824-52080 |
GSK30,UCK30,40 NO.2 |
1 | ||
| 82824-28180 |
GSK30,UCK30,40 NO.4 |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GSK30,UCK30,40 NO.1 |
1 | ||
| 82824-52080 |
GSK30,UCK30,40 NO.2 |
1 | ||
| 82824-28180 |
GSK30,UCK30,40 NO.4 |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GSK30,UCK30,40 NO.1 |
1 | ||
| 82824-52080 |
GSK30,UCK30,40 NO.2 |
1 | ||
| 82824-28180 |
GSK30,UCK30,40 NO.4 |
2 | ||
| Common parts | ||||
| 82712-0C080 | ||||
| 82715-0C030 | ||||
| 82890-0C010 | ||||
| 90080-11389 | ||||
| 90080-11546 | ||||
| 90080-16073 | ||||
| 90159-50322 | ||||
| 90179-06069 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
