UCK40L-ARBSKA (2004)
Toyota Tundra
ILLUST NO. 2 OF 2(0408- )GSK30,UCK30,40
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73030 - BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER RH | ||||
| 73030-0C010E0 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73030-0C010B0 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73030-0C010B1 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73030-0C020E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73030-0C020B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73030-0C020B0 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73040 - BELT ASSY, NO.1 SEAT LAP, CENTER W/INNER LH | ||||
| 73040-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73040-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73040-0C021E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73040-0C021B1 |
GSK30,UCK30,40..ACB MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 73040-0C021B0 |
GSK30,UCK30,40..ACB MEDIUM GRAY,TRIM12 |
1 | ||
| 73040-0C010E1 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73131A - BRACKET, SEAT BELT | ||||
| 73131-0C010 |
GSK30,UCK30,40..ACB |
1 | ||
| 73160C - BELT ASSY, FRONT CENTER SEAT, RH | ||||
| 73160-0C011B0 |
GSK30,UCK30,40..ACB MEDIUM GRAY,TRIM12 |
1 | ||
| 73160-0C011E1 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73160-0C011B1 |
GSK30,UCK30,40..ACB MEDIUM CHARCOAL,TRIM11 |
1 | ||
| 73297B - COVER, QUARTER TRIM BELT HOLE, RH | ||||
| 73297-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73297-0C010E1 |
GSK30,UCK30,40 FAWN,TRIM42,43 |
1 | ||
| 73297-0C010B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73297-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73297-0C010E0 |
UCK30,40,VCK30,40 MD.OAK,TRIM4# |
1 | ||
| 73297-0C010B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73298B - COVER, QUARTER TRIM BELT HOLE, LH | ||||
| 73297-0C010E0 |
UCK30,40,VCK30,40 MD.OAK,TRIM4# |
1 | ||
| 73297-0C010E1 |
GSK30,UCK30,40 FAWN,TRIM42,43 |
1 | ||
| 73297-0C010B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73297-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73297-0C010B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73297-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-0C050B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73360-0C050B0 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73360-0C050E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73370-0C050B0 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73370-0C050B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73370-0C050E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-0C020B0 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73373-0C020E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73373-0C020B1 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-34010 |
UCK30,40,VCK30,40..ACB NO.1 |
2 | ||
| 73709-34010 |
GSK30,UCK30,40..ACB NO.1 |
2 | ||
| 73709-34020 |
GSK30,UCK30,40..ACB NO.2 |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-34010 |
UCK30,40,VCK30,40..ACB NO.1 |
2 | ||
| 73709-34010 |
GSK30,UCK30,40..ACB NO.1 |
2 | ||
| 73709-34020 |
GSK30,UCK30,40..ACB NO.2 |
1 | ||
| Common parts | ||||
| 90080-10112 | ||||
| 90080-10179 | ||||
| 90080-10344 | ||||
| 90080-10345 | ||||
| 90105-11036 | ||||
| 90206-12003 | ||||
| 90560-08066 | ||||

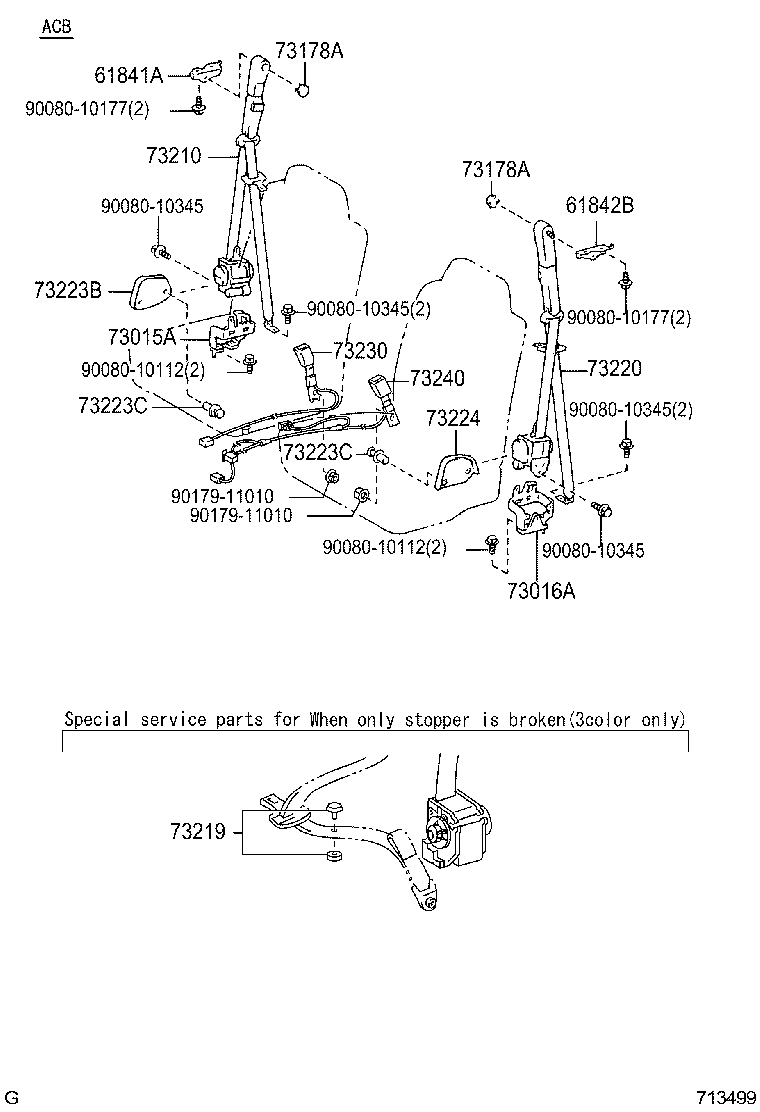

ILLUST NO. 1 OF 2(0408- )ACB
FRONT SEAT(CAPTAIN SEAT TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61841A - BRACKET, SHOULDER BELT ANCHOR, RH | ||||
| 61841-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 61841-0C010 |
GSK30,UCK30,40..ACB |
1 | ||
| 61842B - BRACKET, SHOULDER BELT ANCHOR, LH | ||||
| 61842-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 61842-0C010 |
GSK30,UCK30,40..ACB |
1 | ||
| 73015A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 73015-34010 |
GSK30,UCK30,40..ACB |
1 | ||
| 73016A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-34010 |
GSK30,UCK30,40..ACB |
1 | ||
| 73016-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
2 | ||
| 73178-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
2 | ||
| 73178-0C010B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
2 | ||
| 73178-0C010B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E1 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
2 | ||
| 73178-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
2 | ||
| 73178-0C010B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
2 | ||
| 73178-0C010B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E1 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73210-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73210-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73210-0C060B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73210-0C060E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73210-0C060B0 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02030 |
GSK30,UCK3#,4# BEIGE |
1 | ||
| 73219-02020 |
GSK30,UCK3#,4# GRAY |
1 | ||
| 73219-02010 |
GSK30,UCK3#,4# BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73220-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73220-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73220-0C060E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73220-0C060B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73220-0C060B0 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
1 | ||
| 73223-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
1 | ||
| 73223-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73223-0C020B0 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73223-0C020E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73223-0C020B1 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73223C - CLIP, FRONT SEAT BELT RETRACTOR COVER | ||||
| 90080-46276E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
4 | ||
| 90080-46276B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
4 | ||
| 90080-46276B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 90080-46276B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 90080-46276E1 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
4 | ||
| 90080-46276B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
4 | ||
| 73223C - CLIP, FRONT SEAT BELT RETRACTOR COVER | ||||
| 90080-46276E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
4 | ||
| 90080-46276B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
4 | ||
| 90080-46276B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 90080-46276B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 90080-46276E1 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
4 | ||
| 90080-46276B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
4 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
1 | ||
| 73224-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73224-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
1 | ||
| 73224-0C020E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73224-0C020B1 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73224-0C020B0 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0C040B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C040E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C040B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73230-0C090B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(4:6 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C060E0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 73230-0C130B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 73230-0C090B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(4:6 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 73230-0C060B1 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 73230-0C060B0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C130E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4# |
1 | ||
| 73230-0C090E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(4:6 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 73230-0C130B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0C030B3 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C030E1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C030B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73240-0C030B0 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73240-0C030E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
1 | ||
| 73240-0C030B1 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| Common parts | ||||
| 90080-10112 | ||||
| 90080-10177 | ||||
| 90080-10345 | ||||
| 90179-11010 | ||||
ILLUST NO. 1 OF 2(0408- )ACB

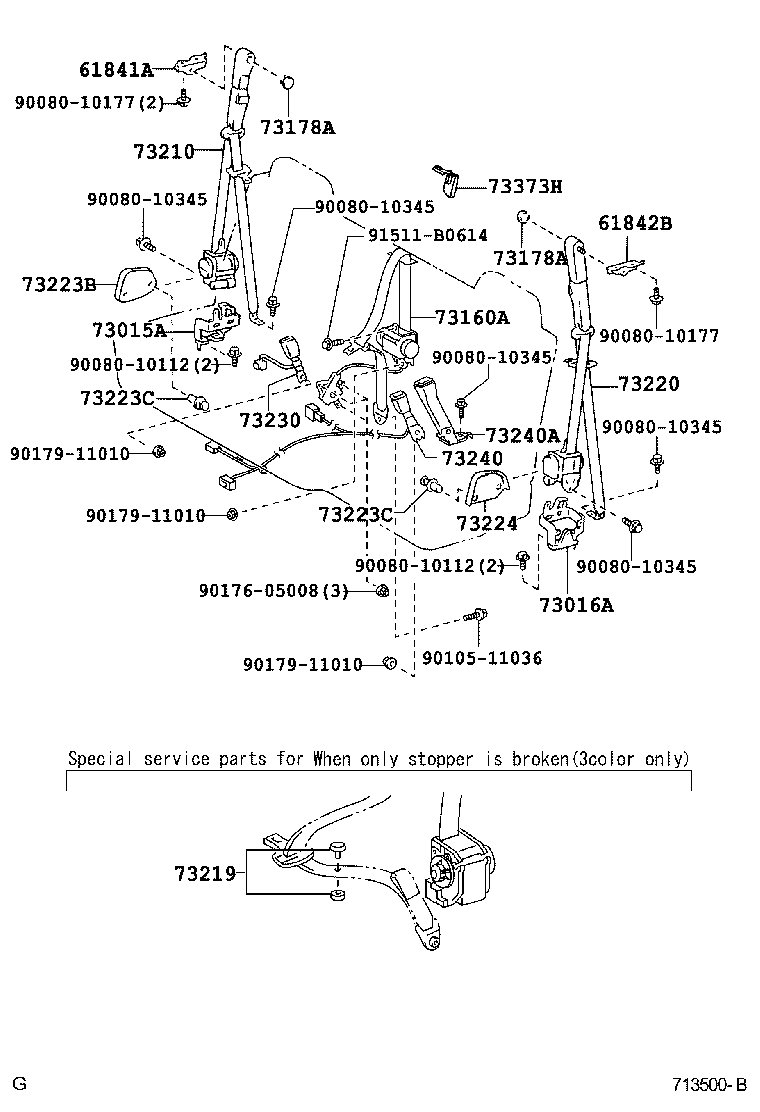

FRONT SEAT(4:6 SPLIT SEAT TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61841A - BRACKET, SHOULDER BELT ANCHOR, RH | ||||
| 61841-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 61841-0C010 |
GSK30,UCK30,40..ACB |
1 | ||
| 61842B - BRACKET, SHOULDER BELT ANCHOR, LH | ||||
| 61842-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 61842-0C010 |
GSK30,UCK30,40..ACB |
1 | ||
| 73015A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 73015-34010 |
GSK30,UCK30,40..ACB |
1 | ||
| 73016A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-34010 |
GSK30,UCK30,40..ACB |
1 | ||
| 73016-0C010 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 73160A - SEAT BELT ASSY, FRONT CENTER, RH | ||||
| 73160-0C020E0 |
GSK30,UCK30,40..ACB..5HC FAWN,TRIM42,43 |
1 | ||
| 73160-0C020B2 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 73160-0C020B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
2 | ||
| 73178-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
2 | ||
| 73178-0C010B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
2 | ||
| 73178-0C010B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E1 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
2 | ||
| 73178-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
2 | ||
| 73178-0C010B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
2 | ||
| 73178-0C010B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
2 | ||
| 73178-0C010E1 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73210-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73210-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73210-0C060B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73210-0C060E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73210-0C060B0 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02030 |
GSK30,UCK3#,4# BEIGE |
1 | ||
| 73219-02020 |
GSK30,UCK3#,4# GRAY |
1 | ||
| 73219-02010 |
GSK30,UCK3#,4# BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0C010B2 |
UCK30,40,VCK30,40..ACB CHARCOAL,TRIM11 |
1 | ||
| 73220-0C010B3 |
UCK30,40,VCK30,40..ACB BLUISH GRAY,TRIM10 |
1 | ||
| 73220-0C010E2 |
UCK30,40,VCK30,40..ACB OAK,TRIM4# |
1 | ||
| 73220-0C060E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73220-0C060B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73220-0C060B0 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
1 | ||
| 73223-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
1 | ||
| 73223-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73223-0C020B0 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73223-0C020E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73223-0C020B1 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73223C - CLIP, FRONT SEAT BELT RETRACTOR COVER | ||||
| 90080-46276E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
4 | ||
| 90080-46276B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
4 | ||
| 90080-46276B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 90080-46276B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 90080-46276E1 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
4 | ||
| 90080-46276B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
4 | ||
| 73223C - CLIP, FRONT SEAT BELT RETRACTOR COVER | ||||
| 90080-46276E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
4 | ||
| 90080-46276B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
4 | ||
| 90080-46276B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 90080-46276B1 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
4 | ||
| 90080-46276E1 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
4 | ||
| 90080-46276B2 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
4 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-0C010B0 |
UCK30,40,VCK30,40..ACB MOON MIST,TRIM10 |
1 | ||
| 73224-0C010B1 |
UCK30,40,VCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73224-0C010E0 |
UCK30,40,VCK30,40..ACB MD.OAK,TRIM4# |
1 | ||
| 73224-0C020E0 |
GSK30,UCK30,40..ACB FAWN,TRIM42,43 |
1 | ||
| 73224-0C020B1 |
GSK30,UCK30,40..ACB MD.GRAY,TRIM12 |
1 | ||
| 73224-0C020B0 |
GSK30,UCK30,40..ACB MD.CHARCOAL,TRIM11 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0C040B1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C040E0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C040B0 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73230-0C090B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(4:6 SPRIT SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C060E0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43 |
1 | ||
| 73230-0C130B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.GRAY,TRIM12 |
1 | ||
| 73230-0C090B1 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(4:6 SPRIT SEAT),MD.GRAY,TRIM12 |
1 | ||
| 73230-0C060B1 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12 |
1 | ||
| 73230-0C060B0 |
GSK30,UCK3#,4#..LIMD,SR5 W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C130E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) FAWN,TRIM4# |
1 | ||
| 73230-0C090E0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) W(4:6 SPRIT SEAT),FAWN,TRIM42,43 |
1 | ||
| 73230-0C130B0 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) MD.CHARCOAL,TRIM11 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0C030B3 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73230-0C030E1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.OAK,TRIM4# |
1 | ||
| 73230-0C030B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MOON MIST,TRIM10 |
1 | ||
| 73240-0C030B0 |
GSK30,UCK3#,4#..LIMD,SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 73240-0C030E0 |
GSK30,UCK3#,4#..LIMD,SR5 FAWN,TRIM42,43 |
1 | ||
| 73240-0C030B1 |
GSK30,UCK3#,4#..LIMD,SR5 MD.GRAY,TRIM12 |
1 | ||
| 73240A - BELT ASSY, FRONT SEAT INNER LH | ||||
| 73240-0C060B0 |
GSK30,UCK30,40..ACB..5HC MD.GRAY,TRIM12 |
1 | ||
| 73240-0C060B1 |
GSK30,UCK30,40..ACB..5HC MD.CHARCOAL,TRIM11 |
1 | ||
| 73240-0C060E0 |
GSK30,UCK30,40..ACB..5HC FAWN,TRIM42,43 |
1 | ||
| 73373H - COVER, FRONT SEAT SHOULDER BELT | ||||
| 73373-0E011 |
GSK30,UCK3#,4#..5HC..(LIMD,SR5) |
1 | ||
| Common parts | ||||
| 90080-10112 | ||||
| 90080-10177 | ||||
| 90080-10345 | ||||
| 90105-11036 | ||||
| 90176-05008 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
