UCK40L-ARBSKA (2004)

Toyota Tundra

Production Aug 2004 - Dec 2006
Engine 2UZFE
Transmission 5HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0508)GSK30,UCK30,40..CND ; (0408- )GSK30,UCK30,40..USA

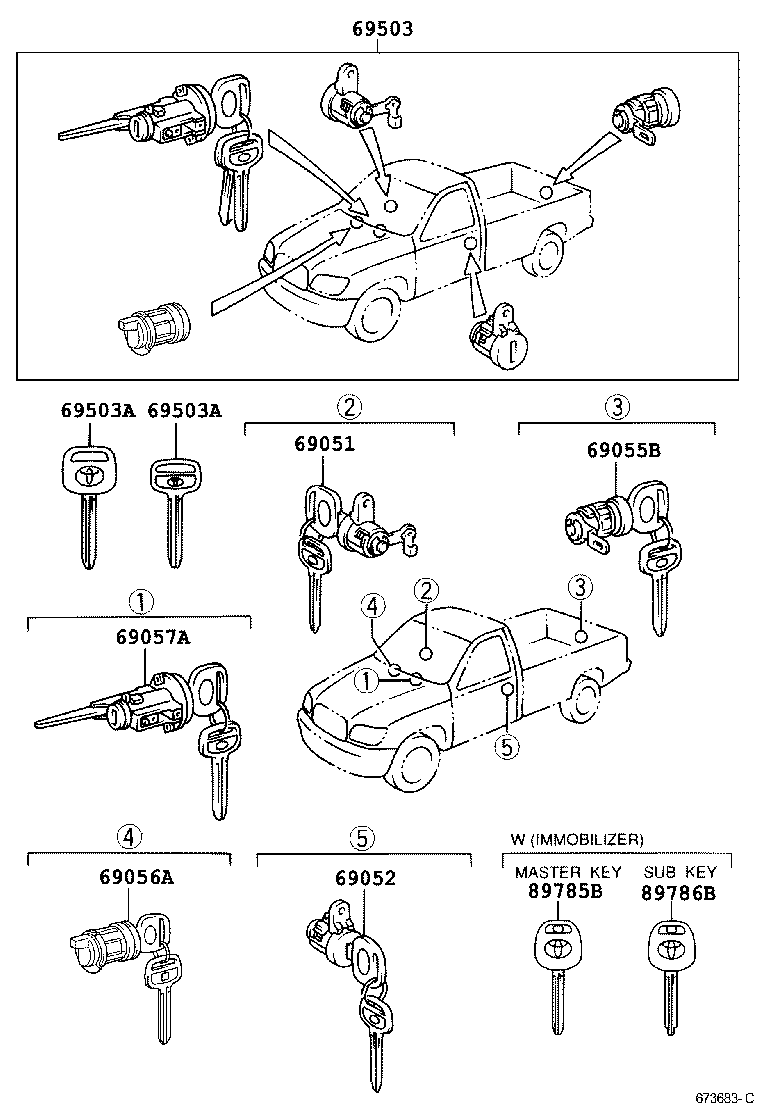

Click highlighted areas on diagram

diagram 69051 69052 69055B 69056A 69057A 69503 69503A 69503A 89785B 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-34030

UCK30,40,VCK30,40

 1
69051-34030

GSK30,UCK30,40

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-34030

GSK30,UCK30,40

 1
69052-34030

UCK30,40,VCK30,40

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-34010

UCK30,40,VCK30,40

 1
69055-34010

GSK30,UCK3#,4#

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-0C010

GSK30,UCK3#,4#

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-34030

UCK30,40,VCK30,40

 1
69057-34030

GSK30,UCK30,40..USA

 1
69503 - CYLINDER SET, LOCK
69005-34040

UCK30,40,VCK30,40

 1
69005-0C030

GSK30,UCK30,40..USA

 1
69503A - KEY, BLANK
90999-00185

UCK30,40,VCK30,40

MASTER KEY,W(*68)

 1
90999-00186

GSK30,UCK3#,4#

MASTER KEY

 1
90999-00188

GSK30,UCK3#,4#..USA

SUB KEY

 1
90999-00185

GSK30,UCK3#,4#

MASTER KEY,W(*68)

 1
90999-00186

UCK30,40,VCK30,40

MASTER KEY

 2
69503A - KEY, BLANK
90999-00185

UCK30,40,VCK30,40

MASTER KEY,W(*68)

 1
90999-00186

GSK30,UCK3#,4#

MASTER KEY

 1
90999-00188

GSK30,UCK3#,4#..USA

SUB KEY

 1
90999-00185

GSK30,UCK3#,4#

MASTER KEY,W(*68)

 1
90999-00186

UCK30,40,VCK30,40

MASTER KEY

 2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-34020

UCK30,40;GSK30..SR5;GSK30,UCK31,41..CND

BLANK KEY

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-34020

UCK30,40;GSK30..SR5;GSK30,UCK31,41..CND

SUB KEY

 1
