UCK31L-PRSSKA (2003)
Toyota Tundra

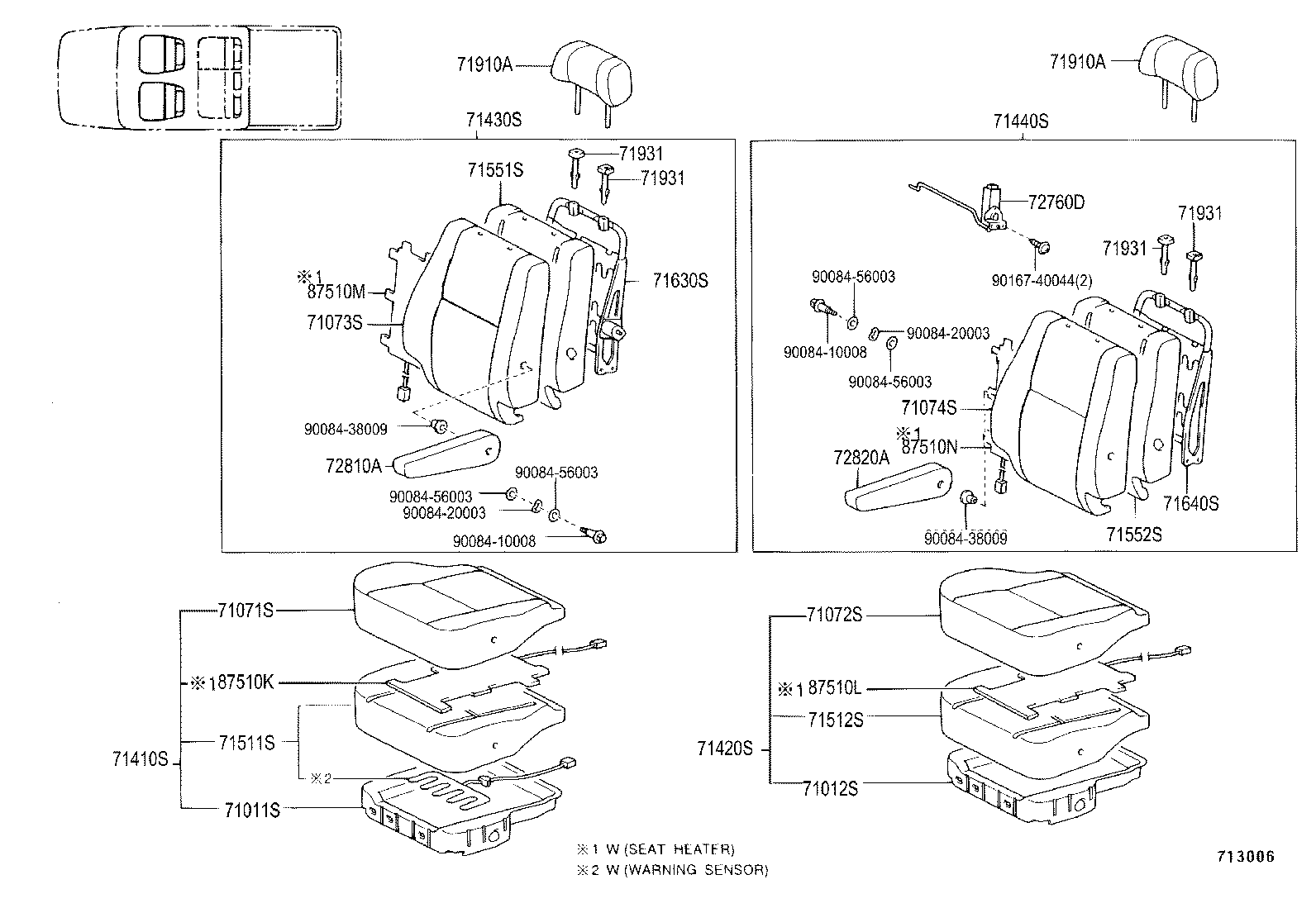

ILLUST NO. 1 OF 2(0310-0408)UCK31,41
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-0C070 |
UCK31,41 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71610-0C090 |
UCK31,41..SR5 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0C170E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 71071-0C170B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 71071-0C170B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0C110B3 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71072-0C110E1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 71072-0C110B2 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0C180B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 71073-0C180B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71073-0C180E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0C150B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71074-0C150B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 71074-0C150E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0C080 |
UCK31,41 SEAT = TYPE A OR TYPE B OR TYPE C-*104 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-0C090 |
UCK31,41..SR5 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0C040 |
UCK31,41 W(FRONT CAPTAIN SEAT) & SEAT = TYPE A OR TYPE B OR TYPE C-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0C060 |
UCK31,41 W(FRONT CAPTAIN SEAT) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0C050 |
UCK31,41 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C090B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
2 | ||
| 71910-0C090B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
2 | ||
| 71910-0C090E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0C090B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
2 | ||
| 71910-0C090B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
2 | ||
| 71910-0C090E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
2 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-0C140B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 72810-0C140B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 72810-0C140E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-0C060B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 72820-0C060E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 72820-0C060B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| Common parts | ||||
| 90084-10008 | ||||
| 90084-20003 | ||||
| 90084-38009 | ||||
| 90084-56003 | ||||
| 90167-40044 | ||||

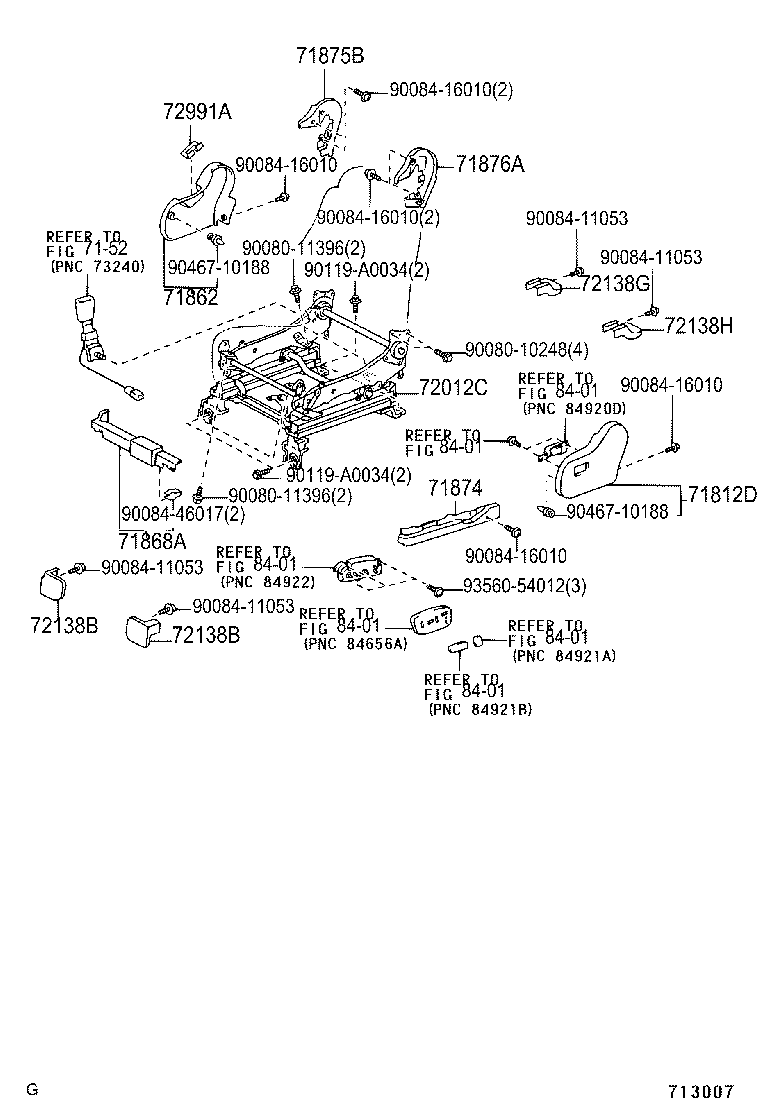

ILLUST NO. 2 OF 2(0310-0408)UCK31,41
FRONT POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0C070B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 71876-0C070E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
1 | ||
| 71876-0C070B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0C100B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72137-0C100B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
2 | ||
| 72137-0C100E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0C100B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72137-0C100B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
2 | ||
| 72137-0C100E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
2 | ||
| 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER | ||||
| 72137-0C110B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C110E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
1 | ||
| 72137-0C110B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72137-0C140B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C140E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
1 | ||
| 72137-0C140B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| Common parts | ||||
| 90080-10248 | ||||
| 90080-11396 | ||||
| 90084-11053 | ||||
| 90084-16010 | ||||
| 90084-46017 | ||||
| 90119-A0034 | ||||
| 90467-10188 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||

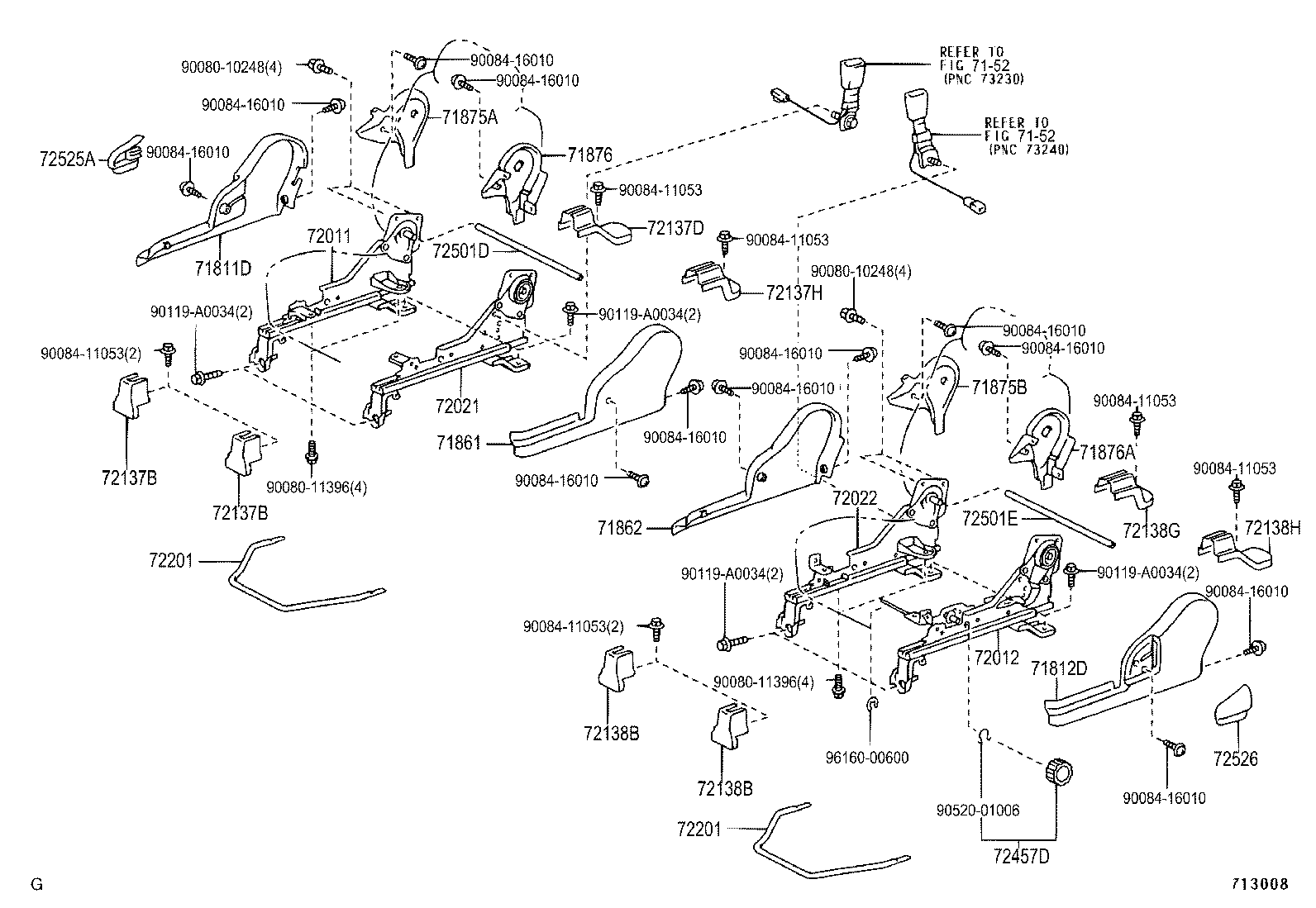

ILLUST NO. 2 OF 2(0310-0408)UCK31,41
FRONT MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 71875-0C020B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71875-0C020B2 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71875-0C010 |
UCK31,41 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0C070B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71876-0C070E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 71876-0C070B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71876-0C030 |
UCK31,41 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-0C070B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 71876-0C070E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
1 | ||
| 71876-0C070B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-0C050 |
UCK31,41 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-0C040 |
UCK31,41..SR5 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-0C030 |
UCK31,41 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-0C040 |
UCK31,41..SR5 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-0C100B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 72137-0C100B1 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 72137-0C100E0 |
UCK31,41 MD.OAK,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-0C100B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 72137-0C100B1 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 72137-0C100E0 |
UCK31,41 MD.OAK,TRIM4# |
2 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-0C140B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C140B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C140E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 72137H - COVER, FRONT SEAT TRACK, RH FRONT OUTER | ||||
| 72137-0C110B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C110B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C110E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0C100B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72137-0C100B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
2 | ||
| 72137-0C100E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0C100B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
2 | ||
| 72137-0C100B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
2 | ||
| 72137-0C100E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
2 | ||
| 72138G - COVER, FRONT SEAT TRACK, LH FRONT INNER | ||||
| 72137-0C110B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72137-0C110E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
1 | ||
| 72137-0C110B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72137-0C140B1 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72137-0C140E0 |
UCK31,41..SR5 MD.OAK,TRIM4# |
1 | ||
| 72137-0C140B0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-22020P2 |
UCK31,41..SR5 MD.GRAY,TRIM12 |
1 | ||
| 72457-22020E4 |
UCK31,41..SR5 MD.OAK,TRIM4# |
1 | ||
| 72457-22020P0 |
UCK31,41..SR5 MD.CHARCOAL,TRIM11 |
1 | ||
| Common parts | ||||
| 90080-10248 | ||||
| 90080-11396 | ||||
| 90084-11053 | ||||
| 90084-16010 | ||||
| 90119-A0034 | ||||
| 90520-01006 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||

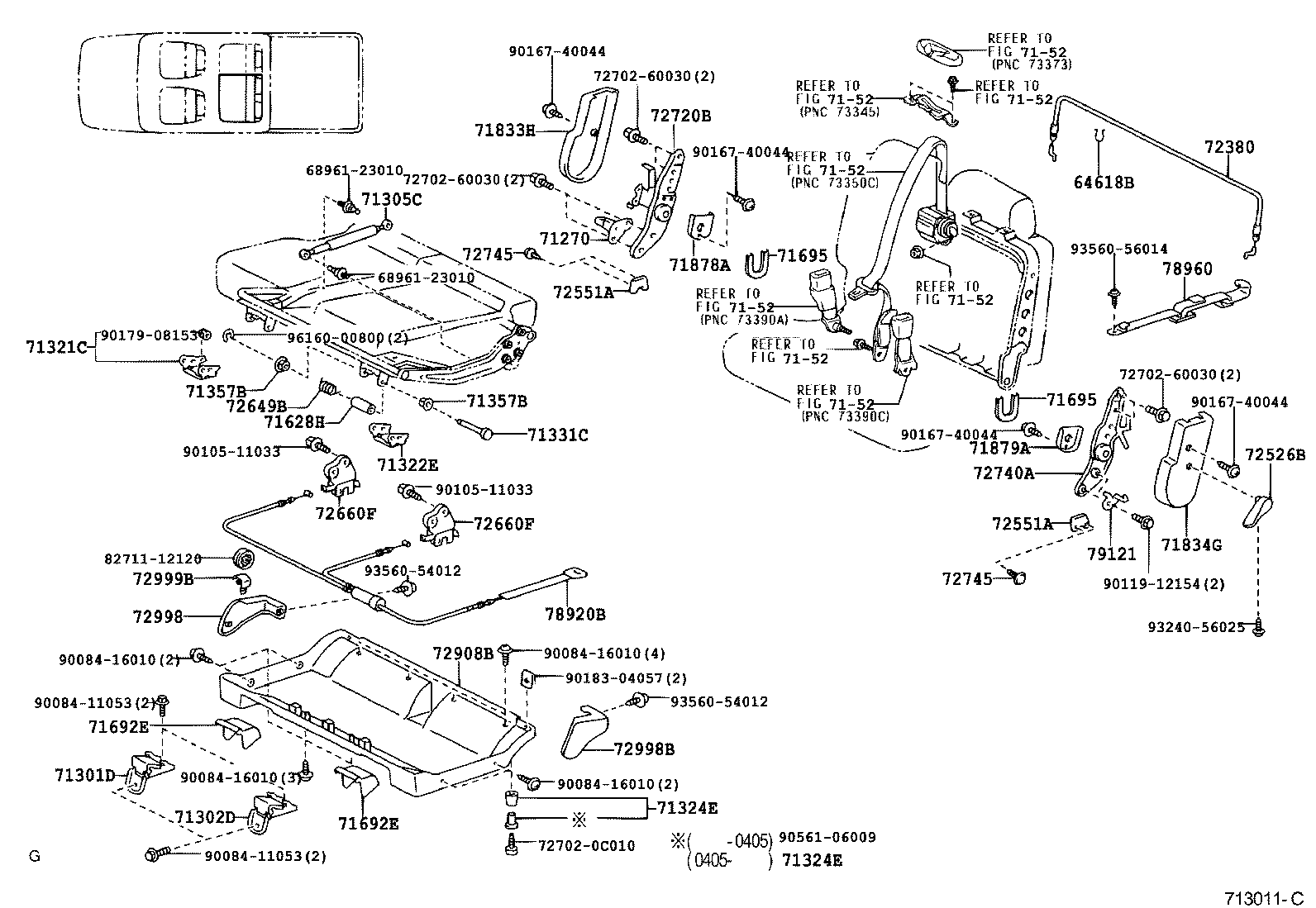

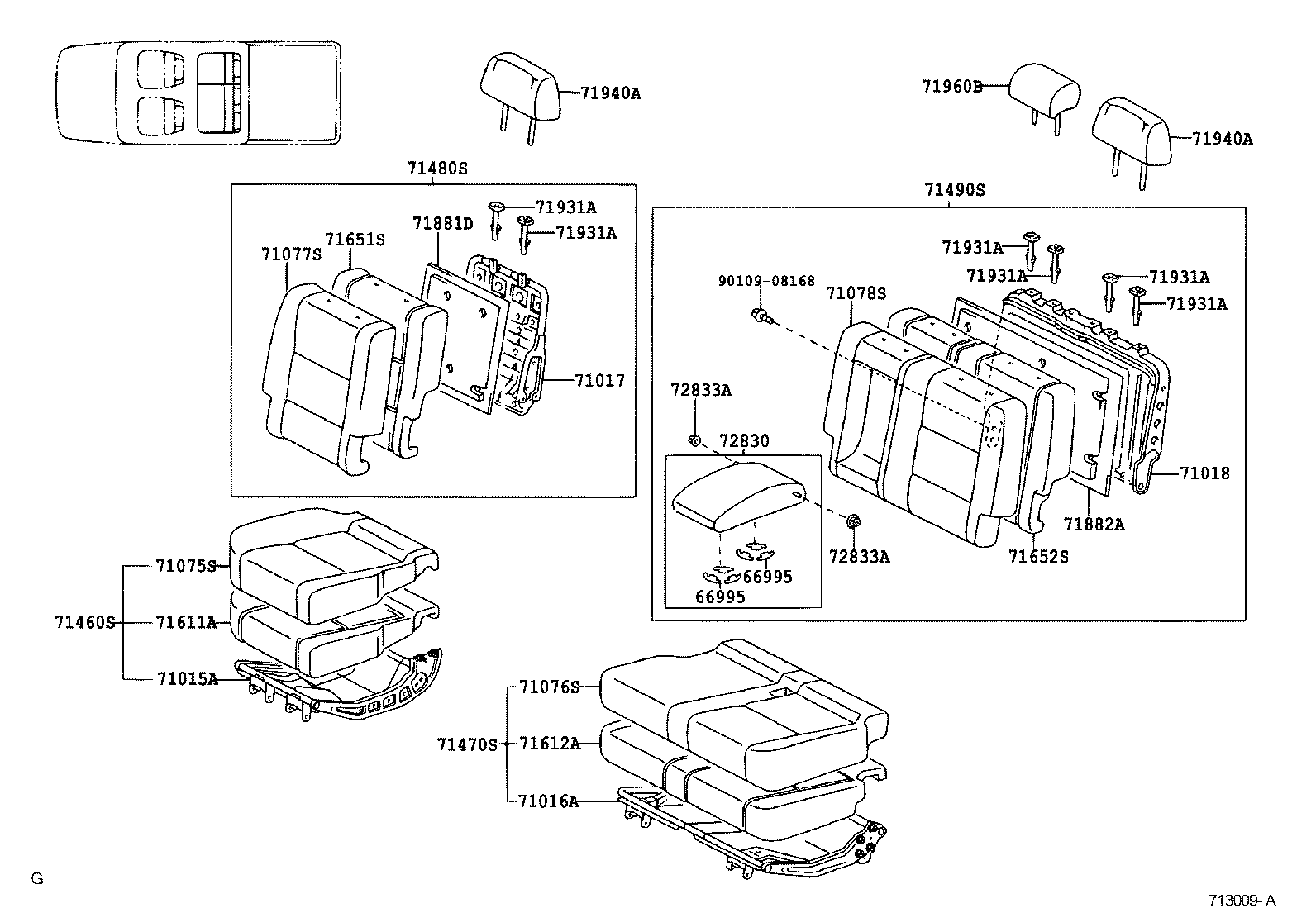

ILLUST NO. 1 OF 2(0310-0408)UCK31,41
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66995 - RETAINER, CUP HOLDER | ||||
| 66995-0C010 |
UCK31,41 |
6 | ||
| 66995 - RETAINER, CUP HOLDER | ||||
| 66995-0C010 |
UCK31,41 |
6 | ||
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-0C040 |
UCK31,41 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-0C060 |
UCK31,41 |
1 | ||
| 71016-0C080 |
UCK31,41 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0C020 |
UCK31,41 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0C010 |
UCK31,41 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-0C080B3 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71075-0C080B2 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 71075-0C080E1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-0C070E1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 71076-0C070B2 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 71076-0C070B3 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0C090B4 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 71077-0C090E2 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 71077-0C090B5 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0C050B2 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 71078-0C050E1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 71078-0C050B3 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-0C060B5 |
UCK31,41..SR5 SEAT = TYPE B-*104,CHARCOAL,TRIM12 |
1 | ||
| 71460-0C060B4 |
UCK31,41..SR5 SEAT = TYPE B-*104,CHARCOAL,TRIM11 |
1 | ||
| 71460-0C060E2 |
UCK31,41..SR5 SEAT = TYPE B-*104,OAK,TRIM4# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-0C060B5 |
UCK31,41..SR5 SEAT = TYPE B-*104,CHARCOAL,TRIM12 |
1 | ||
| 71470-0C060B4 |
UCK31,41..SR5 SEAT = TYPE B-*104,CHARCOAL,TRIM11 |
1 | ||
| 71470-0C060E2 |
UCK31,41..SR5 SEAT = TYPE B-*104,OAK,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-0C060B4 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71480-0C060E2 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM40 |
1 | ||
| 71480-0C060B5 |
UCK31,41..SR5 SEAT = TYPE B-*104,MEDIUM GRAY,TRIM12 |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-0C030B5 |
UCK31,41..SR5 SEAT = TYPE B-*104,MEDIUM GRAY,TRIM12 |
1 | ||
| 71490-0C030B4 |
UCK31,41..SR5 TRIM = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71490-0C030E2 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM40 |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-0C020 |
UCK31,41 SEAT = TYPE A OR TYPE B OR TYPE C-*104 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-0C020 |
UCK31,41 SEAT = TYPE A OR TYPE B OR TYPE C-*104 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0C060 |
UCK31,41 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0C030 |
UCK31,41 |
1 | ||
| 71881D - BOARD, REAR SEAT BACK, RH | ||||
| 71881-0C030 |
UCK31,41 |
1 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-0C040 |
UCK31,41 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0C010E0 |
UCK31,41 W/O(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71930-0C010B4 |
UCK31,41 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E0 |
UCK31,41 W(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010B1 |
UCK31,41 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931-0C010B1 |
UCK31,41 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0C010E0 |
UCK31,41 W/O(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71930-0C010B4 |
UCK31,41 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E0 |
UCK31,41 W(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010B1 |
UCK31,41 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931-0C010B1 |
UCK31,41 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0C010E0 |
UCK31,41 W/O(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71930-0C010B4 |
UCK31,41 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E0 |
UCK31,41 W(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010B1 |
UCK31,41 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931-0C010B1 |
UCK31,41 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0C010E0 |
UCK31,41 W/O(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71930-0C010B4 |
UCK31,41 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E0 |
UCK31,41 W(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010B1 |
UCK31,41 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931-0C010B1 |
UCK31,41 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0C010E0 |
UCK31,41 W/O(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71930-0C010B4 |
UCK31,41 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E0 |
UCK31,41 W(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010B1 |
UCK31,41 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931-0C010B1 |
UCK31,41 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-0C010E0 |
UCK31,41 W/O(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71930-0C010B4 |
UCK31,41 W(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010E0 |
UCK31,41 W(LOCK),MD.OAK,TRIM4# |
3 | ||
| 71931-0C010B4 |
UCK31,41 W/O(LOCK),MD.GRAY,TRIM12 |
3 | ||
| 71930-0C010B1 |
UCK31,41 W(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71931-0C010B1 |
UCK31,41 W/O(LOCK),MD.CHARCOAL,TRIM11 |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0C070B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
2 | ||
| 71940-0C070E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
2 | ||
| 71940-0C070B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0C070B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
2 | ||
| 71940-0C070E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
2 | ||
| 71940-0C070B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0C030E0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. OAK,TRIM4# |
1 | ||
| 71960-0C030B1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. CHARCOAL,TRIM11 |
1 | ||
| 71960-0C030B0 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0C090B2 |
UCK31,41..SR5 SEAT = TYPE B-*104,MEDIUM CHARCOAL-TYLE,TRIM11 |
1 | ||
| 72830-0C090B3 |
UCK31,41..SR5 SEAT = TYPE B-*104,MED. GRAY,TRIM12 |
1 | ||
| 72830-0C090E1 |
UCK31,41..SR5 SEAT = TYPE B-*104,MEDIUM OAK-TYLER,TRIM4# |
1 | ||
| 72833A - PLATE, SEAT CENTER ARMREST, INNER | ||||
| 72833-0C030 |
UCK31,41 |
2 | ||
| 72833A - PLATE, SEAT CENTER ARMREST, INNER | ||||
| 72833-0C030 |
UCK31,41 |
2 | ||
| Common parts | ||||
| 90109-08168 | ||||

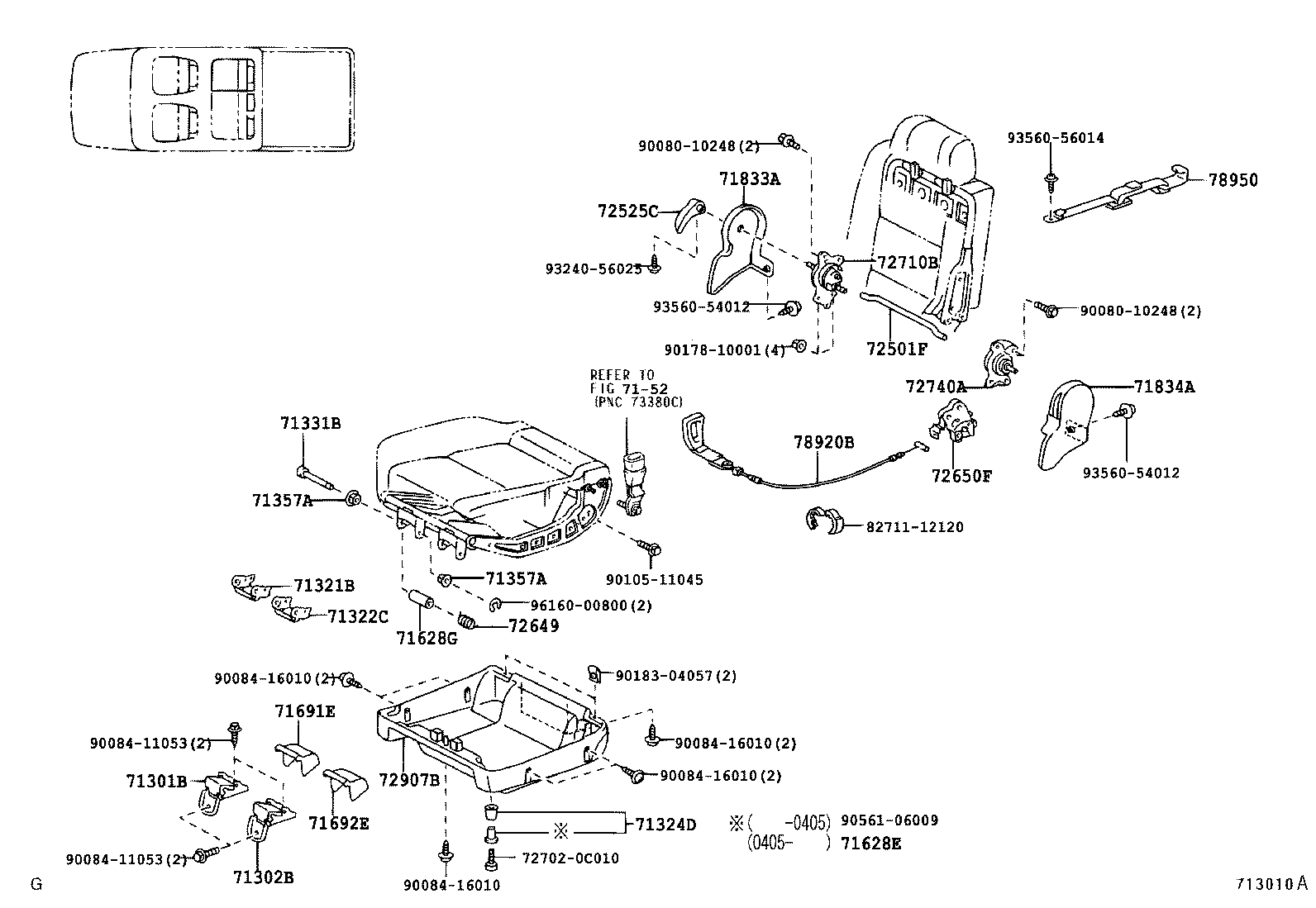

ILLUST NO. 2 OF 2(0310-0408)UCK31,41
REAR SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-0C010 |
UCK31,41 |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71301-0C010 |
UCK31,41 |
1 | ||
| 71321B - HINGE, REAR SEAT CUSHION, RH | ||||
| 71321-0C040 |
UCK31,41 |
1 | ||
| 71322C - HINGE, REAR SEAT CUSHION, LH | ||||
| 71322-0C030 |
UCK31,41 |
1 | ||
| 71324D - CUSHION, REAR SEAT, RH | ||||
| 71324-0C010 |
UCK31,41 |
1 | ||
| 71331B - PIN, REAR SEAT HINGE, RH | ||||
| 71331-0C020 |
UCK31,41 |
2 | ||
| 71357A - PLATE, REAR SEAT HINGE SET, RH | ||||
| 71357-0C010 |
UCK31,41 |
4 | ||
| 71357A - PLATE, REAR SEAT HINGE SET, RH | ||||
| 71357-0C010 |
UCK31,41 |
4 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-0C040 |
UCK31,41 |
2 | ||
| 71628G - SPACER, REAR SEAT CUSHION, RH | ||||
| 71628-0C010 |
UCK31,41 |
2 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 71691-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71691-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
3 | ||
| 71692-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
3 | ||
| 71692-0C010E0 |
UCK31,41 MD.OAK,TRIM4# |
3 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-0C011B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71833-0C011E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 71833-0C011B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-0C010E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 71834-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71834-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72501F - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-0C040 |
UCK31,41 |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-0C021E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 72525-0C021B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72525-0C021B3 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0C010 |
UCK31,41 |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-0C030 |
UCK31,41 |
1 | ||
| 72710B - ADJUSTER ASSY, REAR SEAT BACK, INNER RH | ||||
| 72730-0C030 |
UCK31,41 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-34020 |
UCK31,41 LH |
1 | ||
| 72740-0C070 |
UCK31,41 RH |
1 | ||
| 72907B - COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH | ||||
| 72907-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72907-0C030E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 72907-0C030B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 78920B - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH | ||||
| 78910-0C010B2 |
UCK31,41 MD.GRAY,TRIM12,LH |
1 | ||
| 78910-0C010B1 |
UCK31,41 MD.CHARCOAL,TRIM11,LH |
1 | ||
| 78910-0C010E2 |
UCK31,41 MD.OAK,TRIM4#,LH |
1 | ||
| 78910-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH |
1 | ||
| 78910-0C020E2 |
UCK31,41 MD.OAK,TRIM4#,RH |
1 | ||
| 78910-0C020B1 |
UCK31,41 MD.GRAY,TRIM12,RH |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0C010E1 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 78950-0C010B2 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 78950-0C010B3 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| Common parts | ||||
| 72702-0C010 | ||||
| 82711-12120 | ||||
| 90080-10248 | ||||
| 90084-11053 | ||||
| 90084-16010 | ||||
| 90105-11045 | ||||
| 90178-10001 | ||||
| 90183-04057 | ||||
| 90561-06009 | ||||
| 93240-56025 | ||||
| 93560-54012 | ||||
| 93560-56014 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 2(0310-0408)UCK31,41
REAR SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64618B - CLAMP, BACK DOOR LOCK CONTROL CABLE | ||||
| 64618-22020 |
UCK31,41 |
2 | ||
| 71270 - BRACKET ASSY, SEAT, INNER RH | ||||
| 71270-0C010 |
UCK31,41 |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-0C020 |
UCK31,41 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71301-0C020 |
UCK31,41 |
1 | ||
| 71305C - STAY SUB-ASSY, REAR SEAT | ||||
| 71305-34020 |
UCK31,41 |
1 | ||
| 71321C - HINGE, REAR SEAT CUSHION | ||||
| 71321-0C050 |
UCK31,41 |
1 | ||
| 71322E - HINGE, REAR SEAT CUSHION, LH | ||||
| 71322-0C040 |
UCK31,41 |
1 | ||
| 71324E - CUSHION, REAR SEAT, LH | ||||
| 71324-0C010 |
UCK31,41 |
1 | ||
| 71324E - CUSHION, REAR SEAT, LH | ||||
| 71324-0C010 |
UCK31,41 |
1 | ||
| 71331C - PIN, REAR SEAT HINGE, LH | ||||
| 71331-0C020 |
UCK31,41 |
2 | ||
| 71357B - PLATE, REAR SEAT HINGE SET, LH | ||||
| 71357-0C010 |
UCK31,41 |
4 | ||
| 71357B - PLATE, REAR SEAT HINGE SET, LH | ||||
| 71357-0C010 |
UCK31,41 |
4 | ||
| 71628H - SPACER, REAR SEAT CUSHION, LH | ||||
| 71628-0C010 |
UCK31,41 |
2 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
3 | ||
| 71692-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
3 | ||
| 71692-0C010E0 |
UCK31,41 MD.OAK,TRIM4# |
3 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
3 | ||
| 71692-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
3 | ||
| 71692-0C010E0 |
UCK31,41 MD.OAK,TRIM4# |
3 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-0C010 |
UCK31,41 |
2 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-0C010 |
UCK31,41 |
2 | ||
| 71833H - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71833-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71833-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 71834G - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71834-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 71834-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71878-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 71878-0C010E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-0C010E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 71879-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 71879-0C010B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-0C010 |
UCK31,41 |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-0C010B3 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72526-0C010E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 72526-0C010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72551A - COVER, RECLINING HINGE | ||||
| 72551-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 72551-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
2 | ||
| 72551-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 72551A - COVER, RECLINING HINGE | ||||
| 72551-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 72551-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
2 | ||
| 72551-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0C010 |
UCK31,41 |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-0C020 |
UCK31,41 |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-0C020 |
UCK31,41 |
2 | ||
| 72720B - ADJUSTER ASSY, REAR SEAT BACK, INNER LH | ||||
| 72720-34020 |
UCK31,41 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-34020 |
UCK31,41 LH |
1 | ||
| 72740-0C070 |
UCK31,41 RH |
1 | ||
| 72745 - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60050B3 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 72745-60050B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 72745-60050E0 |
UCK31,41 LT.OAK,TRIM4# |
2 | ||
| 72745 - PIN, REAR SEAT RECLINING HINGE | ||||
| 72745-60050B3 |
UCK31,41 MD.GRAY,TRIM12 |
2 | ||
| 72745-60050B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
2 | ||
| 72745-60050E0 |
UCK31,41 LT.OAK,TRIM4# |
2 | ||
| 72908B - COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH | ||||
| 72908-0C010B2 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72908-0C010E2 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 72908-0C010B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72995-0C030B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72995-0C030B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72995-0C030E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 72998B - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72998-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 72998-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 72999B - COVER, REAR SEAT CUSHION SIDE, LH | ||||
| 72999-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 72999-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 72999-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 78920B - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH | ||||
| 78910-0C010B2 |
UCK31,41 MD.GRAY,TRIM12,LH |
1 | ||
| 78910-0C010B1 |
UCK31,41 MD.CHARCOAL,TRIM11,LH |
1 | ||
| 78910-0C010E2 |
UCK31,41 MD.OAK,TRIM4#,LH |
1 | ||
| 78910-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH |
1 | ||
| 78910-0C020E2 |
UCK31,41 MD.OAK,TRIM4#,RH |
1 | ||
| 78910-0C020B1 |
UCK31,41 MD.GRAY,TRIM12,RH |
1 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78950-0C010E1 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 78950-0C010B2 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 78950-0C010B3 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 79121 - BRACKET, NO.1 SEAT CUSHION | ||||
| 79121-0C010 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 68961-23010 | ||||
| 72702-0C010 | ||||
| 72702-60030 | ||||
| 82711-12120 | ||||
| 90084-11053 | ||||
| 90084-16010 | ||||
| 90105-11033 | ||||
| 90119-12154 | ||||
| 90167-40044 | ||||
| 90179-08153 | ||||
| 90183-04057 | ||||
| 90561-06009 | ||||
| 93240-56025 | ||||
| 93560-54012 | ||||
| 93560-56014 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
