UCK31L-PRSSKA (2003)
Toyota Tundra

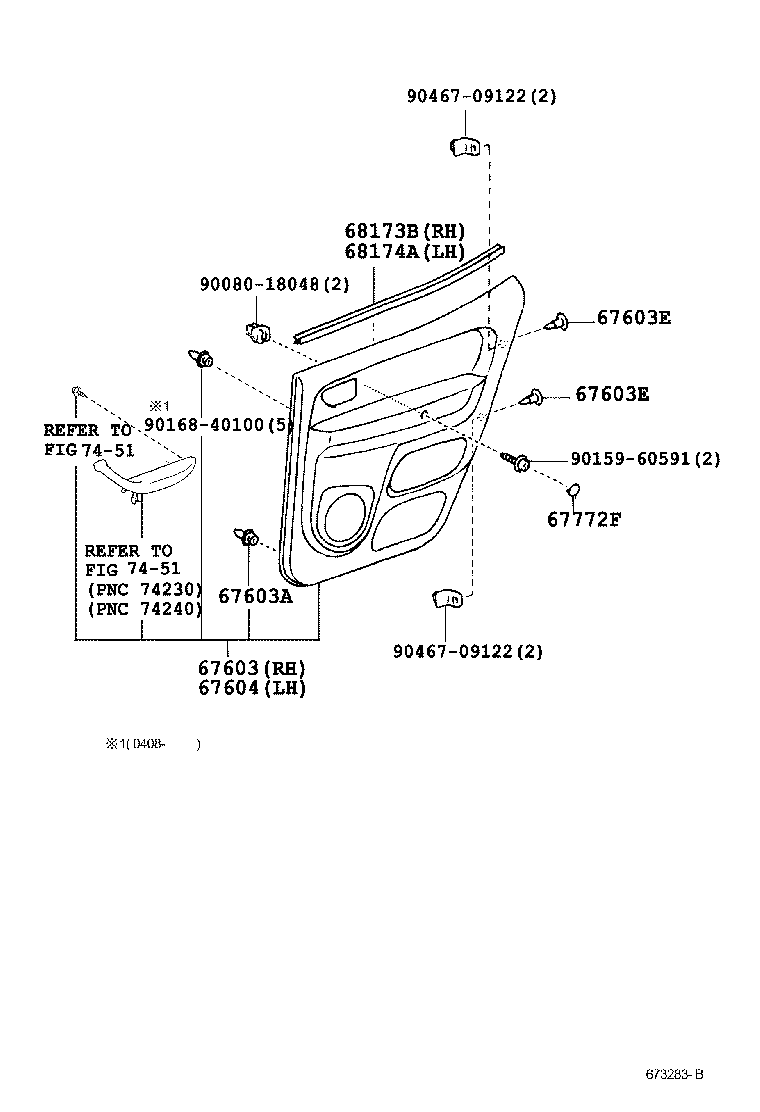

ILLUST NO. 1 OF 2(0310- )UCK31,41
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0C050B1 |
UCK31,41..SR5 CHARCOAL,TRIM12 |
1 | ||
| 67630-0C050B0 |
UCK31,41..SR5 CHARCOAL,TRIM11 |
1 | ||
| 67630-0C050E0 |
UCK31,41..SR5 OAK,TRIM4# |
1 | ||
| 67630-0C060B4 |
UCK31,41..SR5 W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. CHARCOAL,TRIM11 |
1 | ||
| 67630-0C060E2 |
UCK31,41..SR5 W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. OAK,TRIM4# |
1 | ||
| 67630-0C060B5 |
UCK31,41..SR5 W(AM/FM CASSETTE CD 8SPEAKER JBL),MEDIUM GRAY,TRIM12 |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09203 |
UCK31,41 |
16 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066B8 |
UCK31,41 MD.CHARCOAL,TRIM11,UPPER |
4 | ||
| 90467-07066P1 |
UCK31,41 DK.CHARCOAL,TRIM11,LOWER |
4 | ||
| 90467-07066P6 |
UCK31,41 DK.GRAY,TRIM12 |
4 | ||
| 90467-07066E0 |
UCK31,41 OAK,TRIM4# |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066B8 |
UCK31,41 MD.CHARCOAL,TRIM11,UPPER |
4 | ||
| 90467-07066P1 |
UCK31,41 DK.CHARCOAL,TRIM11,LOWER |
4 | ||
| 90467-07066P6 |
UCK31,41 DK.GRAY,TRIM12 |
4 | ||
| 90467-07066E0 |
UCK31,41 OAK,TRIM4# |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0C050E0 |
UCK31,41..SR5 OAK,TRIM4# |
1 | ||
| 67640-0C060B5 |
UCK31,41..SR5 W(AM/FM CASSETTE CD 8SPEAKER JBL),MEDIUM GRAY,TRIM12 |
1 | ||
| 67640-0C050B0 |
UCK31,41..SR5 CHARCOAL,TRIM11 |
1 | ||
| 67640-0C060B4 |
UCK31,41..SR5 W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. CHARCOAL,TRIM11 |
1 | ||
| 67640-0C060E2 |
UCK31,41..SR5 W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. OAK,TRIM4# |
1 | ||
| 67640-0C050B1 |
UCK31,41..SR5 CHARCOAL,TRIM12 |
1 | ||
| 67772F - CAP, REAR DOOR TRIM RETAINER | ||||
| 67772-0C120B2 |
UCK31,41 MD.GRAY,TRIM12,RH |
1 | ||
| 67772-0C120B0 |
UCK31,41 MD.CHARCOAL,TRIM11,RH |
1 | ||
| 67772-0C120E0 |
UCK31,41 MD.OAK,TRIM4#,RH |
1 | ||
| 67772-0C130E0 |
UCK31,41 MD.OAK,TRIM4#,LH |
1 | ||
| 67772-0C130B2 |
UCK31,41 MD.GRAY,TRIM12,LH |
1 | ||
| 67772-0C130B0 |
UCK31,41 MD.CHARCOAL,TRIM11,LH |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0C030 |
UCK31,41 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0C030 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 90080-18048 | ||||
| 90159-60591 | ||||
| 90168-40100 | ||||
| 90467-09122 | ||||
| Linked diagrams | ||||
| 7451 | ||||

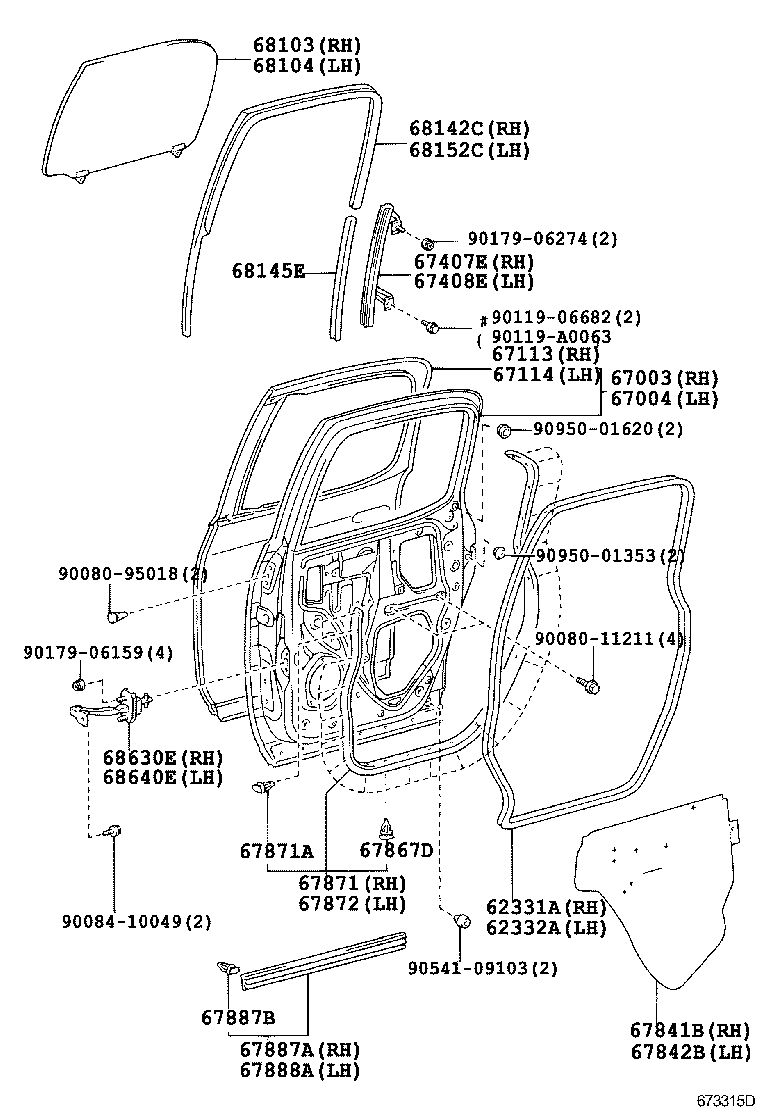

ILLUST NO. 2 OF 2(0310- )UCK31,41
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 62331-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 62331-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-0C020E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 62332-0C020B1 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 62332-0C020B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0C100 |
UCK31,41 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0C100 |
UCK31,41 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-0C050 |
UCK31,41 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-0C050 |
UCK31,41 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-0C010 |
UCK31,41 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-0C010 |
UCK31,41 |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67805-0C020 |
UCK31,41 |
1 | ||
| 67842B - COVER, REAR DOOR SERVICE HOLE, LOWER | ||||
| 67806-0C020 |
UCK31,41 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
UCK31,41 |
40 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0C030 |
UCK31,41 |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-02020 |
UCK31,41 |
4 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0C030 |
UCK31,41 |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-0C030 |
UCK31,41 |
1 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-0C010 |
UCK31,41 |
14 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67887-0C030 |
UCK31,41 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-0C030 |
UCK31,41..SR5 *HSEA,T=4.0,GREEN |
1 | ||
| 68103-0C040 |
UCK31,41 *TT,T=4.0,GRAY |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-0C040 |
UCK31,41 *TT,T=4.0,GRAY |
1 | ||
| 68104-0C030 |
UCK31,41..SR5 *HSEA,T=4.0,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0C020 |
UCK31,41 |
1 | ||
| 68145E - RUN, REAR DOOR GLASS, LOWER REAR | ||||
| 68145-0C010 |
UCK31,41 |
2 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0C020 |
UCK31,41 |
1 | ||
| 68630E - CHECK ASSY, ACCESS PANEL, RH | ||||
| 68630-0C010 |
UCK31,41 |
1 | ||
| 68640E - CHECK ASSY, ACCESS PANEL, LH | ||||
| 68640-0C010 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 90080-11211 | ||||
| 90080-95018 | ||||
| 90084-10049 | ||||
| 90119-06682 | ||||
| 90119-A0063 | ||||
| 90179-06159 | ||||
| 90179-06274 | ||||
| 90541-09103 | ||||
| 90950-01353 | ||||
| 90950-01620 | ||||
