UCK31L-PRSSKA (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )UCK31,41

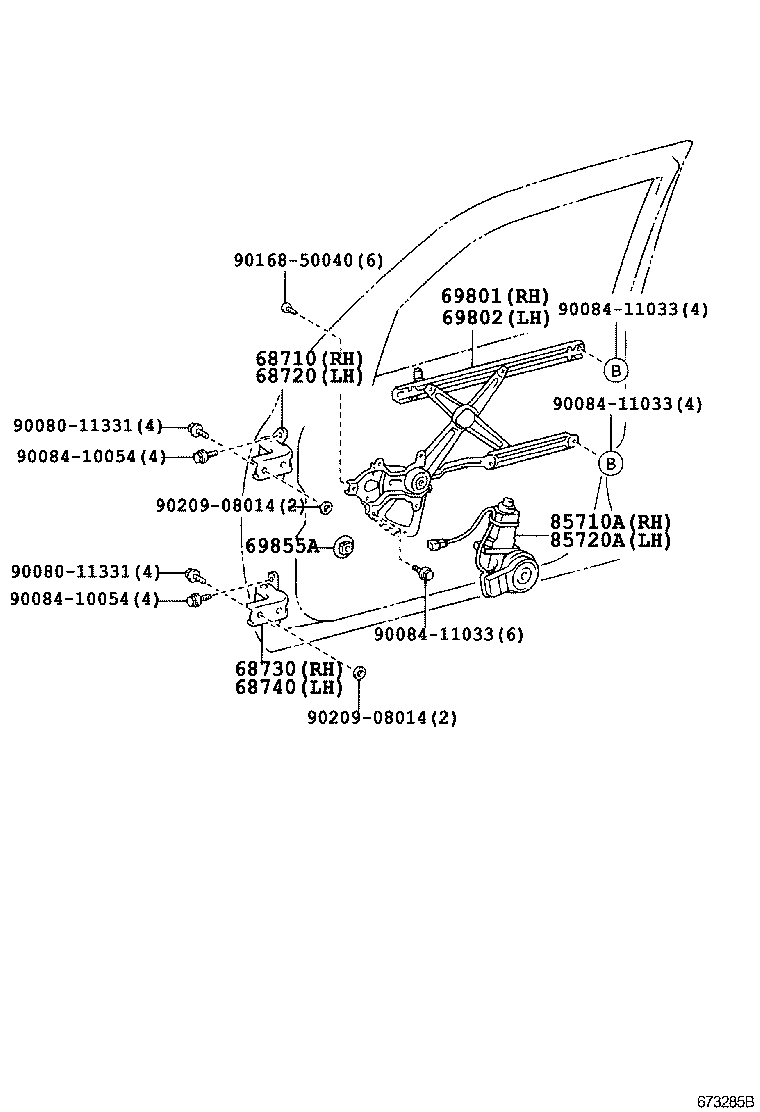

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 69855A 85710A 85720A 9008011331 9008011331 9008410054 9008410054 9008411033 9008411033 9008411033 9016850040 9020908014 9020908014
Part # Description Qty Price
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0C020

UCK31,41

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0C020

UCK31,41

 1
69855A - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

UCK31,41

 2
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-0C060

UCK31,41

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-34030

UCK31,41

 1
Common parts
90080-11331
90084-10054
90084-11033
90168-50040
90209-08014
