UCK31L-PRSSKA (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )UCK31,41

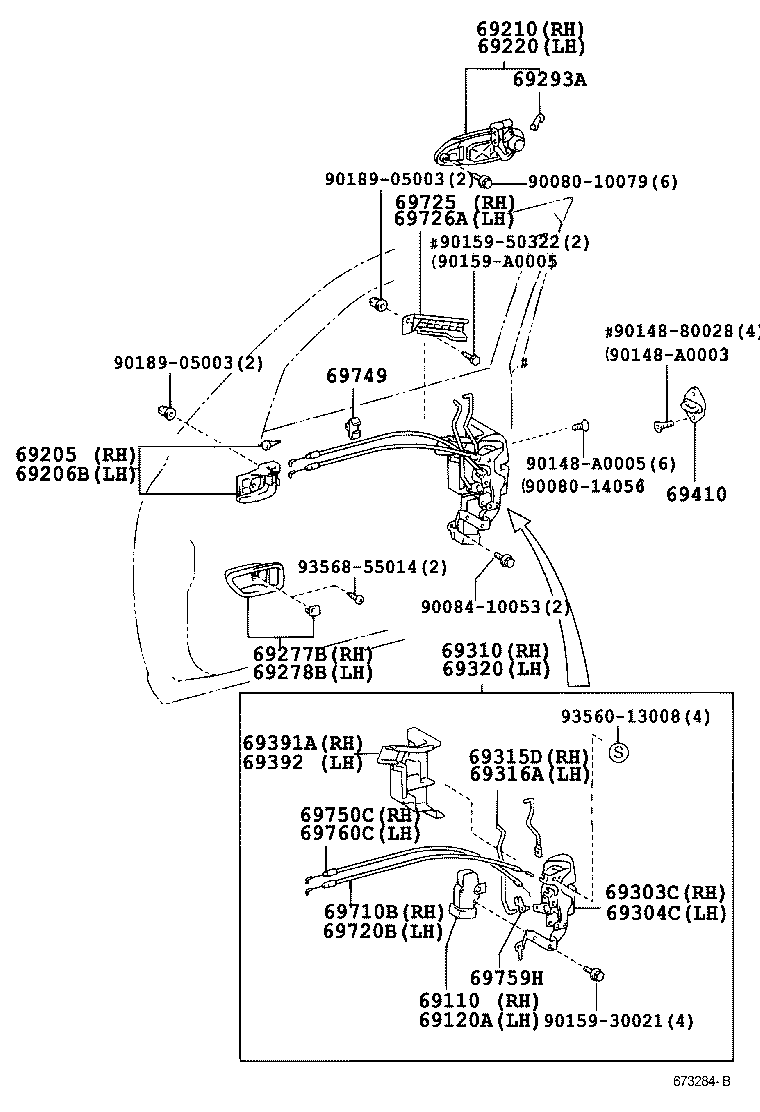

Click highlighted areas on diagram

diagram 69110 69120A 69205 69206B 69210 69220 69277B 69278B 69293A 69303C 69304C 69310 69315D 69316A 69320 69391A 69392 69410 69710B 69720B 69725 69726A 69749 69750C 69759H 69760C 9008010079 9008014056 9008410053 9014880028 90148A0003 90148A0005 9015930021 9015950322 90159A0005 9018905003 9018905003 9356013008 9356855014
Part # Description Qty Price
69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH
69110-06010

UCK31,41

 1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-06010

UCK31,41

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
69205-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
69205-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-0C030E0

UCK31,41

MD.OAK,TRIM4#

 1
69206-0C030B0

UCK31,41

MD.CHARCOAL,TRIM11

 1
69206-0C030B1

UCK31,41

MD.GRAY,TRIM12

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-34050A0

UCK31,41

WHITE,056

 1
69210-34050G0

UCK31,41

DK.GREEN MC.,6Q7

 1
69210-34050J0

UCK31,41..SR5

BLUE M.M.,8P9

 1
69210-34050B2

UCK31,41

GRAY M.M.,1E3

 1
69210-34050C0

UCK31,41

BLACK,202

 1
69210-34050D1

UCK31,41

DK. RED M.M.,3Q3

 1
69210-34050J1

UCK31,41..SR5

DK.BLUE MC.,8Q0

 1
69210-34050B1

UCK31,41..SR5

SILVER ME.,1D6

 1
69210-34050E0

UCK31,41..SR5

BEIGE M. M.,4Q2

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-34050B1

UCK31,41..SR5

SILVER ME.,1D6

 1
69220-34050C0

UCK31,41

BLACK,202

 1
69220-34050A0

UCK31,41

WHITE,056

 1
69220-34050B2

UCK31,41

GRAY M.M.,1E3

 1
69220-34050D1

UCK31,41

DK. RED M.M.,3Q3

 1
69220-34050E0

UCK31,41..SR5

BEIGE M. M.,4Q2

 1
69220-34050J0

UCK31,41..SR5

BLUE M.M.,8P9

 1
69220-34050J1

UCK31,41..SR5

DK.BLUE MC.,8Q0

 1
69220-34050G0

UCK31,41

DK.GREEN MC.,6Q7

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-AC010B2

UCK31,41

MD.GRAY,TRIM12

 1
69277-AC010B1

UCK31,41

MD.CHARCOAL,TRIM11

 1
69277-AC010E1

UCK31,41

MD.OAK,TRIM4#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-AC010B1

UCK31,41

MD.CHARCOAL,TRIM11

 1
69278-AC010E1

UCK31,41

MD.OAK,TRIM4#

 1
69278-AC010B2

UCK31,41

MD.GRAY,TRIM12

 1
69303C - LOCK SUB-ASSY, FRONT DOOR, RH
69303-0C011

UCK31,41

 1
69304C - LOCK SUB-ASSY, FRONT DOOR, LH
69304-0C010

UCK31,41

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-0C021

UCK31,41

 1
69315D - LINK, FRONT DOOR OUTSIDE LOCKING, RH
69315-0C020

UCK31,41

 1
69316A - LINK, FRONT DOOR OUTSIDE LOCKING, LH
69316-0C020

UCK31,41

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-0C020

UCK31,41

 1
69391A - COVER, FRONT DOOR LOCK, OUTER RH
69391-0C010

UCK31,41

 1
69392 - COVER, FRONT DOOR LOCK, OUTER LH
69392-0C010

UCK31,41

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-0C020

UCK31,41

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-0C020

UCK31,41

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69720-0C010

UCK31,41

 1
69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69725-0C020

UCK31,41

 1
69726A - PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69726-0C020

UCK31,41

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040

UCK31,41

 2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-0C021

UCK31,41

 1
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-24090

UCK31,41

BROWN

 1
69759-24080

UCK31,41

YELLOW

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69760-0C020

UCK31,41

 1
Common parts
90080-10079
90080-14056
90084-10053
90148-80028
90148-A0003
90148-A0005
90159-30021
90159-50322
90159-A0005
90189-05003
93560-13008
93568-55014
