UCK31L-PRSSKA (2003)
Toyota Tundra

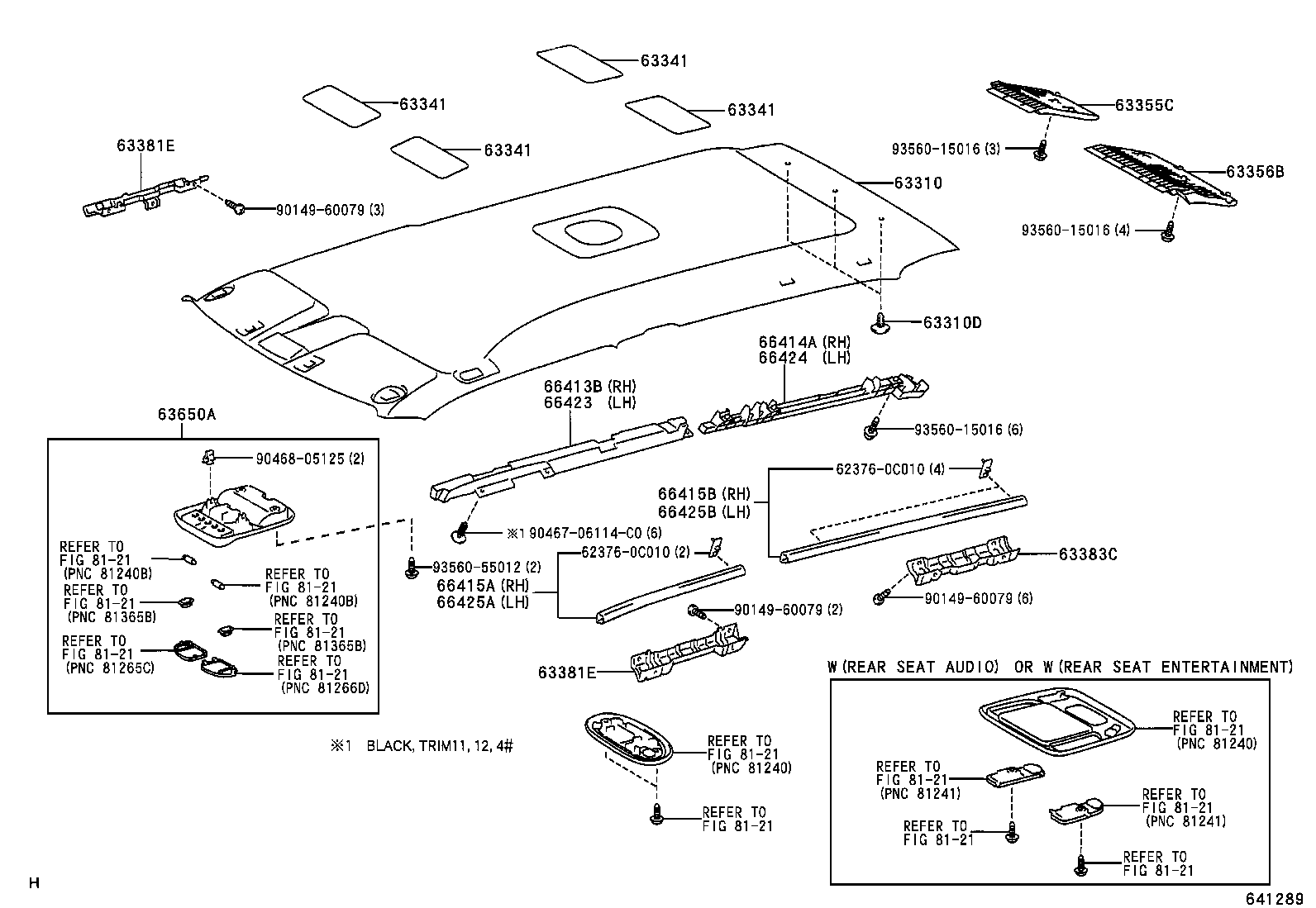

(0310-0408)UCK31,41
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0C190B2 |
UCK31,41 MEDIUM GRAY,TRIM12 |
1 | ||
| 63310-0C190B3 |
UCK31,41 MEDIUM CHARCOAL-013T,TRIM11 |
1 | ||
| 63310-0C200E2 |
UCK31,41 W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM OAK-013T,TRIM4# |
1 | ||
| 63310-0C200B2 |
UCK31,41 W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM GRAY,TRIM12 |
1 | ||
| 63310-0C200B3 |
UCK31,41 W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM CHARCOAL-013T,TRIM11 |
1 | ||
| 63310-0C210B2 |
UCK31,41 W(MOON ROOF),MEDIUM GRAY,TRIM12 |
1 | ||
| 63310-0C210E2 |
UCK31,41 W(MOON ROOF),MEDIUM OAK-013T,TRIM4# |
1 | ||
| 63310-0C190E2 |
UCK31,41 MEDIUM OAK-013T,TRIM4# |
1 | ||
| 63310-0C220B2 |
UCK31,41 W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),MEDIUM GRAY,TRIM12 |
1 | ||
| 63310-0C220B3 |
UCK31,41 W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),MEDIUM CHARCOAL-013T,TRIM11 |
1 | ||
| 63310-0C220E2 |
UCK31,41 W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),MEDIUM OAK-013T,TRIM4# |
1 | ||
| 63310-0C210B3 |
UCK31,41 W(MOON ROOF),MEDIUM CHARCOAL-013T,TRIM11 |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-07176B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
3 | ||
| 90467-07176B4 |
UCK31,41 MD.GRAY,TRIM12 |
3 | ||
| 90467-07176E0 |
UCK31,41 MD.OAK,TRIM4# |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0C050 |
UCK31,41 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0C050 |
UCK31,41 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0C050 |
UCK31,41 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0C050 |
UCK31,41 |
4 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-0C040 |
UCK31,41 |
1 | ||
| 63356B - PAD, ROOF HEADLINING, LH | ||||
| 63356-0C040 |
UCK31,41 |
1 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0C010 |
UCK31,41 RH |
1 | ||
| 63382-0C010 |
UCK31,41 LH |
1 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0C010 |
UCK31,41 RH |
1 | ||
| 63382-0C010 |
UCK31,41 LH |
1 | ||
| 63383C - RETAINER, ROOF HEADLINING TRIM, REAR | ||||
| 63383-0C010 |
UCK31,41 |
2 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-0C070E0 |
UCK31,41 W(ACCESSORY METER),MD.OAK,TRIM4# |
1 | ||
| 63650-0C060E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 63650-0C110B1 |
UCK31,41 W(MOON ROOF),MD.CHARCOAL,TRIM11 |
1 | ||
| 63650-0C070B0 |
UCK31,41 W(ACCESSORY METER),MD.GRAY,TRIM12 |
1 | ||
| 63650-0C110E0 |
UCK31,41 W(MOON ROOF),MD.OAK,TRIM4# |
1 | ||
| 63650-0C080E0 |
UCK31,41 W(ACCESSORY METER & MOON ROOF),MD.OAK,TRIM4# |
1 | ||
| 63650-0C080B0 |
UCK31,41 W(ACCESSORY METER & MOON ROOF),MD.GRAY,TRIM12 |
1 | ||
| 63650-0C070B1 |
UCK31,41 W(ACCESSORY METER),MD.CHARCOAL,TRIM11 |
1 | ||
| 63650-0C110B0 |
UCK31,41 W(MOON ROOF),MD.GRAY,TRIM12 |
1 | ||
| 63650-0C060B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 63650-0C060B0 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 63650-0C080B1 |
UCK31,41 W(ACCESSORY METER & MOON ROOF),MD.CHARCOAL,TRIM11 |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0C020 |
UCK31,41 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66415-0C090 |
UCK31,41 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0C040 |
UCK31,41 |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0C100 |
UCK31,41 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0C020 |
UCK31,41 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66425-0C090 |
UCK31,41 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0C040 |
UCK31,41 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0C100 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 62376-0C010 | ||||
| 90149-60079 | ||||
| 90467-06114C0 | ||||
| 90468-05125 | ||||
| 93560-15016 | ||||
| 93560-55012 | ||||
| Linked diagrams | ||||
| 8121 | ||||

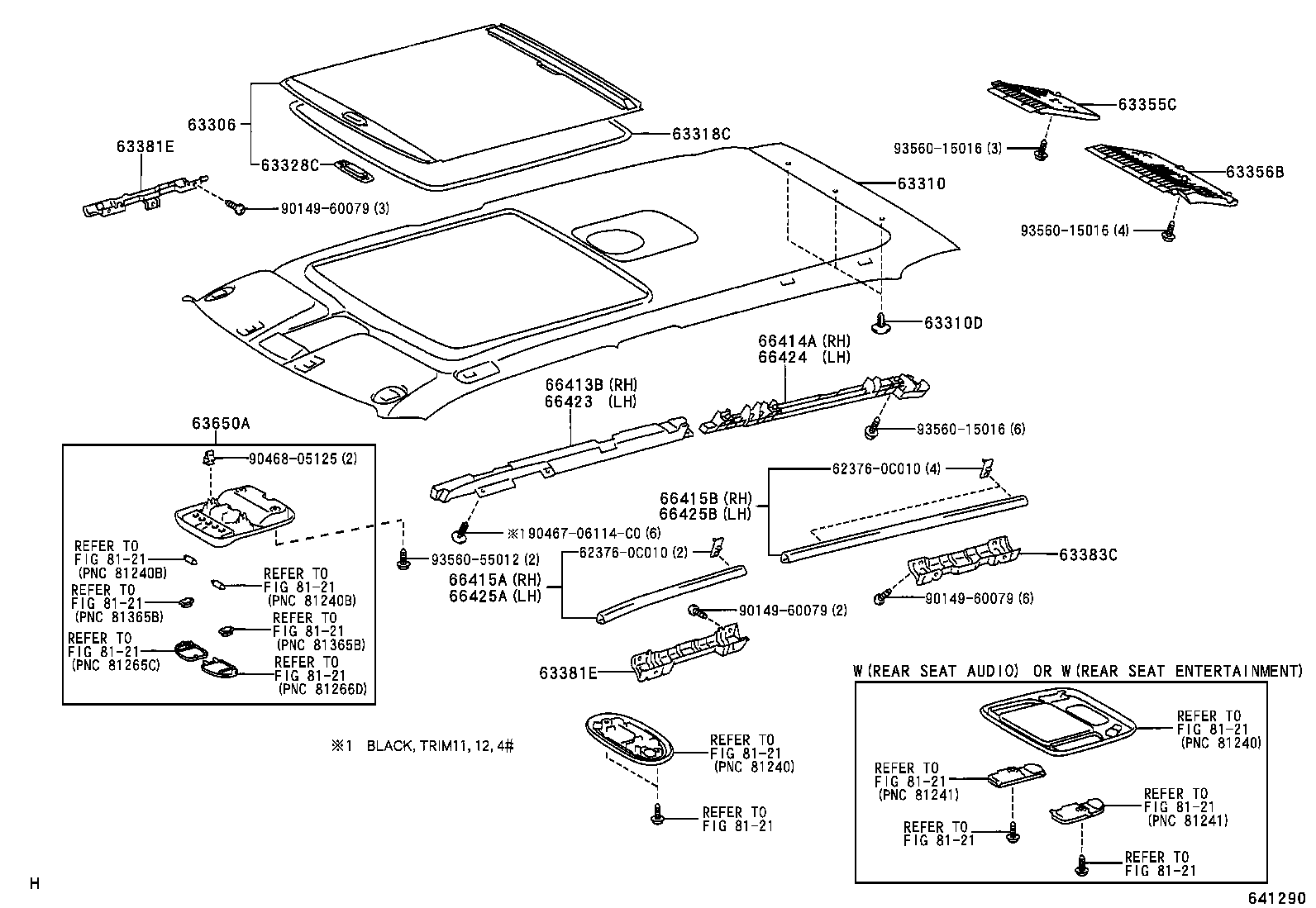

(0310-0408)UCK31,41
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-0C010B1 |
UCK31,41 MEDIUM CHARCOAL-013T,TRIM11 |
1 | ||
| 63306-0C010E1 |
UCK31,41 MEDIUM OAK-013T,TRIM4# |
1 | ||
| 63306-0C010B3 |
UCK31,41 MEDIUM GRAY,TRIM12 |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0C190B2 |
UCK31,41 MEDIUM GRAY,TRIM12 |
1 | ||
| 63310-0C190B3 |
UCK31,41 MEDIUM CHARCOAL-013T,TRIM11 |
1 | ||
| 63310-0C200E2 |
UCK31,41 W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM OAK-013T,TRIM4# |
1 | ||
| 63310-0C200B2 |
UCK31,41 W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM GRAY,TRIM12 |
1 | ||
| 63310-0C200B3 |
UCK31,41 W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MEDIUM CHARCOAL-013T,TRIM11 |
1 | ||
| 63310-0C210B2 |
UCK31,41 W(MOON ROOF),MEDIUM GRAY,TRIM12 |
1 | ||
| 63310-0C210E2 |
UCK31,41 W(MOON ROOF),MEDIUM OAK-013T,TRIM4# |
1 | ||
| 63310-0C190E2 |
UCK31,41 MEDIUM OAK-013T,TRIM4# |
1 | ||
| 63310-0C220B2 |
UCK31,41 W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),MEDIUM GRAY,TRIM12 |
1 | ||
| 63310-0C220B3 |
UCK31,41 W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),MEDIUM CHARCOAL-013T,TRIM11 |
1 | ||
| 63310-0C220E2 |
UCK31,41 W(MOON ROOF) & W(REAR SEAT AUDIO OR REAR SEAT ENTERTAINMENT),MEDIUM OAK-013T,TRIM4# |
1 | ||
| 63310-0C210B3 |
UCK31,41 W(MOON ROOF),MEDIUM CHARCOAL-013T,TRIM11 |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-07176B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
3 | ||
| 90467-07176B4 |
UCK31,41 MD.GRAY,TRIM12 |
3 | ||
| 90467-07176E0 |
UCK31,41 MD.OAK,TRIM4# |
3 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-0C010E0 |
UCK31,41 L=2895,MD.OAK,TRIM4# |
1 | ||
| 63318-0C010B0 |
UCK31,41 L=2895,MD.CHARCOAL,TRIM11 |
1 | ||
| 63318-0C010B1 |
UCK31,41 L=2895,MD.GRAY,TRIM12 |
1 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-02010B0 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 63328-02010E1 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 63328-02010B4 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-0C040 |
UCK31,41 |
1 | ||
| 63356B - PAD, ROOF HEADLINING, LH | ||||
| 63356-0C040 |
UCK31,41 |
1 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0C010 |
UCK31,41 RH |
1 | ||
| 63382-0C010 |
UCK31,41 LH |
1 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-0C010 |
UCK31,41 RH |
1 | ||
| 63382-0C010 |
UCK31,41 LH |
1 | ||
| 63383C - RETAINER, ROOF HEADLINING TRIM, REAR | ||||
| 63383-0C010 |
UCK31,41 |
2 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-0C070E0 |
UCK31,41 W(ACCESSORY METER),MD.OAK,TRIM4# |
1 | ||
| 63650-0C060E0 |
UCK31,41 MD.OAK,TRIM4# |
1 | ||
| 63650-0C110B1 |
UCK31,41 W(MOON ROOF),MD.CHARCOAL,TRIM11 |
1 | ||
| 63650-0C070B0 |
UCK31,41 W(ACCESSORY METER),MD.GRAY,TRIM12 |
1 | ||
| 63650-0C110E0 |
UCK31,41 W(MOON ROOF),MD.OAK,TRIM4# |
1 | ||
| 63650-0C080E0 |
UCK31,41 W(ACCESSORY METER & MOON ROOF),MD.OAK,TRIM4# |
1 | ||
| 63650-0C080B0 |
UCK31,41 W(ACCESSORY METER & MOON ROOF),MD.GRAY,TRIM12 |
1 | ||
| 63650-0C070B1 |
UCK31,41 W(ACCESSORY METER),MD.CHARCOAL,TRIM11 |
1 | ||
| 63650-0C110B0 |
UCK31,41 W(MOON ROOF),MD.GRAY,TRIM12 |
1 | ||
| 63650-0C060B1 |
UCK31,41 MD.CHARCOAL,TRIM11 |
1 | ||
| 63650-0C060B0 |
UCK31,41 MD.GRAY,TRIM12 |
1 | ||
| 63650-0C080B1 |
UCK31,41 W(ACCESSORY METER & MOON ROOF),MD.CHARCOAL,TRIM11 |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0C020 |
UCK31,41 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66415-0C090 |
UCK31,41 |
1 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0C040 |
UCK31,41 |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0C100 |
UCK31,41 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0C020 |
UCK31,41 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66425-0C090 |
UCK31,41 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0C040 |
UCK31,41 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0C100 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 62376-0C010 | ||||
| 90149-60079 | ||||
| 90467-06114C0 | ||||
| 90468-05125 | ||||
| 93560-15016 | ||||
| 93560-55012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
