UCK31L-PRSSKA (2003)
Toyota Tundra
Production
Oct 2003
-
Aug 2004
Engine
2UZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0310- )UCK31,41

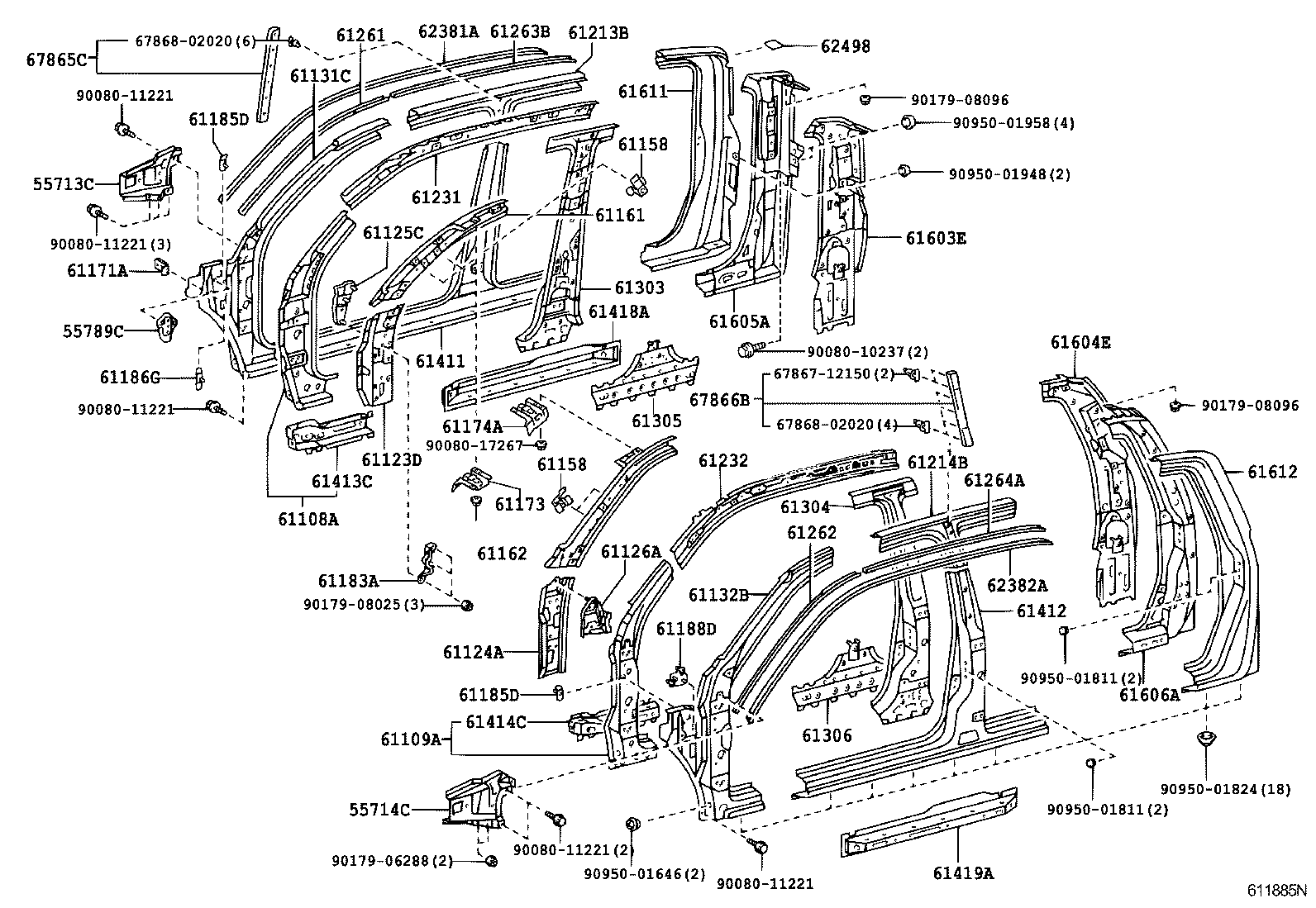

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-0C020 |
UCK31,41 |
1 | ||
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-0C020 |
UCK31,41 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0C040 |
UCK31,41 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0C040 |
UCK31,41 |
1 | ||
| 61123D - PANEL, COWL SIDE, INNER RH | ||||
| 61123-0C030 |
UCK31,41 |
1 | ||
| 61124A - PANEL, NO.3 SIDE, LH | ||||
| 61124-0C030 |
UCK31,41 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-0C040 |
UCK31,41 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-0C040 |
UCK31,41 |
1 | ||
| 61158 - RETAINER, SIDE PANEL, NO.1 | ||||
| 61158-34010 |
UCK31,41 |
2 | ||
| 61158 - RETAINER, SIDE PANEL, NO.1 | ||||
| 61158-34010 |
UCK31,41 |
2 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-0C030 |
UCK31,41 |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-0C030 |
UCK31,41 |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-34021 |
UCK31,41 |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-34021 |
UCK31,41 |
1 | ||
| 61185D - BRACKET, FRONT PILLAR TO COWL SIDE PANEL, NO.1 | ||||
| 61185-0C010 |
UCK31,41 |
1 | ||
| 61185D - BRACKET, FRONT PILLAR TO COWL SIDE PANEL, NO.1 | ||||
| 61185-0C010 |
UCK31,41 |
1 | ||
| 61186G - BRACKET, FRONT PILLAR TO COWL SIDE PANEL, NO.2 | ||||
| 61186-0C020 |
UCK31,41 |
1 | ||
| 61188D - BRACKET, COMPUTER TO COWL SIDE, NO.5 | ||||
| 61188-0C010 |
UCK31,41 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-0C020 |
UCK31,41 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-0C020 |
UCK31,41 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-0C030 |
UCK31,41 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-0C031 |
UCK31,41 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-0C010 |
UCK31,41 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-0C010 |
UCK31,41 |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-0C040 |
UCK31,41 |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-0C040 |
UCK31,41 |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-0C020 |
UCK31,41 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-0C020 |
UCK31,41 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-0C010 |
UCK31,41 |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-0C010 |
UCK31,41 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-0C040 |
UCK31,41 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-0C040 |
UCK31,41 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-0C020 |
UCK31,41 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-0C020 |
UCK31,41 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-0C020 |
UCK31,41 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-0C020 |
UCK31,41 |
1 | ||
| 61603E - REINFORCEMENT SUB-ASSY, QUATER PANEL, INNER RH | ||||
| 61603-0C051 |
UCK31,41 |
1 | ||
| 61603-0C081 |
UCK31,41 |
1 | ||
| 61604E - REINFORCEMENT SUB-ASSY, QUATER PANEL, INNER LH | ||||
| 61604-0C071 |
UCK31,41 |
1 | ||
| 61604-0C101 |
UCK31,41 |
1 | ||
| 61605A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH | ||||
| 61605-0C010 |
UCK31,41 |
1 | ||
| 61606A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH | ||||
| 61606-0C010 |
UCK31,41 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-0C040 |
UCK31,41..USA |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-0C040 |
UCK31,41..USA |
1 | ||
| 62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-0C040 |
UCK31,41 |
1 | ||
| 62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-0C040 |
UCK31,41 |
1 | ||
| 62498 - SEAL, ROOF SIDE, INNER REAR | ||||
| 62498-0C040 |
UCK3#,4#,VCK30,40 |
2 | ||
| 67865C - WEATHERSTRIP, CENTER PILLAR UPPER END, RH | ||||
| 67865-0C010 |
UCK31,41 |
1 | ||
| 67866B - WEATHERSTRIP, CENTER PILLAR UPPER END, LH | ||||
| 67866-0C010 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 67868-02020 | ||||
| 90080-10237 | ||||
| 90080-11221 | ||||
| 90080-17267 | ||||
| 90179-06288 | ||||
| 90179-08025 | ||||
| 90179-08096 | ||||
| 90950-01646 | ||||
| 90950-01811 | ||||
| 90950-01824 | ||||
| 90950-01948 | ||||
| 90950-01958 | ||||
