UCK31L-PRSSKA (2003)
Toyota Tundra
Production
Oct 2003
-
Aug 2004
Engine
2UZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0310- )UCK31,41

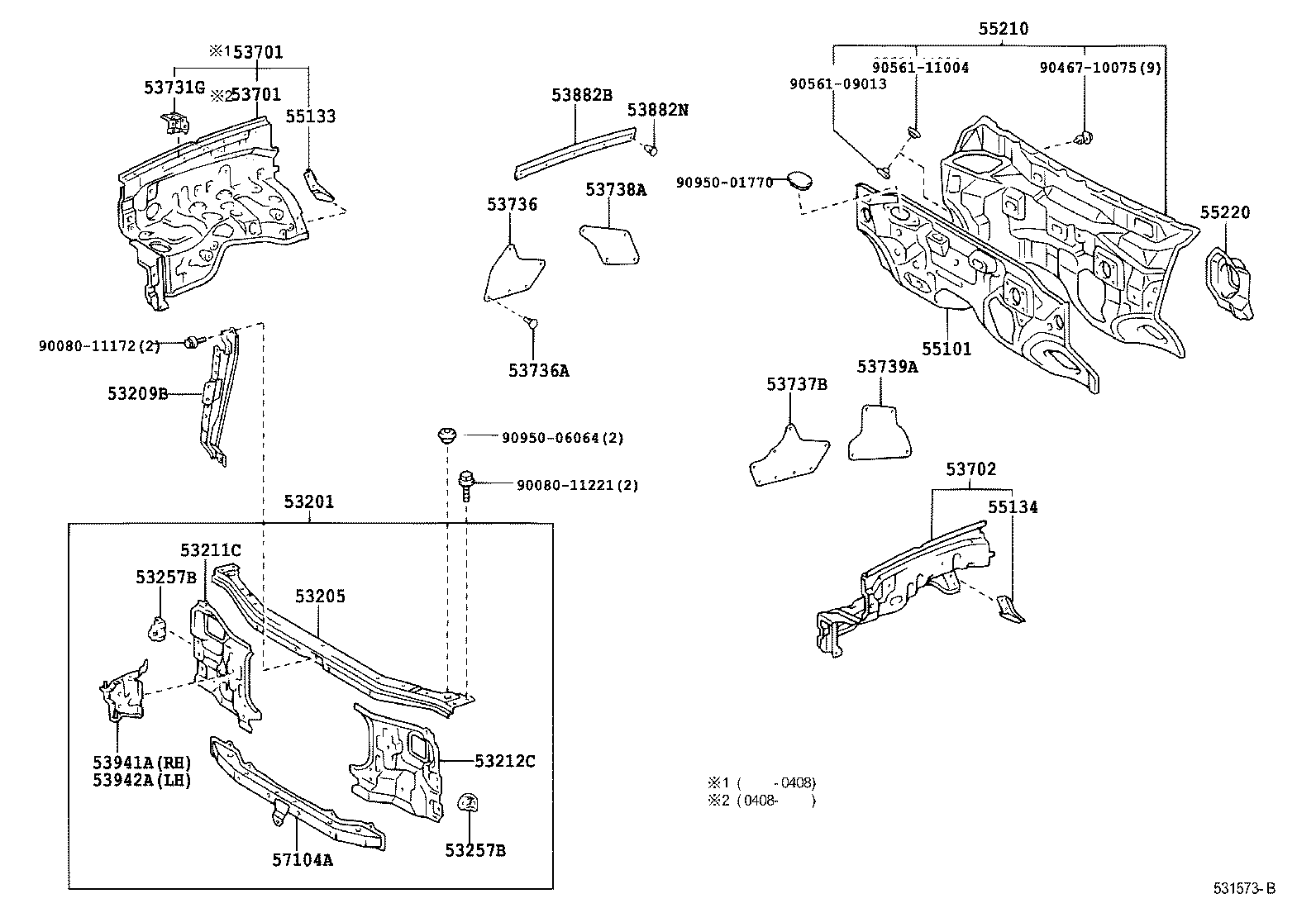

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-0C030 |
UCK31,41 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-0C011 |
UCK3#,4#,VCK30,40 |
1 | ||
| 53205-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-0C040 |
UCK31,41 |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53202-0C010 |
UCK31,41 |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53203-0C010 |
UCK31,41 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0C072 |
UCK31,41 |
1 | ||
| 53701-0C071 |
UCK31,41 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0C072 |
UCK31,41 |
1 | ||
| 53701-0C071 |
UCK31,41 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0C101 |
UCK31 |
1 | ||
| 53702-0C091 |
UCK31 |
1 | ||
| 53731G - REINFORCEMENT, FRONT FENDER APRON, RH | ||||
| 53731-34010 |
UCK31,41 |
1 | ||
| 53941A - BRACKET, FRONT END PANEL, NO.1 RH | ||||
| 53941-0C030 |
UCK31,41 |
1 | ||
| 53942A - BRACKET, FRONT END PANEL, NO.1 LH | ||||
| 53942-0C030 |
UCK31,41 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0C918 |
UCK31,41 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0C022 |
UCK31,41 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-0C030 |
UCK31,41 |
1 | ||
| Common parts | ||||
| 90080-11172 | ||||
| 90080-11221 | ||||
| 90467-10075 | ||||
| 90561-09013 | ||||
| 90561-11004 | ||||
| 90950-01770 | ||||
| 90950-06064 | ||||
