UCK31L-PRSSKA (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )UCK31,41

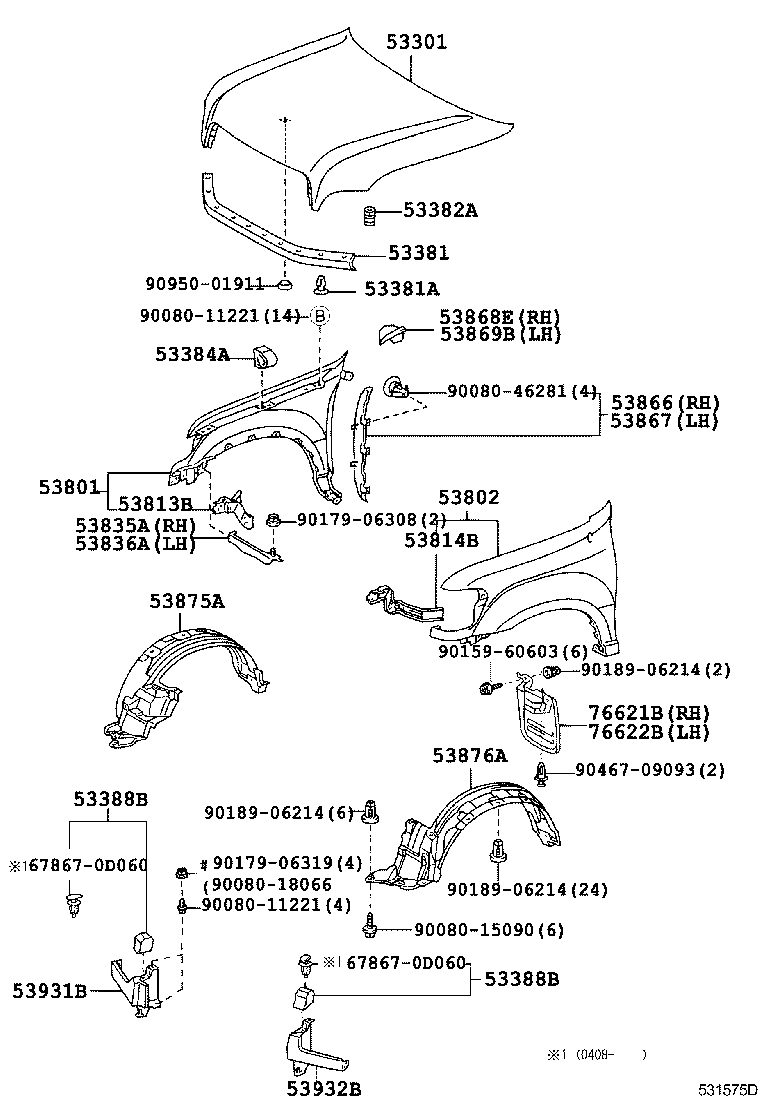

Click highlighted areas on diagram

diagram 53301 53381 53381A 53382A 53384A 53388B 53388B 53801 53802 53813B 53814B 53835A 53836A 53866 53867 53868E 53869B 53875A 53876A 53931B 53932B 678670D060 678670D060 76621B 76622B 9008011221 9008011221 9008015090 9008018066 9008046281 9015960603 9017906308 9017906319 9018906214 9018906214 9018906214 9046709093 9095001911
Part # Description Qty Price
53801 - FENDER SUB-ASSY, FRONT RH
53801-0C080

UCK31,41

W(OVER FENDER)

 1
53801-0C070

UCK31,41..SR5

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-0C080

UCK31,41

W(OVER FENDER)

 1
53802-0C070

UCK31,41..SR5

 1
53813B - EXTENSION, FRONT FENDER, RH
53813-34020

UCK31,41

 1
53814B - EXTENSION, FRONT FENDER, LH
53814-34020

UCK31,41

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53835-34030

UCK31,41

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53836-34030

UCK31,41

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0C020

UCK31,41

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0C020

UCK31,41

 1
53868E - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53868-0C020

UCK31,41

 1
53869B - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
53869-0C020

UCK31,41

 1
53875A - LINER, FRONT FENDER, RH
53875-0C020

UCK31,41

 1
53876A - LINER, FRONT FENDER, LH
53876-0C020

UCK31,41

 1
53931B - PANEL, FRONT END, RH
53903-0C050

UCK31,41

 1
53932B - PANEL, FRONT END, LH
53904-0C030

UCK31,41

 1
76621B - MUDGUARD, FRONT BODY, RH
76621-0C030

UCK31,41

 1
76622B - MUDGUARD, FRONT BODY, LH
76622-0C030

UCK31,41

 1
Common parts
67867-0D060
90080-11221
90080-15090
90080-18066
90080-46281
90159-60603
90179-06308
90179-06319
90189-06214
90467-09093
90950-01911
