UCK31L-PRSSKA (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310- )UCK31,41

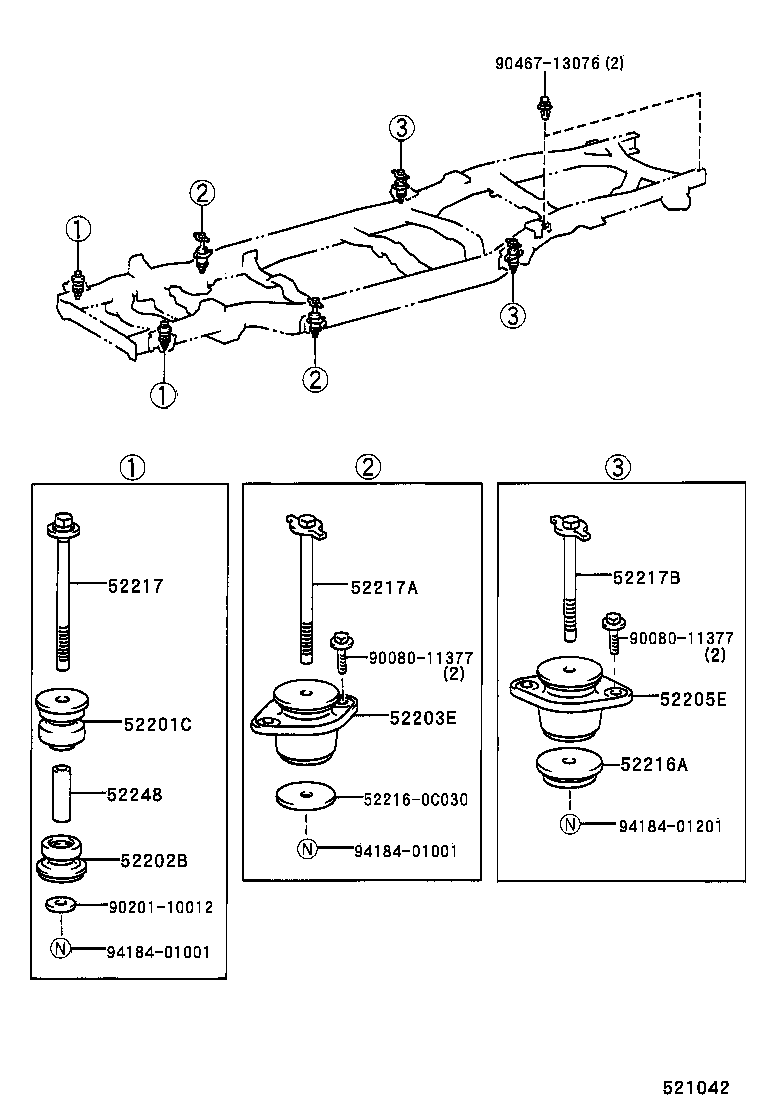

Click highlighted areas on diagram

diagram 52201C 52202B 52203E 52205E 522160C030 52216A 52217 52217A 52217B 52248 9008011377 9008011377 9020110012 9046713076 9418401001 9418401001 9418401201
Part # Description Qty Price
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-0C050

UCK31,41

RH

 1
52204-0C010

UCK31,41

LH

 1
52205E - CUSHION SUB-ASSY, CAB MOUNTING, NO.3
52205-0C040

UCK31,41

 2
52216A - STOPPER, CAB MOUNTING CUSHION
52216-0C060

UCK31,41

 2
52217 - BOLT, BODY MOUNTING
52217-0C060

UCK3#,4#,VCK30,40

 2
52217A - BOLT, BODY MOUNTING
52217-0C070

UCK3#,4#,VCK30,40

 2
52217B - BOLT, BODY MOUNTING
52217-0C100

UCK31,41

 2
Common parts
52216-0C030
90080-11377
90201-10012
90467-13076
94184-01001
94184-01201
