UCK31L-PRSSKA (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0408)UCK31,41

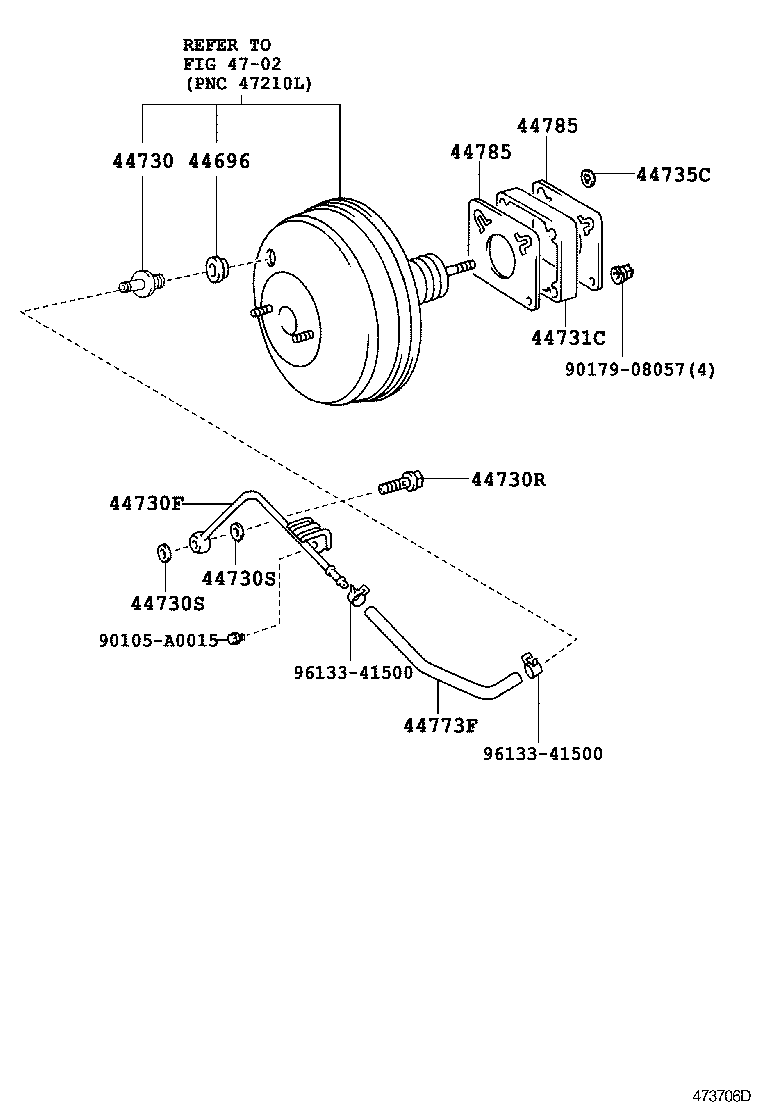

Click highlighted areas on diagram

diagram 44696 44730 44730F 44730R 44730S 44730S 44731C 44735C 44773F 44785 44785 4702 90105A0015 9017908057 9613341500 9613341500
Part # Description Qty Price
44696 - GROMMET, CHECK VALVE
90480-24439

UCK31,41

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

UCK31,41

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0C040

UCK3#,4#

 1
Common parts
90105-A0015
90179-08057
96133-41500
Linked diagrams
4702
