UCK31L-PRSSKA (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0408)UCK31,41 ; (0408- )5HC

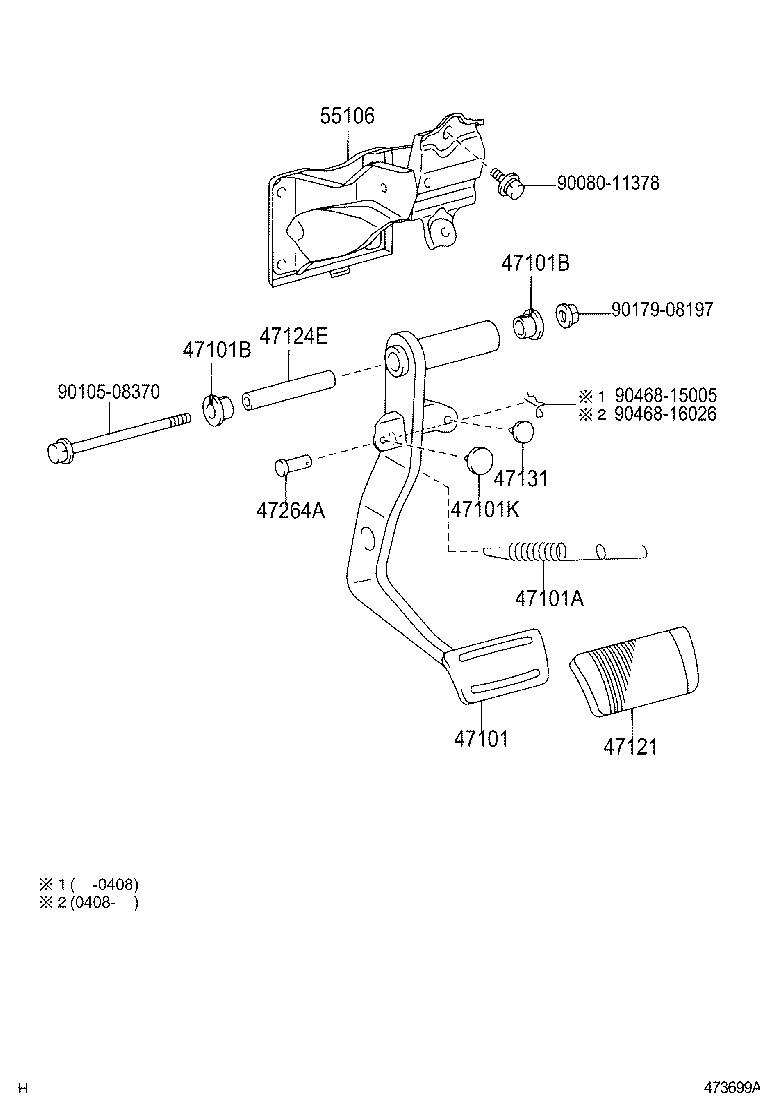

Click highlighted areas on diagram

W(VSC)

diagram 47101 47101A 47101B 47101B 47101K 47121 47124E 47131 47264A 55106 9008011378 9010508370 9017908197 9046815005 9046816026
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-34110

UCK31,41

W(VSC)

 1
47101-34081

UCK31,41

 1
47121 - PAD, BRAKE PEDAL
47121-50010

UCK31,41

 1
47264A - PIN(FOR PUSH ROD)
90240-10157

UCK31,41

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-34030

UCK31,41

 1
55106-34050

UCK31,41

W(VSC)

 1
Common parts
90080-11378
90105-08370
90179-08197
90468-15005
90468-16026

(0310-0408)UCK31,41 ; (0408- )UCK31,41

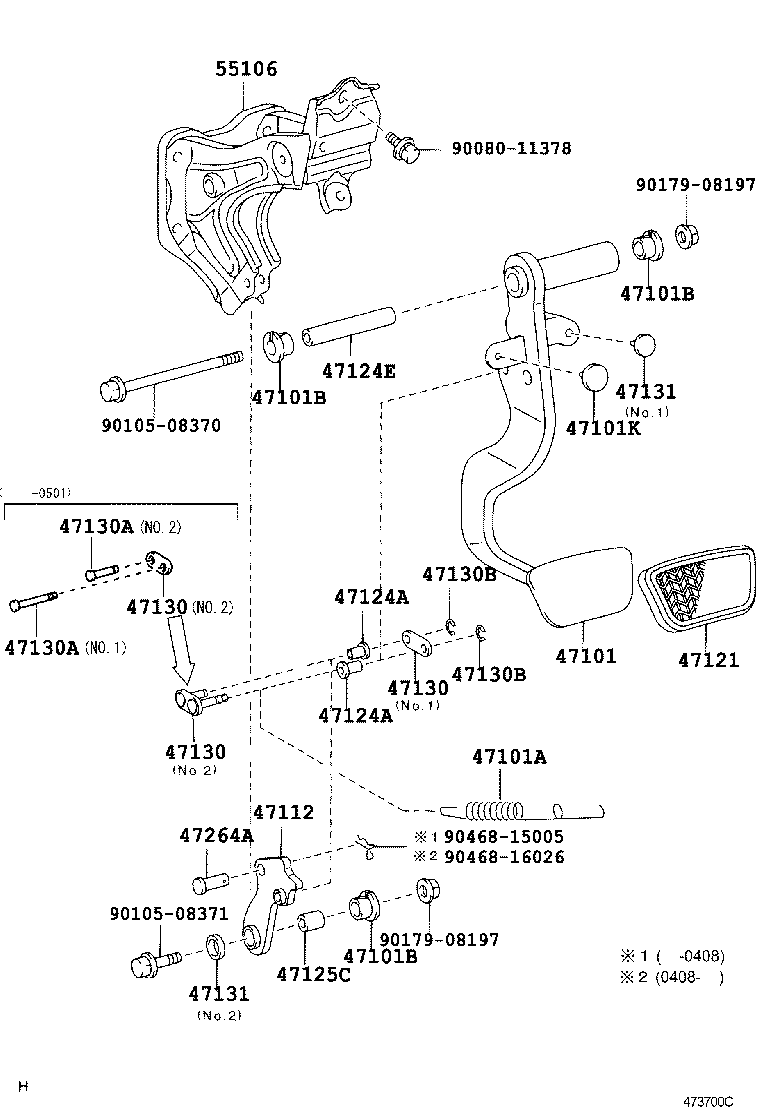

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47101B 47101K 47112 47121 47124A 47124A 47124E 47125C 47130 47130 47130 47130A 47130A 47130B 47130B 47131 47131 47264A 55106 9008011378 9010508370 9010508371 9017908197 9017908197 9046815005 9046816026
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-34110

UCK31,41

W(VSC)

 1
47101-34081

UCK31,41

 1
47112 - LEVER, BRAKE PEDAL
47112-34040

UCK31,41

 1
47121 - PAD, BRAKE PEDAL
47121-50010

UCK31,41

 1
47264A - PIN(FOR PUSH ROD)
90240-10157

UCK31,41

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-34030

UCK31,41

 1
55106-34050

UCK31,41

W(VSC)

 1
Common parts
90080-11378
90105-08370
90105-08371
90179-08197
90468-15005
90468-16026
