UCK31L-PRSSKA (2003)

Toyota Tundra

Production Oct 2003 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0310-0408)UCK31,41

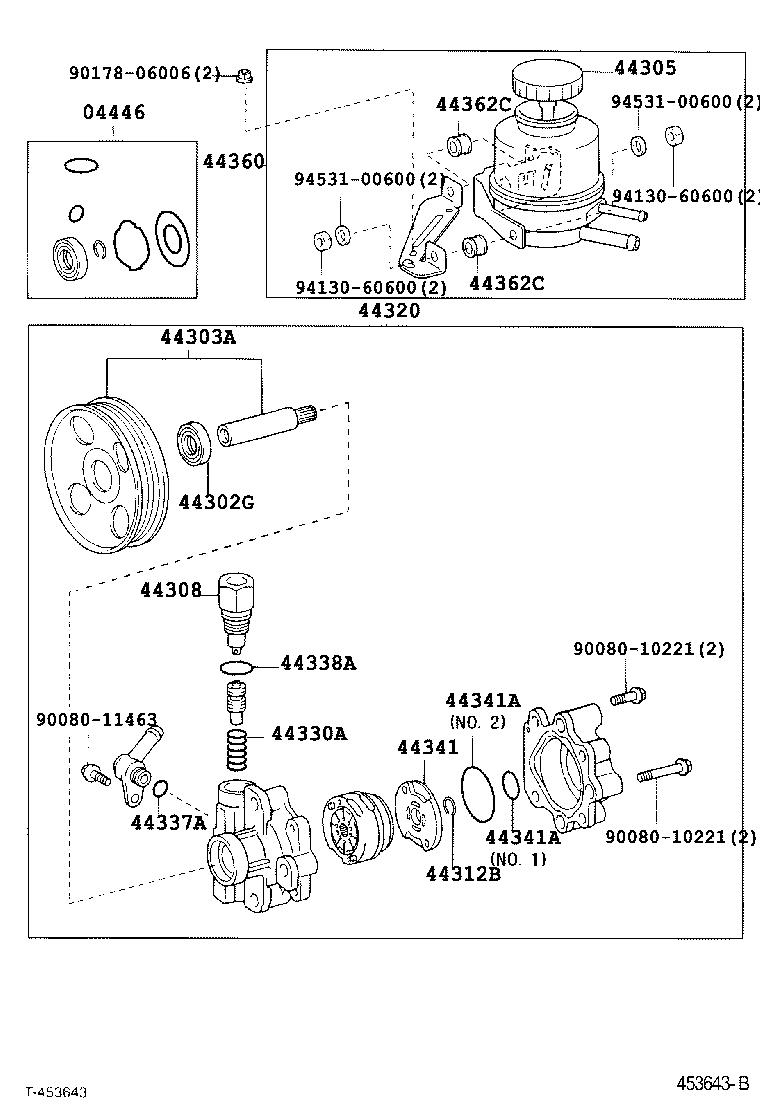

Click highlighted areas on diagram

diagram 04446 44302G 44303A 44305 44308 44312B 44320 44330A 44337A 44338A 44341 44341A 44341A 44360 44362C 44362C 9008010221 9008010221 9008011463 9017806006 9413060600 9413060600 9453100600 9453100600
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-0C010

UCK31,41

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90080-31071

UCK31,41

 1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-0C050

UCK31,41

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-0C030

UCK31,41

 1
44320 - PUMP ASSY, VANE
44310-0C040

UCK31,41

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-14173

UCK31,41

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-15025

UCK31,41

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-18009

UCK31,41

OD=22,ID=18.6

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-60020

UCK31,41

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-45003

UCK31,41

NO.2

 1
90301-16012

UCK31,41

NO.1

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-45003

UCK31,41

NO.2

 1
90301-16012

UCK31,41

NO.1

 1
Common parts
90080-10221
90080-11463
90178-06006
94130-60600
94531-00600
