UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

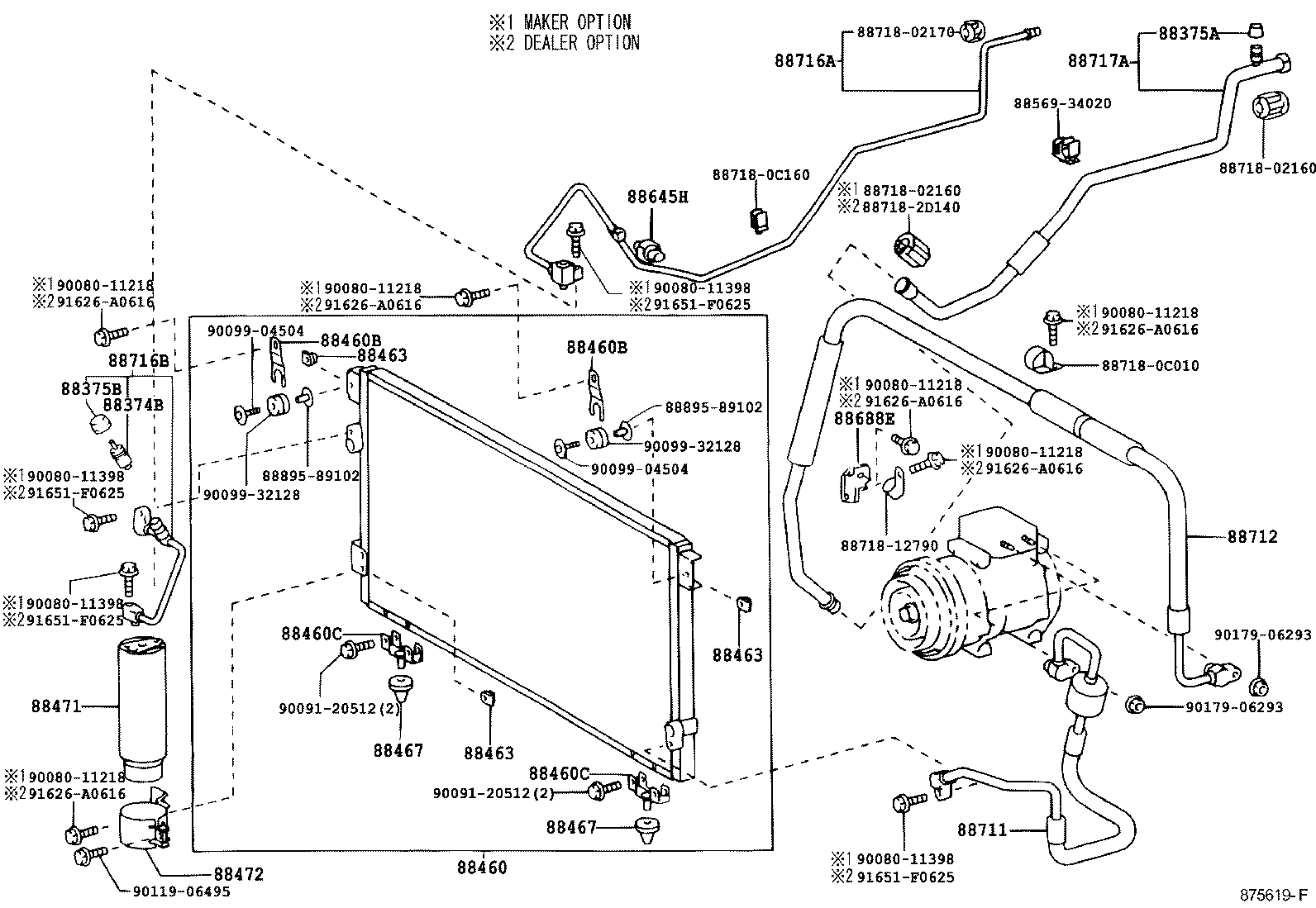

ILLUST NO. 1 OF 2(0208-0408)UCK30,40

Click highlighted areas on diagram

diagram 88374B 88375A 88375B 88460 88460B 88460B 88460C 88460C 88463 88463 88463 88467 88467 88471 88472 8856934020 88645H 88688E 88711 88712 88716A 88716B 88717A 8871802160 8871802160 8871802170 887180C010 887180C160 8871812790 887182D140 8889589102 8889589102 9008011218 9008011218 9008011218 9008011218 9008011218 9008011218 9008011398 9008011398 9008011398 9008011398 9009120512 9009120512 9009904504 9009904504 9009932128 9009932128 9011906495 9017906293 9017906293 91626A0616 91626A0616 91626A0616 91626A0616 91626A0616 91626A0616 91651F0625 91651F0625 91651F0625 91651F0625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

UCK30,40,VCK30,40

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

UCK30,40

(J)

 1
88375-02060

UCK30,40

(L)

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

UCK30,40

 1
88375-02020

UCK30,40,VCK30,40

 1
88460 - CONDENSER ASSY, COOLER
88460-0C010

UCK30,40,VCK30,40

 1
88460-0C050

UCK30,40,VCK30,40

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-0C010

UCK30,40,VCK30,40

 2
88688-0C010

UCK30,40,VCK30,40

 2
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-0C010

UCK30,40,VCK30,40

 2
88688-0C010

UCK30,40,VCK30,40

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-0C020

UCK30,40,VCK30,40

 2
88688-0C020

UCK30,40,VCK30,40

 2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-0C020

UCK30,40,VCK30,40

 2
88688-0C020

UCK30,40,VCK30,40

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-35120

UCK30,40,VCK30,40

 3
88463-35120

UCK30,40,VCK30,40

 3
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-35120

UCK30,40,VCK30,40

 3
88463-35120

UCK30,40,VCK30,40

 3
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-35120

UCK30,40,VCK30,40

 3
88463-35120

UCK30,40,VCK30,40

 3
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

UCK30,40,VCK30,40

 2
88467-32060

UCK30,40,VCK30,40

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

UCK30,40,VCK30,40

 2
88467-32060

UCK30,40,VCK30,40

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

UCK30,40,VCK30,40

 1
88471-20050

UCK30,40,VCK30,40

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-0C010

UCK30,40,VCK30,40

 1
88472-0C010

UCK30,40,VCK30,40

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

UCK30,40,VCK30,40

 1
88645-34010

UCK3#,4#,VCK30,40

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-0C030

UCK30,40

 1
88688-0C030

UCK3#,4#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0C030

UCK30,40

 1
88711-0C060

UCK30,40

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0C021

UCK30,40

 1
88712-0C021

UCK3#,4#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0C150

UCK30,40,VCK30,40

 1
88716-0C010

UCK30,40,VCK30,40

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-0C030

UCK30,40

 1
88716-0C140

UCK30,40

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-0C080

UCK30,40

 1
88717-0C010

UCK30,40

 1
Common parts
88569-34020
88718-02160
88718-02170
88718-0C010
88718-0C160
88718-12790
88718-2D140
88895-89102
90080-11218
90080-11398
90091-20512
90099-04504
90099-32128
90119-06495
90179-06293
91626-A0616
91651-F0625
