Toyota Tundra UCK30 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
US
TUNDRA
UCK30L-ASSLKA (2002)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004

Engine 2UZFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9902-0408)UCK30,40,VCK30,40

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04083	UCK30,40,VCK30,40	02/1999 - 08/2000	1
90980-04083	UCK3#,4#,VCK30,40	08/2002 - 08/2004	1
86120 - RECEIVER ASSY, RADIO
86120-0C040	UCK30,40,VCK30,40..ACB MATSUSHITA,ID=56811,TYPE C:REFER TO ILLUSTRATION	02/1999 - 08/2002	1
86120-0C080	UCK30,40,VCK30,40..ACB FUJITSU TEN,ID=16836,TYPE E:REFER TO ILLUSTRATION	08/2002 - 12/2002	1
86120-0C090	UCK30,40,VCK30,40..ACB MATSUSHITA,ID=A56826,TYPE F:REFER TO ILLUSTRATION	08/2002 - 12/2002	1
86120-0C081	UCK30,40,VCK30,40..ACB FUJITSU TEN,ID=16855,TYPE E:REFER TO ILLUSTRATION	12/2002 - 08/2004	1
86120-0C091	UCK30,40,VCK30,40..ACB MATSUSHITA,ID=A56834,TYPE F:REFER TO ILLUSTRATION	12/2002 - 08/2004	1
86211 - BRACKET, RADIO, NO.1
86211-0C011	UCK3#,4#,VCK30,40	08/2002 - 08/2004	1
86211-0C010	UCK30,40,VCK30,40	02/1999 - 08/2002	1
86212 - BRACKET, RADIO, NO.2
86212-0C010	UCK30,40,VCK30,40	02/1999 - 08/2002	1
86212-0C011	UCK3#,4#,VCK30,40	08/2002 - 08/2004	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0C010	UCK30,40,VCK30,40..ACB	02/1999 - 08/2002	1
86280-0C090	UCK30,40,VCK30,40..ACB W(PREMIUM AUDIO)	09/2003 - 08/2004	1
86280-0C010	UCK30,40,VCK30,40..ACB	08/2002 - 08/2004	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0C010	UCK30,40,VCK30,40..ACB	02/1999 - 08/2002	1
86280-0C090	UCK30,40,VCK30,40..ACB W(PREMIUM AUDIO)	09/2003 - 08/2004	1
86280-0C010	UCK30,40,VCK30,40..ACB	08/2002 - 08/2004	1
86287B - COVER, AMPLIFIER
86287-0C010	UCK30,40,VCK30,40..ACB	09/2003 - 08/2004	1
Common parts
90080-10179
90153-50010
90168-50041
90467-06020B3
90467-06020B6
90467-06020E4
91513-60614
91631-J0612
Linked diagrams
8202

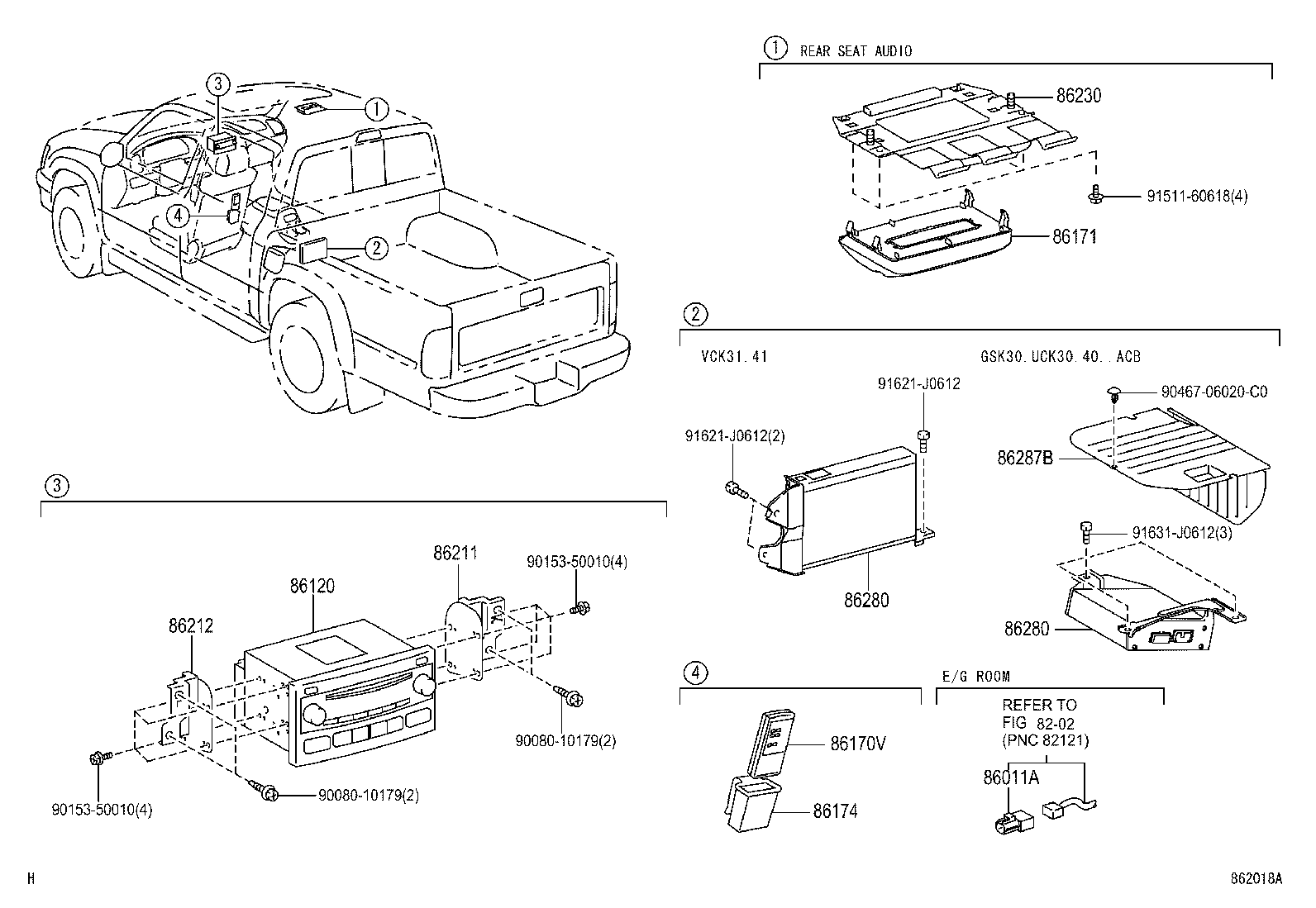

ILLUST NO. 1 OF 2(0310- )UCK31,41 ; (0408- )GSK30,UCK30,40

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04083	UCK30,40,VCK30,40	02/1999 - 08/2000	1
90980-04083	UCK3#,4#,VCK30,40	08/2002 - 08/2004	1
86120 - RECEIVER ASSY, RADIO
86120-0C040	UCK30,40,VCK30,40..ACB MATSUSHITA,ID=56811,TYPE C:REFER TO ILLUSTRATION	02/1999 - 08/2002	1
86120-0C080	UCK30,40,VCK30,40..ACB FUJITSU TEN,ID=16836,TYPE E:REFER TO ILLUSTRATION	08/2002 - 12/2002	1
86120-0C090	UCK30,40,VCK30,40..ACB MATSUSHITA,ID=A56826,TYPE F:REFER TO ILLUSTRATION	08/2002 - 12/2002	1
86120-0C081	UCK30,40,VCK30,40..ACB FUJITSU TEN,ID=16855,TYPE E:REFER TO ILLUSTRATION	12/2002 - 08/2004	1
86120-0C091	UCK30,40,VCK30,40..ACB MATSUSHITA,ID=A56834,TYPE F:REFER TO ILLUSTRATION	12/2002 - 08/2004	1
86211 - BRACKET, RADIO, NO.1
86211-0C011	UCK3#,4#,VCK30,40	08/2002 - 08/2004	1
86211-0C010	UCK30,40,VCK30,40	02/1999 - 08/2002	1
86212 - BRACKET, RADIO, NO.2
86212-0C010	UCK30,40,VCK30,40	02/1999 - 08/2002	1
86212-0C011	UCK3#,4#,VCK30,40	08/2002 - 08/2004	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0C010	UCK30,40,VCK30,40..ACB	02/1999 - 08/2002	1
86280-0C090	UCK30,40,VCK30,40..ACB W(PREMIUM AUDIO)	09/2003 - 08/2004	1
86280-0C010	UCK30,40,VCK30,40..ACB	08/2002 - 08/2004	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0C010	UCK30,40,VCK30,40..ACB	02/1999 - 08/2002	1
86280-0C090	UCK30,40,VCK30,40..ACB W(PREMIUM AUDIO)	09/2003 - 08/2004	1
86280-0C010	UCK30,40,VCK30,40..ACB	08/2002 - 08/2004	1
86287B - COVER, AMPLIFIER
86287-0C010	UCK30,40,VCK30,40..ACB	09/2003 - 08/2004	1
Common parts
90080-10179
90153-50010
90467-06020C0
91511-60618
91621-J0612
91631-J0612
Linked diagrams
8202

UCK30L-ASSLKA (2002)

ILLUST NO. 1 OF 2(9902-0408)UCK30,40,VCK30,40

ILLUST NO. 1 OF 2(0310- )UCK31,41 ; (0408- )GSK30,UCK30,40
