UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)

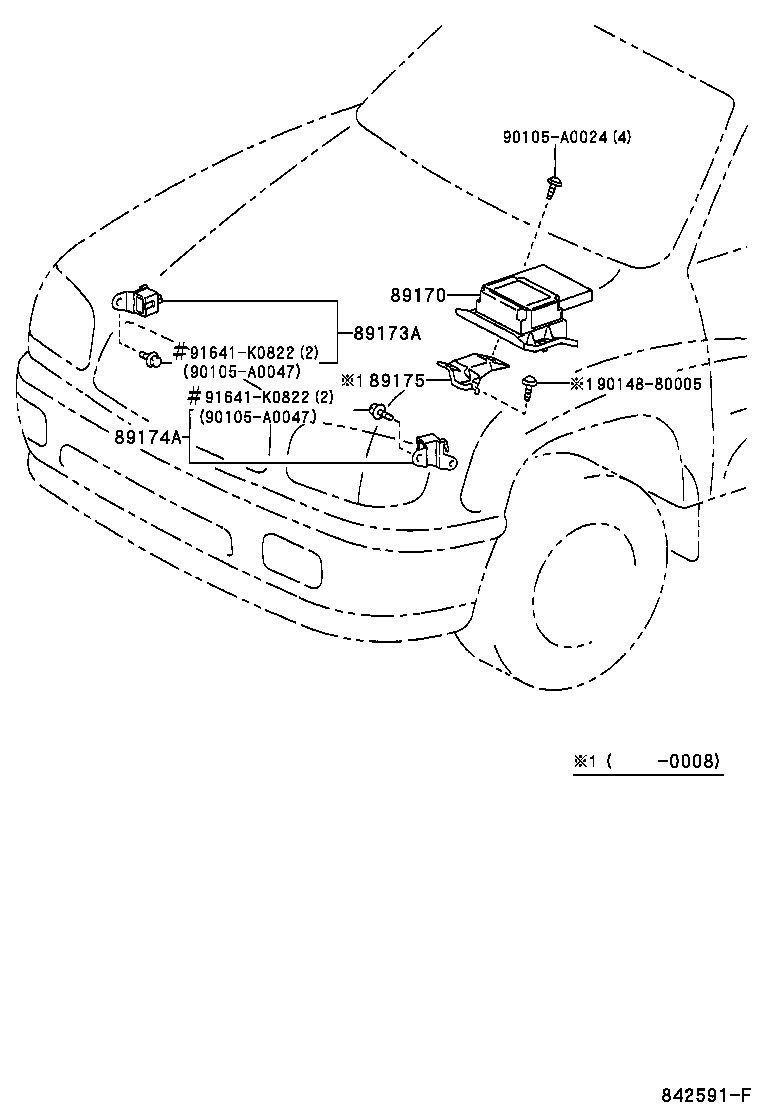

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89175 90105A0024 90105A0047 90105A0047 9014880005 91641K0822 91641K0822
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-0C080

UCK30,40,VCK30,40

W(RESIN BUMPER)

 1
89170-0C010

UCK30,40,VCK30,40

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49165

UCK30,40,VCK30,40

 1
89173-49165

UCK30,40,VCK30,40

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-49065

UCK30,40,VCK30,40

 1
89174-49065

UCK30,40,VCK30,40

 1
89175 - BRACKET, AIR BAG SENSOR
89175-0C010

UCK30,40,VCK30,40

 1
Common parts
90105-A0024
90105-A0047
90148-80005
91641-K0822
