UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)UCK3#

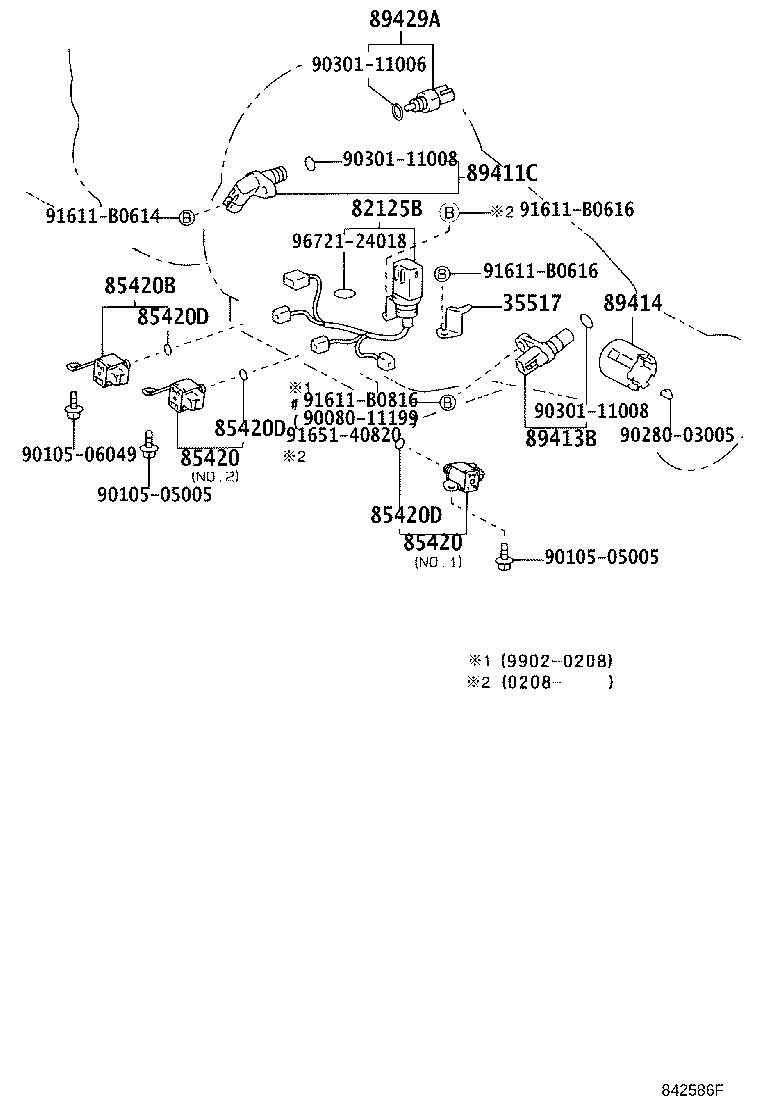

Click highlighted areas on diagram

diagram 35517 82125B 85420 85420 85420B 85420D 85420D 85420D 89411C 89413B 89414 89429A 9008011199 9010505005 9010505005 9010506049 9028003005 9030111006 9030111008 9030111008 91611B0614 91611B0616 91611B0616 91611B0816 9165140820 9672124018
Part # Description Qty Price
35517 - PLATE, TRANSMISSION WIRE LOCK
35517-30010

UCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA

 1
35517-30010

UCK3#,4#

 1
82125B - WIRE, TRANSMISSION
82125-60310

UCK3#,4#,VCK30,40..4HC

 1
82125-60310

UCK30,40

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-22150

UCK30,40

NO.1

 1
85420-22170

UCK30,40

NO.2

 1
35250-30070

UCK3#,41,VCK30..4HC

DENSO,NO.2

 1
35250-30050

UCK3#,41,VCK30..4HC

DENSO,NO.1

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-22150

UCK30,40

NO.1

 1
85420-22170

UCK30,40

NO.2

 1
35250-30070

UCK3#,41,VCK30..4HC

DENSO,NO.2

 1
35250-30050

UCK3#,41,VCK30..4HC

DENSO,NO.1

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-30260

UCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA

DENSO

 1
85420-30270

UCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA

AISIN

 1
35250-50030

UCK3#,4#,VCK30,40..4HC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

UCK30,40,VCK30,40..4HC

 3
90301-06004

UCK3#,4#,VCK30,40..4HC

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

UCK30,40,VCK30,40..4HC

 3
90301-06004

UCK3#,4#,VCK30,40..4HC

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

UCK30,40,VCK30,40..4HC

 3
90301-06004

UCK3#,4#,VCK30,40..4HC

 3
89411C - SENSOR, SPEED
89411-50010

UCK30,VCK40..4HC

 1
89411-50010

UCK3#,VCK40..4HC

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-24010

UCK3#,VCK30..4HC

 1
89413-24010

UCK30,VCK30..4HC

 1
89414 - ROTOR, SENSOR
89414-22010

UCK3#

 1
89414-22010

UCK30,VCK30..4HC

 1
89429A - SENSOR, TEMPERATURE
89429-34010

UCK30,40

 1
89429-34010

UCK3#,4#

 1
Common parts
90080-11199
90105-05005
90105-06049
90280-03005
90301-11006
90301-11008
91611-B0614
91611-B0616
91611-B0816
91651-40820
96721-24018
