UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )GSK30,UCK30,40

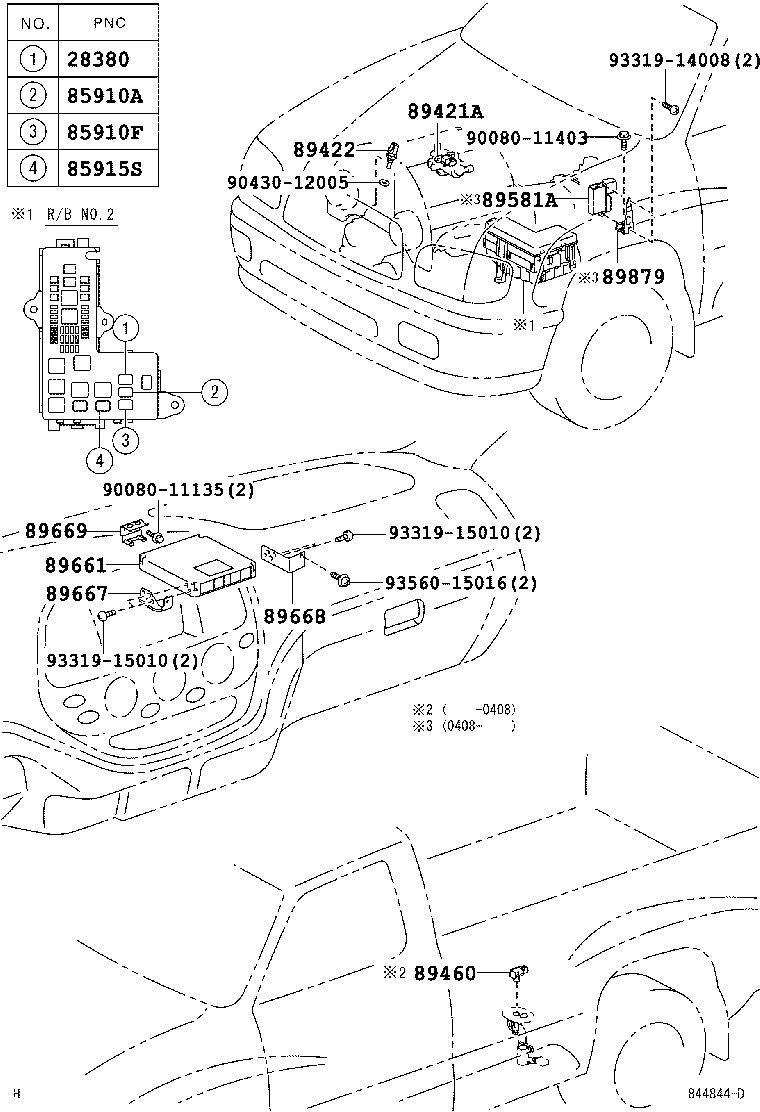

Click highlighted areas on diagram

diagram 28380 85910A 85910F 85915S 89421A 89422 89460 89581A 89661 89667 89668 89669 89879 9008011135 9008011403 9043012005 9331914008 9331915010 9331915010 9356015016
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90987-04004

2UZFE..UCK30,40

PART NUMBER LABEL=90987-04004

 1
90084-98032

2UZFE..UCK3#,4#

PART NUMBER LABEL=90084-98032

 1
90987-04004

2UZFE..UCK3#,4#

PART NUMBER LABEL=90987-04004

 1
90084-98032

2UZFE..UCK30,40

PART NUMBER LABEL=90084-98032

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90084-98031

UCK3#,4#,VCK30,40

PART NUMBER LABEL=90084-98031

 1
90084-98031

UCK30,40,VCK30,40

PART NUMBER LABEL=90084-98031

 1
90987-02012

UCK3#,4#,VCK30,40

PART NUMBER LABEL=90987-02012

 1
90987-02012

UCK30,40,VCK30,40

PART NUMBER LABEL=90987-02012

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

UCK30,40,VCK30,40

PART NUMBER LABEL=90987-02012

 1
90987-02012

UCK3#,4#,VCK30,40

PART NUMBER LABEL=90987-02012

 1
90084-98031

UCK3#,4#,VCK30,40

PART NUMBER LABEL=90084-98031

 1
90084-98031

UCK30,40,VCK30,40

PART NUMBER LABEL=90084-98031

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

UCK30,40

 1
89422-30030

UCK3#,4#

 1
89460 - SENSOR ASSY, VAPOR PRESSURE
89461-0C010

UCK3#,4#,VCK30,40

 1
89460-0C010

UCK30,40,VCK30,40

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0C090

UCK30..USA

CALIFORNIA SPEC

 1
89661-0C110

UCK30

 1
89661-0C432

UCK30

PART NUMBER LABEL=89661-0C432

 1
89661-0C430

UCK30

 1
89661-0C530

UCK30

PART NUMBER LABEL=89661-0C530

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0C010

UCK30,40,VCK30,40

 1
89667-0C010

UCK3#,4#,VCK30,40

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0C010

UCK30,40,VCK30,40

 1
89668-0C020

UCK3#,4#,VCK30,40

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-34041

UCK3#,4#,VCK30,40

 1
89669-34030

UCK30,40,VCK30,40

 1
Common parts
90080-11135
90080-11403
90430-12005
93319-14008
93319-15010
93560-15016
