UCK30L-ASSLKA (2002)
Toyota Tundra
ILLUST NO. 1 OF 8(9902-0408)UCK30,40
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
UCK3#,4# |
1 | ||
| 83420-20040 |
UCK30,40 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-34020 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83520-35020 |
UCK30,40;VCK30,40..LIMD,SR5 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30320 |
UCK3#,4#,VCK30,40..4HC |
1 | ||
| 84540-30320 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-42010 |
UCK3#,4# |
2 | ||
| 89437-60030 |
UCK30 |
2 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-42010 |
UCK3#,4# |
2 | ||
| 89437-60030 |
UCK30 |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89465-09170 |
UCK30 REAR |
2 | ||
| 89465-09300 |
UCK3# REAR LH |
1 | ||
| 89465-0C150 |
UCK3#,4# PART NUMBER LABEL=89465-0C150,FRONT RH |
1 | ||
| 89465-09390 |
UCK3# REAR RH |
1 | ||
| 89465-34130 |
UCK3#,4# PART NUMBER LABEL=89465-34130,FRONT RH |
1 | ||
| 89465-34120 |
UCK3#,4# PART NUMBER LABEL=89465-34120,FRONT LH |
1 | ||
| 89465-0C140 |
UCK3#,4# PART NUMBER LABEL=89465-0C140,FRONT LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89465-09170 |
UCK30 REAR |
2 | ||
| 89465-09300 |
UCK3# REAR LH |
1 | ||
| 89465-0C150 |
UCK3#,4# PART NUMBER LABEL=89465-0C150,FRONT RH |
1 | ||
| 89465-09390 |
UCK3# REAR RH |
1 | ||
| 89465-34130 |
UCK3#,4# PART NUMBER LABEL=89465-34130,FRONT RH |
1 | ||
| 89465-34120 |
UCK3#,4# PART NUMBER LABEL=89465-34120,FRONT LH |
1 | ||
| 89465-0C140 |
UCK3#,4# PART NUMBER LABEL=89465-0C140,FRONT LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89465-09170 |
UCK30 REAR |
2 | ||
| 89465-09300 |
UCK3# REAR LH |
1 | ||
| 89465-0C150 |
UCK3#,4# PART NUMBER LABEL=89465-0C150,FRONT RH |
1 | ||
| 89465-09390 |
UCK3# REAR RH |
1 | ||
| 89465-34130 |
UCK3#,4# PART NUMBER LABEL=89465-34130,FRONT RH |
1 | ||
| 89465-34120 |
UCK3#,4# PART NUMBER LABEL=89465-34120,FRONT LH |
1 | ||
| 89465-0C140 |
UCK3#,4# PART NUMBER LABEL=89465-0C140,FRONT LH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-34080 |
UCK30,40 FRONT RH |
1 | ||
| 89465-34110 |
UCK30,40 FRONT LH |
1 | ||
| 89465-09170 |
UCK30 REAR |
2 | ||
| 89465-09300 |
UCK3# REAR LH |
1 | ||
| 89465-0C150 |
UCK3#,4# PART NUMBER LABEL=89465-0C150,FRONT RH |
1 | ||
| 89465-09390 |
UCK3# REAR RH |
1 | ||
| 89465-34130 |
UCK3#,4# PART NUMBER LABEL=89465-34130,FRONT RH |
1 | ||
| 89465-34120 |
UCK3#,4# PART NUMBER LABEL=89465-34120,FRONT LH |
1 | ||
| 89465-0C140 |
UCK3#,4# PART NUMBER LABEL=89465-0C140,FRONT LH |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
UCK30,40,VCK30,40 |
2 | ||
| 89466-20020 |
UCK3#,4#,VCK30,40 |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
UCK30,40,VCK30,40 |
2 | ||
| 89466-20020 |
UCK3#,4#,VCK30,40 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
UCK30,40 |
2 | ||
| 89615-52010 |
UCK3#,4# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22030 |
UCK30,40 |
2 | ||
| 89615-52010 |
UCK3#,4# |
2 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
ILLUST NO. 6 OF 8(9902-0408)UCK30,40,VCK30,40
INTEGRATION PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55680C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55680-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55680-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55680-0C011 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55680D - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 55680-0C021 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55680-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 55685D - RETAINER, REGISTER BLADE, NO.1 | ||||
| 55685-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55685-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55685-0C011 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55685E - RETAINER, REGISTER BLADE, NO.2 | ||||
| 55685-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 55685-0C021 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55685-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-0C010 |
UCK30,40,VCK30,40 |
3 | ||
| 55905-0C010 |
UCK3#,4#,VCK30,40 |
3 | ||
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-0C010 |
UCK30,40,VCK30,40 |
3 | ||
| 55905-0C010 |
UCK3#,4#,VCK30,40 |
3 | ||
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-0C010 |
UCK30,40,VCK30,40 |
3 | ||
| 55905-0C010 |
UCK3#,4#,VCK30,40 |
3 | ||
| 55905P - KNOB SUB-ASSY, CONTROL, NO.2 | ||||
| 55905-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 55905-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 55905R - KNOB SUB-ASSY, CONTROL, NO.4 | ||||
| 55905-0C030 |
UCK30,40,VCK30,40 |
1 | ||
| 55905-0C030 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55912D - HOUSING, HEATER CONTROL | ||||
| 55912-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55912-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55938B - LENS, CENTER CLUSTER MODULE | ||||
| 55938-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 81942D - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 81942-0C020 |
UCK3#,4#,VCK30,40 |
1 | ||
| 81942E - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-0C030 |
UCK30,40,VCK30,40 |
1 | ||
| 81942-0C030 |
UCK3#,4#,VCK30,40 |
1 | ||
| 81942F - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-0C040 |
UCK3#,4#,VCK30,40 |
1 | ||
| 81942-0C040 |
UCK30,40,VCK30,40 |
1 | ||
| 81942G - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81942-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 81942-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 83911D - ORNAMENT, CLOCK | ||||
| 83911-0C020 |
UCK30,VCK30,40 |
1 | ||
| 83911-0C050 |
UCK3#,VCK30,40 W(VSC) |
1 | ||
| 83911-0C020 |
UCK3#,VCK30,40 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0C030 |
UCK30,VCK30,40 BLACK PANEL,W(A/C SW.) |
1 | ||
| 84010-0C010 |
UCK30..CND;UCK30,VCK30,40..LIMD WOODEN PANEL,W(A/C SW.) |
1 | ||
| 84010-0C310 |
UCK30 BLACK PANEL,W(A/C SW. & VSC SW.) |
1 | ||
| 84010-0C230 |
UCK30 BLACK PANEL,W(A/C SW.) |
1 | ||
| 84010-0C260 |
UCK30..LIMD WOODEN PANEL,W(A/C SW.) |
1 | ||
| 84010-0C340 |
UCK30..LIMD WOODEN PANEL,W(A/C SW. & VSC SW.) |
1 | ||
| 84013 - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-0C020 |
UCK30..CND;UCK30,VCK30,40..LIMD WOODEN PANEL |
1 | ||
| 84013-0C150 |
UCK30,VCK30,40 BLACK PANEL & W(VSC) |
1 | ||
| 84013-0C110 |
UCK30,VCK30,40 BLACK PANEL |
1 | ||
| 84013-0C140 |
UCK30..LIMD WOODEN PANEL |
1 | ||
| 84013-0C040 |
UCK30,VCK30,40 BLACK PANEL |
1 | ||
| 84013-0C180 |
UCK30..LIMD W(AIR CONDITIONER & LSD & WOODEN PANEL) |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-0C160 |
UCK30 |
1 | ||
| 84014-0C030 |
UCK30,VCK30,40 |
1 | ||
| 84014-0C180 |
UCK30 W(VSC) |
1 | ||
| 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 | ||||
| 84014-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84014-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03003 |
UCK30,40,VCK30,40 14V 3.78W |
3 | ||
| 90011-03003 |
UCK3#,4#,VCK30,40 14V 3.78W |
3 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03003 |
UCK30,40,VCK30,40 14V 3.78W |
3 | ||
| 90011-03003 |
UCK3#,4#,VCK30,40 14V 3.78W |
3 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03003 |
UCK30,40,VCK30,40 14V 3.78W |
3 | ||
| 90011-03003 |
UCK3#,4#,VCK30,40 14V 3.78W |
3 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 90011-03003 |
UCK30,40,VCK30,40 14V 3.78W |
3 | ||
| 90011-03003 |
UCK3#,4#,VCK30,40 14V 3.78W |
3 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 84014C - BULB, PRINTED WIRE INTEGRATION BOARD, NO.2 | ||||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
1 | ||
| 90011-03002 |
UCK30,40,VCK30,40 14V 2.0W |
2 | ||
| 84014D - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.3 | ||||
| 84014-0C040 |
UCK30,40,VCK30,40 |
1 | ||
| 84014-0C040 |
UCK30,40,VCK30,40 |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84331-34010 |
UCK30,40,VCK30,40 |
1 | ||
| 84691B - KNOB, CONDITION INDICATOR | ||||
| 84691-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84691-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-0C050 |
UCK3#,4#,VCK30,40 |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90467-10203 | ||||
| 90468-04160 | ||||
| 93568-55016 | ||||

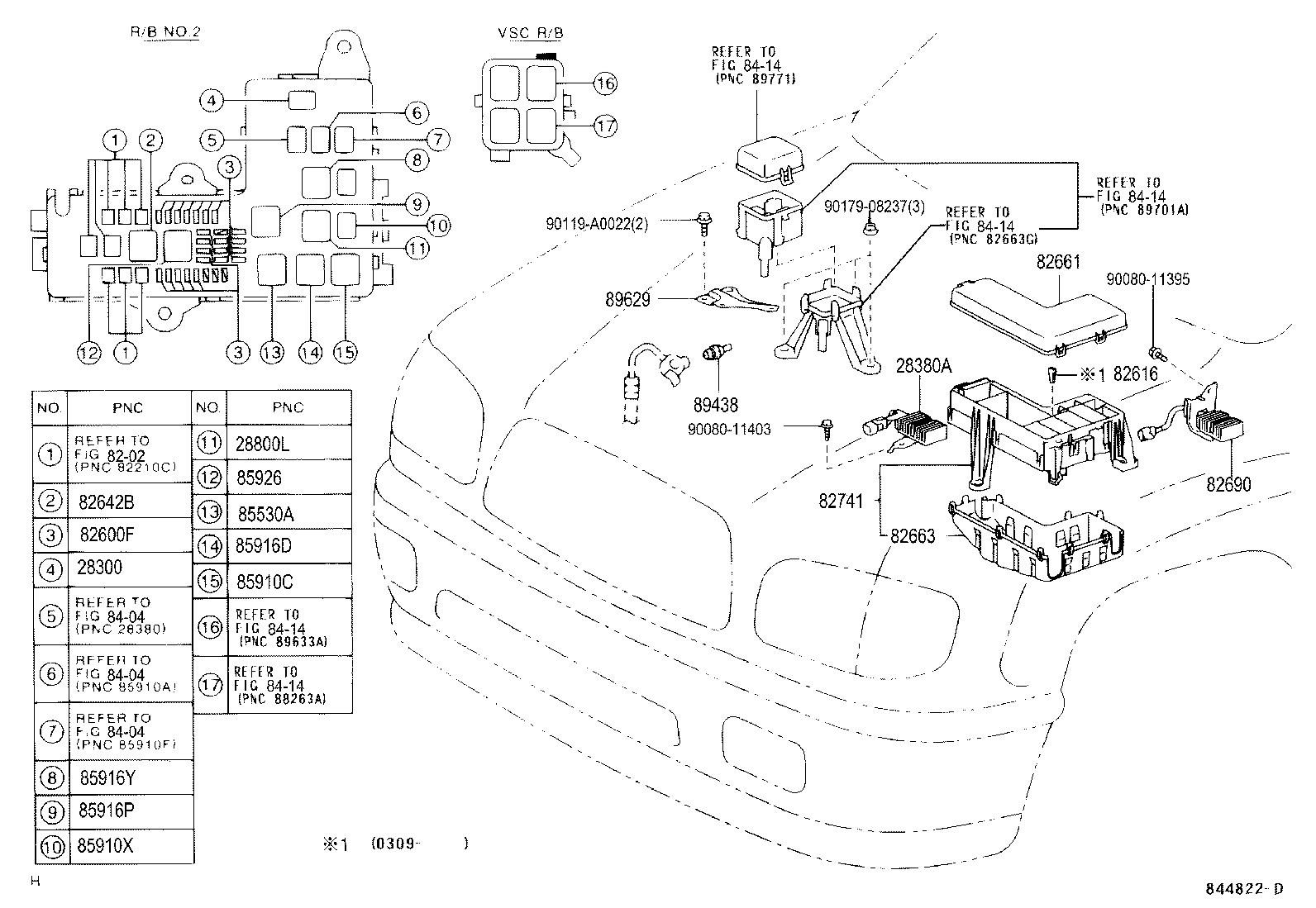

ILLUST NO. 2 OF 8(0208-0408)UCK30,40,VCK30,40
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2UZFE,5VZFE..UCK3#,4#,VCK30,40 |
1 | ||
| 28300-10020 |
2UZFE,5VZFE..UCK30,40,VCK30,40 |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-50070 |
2UZFE..UCK30,40 |
1 | ||
| 23080-50070 |
2UZFE..UCK3#,4# |
1 | ||
| 28800L - RELAY, SUB BATTERY | ||||
| 90987-02025 |
2UZFE..UCK30,40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 90080-82020 |
UCK3#,4#,VCK30,40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82021 |
UCK3#,4#,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 90080-82021 |
UCK30,40,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 90080-82024 |
UCK3#,4#,VCK30,40 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
UCK30,40,VCK30,40 |
1 | ||
| 82616-20010 |
UCK30,40,VCK30,40 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02025 |
UCK3#,4#,VCK30,40 |
1 | ||
| 90987-02006 |
UCK30,40,VCK30,40 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0C020 |
UCK30,40..USA |
1 | ||
| 82661-0C040 |
UCK30,40..USA W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82661-0C081 |
UCK30,40 TOWING PACKAGE & W(ABS) |
1 | ||
| 82661-0C100 |
UCK30,40 TOWING PACKAGE & W(VSC) & W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82661-0C090 |
UCK30,40 W(VSC) & W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82661-0C080 |
UCK30,40 TOWING PACKAGE |
1 | ||
| 82661-0C070 |
UCK30,40 |
1 | ||
| 82661-0C071 |
UCK30,40 W(ABS) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0C020 |
UCK30,40,VCK30,40 |
1 | ||
| 82663-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 82690 - RESISTOR ASSY, DIM DIP LAMP | ||||
| 82690-34020 |
UCK3#,4#,VCK30,40 |
1 | ||
| 82690-34020 |
UCK30,40,VCK30,40 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0C030 |
UCK30,40,VCK30,40 |
1 | ||
| 82741-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02025 |
UCK30,40,VCK30,40 |
1 | ||
| 90987-02006 |
UCK30,40,VCK30,40 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
UCK30,40,VCK30,40 |
1 | ||
| 90987-04010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90084-98031 |
UCK3#,4#,VCK30,40..LIMD,SR5 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02006 |
UCK30,40,VCK30,40 |
1 | ||
| 90987-02025 |
UCK30,40,VCK30,40 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
UCK3#,4#,VCK30,40 |
1 | ||
| 90987-02006 |
UCK30,40,VCK30,40 |
1 | ||
| 85916Y - RELAY, TOWING TAIL | ||||
| 90987-02025 |
UCK30,40,VCK30,40 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
UCK30,40,VCK30,40 |
1 | ||
| 90987-04010 |
UCK3#,4#,VCK30,40 |
1 | ||
| Common parts | ||||
| 90080-11395 | ||||
| 90080-11403 | ||||
| 90119-A0022 | ||||
| 90179-08237 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

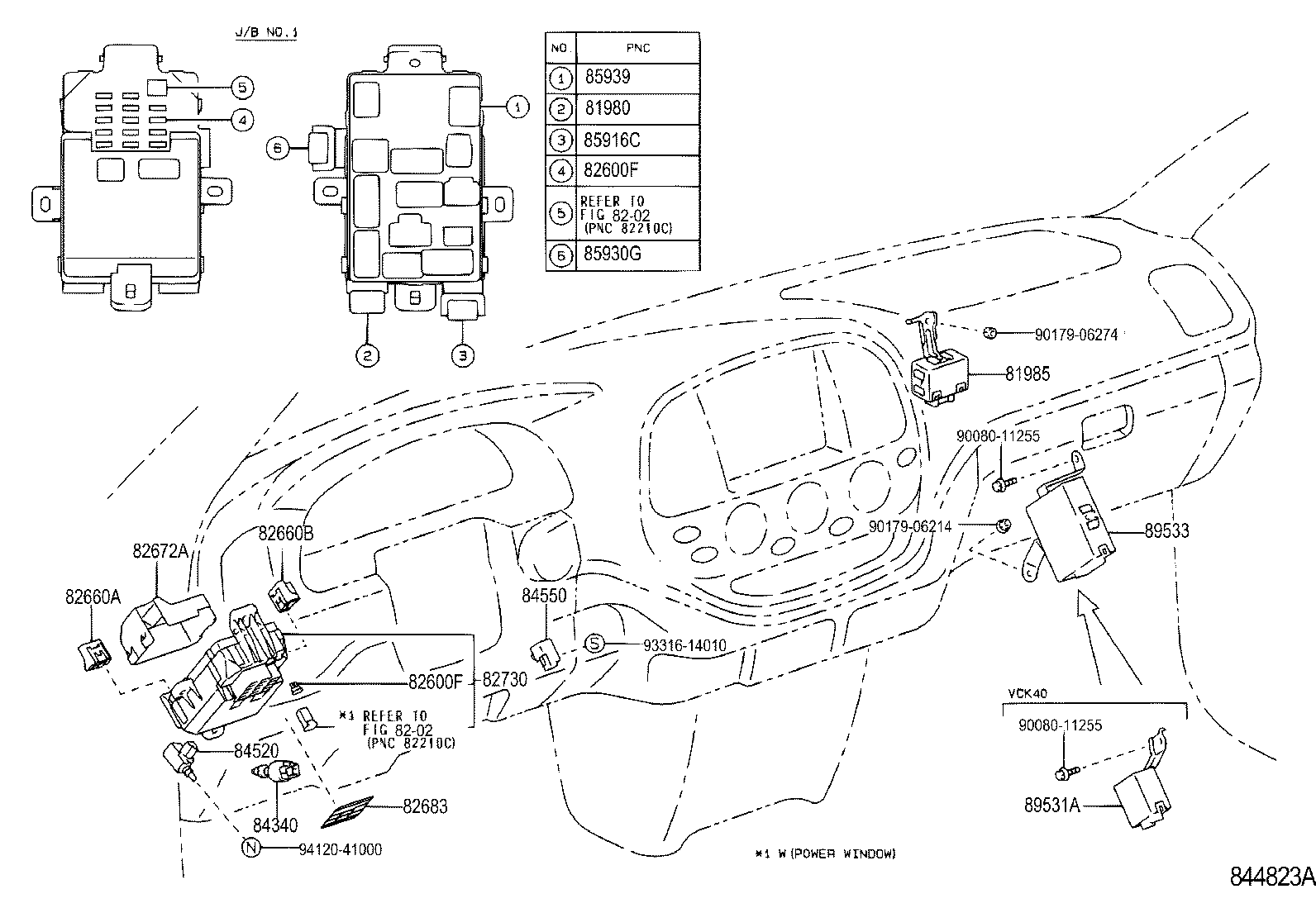

ILLUST NO. 3 OF 8(0208-0408)UCK30,40,VCK30,40
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-02030 |
UCK30,40,VCK30,40 |
1 | ||
| 81980-50020 |
UCK30,40,VCK30,40 |
1 | ||
| 81985 - RELAY, TOWING CONVERTER | ||||
| 81985-0C031 |
UCK3#,4#,VCK30,40 |
1 | ||
| 81985-0C030 |
UCK30,40,VCK30,40 |
1 | ||
| 81985-34020 |
UCK30,40,VCK30,40 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 90080-82020 |
UCK3#,4#,VCK30,40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82021 |
UCK3#,4#,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 90080-82021 |
UCK30,40,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 90080-82024 |
UCK3#,4#,VCK30,40 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 90080-82020 |
UCK3#,4#,VCK30,40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
UCK30,40,VCK30,40 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82023 |
UCK30,40,VCK30,40 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82021 |
UCK3#,4#,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 90080-82021 |
UCK30,40,VCK30,40 10A,MINI FUSE,RED |
1 | ||
| 90080-82024 |
UCK3#,4#,VCK30,40 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82031 |
UCK30,40,VCK30,40 5A,MINI FUSE,TAN |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-20340 |
UCK3#,4#,VCK30,40..4HC |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-53010 |
UCK3#,4# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 82672-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-0C011 |
UCK30,40,VCK30,40 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0C070 |
UCK30,40,VCK30,40..LIMD,SR5 W(DAY TIME RUNNING LIGHT SYSTEM & POWER WINDOW) |
1 | ||
| 82730-0C020 |
VCK30..5F..SR5;VCK30..4HC..USA;VCK30..SR5..CND;UCK30,40,VCK40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82730-0C050 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA W(POWER WINDOW) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-42020 |
UCK30,40,VCK30,40 |
1 | ||
| 84340-32110 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(CRUISE CONTROL) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 84550-33010 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90987-02012 |
UCK30,40,VCK30,40..4HC PART NUMBER LABEL=90987-02012 |
1 | ||
| 90084-98031 |
UCK30,40,VCK30,40..4HC PART NUMBER LABEL=90084-98031 |
1 | ||
| 90084-98031 |
UCK3#,4#,VCK30,40..4HC PART NUMBER LABEL=90084-98031 |
1 | ||
| 90987-02012 |
UCK3#,4#,VCK30,40..4HC PART NUMBER LABEL=90987-02012 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-04004 |
UCK3#,4# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02012 |
UCK30,40,VCK30,40..LIMD,SR5 PART NUMBER LABEL=90987-02012 |
1 | ||
| 90084-98031 |
UCK30,40,VCK30,40..LIMD,SR5 P/N LABEL=9008498031 |
1 | ||
| 90084-98031 |
UCK30,40,VCK30,40..LIMD,SR5 PART NUMBER LABEL=90084-98031 |
1 | ||
| 90987-02012 |
UCK30,40,VCK30,40..LIMD,SR5 P/N LABEL=9098702012 |
1 | ||
| Common parts | ||||
| 90080-11255 | ||||
| 90179-06214 | ||||
| 90179-06274 | ||||
| 93316-14010 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8202 | ||||

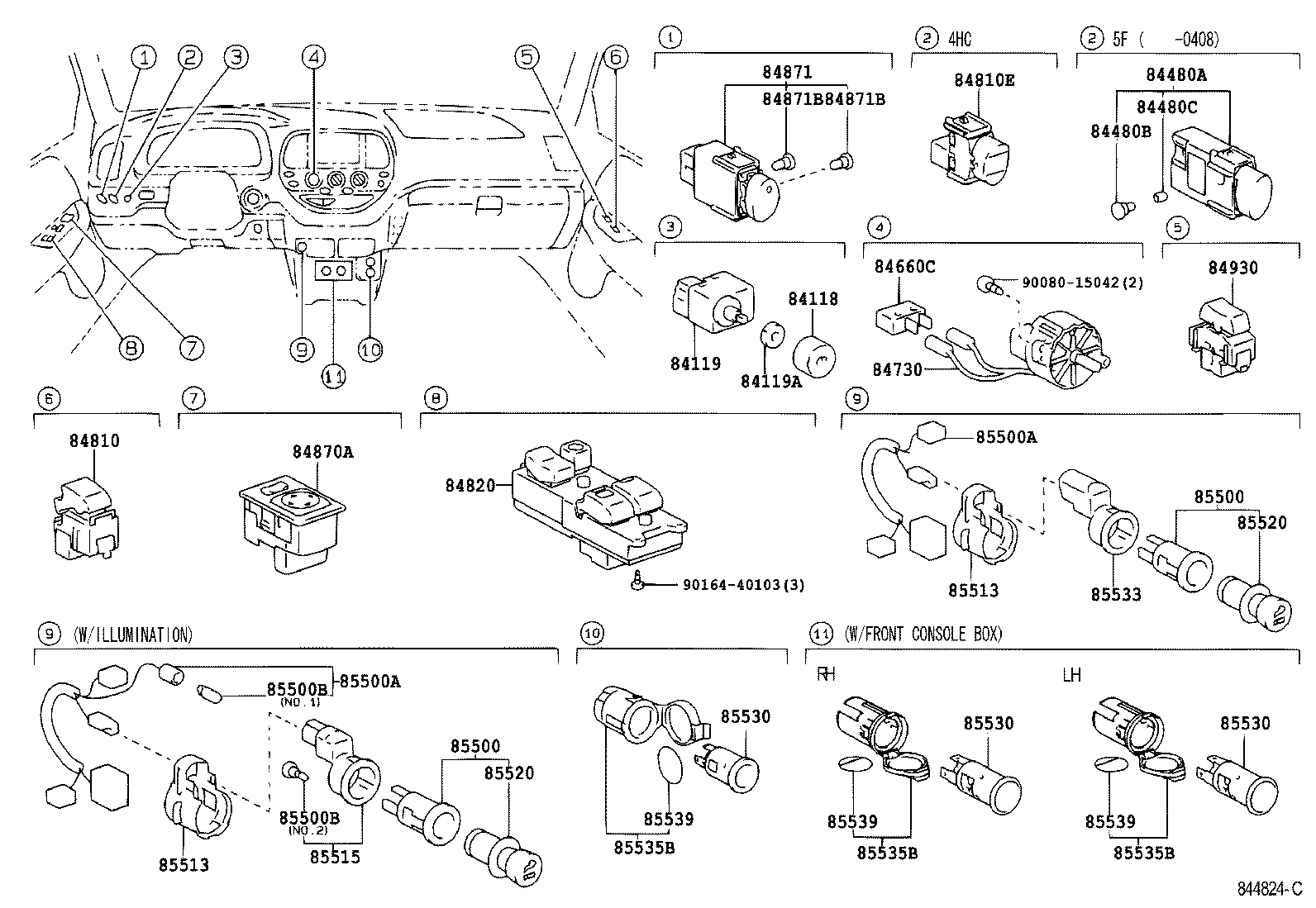

ILLUST NO. 4 OF 8(0208- )GSK30,UCK30,40,VCK30,40
INSTRMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-04010 |
UCK30,40,VCK30,40 |
1 | ||
| 84118-04011 |
UCK3#,4#,VCK30,40 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-03010 |
UCK30,40,VCK30,40 |
1 | ||
| 84119-03010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
UCK3#,4#,VCK30,40 |
1 | ||
| 90170-09002 |
UCK30,40,VCK30,40 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84660-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 84732-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-08010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84810-08010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR | ||||
| 84810-0C010 |
UCK30,40,VCK30,40..ACB..4HC..USA |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-08010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84820-08010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84870-34010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84871B - BULB, OUTER MIRROR HEATER SWITCH | ||||
| 90011-01031 |
UCK30,40,VCK30,40..LIMD,SR5 14V 0.7W |
1 | ||
| 90011-01032 |
UCK30,40,VCK30,40..LIMD,SR5 14V 0.84W |
1 | ||
| 84871B - BULB, OUTER MIRROR HEATER SWITCH | ||||
| 90011-01031 |
UCK30,40,VCK30,40..LIMD,SR5 14V 0.7W |
1 | ||
| 90011-01032 |
UCK30,40,VCK30,40..LIMD,SR5 14V 0.84W |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-AA010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84930-AA010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
UCK30,40,VCK30,40 |
1 | ||
| 85500-12240 |
UCK3#,4#,VCK30,40 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
UCK30,40,VCK30,40 |
1 | ||
| 85500-12240 |
UCK3#,4#,VCK30,40 |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-0C020 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(ILLUMINATION) |
1 | ||
| 82390-0C020 |
UCK30,40,VCK30,40..SR5;UCK30,40..SD..LIMD..USA W(ILLUMINATION) |
1 | ||
| 82390-0C020 |
UCK31,41;UCK40..LIMD..CND;UCK30,40..SSD..LIMD |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-0C020 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(ILLUMINATION) |
1 | ||
| 82390-0C020 |
UCK30,40,VCK30,40..SR5;UCK30,40..SD..LIMD..USA W(ILLUMINATION) |
1 | ||
| 82390-0C020 |
UCK31,41;UCK40..LIMD..CND;UCK30,40..SSD..LIMD |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
UCK3#,4#,VCK30,40..LIMD,SR5 14V 1.4W,NO.2 |
1 | ||
| 84999-10250 |
UCK30,40,VCK30,40..LIMD,SR5 14V 1.4W |
1 | ||
| 90981-11014 |
UCK3#,4#,VCK30,40..LIMD,SR5 14V 1.4W,NO.1 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
UCK3#,4#,VCK30,40..LIMD,SR5 14V 1.4W,NO.2 |
1 | ||
| 84999-10250 |
UCK30,40,VCK30,40..LIMD,SR5 14V 1.4W |
1 | ||
| 90981-11014 |
UCK3#,4#,VCK30,40..LIMD,SR5 14V 1.4W,NO.1 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 85513-02010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 85513-02010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-32010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 85515-32010 |
UCK3#,4#,VCK30,40..LIMD,SR5 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 85520-28010 |
UCK30,40,VCK30,40 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 85520-28010 |
UCK30,40,VCK30,40 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
UCK30,40,VCK30,40 |
2 | ||
| 85530-33020 |
UCK30,40,VCK30,40 |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
UCK30,40,VCK30,40 |
2 | ||
| 85530-33020 |
UCK30,40,VCK30,40 |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
UCK30,40,VCK30,40 |
2 | ||
| 85530-33020 |
UCK30,40,VCK30,40 |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60020C0 |
UCK30,40,VCK30,40..LIMD,SR5 BLACK,TRIM10,11,4# |
2 | ||
| 85535-0C040B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
2 | ||
| 85535-0C040E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
2 | ||
| 85535-0C040B1 |
UCK30,40,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60020C0 |
UCK30,40,VCK30,40..LIMD,SR5 BLACK,TRIM10,11,4# |
2 | ||
| 85535-0C040B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
2 | ||
| 85535-0C040E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
2 | ||
| 85535-0C040B1 |
UCK30,40,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60020C0 |
UCK30,40,VCK30,40..LIMD,SR5 BLACK,TRIM10,11,4# |
2 | ||
| 85535-0C040B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
2 | ||
| 85535-0C040E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
2 | ||
| 85535-0C040B1 |
UCK30,40,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
2 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
UCK30,40,VCK30,40 |
2 | ||
| 85539-60020 |
UCK3#,4#,VCK30,40 |
2 | ||
| 85539-60020 |
UCK30,40..ACB W(CAPTAIN SEAT) |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
UCK30,40,VCK30,40 |
2 | ||
| 85539-60020 |
UCK3#,4#,VCK30,40 |
2 | ||
| 85539-60020 |
UCK30,40..ACB W(CAPTAIN SEAT) |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
UCK30,40,VCK30,40 |
2 | ||
| 85539-60020 |
UCK3#,4#,VCK30,40 |
2 | ||
| 85539-60020 |
UCK30,40..ACB W(CAPTAIN SEAT) |
1 | ||
| Common parts | ||||
| 90080-15042 | ||||
| 90164-40103 | ||||

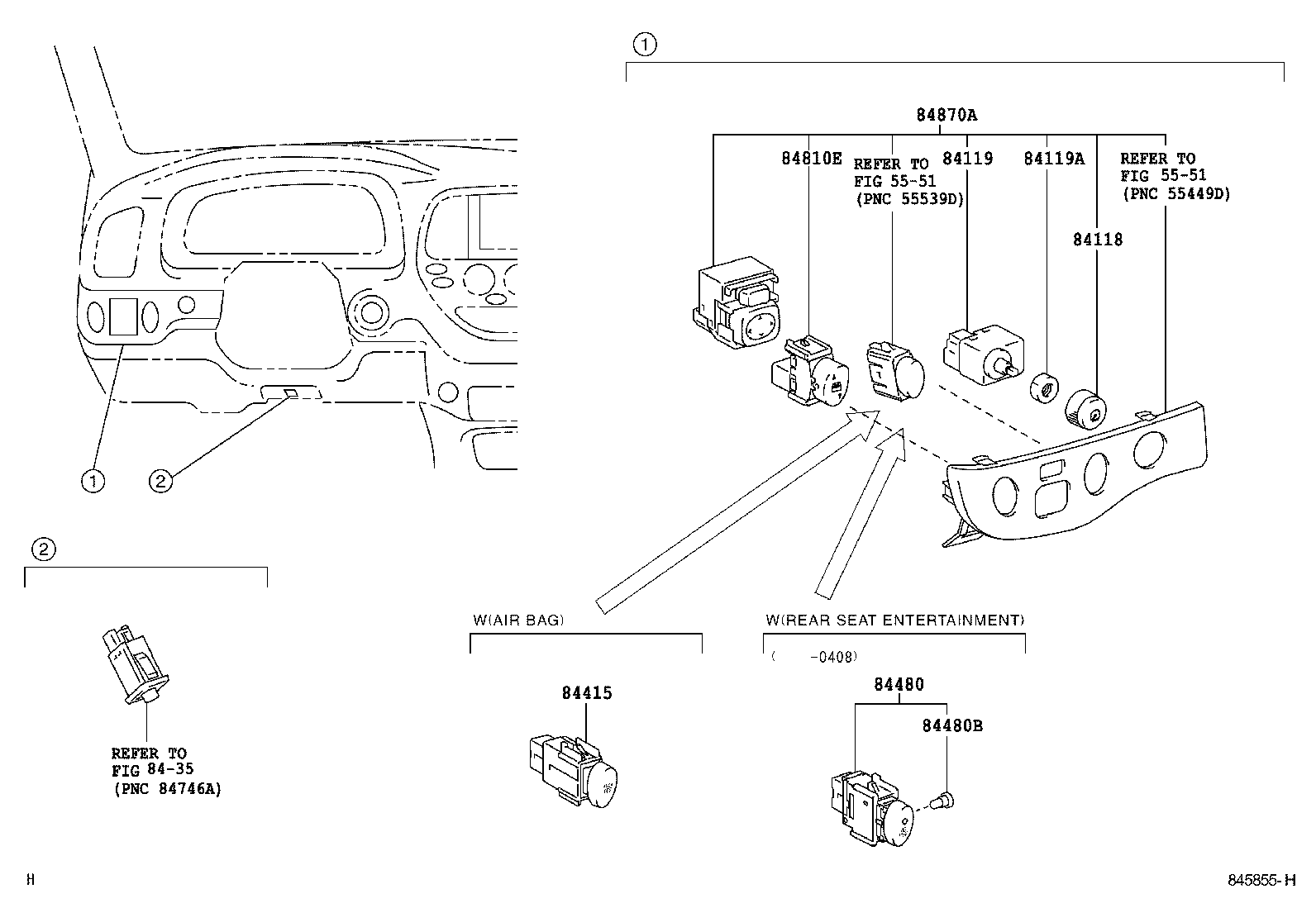

ILLUST NO. 5 OF 8(0310- )GSK30,UCK3#,4#
INSTRMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-04010 |
UCK30,40,VCK30,40 |
1 | ||
| 84118-04011 |
UCK3#,4#,VCK30,40 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-03010 |
UCK30,40,VCK30,40 |
1 | ||
| 84119-03010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
UCK3#,4#,VCK30,40 |
1 | ||
| 90170-09002 |
UCK30,40,VCK30,40 |
1 | ||
| 84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR | ||||
| 84810-0C010 |
UCK30,40,VCK30,40..ACB..4HC..USA |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| 84870-34010 |
UCK30,40,VCK30,40..LIMD,SR5 |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 8435 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
