UCK30L-ASSLKA (2002)
Toyota Tundra

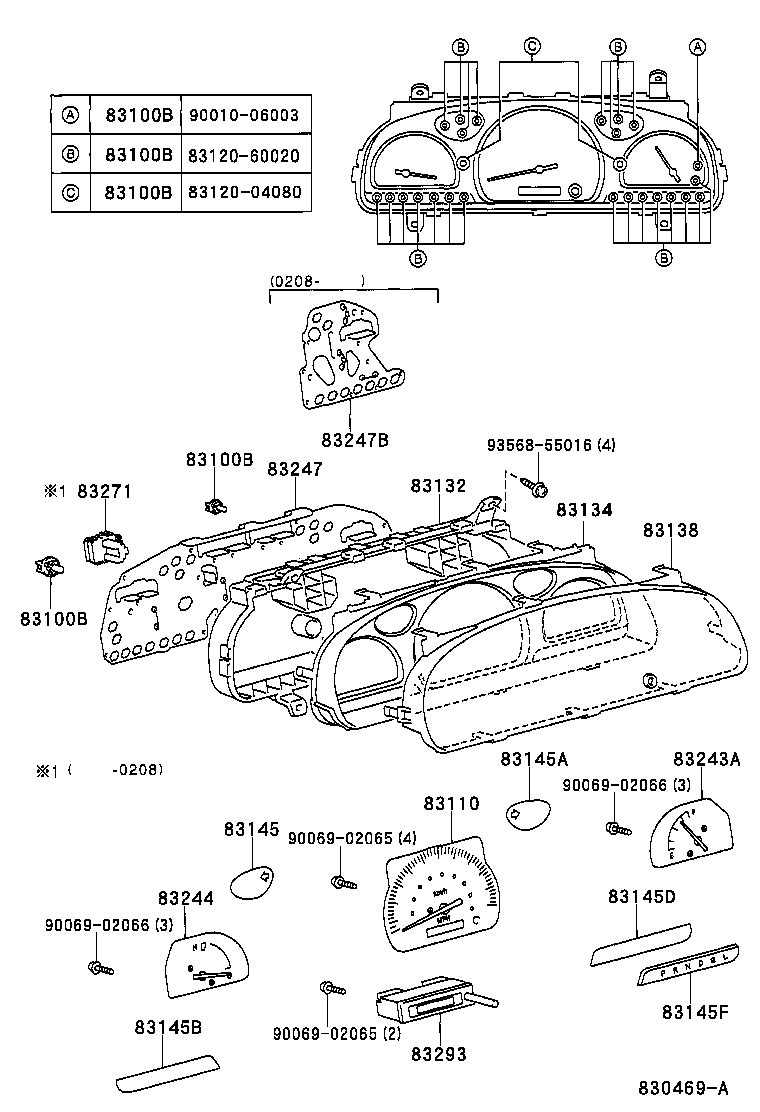

ILLUST NO. 1 OF 3(9902-0408)UCK30,40,VCK30,40
W/O(TACHO METER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-0C090 |
UCK3#,4#,VCK30,40..(LIMD,SR5)..USA |
1 | ||
| 83220-0C020 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83841-0C210 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-0C040 |
UCK40..SD..SR5;UCK40..SD..LIMD..USA;UCK30,VCK30,40..ACB..SD..4HC W(TACHOMETER) |
1 | ||
| 83821-0C040 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..4HC..(LIMD,SR5) W(TACHOMETER) |
1 | ||
| 83821-0C040 |
UCK31,41;UCK30,40..SSD;UCK40..(DLX,LIMD)..CND |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-0C030 |
UCK31,41;UCK30,40..SSD;UCK40..(DLX,LIMD)..CND |
1 | ||
| 83852-0C030 |
UCK40..SD..SR5;UCK40..SD..LIMD..USA;UCK30,VCK30,40..ACB..SD W(TACHOMETER) |
1 | ||
| 83852-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-0C030 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA W(TACHOMETER) |
1 | ||
| 83831-0C210 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83832-0C210 |
UCK3#,4#,VCK30,40..(LIMD,SR5)..USA |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83835-0C040 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..4HC..(LIMD,SR5) W(TACHOMETER) |
1 | ||
| 83835-0C020 |
UCK3#,4#,VCK30,40..4HC |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83837-0C040 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..4HC..(LIMD,SR5) W(TACHOMETER) |
1 | ||
| 83837-0C040 |
UCK31,41;UCK30,40..SSD;UCK40..(DLX,LIMD)..CND |
1 | ||
| 83837-0C040 |
UCK40..SD..SR5;UCK40..SD..LIMD..USA;UCK30,VCK30,40..ACB..SD..4HC W(TACHOMETER) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-0C210 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83882-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83883-0C210 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-0C230 |
UCK3#,4# |
1 | ||
| 83861-0C050 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA W(TACHOMETER) |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83862-0C050 |
UCK30,40 |
1 | ||
| 83863-0C230 |
UCK3#,4# |
1 | ||
| 83271 - RELAY, METER CONTROL | ||||
| 83271-04020 |
UCK30,40,VCK30,40 |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-0C010 |
UCK30,40..USA W(TACHOMETER) |
1 | ||
| 83293-0C010 |
UCK30,40..SD..USA W(TACHOMETER) |
1 | ||
| 83293-0C010 |
UCK30,40..SSD;UCK31,41..USA |
1 | ||
| Common parts | ||||
| 90069-02065 | ||||
| 90069-02066 | ||||
| 93568-55016 | ||||

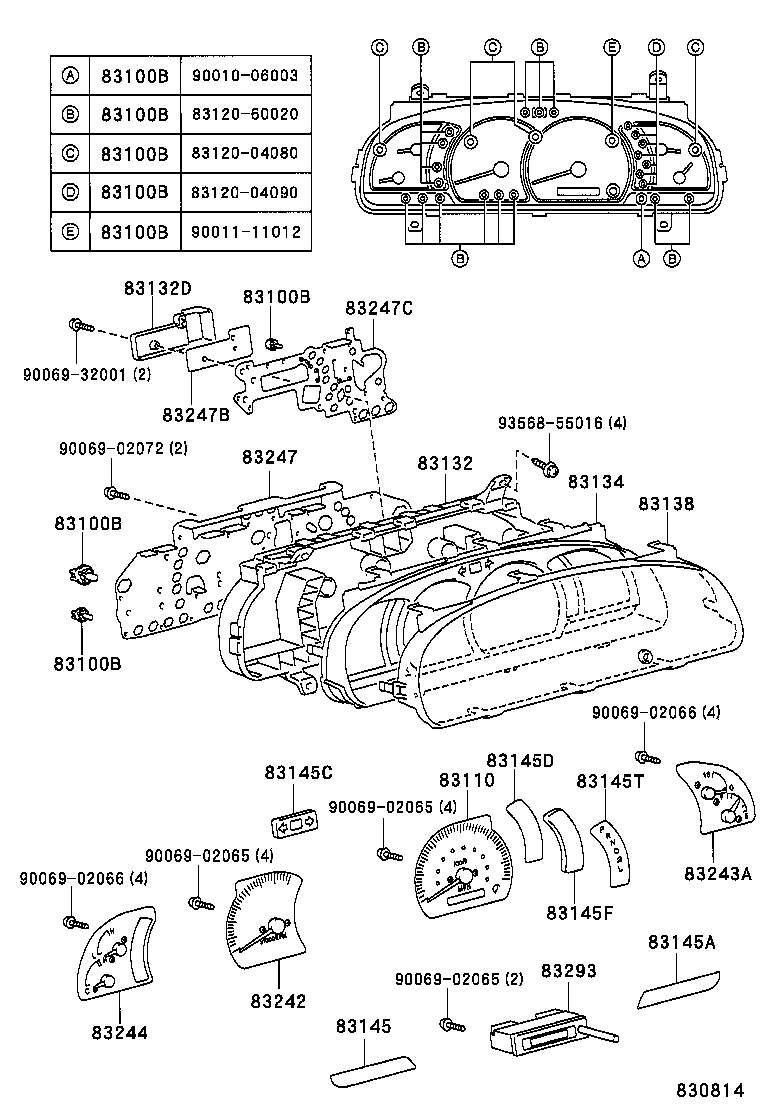

ILLUST NO. 1 OF 3(0208-0408)
W(TACHO METER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-04090 |
UCK30,40;VCK30,40..4HC..(LIMD,SR5) 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
UCK30,40;VCK30,40..LIMD,SR5 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK30,40,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK30,40,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK30,40,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90010-06003 |
UCK3#,4#,VCK30,40 14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-04080 |
UCK3#,4#,VCK30,40 14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-04090 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC 14V 1.12W,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90011-11012 |
VCK30..SR5;UCK3#,4#,VCK40 14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
UCK3#,4#,VCK30,40 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-0C090 |
UCK3#,4#,VCK30,40..(LIMD,SR5)..USA |
1 | ||
| 83220-0C020 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83841-0C210 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-0C210 |
UCK3#,4#,VCK30,40 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-0C040 |
UCK40..SD..SR5;UCK40..SD..LIMD..USA;UCK30,VCK30,40..ACB..SD..4HC W(TACHOMETER) |
1 | ||
| 83821-0C040 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..4HC..(LIMD,SR5) W(TACHOMETER) |
1 | ||
| 83821-0C040 |
UCK31,41;UCK30,40..SSD;UCK40..(DLX,LIMD)..CND |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-0C030 |
UCK31,41;UCK30,40..SSD;UCK40..(DLX,LIMD)..CND |
1 | ||
| 83852-0C030 |
UCK40..SD..SR5;UCK40..SD..LIMD..USA;UCK30,VCK30,40..ACB..SD W(TACHOMETER) |
1 | ||
| 83852-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-0C030 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA W(TACHOMETER) |
1 | ||
| 83831-0C210 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83832-0C210 |
UCK3#,4#,VCK30,40..(LIMD,SR5)..USA |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83834-0C030 |
UCK30,40;VCK30,40..LIMD,SR5 |
1 | ||
| 83834-0C030 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83835-0C040 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..4HC..(LIMD,SR5) W(TACHOMETER) |
1 | ||
| 83835-0C020 |
UCK3#,4#,VCK30,40..4HC |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83837-0C040 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..4HC..(LIMD,SR5) W(TACHOMETER) |
1 | ||
| 83837-0C040 |
UCK31,41;UCK30,40..SSD;UCK40..(DLX,LIMD)..CND |
1 | ||
| 83837-0C040 |
UCK40..SD..SR5;UCK40..SD..LIMD..USA;UCK30,VCK30,40..ACB..SD..4HC W(TACHOMETER) |
1 | ||
| 83145T - LENS, METER, NO.8 | ||||
| 83838-0C050 |
VCK30..4HC..SR5;UCK3#,4#,VCK40..4HC |
1 | ||
| 83838-0C050 |
UCK30,40;VCK30,40..LIMD,SR5 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-0C050 |
UCK30,40..USA |
1 | ||
| 83881-0C230 |
UCK3#,4#..USA |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-0C210 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83882-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-0C030 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5 W(TACHOMETER) |
1 | ||
| 83883-0C210 |
VCK30..SR5;UCK3#,4#,VCK40 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-0C230 |
UCK3#,4# |
1 | ||
| 83861-0C050 |
UCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA W(TACHOMETER) |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83862-0C050 |
UCK30,40 |
1 | ||
| 83863-0C230 |
UCK3#,4# |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83862-0C230 |
UCK3#,4# |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-0C010 |
UCK30,40..USA W(TACHOMETER) |
1 | ||
| 83293-0C010 |
UCK30,40..SD..USA W(TACHOMETER) |
1 | ||
| 83293-0C010 |
UCK30,40..SSD;UCK31,41..USA |
1 | ||
| Common parts | ||||
| 90069-02065 | ||||
| 90069-02066 | ||||
| 90069-02072 | ||||
| 90069-32001 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
