UCK30L-ASSLKA (2002)
Toyota Tundra

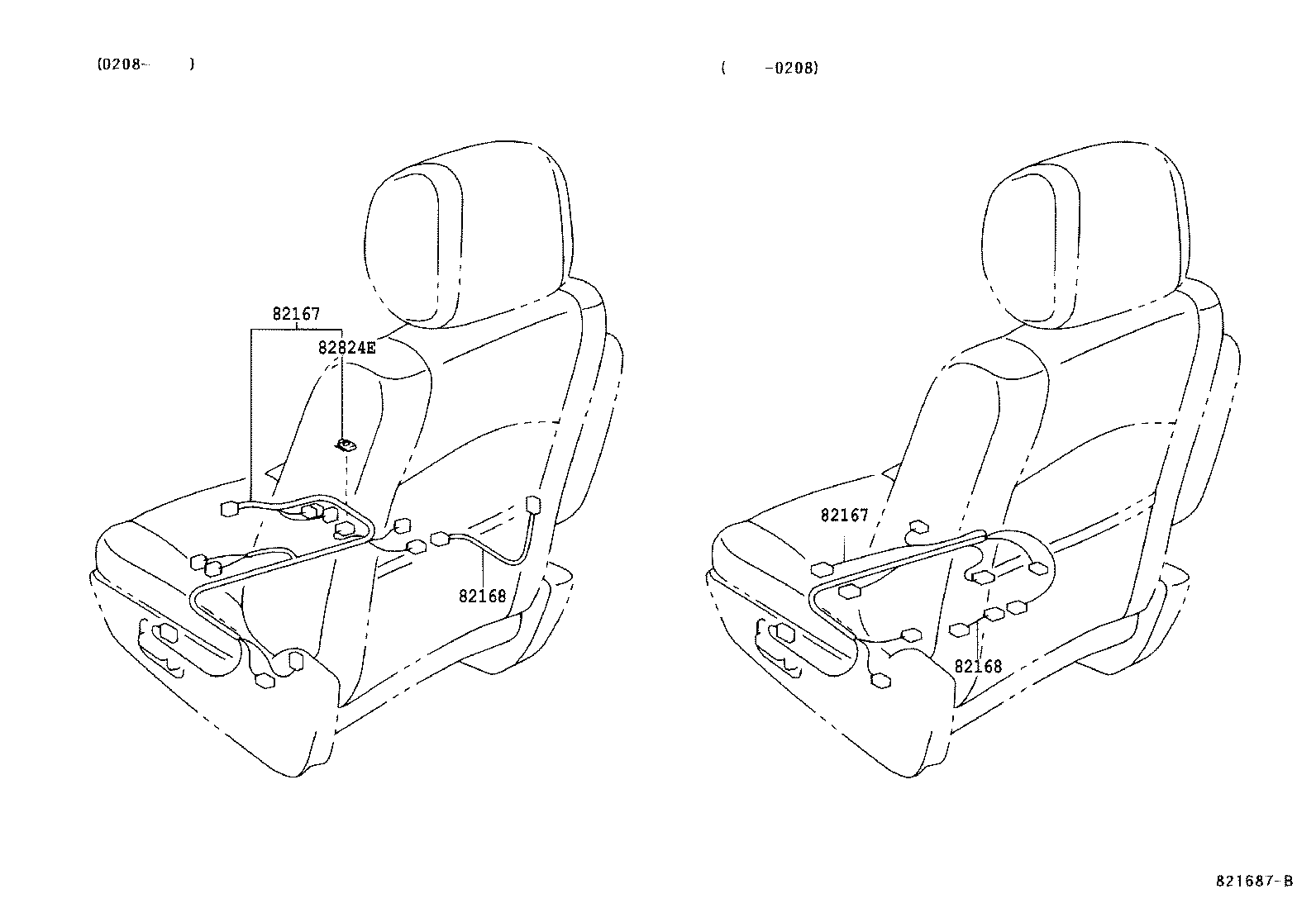

ILLUST NO. 5 OF 8(9902-0408)UCK30,40,VCK30,40
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-0C010 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD |
1 | ||
| 82167-0C060 |
UCK30,40..LIMD |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-0C010 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD |
1 | ||
| 82167-0C060 |
UCK30,40..LIMD |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-0C030 |
UCK30,40..LIMD |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-0C030 |
UCK30,40..LIMD |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
UCK30,40..LIMD |
2 | ||

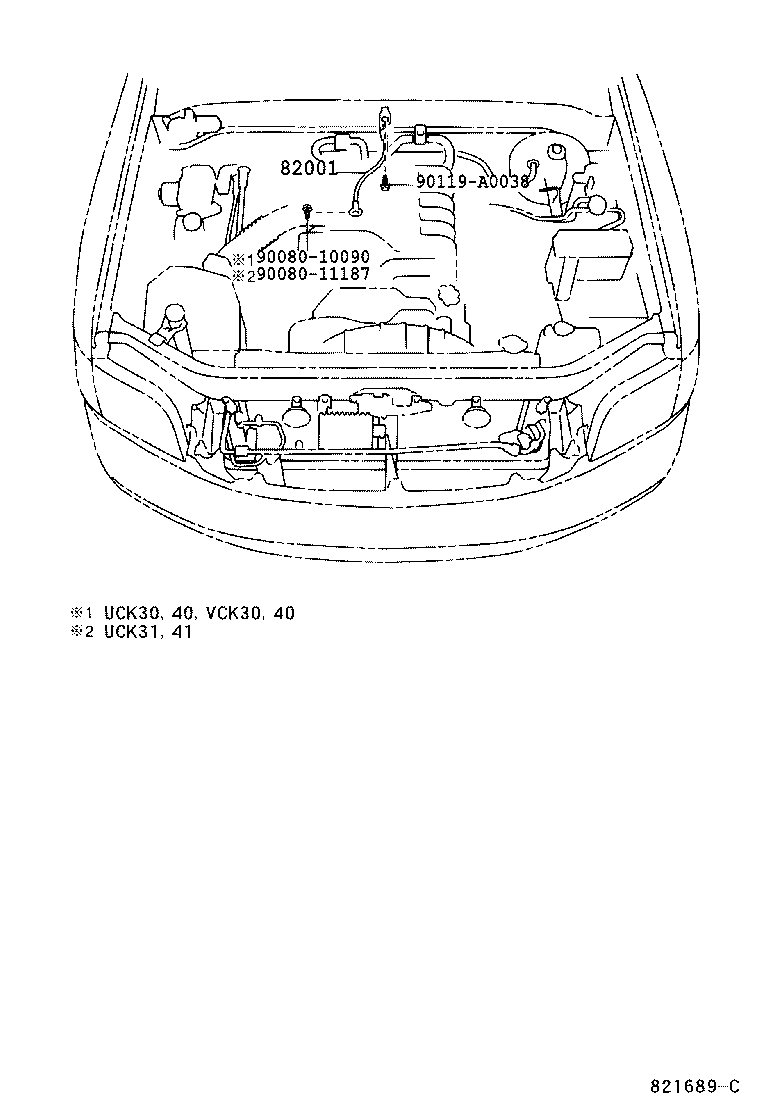

ILLUST NO. 7 OF 8(9902-0408)
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90080-82041 |
UCK30,40 |
1 | ||
| 90080-82041 |
UCK30,40 |
1 | ||
| Common parts | ||||
| 90080-10090 | ||||
| 90080-11187 | ||||
| 90119-A0038 | ||||

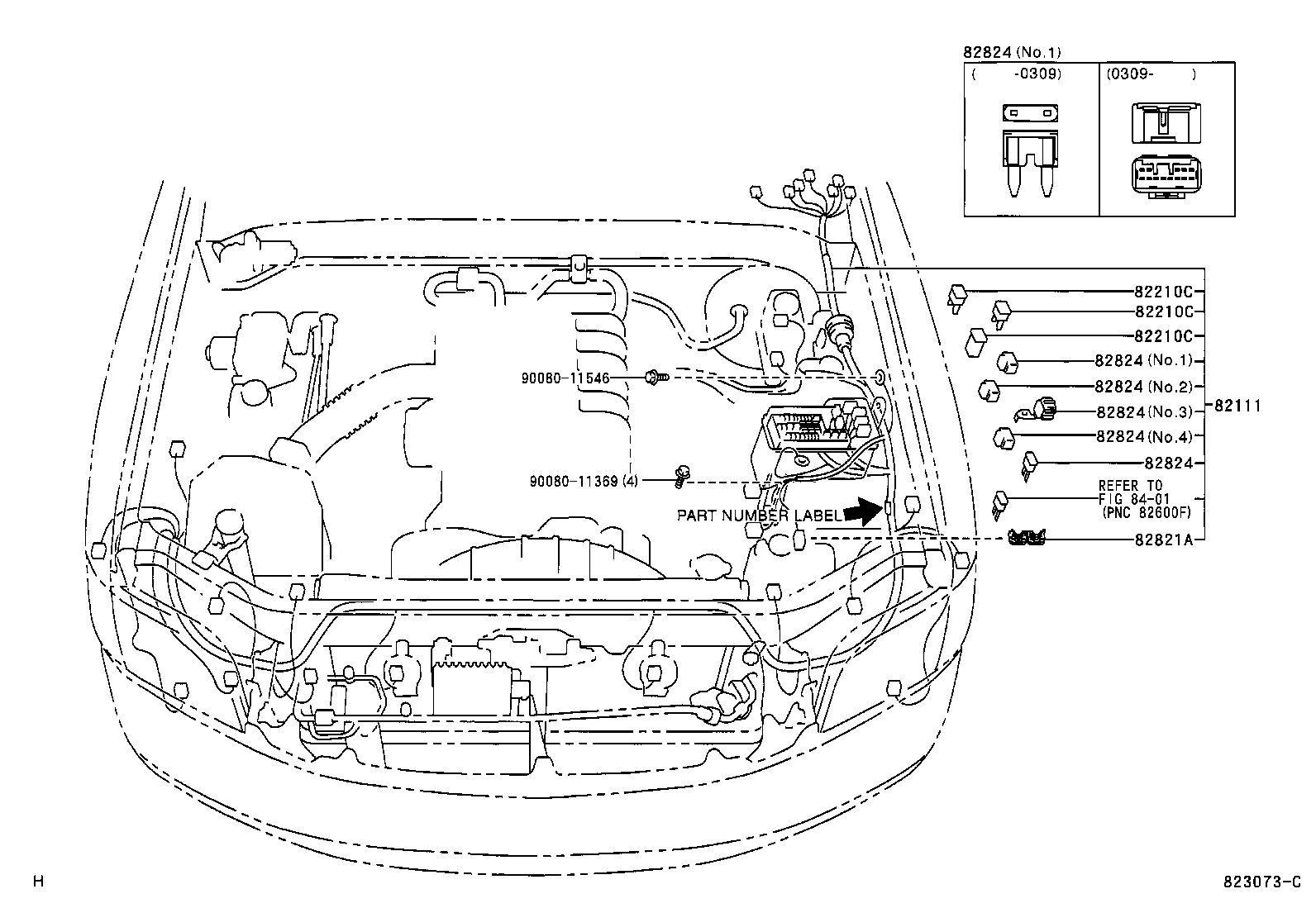

ILLUST NO. 1 OF 8(0208-0408)UCK30,40,VCK30,40
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0C070 |
UCK30,40 PART NUMBER LABEL=82111-0C070 |
1 | ||
| 82111-0C080 |
UCK30,40 PART NUMBER LABEL=82111-0C080 |
1 | ||
| 82111-0C030 |
UCK30,40..USA PART NUMBER LABEL=82111-0C030 |
1 | ||
| 82111-0C170 |
UCK30,40..USA PART NUMBER LABEL=82111-0C170 |
1 | ||
| 82111-0C200 |
UCK30,40..USA PART NUMBER LABEL=82111-0C200 |
1 | ||
| 82111-0C180 |
UCK30,40 PART NUMBER LABEL=82111-0C180 |
1 | ||
| 82111-0C470 |
UCK30,40..USA PART NUMBER LABEL=82111-0C470 |
1 | ||
| 82111-0C480 |
UCK30,40 PART NUMBER LABEL=82111-0C480 |
1 | ||
| 82111-0C460 |
UCK30,40 PART NUMBER LABEL=82111-0C460 |
1 | ||
| 82111-0C210 |
UCK30,40 PART NUMBER LABEL=82111-0C210 |
1 | ||
| 82111-0C191 |
UCK30,40 PART NUMBER LABEL=82111-0C191 |
1 | ||
| 82111-0C211 |
UCK30,40 PART NUMBER LABEL=82111-0C211 |
1 | ||
| 82111-0C201 |
UCK30,40..USA PART NUMBER LABEL=82111-0C201 |
1 | ||
| 82111-0C181 |
UCK30,40 PART NUMBER LABEL=82111-0C181 |
1 | ||
| 82111-0C171 |
UCK30,40..USA PART NUMBER LABEL=82111-0C171 |
1 | ||
| 82111-0C221 |
UCK30,40 PART NUMBER LABEL=82111-0C221 |
1 | ||
| 82111-0C450 |
UCK30,40..USA PART NUMBER LABEL=82111-0C450 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
3 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
UCK30,40,VCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08286 |
UCK3#,4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08246 |
UCK30,40 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
UCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
3 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
UCK30,40,VCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08286 |
UCK3#,4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08246 |
UCK30,40 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
UCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
3 | ||
| 90982-08280 |
UCK30,40,VCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
UCK30,40,VCK30,40 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
2 | ||
| 90982-08282 |
UCK30,40,VCK30,40 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
UCK30,40,VCK30,40 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08286 |
UCK3#,4# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08246 |
UCK30,40 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
UCK30,40 30A,TERM.:FEMALE,PNK |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-33150 |
UCK3#,4#,VCK30,40 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
UCK30,40,VCK30,40 NO.3 |
1 | ||
| 82824-20140 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-50110 |
UCK3#,4#,VCK30,40 NO.4 |
1 | ||
| 82824-20110 |
UCK30,40,VCK30,40 NO.1 & NO.2 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
UCK30,40,VCK30,40 NO.3 |
1 | ||
| 82824-20140 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-50110 |
UCK3#,4#,VCK30,40 NO.4 |
1 | ||
| 82824-20110 |
UCK30,40,VCK30,40 NO.1 & NO.2 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
UCK30,40,VCK30,40 NO.3 |
1 | ||
| 82824-20140 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-50110 |
UCK3#,4#,VCK30,40 NO.4 |
1 | ||
| 82824-20110 |
UCK30,40,VCK30,40 NO.1 & NO.2 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
UCK30,40,VCK30,40 NO.3 |
1 | ||
| 82824-20140 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-50110 |
UCK3#,4#,VCK30,40 NO.4 |
1 | ||
| 82824-20110 |
UCK30,40,VCK30,40 NO.1 & NO.2 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
UCK30,40,VCK30,40 NO.3 |
1 | ||
| 82824-20140 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-50110 |
UCK3#,4#,VCK30,40 NO.4 |
1 | ||
| 82824-20110 |
UCK30,40,VCK30,40 NO.1 & NO.2 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
UCK30,40,VCK30,40 NO.3 |
1 | ||
| 82824-20140 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-50110 |
UCK3#,4#,VCK30,40 NO.4 |
1 | ||
| 82824-20110 |
UCK30,40,VCK30,40 NO.1 & NO.2 |
2 | ||
| Common parts | ||||
| 90080-11369 | ||||
| 90080-11546 | ||||
| Linked diagrams | ||||
| 8401 | ||||

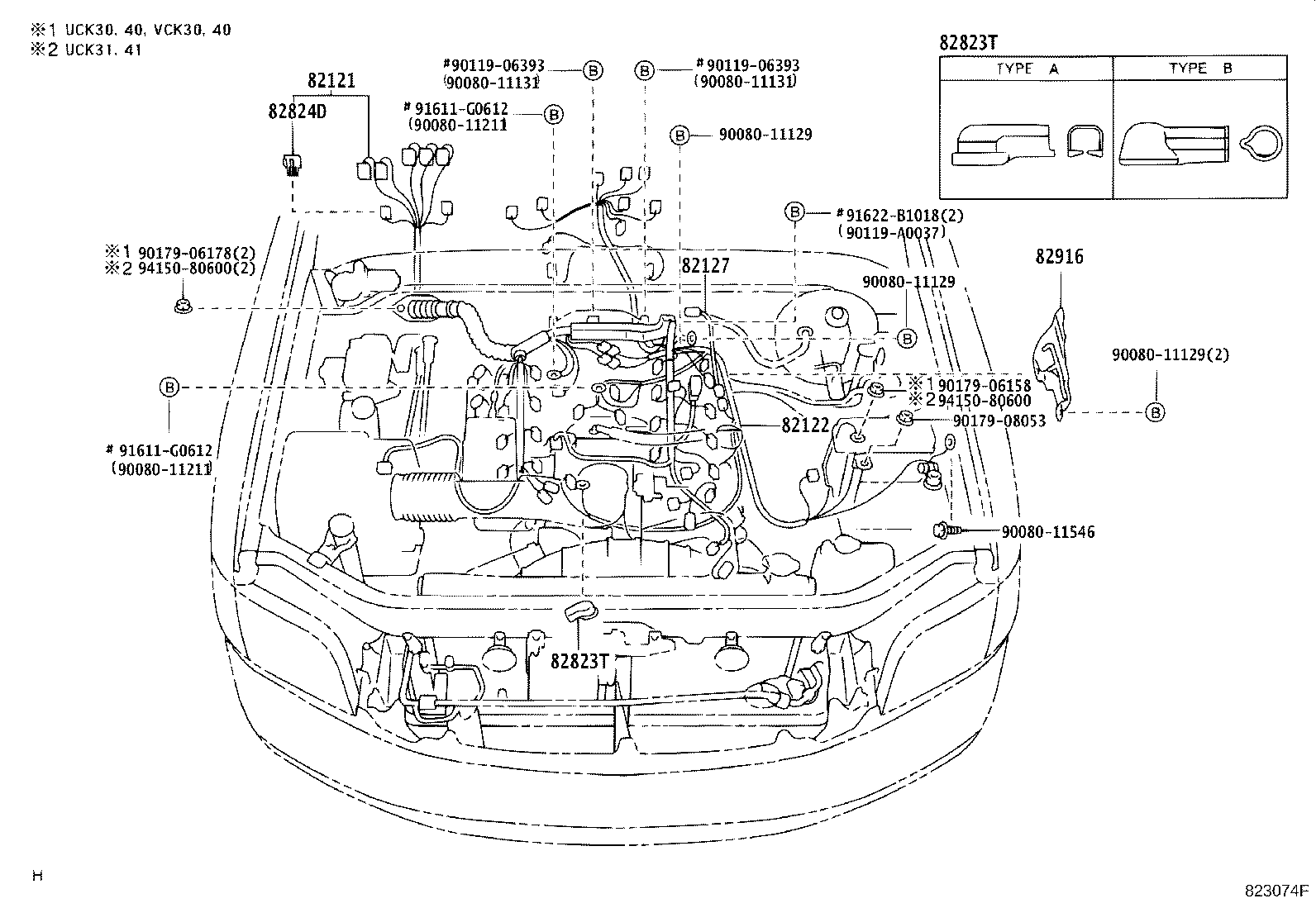

ILLUST NO. 2 OF 8(0208-0408)UCK3#,4#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-34400 |
UCK30 (J) |
1 | ||
| 82121-0C010 |
UCK30 (L) |
1 | ||
| 82121-0C011 |
UCK3# (L) |
1 | ||
| 82121-34401 |
UCK3# (J) |
1 | ||
| 82121-34320 |
UCK30 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-34070 |
UCK30 |
1 | ||
| 82122-34100 |
UCK30 (J) |
1 | ||
| 82122-34100 |
UCK30 |
1 | ||
| 82122-0C020 |
UCK30 (L) |
1 | ||
| 82122-0C021 |
UCK3# (L) |
1 | ||
| 82122-34101 |
UCK3# (J) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22080 |
UCK30,40 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82823-22050 |
UCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22080 |
UCK30,40 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82823-22050 |
UCK30,40 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
UCK30,40 |
2 | ||
| 82916 - INSULATOR, WIRING HARNESS HEAT, NO.2 | ||||
| 82916-34010 |
UCK30,40 (J) |
1 | ||
| 82916-34010 |
UCK3#,4# (J) |
1 | ||
| 82916-0C011 |
UCK3#,4# (L) |
1 | ||
| Common parts | ||||
| 90080-11129 | ||||
| 90080-11131 | ||||
| 90080-11211 | ||||
| 90080-11546 | ||||
| 90119-06393 | ||||
| 90119-A0037 | ||||
| 90179-06158 | ||||
| 90179-06178 | ||||
| 90179-08053 | ||||
| 91611-G0612 | ||||
| 91622-B1018 | ||||
| 94150-80600 | ||||

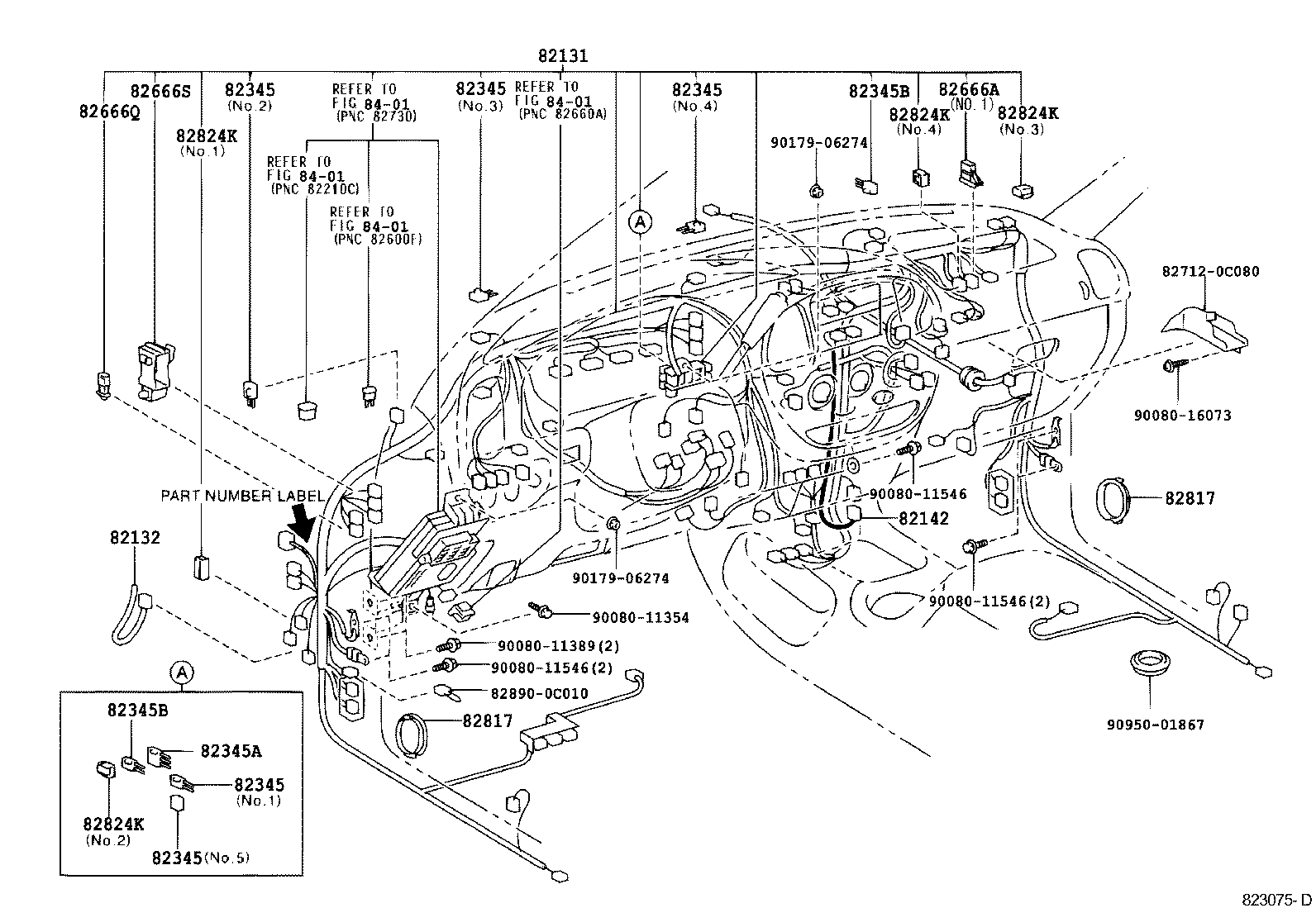

ILLUST NO. 3 OF 8(0208-0408)UCK30,40,VCK30,40
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-0C400 |
UCK30,40 PART NUMBER LABEL=82131-0C400 |
1 | ||
| 82131-0C390 |
UCK30,40 PART NUMBER LABEL=82131-0C390 |
1 | ||
| 82131-0C350 |
UCK30,40..USA PART NUMBER LABEL=82131-0C350 |
1 | ||
| 82131-0C700 |
UCK30,40..USA PART NUMBER LABEL=82131-0C700 |
1 | ||
| 82131-0C720 |
UCK30,40..LIMD,SR5 PART NUMBER LABEL=82131-0C720 |
1 | ||
| 82131-0C701 |
UCK30,40..USA PART NUMBER LABEL=82131-0C701 |
1 | ||
| 82131-0C721 |
UCK30,40..LIMD,SR5 PART NUMBER LABEL=82131-0C721 |
1 | ||
| 82131-0C741 |
UCK30,40..LIMD,SR5 PART NUMBER LABEL=82131-0C741 |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-0C010 |
UCK3#,4# |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
UCK30,40..LIMD,SR5 W(DAY TIME RUNNING LIGHT SYSTEM),NO.2 & NO.4 |
2 | ||
| 82345-12050 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12030 |
UCK30,40,VCK30,40..LIMD,SR5 NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
UCK30,40..LIMD,SR5 W(DAY TIME RUNNING LIGHT SYSTEM),NO.2 & NO.4 |
2 | ||
| 82345-12050 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12030 |
UCK30,40,VCK30,40..LIMD,SR5 NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
UCK30,40..LIMD,SR5 W(DAY TIME RUNNING LIGHT SYSTEM),NO.2 & NO.4 |
2 | ||
| 82345-12050 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12030 |
UCK30,40,VCK30,40..LIMD,SR5 NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
UCK30,40..LIMD,SR5 W(DAY TIME RUNNING LIGHT SYSTEM),NO.2 & NO.4 |
2 | ||
| 82345-12050 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12030 |
UCK30,40,VCK30,40..LIMD,SR5 NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
UCK30,40..LIMD,SR5 W(DAY TIME RUNNING LIGHT SYSTEM),NO.2 & NO.4 |
2 | ||
| 82345-12050 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA NO.2&NO.3&NO.4&NO.5 |
4 | ||
| 82345-12030 |
UCK30,40,VCK30,40..LIMD,SR5 NO.1 |
1 | ||
| 82345A - DIODE | ||||
| 82345-32020 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0C090 |
UCK3#,4#,VCK30,40 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-20270 |
UCK30,40,VCK30,40 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-0C220 |
UCK30,40,VCK30,40 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
UCK3#,4#,VCK30,40 |
2 | ||
| 82817-2D040 |
UCK30,40,VCK30,40 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
UCK3#,4#,VCK30,40 |
2 | ||
| 82817-2D040 |
UCK30,40,VCK30,40 |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-52080 |
UCK30,40,VCK30,40..LIMD,SR5 NO.2 |
1 | ||
| 82824-28180 |
UCK30,40,VCK30,40 NO.4 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-52080 |
UCK30,40,VCK30,40..LIMD,SR5 NO.2 |
1 | ||
| 82824-28180 |
UCK30,40,VCK30,40 NO.4 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-52080 |
UCK30,40,VCK30,40..LIMD,SR5 NO.2 |
1 | ||
| 82824-28180 |
UCK30,40,VCK30,40 NO.4 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
UCK30,40,VCK30,40 NO.1 |
1 | ||
| 82824-52080 |
UCK30,40,VCK30,40..LIMD,SR5 NO.2 |
1 | ||
| 82824-28180 |
UCK30,40,VCK30,40 NO.4 |
1 | ||
| Common parts | ||||
| 82712-0C080 | ||||
| 82890-0C010 | ||||
| 90080-11354 | ||||
| 90080-11389 | ||||
| 90080-11546 | ||||
| 90080-16073 | ||||
| 90179-06274 | ||||
| 90950-01867 | ||||
| Linked diagrams | ||||
| 8401 | ||||

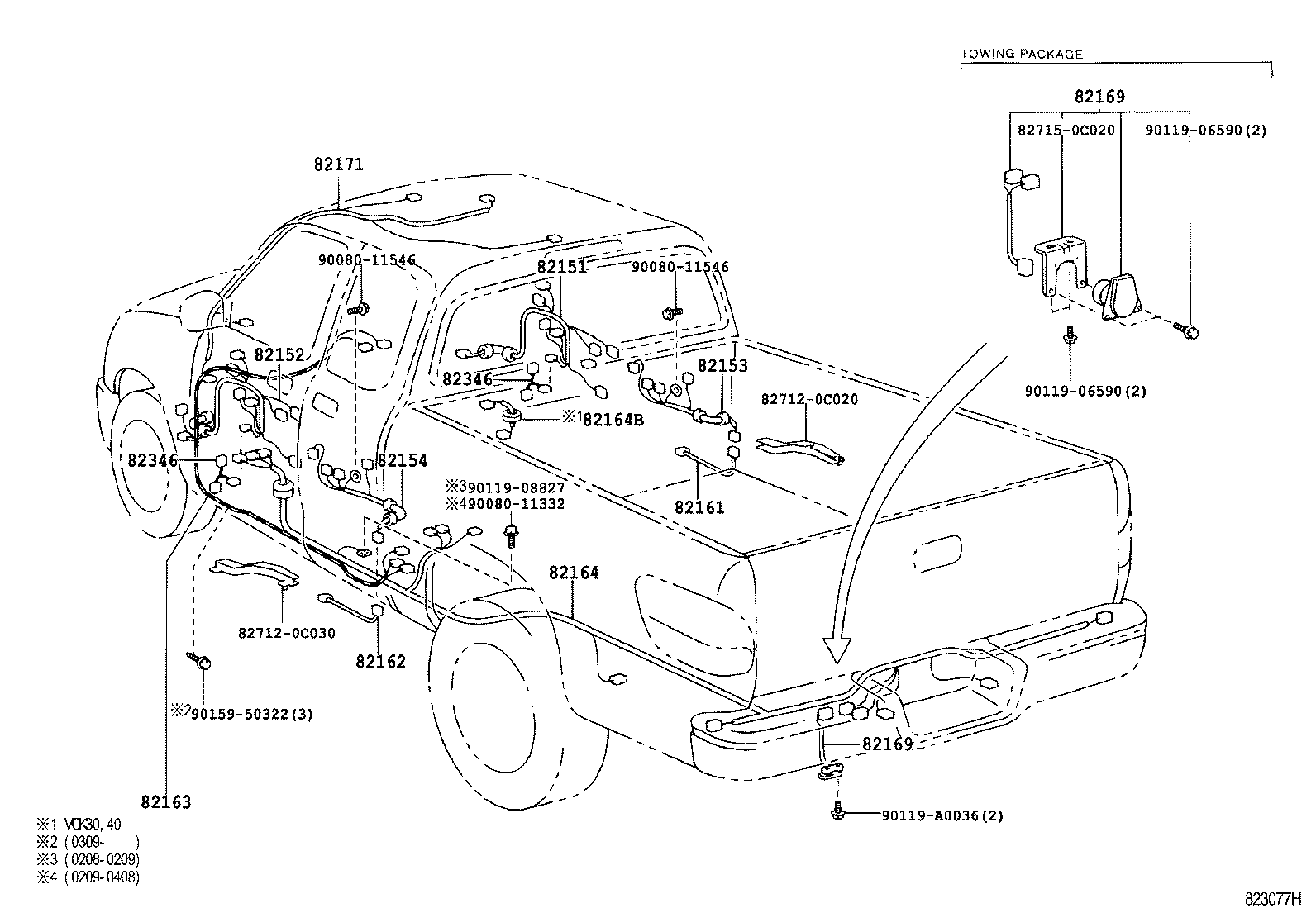

ILLUST NO. 4 OF 8(0208-0408)ACB
DOOR,FLOOR,ROOF,FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0C020 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82151-0C110 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA W(POWER WINDOW) |
1 | ||
| 82151-0C120 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW & HEATER MIRROR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82152-0C110 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW & HEATER MIRROR) |
1 | ||
| 82152-0C100 |
UCK30,40,VCK30,40..(LIMD,SR5)..USA W(POWER WINDOW) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0C011 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 82153-0C010 |
UCK30,40,VCK30,40..ACB |
2 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0C020 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-0C080 |
UCK30,40,VCK30,40..ACB..4HC..USA W(BACK PANEL POWER WINDOW) |
1 | ||
| 82161-0C010 |
UCK30,40,VCK30,40..ACB |
2 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0C060 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-0C011 |
UCK30,40,VCK30,40..ACB |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-0C050 |
UCK30,40,VCK30,40 |
1 | ||
| 82164-0C020 |
UCK30,40,VCK30,40 W(ABS) |
1 | ||
| 82164-0C060 |
UCK30,40 TOWING PACKAGE |
1 | ||
| 82164-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-0C020 |
UCK3#,4# TOWING PACKAGE |
1 | ||
| 82169-34020 |
UCK3#,4#,VCK30,40 |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-0C020 |
UCK3#,4# TOWING PACKAGE |
1 | ||
| 82169-34020 |
UCK3#,4#,VCK30,40 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0C160 |
UCK30,40..LIMD W(VANITY LAMP & MAP LAMP) |
1 | ||
| 82346 - WIRE, SPEAKER TWEETER | ||||
| 82346-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82346-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82346 - WIRE, SPEAKER TWEETER | ||||
| 82346-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| 82346-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(POWER WINDOW) |
1 | ||
| Common parts | ||||
| 82712-0C020 | ||||
| 82712-0C030 | ||||
| 82715-0C020 | ||||
| 90080-11332 | ||||
| 90080-11546 | ||||
| 90119-06590 | ||||
| 90119-08827 | ||||
| 90119-A0036 | ||||
| 90159-50322 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
