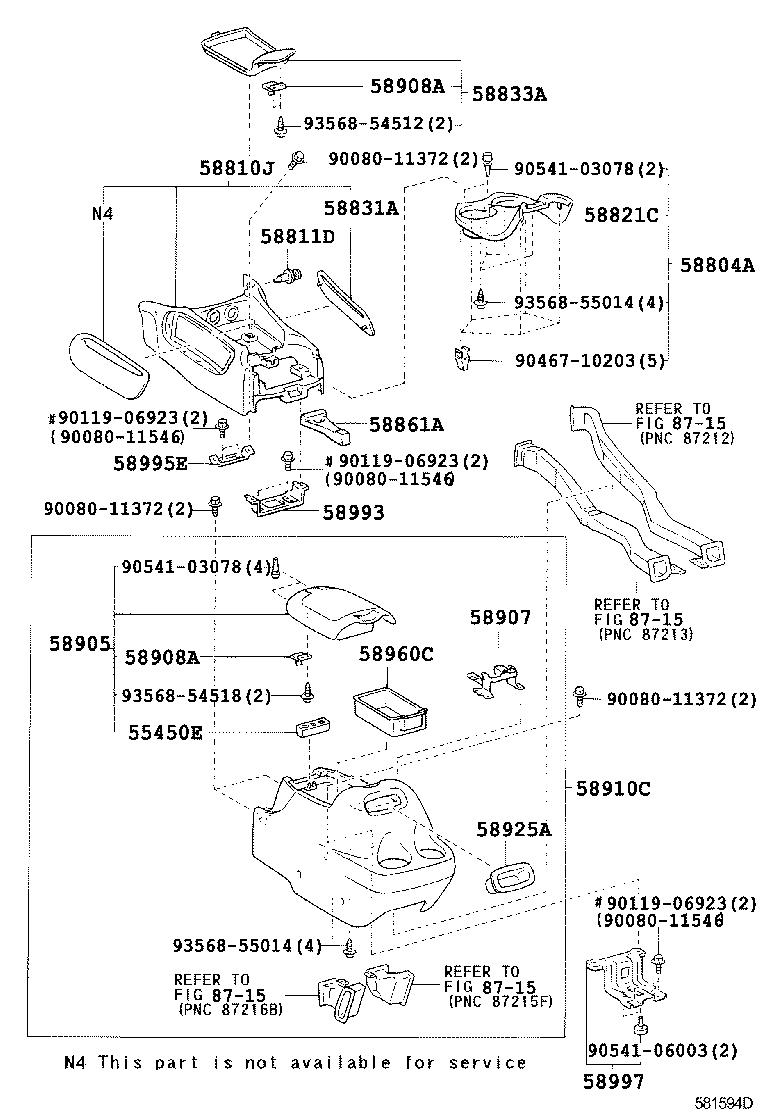

UCK30L-ASSLKA (2002)
Toyota Tundra
(0208-0408)UCK40..DLX ; (0208-0408)UCK30,40..ACB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55450E - BOX ASSY, COIN | ||||
| 55450-0C010 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 |
1 | ||
| 55450-0C010 |
UCK3#,4#,VCK30,40..ACB,DCB |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-0C040 |
UCK30,40..LIMD WOOD GRAIN |
1 | ||
| 58804-0C040 |
UCK30,40..LIMD;UCK30..SD..SR5..USA WOOD GRAIN |
1 | ||
| 58804-0C030 |
UCK30,40..ACB |
1 | ||
| 58804-0C040 |
UCK30,40..LIMD WOOD GRAIN |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-0C020B1 |
UCK30,40..ACB DK.GRAY,TRIM12 |
1 | ||
| 58810-0C020E0 |
UCK30,40..ACB OAK,TRIM4# |
1 | ||
| 58810-0C020B0 |
UCK30,40..ACB DK.CHARCOAL,TRIM11 |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 55346-34010B1 |
UCK30,40..ACB DK.GRAY,TRIM12 |
1 | ||
| 55346-34010B0 |
UCK30,40..ACB DK.CHARCOAL,TRIM11 |
1 | ||
| 55346-34010E0 |
UCK30,40..ACB OAK,TRIM4# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-0C050 |
UCK30,40..ACB |
1 | ||
| 58821-0C060 |
UCK30,40..LIMD WOOD GRAIN |
1 | ||
| 58821-0C060 |
UCK30,40..LIMD;UCK30..SD..SR5..USA WOOD GRAIN |
1 | ||
| 58821-0C060 |
UCK30,40..LIMD WOOD GRAIN |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-0C010E0 |
UCK30,40..ACB OAK,TRIM4# |
1 | ||
| 58831-0C010B1 |
UCK30,40..ACB DK.GRAY,TRIM12 |
1 | ||
| 58831-0C010B0 |
UCK30,40..ACB DK.CHARCOAL,TRIM11 |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-0C040B1 |
UCK30,40..ACB DK.GRAY,TRIM12 |
1 | ||
| 58833-0C040B0 |
UCK30,40..ACB DK.CHARCOAL,TRIM11 |
1 | ||
| 58833-0C040E0 |
UCK30,40..ACB OAK,TRIM4# |
1 | ||
| 58861A - SUPPORT, CONSOLE BOX, NO.1 | ||||
| 58861-0C010 |
UCK30,40..ACB |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-0C010E1 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 OAK,TRIM4# |
1 | ||
| 58905-0C010B2 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 58905-0C010B3 |
VCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 58905-0C020B0 |
UCK3#,4#..ACB,DCB DK.CHARCOAL,TRIM11 |
1 | ||
| 58905-0C020E0 |
UCK3#,4#..ACB,DCB OAK,TRIM4# |
1 | ||
| 58905-0C020B1 |
UCK3#,4#..ACB,DCB DK.GRAY,TRIM12 |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-0C010 |
UCK3#,4#..ACB,DCB |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33030 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD |
1 | ||
| 58908-32050 |
UCK3#,4#..ACB,DCB |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33030 |
UCK30,40..CND;UCK30,40,VCK30,40..LIMD |
1 | ||
| 58908-32050 |
UCK3#,4#..ACB,DCB |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-0C020B1 |
UCK30,40..ACB DK.GRAY,TRIM12 |
1 | ||
| 58910-0C020E0 |
UCK30,40..ACB OAK,TRIM4# |
1 | ||
| 58910-0C020B0 |
UCK30,40..ACB DK.CHARCOAL,TRIM11 |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 58925-0C010B0 |
UCK3#,4#..ACB,DCB DK.CHARCOAL,TRIM11 |
1 | ||
| 58925-0C010E0 |
UCK3#,4#..ACB,DCB OAK,TRIM4# |
1 | ||
| 58925-0C010B1 |
UCK3#,4#..ACB,DCB DK.GRAY,TRIM12 |
1 | ||
| 58960C - HOLDER ASSY, CASSETTE CASE | ||||
| 58960-0C010 |
UCK3#,4#..ACB,DCB |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-0C020 |
UCK30,40..ACB |
1 | ||
| 58995E - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-0C021 |
UCK30,40..ACB |
1 | ||
| 58995-0C020 |
UCK30,40..ACB |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-0C020 |
UCK30,40..ACB |
1 | ||
| Common parts | ||||
| 90080-11372 | ||||
| 90080-11546 | ||||
| 90119-06923 | ||||
| 90467-10203 | ||||
| 90541-03078 | ||||
| 90541-06003 | ||||
| 93568-54512 | ||||
| 93568-54518 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
