UCK30L-ASSLKA (2002)
Toyota Tundra

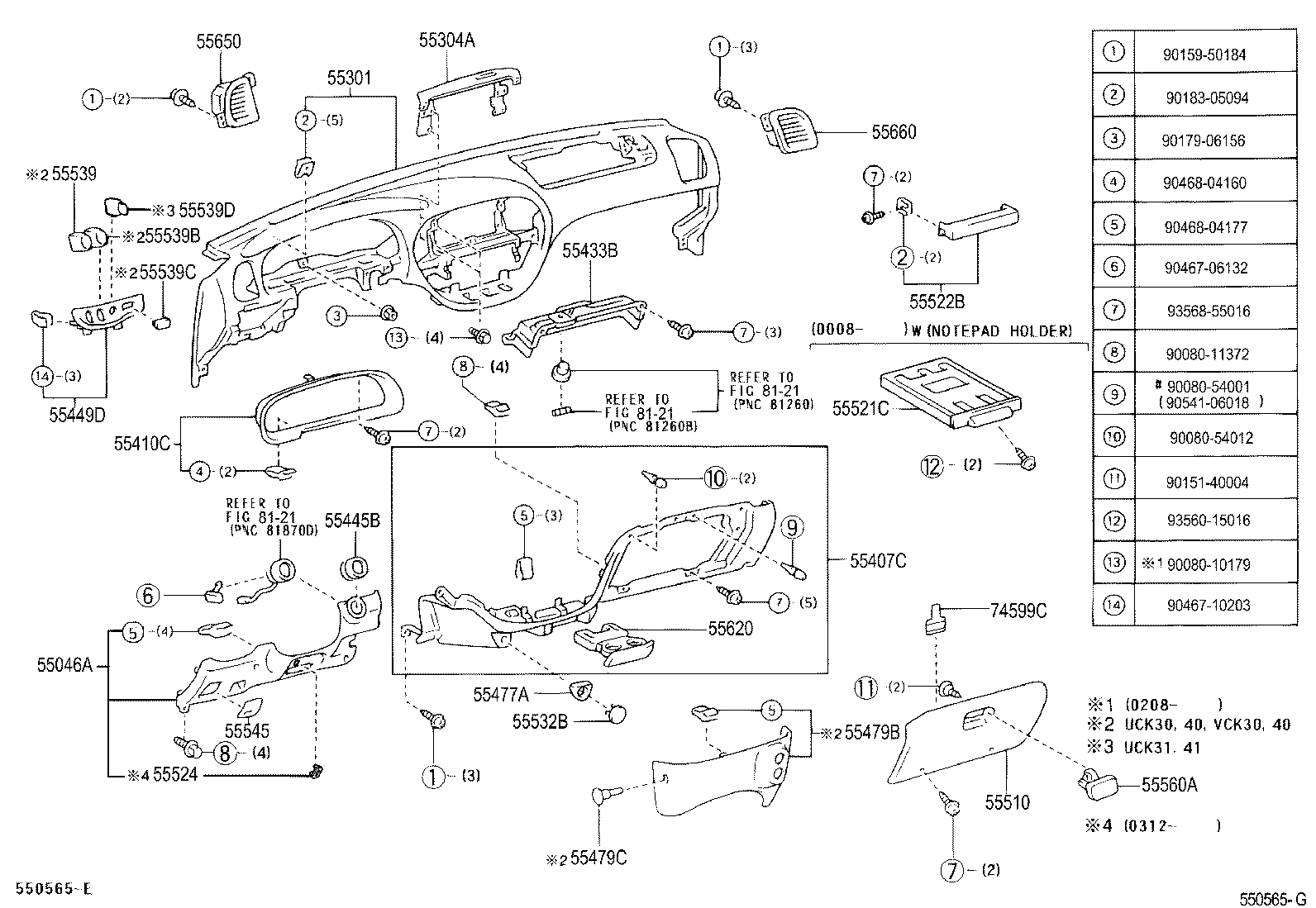

ILLUST NO. 2 OF 2(9902-0408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-0C020B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.MOON MIST,TRIM10 |
1 | ||
| 55046-0C020E0 |
UCK30,40,VCK30,40..4HC OAK,TRIM4# |
1 | ||
| 55046-0C020B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) DK.GRAY,TRIM12 |
1 | ||
| 55046-0C050B0 |
UCK3#,4#,VCK30,40..4HC..(LIMD,SR5) DK.CHARCOAL,TRIM11 |
1 | ||
| 55046-0C020B0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) DK.CHARCOAL,TRIM11 |
1 | ||
| 55046-0C020B0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) DK.CHARCOAL,TRIM11 |
1 | ||
| 55046-0C050B2 |
UCK3#,4#,VCK30,40..4HC..(LIMD,SR5) DK.GRAY,TRIM12 |
1 | ||
| 55046-0C020E0 |
UCK30,40,VCK30,40..4HC OAK,TRIM4# |
1 | ||
| 55046-0C050E0 |
UCK3#,4#,VCK30,40..4HC OAK,TRIM4# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-0C010B0 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55301-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 55301-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55301-0C010E0 |
UCK3#,4#,VCK30,40 OAK,TRIM4# |
1 | ||
| 55301-0C010B2 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
1 | ||
| 55301-0C010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55304A - STAY SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55304-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55304-0C020 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55407-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 55407-0C010B0 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55407-0C010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55407-0C010B2 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
1 | ||
| 55407-0C010E0 |
UCK3#,4#,VCK30,40 OAK,TRIM4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55410-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55433-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(FOOT LAMP) |
1 | ||
| 55445-0C010 |
UCK30,40,VCK30,40..LIMD,SR5 W(FOOT LAMP) |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 55449-0C010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55449-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55449-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
1 | ||
| 55449-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55449-0C010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55477-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 55479-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55479-0C010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55479-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55479-0C010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55479-0C010B2 |
UCK30,40,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07076B3 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
2 | ||
| 90467-07041B7 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
2 | ||
| 90467-07041B5 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
2 | ||
| 90467-07076B7 |
UCK30,40,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
2 | ||
| 90467-07076E3 |
UCK30,40,VCK30,40 OAK,TRIM4# |
2 | ||
| 90467-07041E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55550-0C010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55550-0C010B0 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55550-0C010E0 |
UCK3#,4#,VCK30,40 OAK,TRIM4# |
1 | ||
| 55550-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 55550-0C010B2 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-30030 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0C010 |
VCK40..4HC;UCK30,40,VCK30 |
1 | ||
| 55539-0C010 |
VCK40..4HC;UCK30,40,VCK30 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-06010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55539-06010B2 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55539-06010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55539-06010B4 |
UCK30,40,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
1 | ||
| 55539-06010B2 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55539-06010B3 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-0C010B0 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55545-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55545-0C010B2 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
1 | ||
| 55545-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 55545-0C010E0 |
UCK3#,4#,VCK30,40 OAK,TRIM4# |
1 | ||
| 55545-0C010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-34030B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 55560-34030B0 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55560-34030B2 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
1 | ||
| 55560-34030E0 |
UCK3#,4#,VCK30,40 OAK,TRIM4# |
1 | ||
| 55560-34030B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55560-34030E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-0C010B1 |
UCK30,40,VCK30,40..LIMD,SR5 MD.MOON MIST,TRIM10 |
1 | ||
| 55620-0C010B0 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55620-0C010E0 |
UCK30,40,VCK30,40 OAK,TRIM4# |
1 | ||
| 55620-0C010B2 |
UCK3#,4#,VCK30,40..LIMD,SR5 DK.GRAY,TRIM12 |
1 | ||
| 55620-0C010B0 |
UCK30,40,VCK30,40..LIMD,SR5 DK.CHARCOAL,TRIM11 |
1 | ||
| 55620-0C010E0 |
UCK3#,4#,VCK30,40 OAK,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 55650-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 55660-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 74599C - LABEL, DRIVER & PASSENGER AIR BAG INFORMATION | ||||
| 74599-06010 |
UCK3#,4#,VCK30,40..USA |
1 | ||
| 74599-06010 |
UCK30,40,VCK30,40..USA |
1 | ||
| Common parts | ||||
| 90080-10179 | ||||
| 90080-11372 | ||||
| 90080-54001 | ||||
| 90080-54012 | ||||
| 90151-40004 | ||||
| 90159-50184 | ||||
| 90179-06156 | ||||
| 90183-05094 | ||||
| 90467-06132 | ||||
| 90467-10203 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 90541-06018 | ||||
| 93560-15016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8121 | ||||
