UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

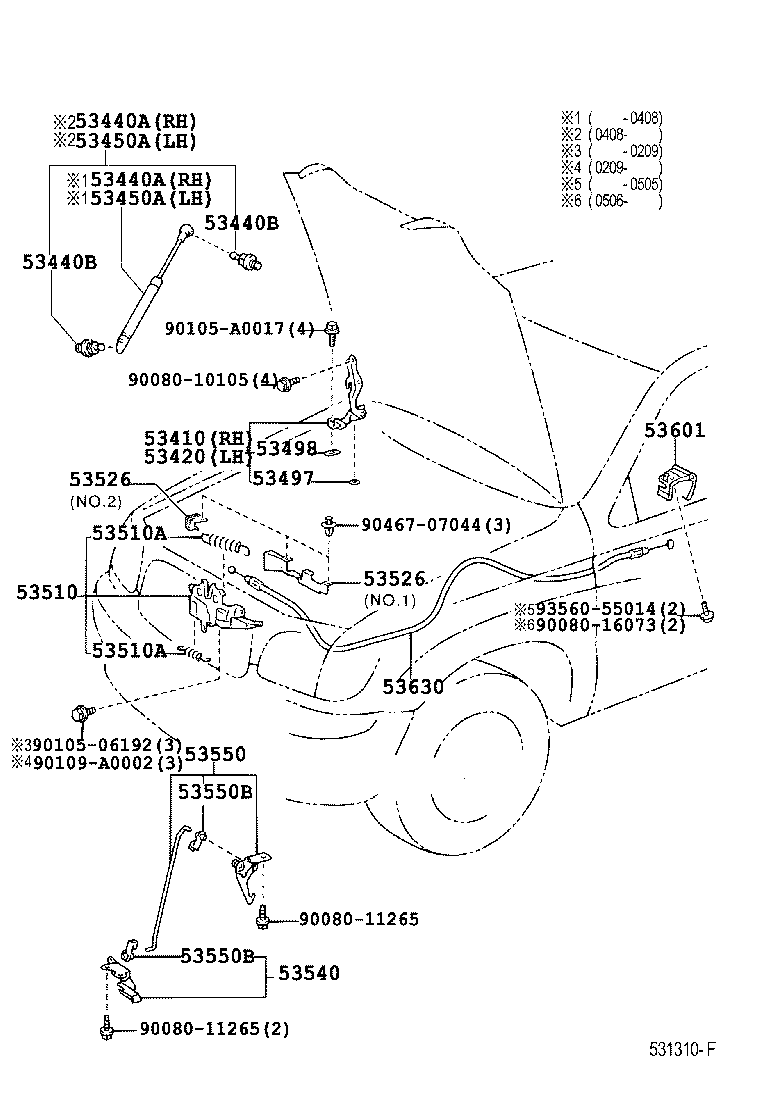

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440A 53440B 53440B 53450A 53450A 53497 53498 53510 53510A 53510A 53526 53526 53540 53550 53550B 53550B 53601 53630 9008010105 9008011265 9008011265 9008016073 9010506192 90105A0017 90109A0002 9046707044 9356055014
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0C010

UCK30,40,VCK30,40

 1
53410-0C010

UCK3#,4#,VCK30,40

 1
53420 - HINGE ASSY, HOOD, LH
53420-0C010

UCK30,40,VCK30,40

 1
53420-0C010

UCK3#,4#,VCK30,40

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0C011

UCK30,40,VCK30,40

 1
53440-0C010

UCK30,40,VCK30,40

 1
53440-0C012

UCK3#,4#,VCK30,40

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0C011

UCK30,40,VCK30,40

 1
53440-0C010

UCK30,40,VCK30,40

 1
53440-0C012

UCK3#,4#,VCK30,40

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-34010

UCK30,40,VCK30,40

 4
68961-34010

UCK3#,4#,VCK30,40

 4
53440B - BOLT, HOOD SUPPORT, NO.1
68961-34010

UCK30,40,VCK30,40

 4
68961-34010

UCK3#,4#,VCK30,40

 4
53450A - SUPPORT ASSY, HOOD, LH
53450-0C010

UCK30,40,VCK30,40

 1
53450-0C011

UCK30,40,VCK30,40

 1
53450-0C012

UCK3#,4#,VCK30,40

 1
53450A - SUPPORT ASSY, HOOD, LH
53450-0C010

UCK30,40,VCK30,40

 1
53450-0C011

UCK30,40,VCK30,40

 1
53450-0C012

UCK3#,4#,VCK30,40

 1
53497 - PAD, HOOD HINGE, NO.1
53497-0C010

UCK3#,4#,VCK30,40

 2
53497-0C010

UCK30,40,VCK30,40

 2
53498 - PAD, HOOD HINGE, NO.2
53497-0C010

UCK30,40,VCK30,40

 2
53497-0C010

UCK3#,4#,VCK30,40

 2
53510 - LOCK ASSY, HOOD
53510-0C011

UCK31,41..SR5;UCK30,40,VCK30,40

 1
53510-0C010

UCK30,40,VCK30,40

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50175

UCK3#,4#,VCK30,40

WD=2.0,CW=15

 1
90080-50100

UCK30,40,VCK30,40

WD=0.9,CW=21

 1
90080-50175

UCK30,40,VCK30,40

WD=2.0,CW=15

 1
90080-50100

UCK3#,4#,VCK30,40

WD=0.9,CW=21

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50175

UCK3#,4#,VCK30,40

WD=2.0,CW=15

 1
90080-50100

UCK30,40,VCK30,40

WD=0.9,CW=21

 1
90080-50175

UCK30,40,VCK30,40

WD=2.0,CW=15

 1
90080-50100

UCK3#,4#,VCK30,40

WD=0.9,CW=21

 1
53526 - PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2
53526-0C010

UCK3#,4#,VCK30,40

NO.1

 1
53526-0C020

UCK3#,4#,VCK30,40

NO.2

 1
53526-0C010

UCK30,40,VCK30,40

 1
53526 - PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2
53526-0C010

UCK3#,4#,VCK30,40

NO.1

 1
53526-0C020

UCK3#,4#,VCK30,40

NO.2

 1
53526-0C010

UCK30,40,VCK30,40

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-0C010

UCK30,40,VCK30,40

 1
53540-0C020

UCK3#,4#,VCK30,40

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-0C011

UCK3#,4#,VCK30,40

 1
53550-0C010

UCK30,40,VCK30,40

 1
53550B - SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK
69759-0C010

UCK30,40,VCK30,40

 1
69759-0C010

UCK30,40,VCK30,40

 1
53550B - SNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK
69759-0C010

UCK30,40,VCK30,40

 1
69759-0C010

UCK30,40,VCK30,40

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-01020E3

UCK3#,4#,VCK30,40

OAK,TRIM4#

 1
53601-01020B4

UCK30,40,VCK30,40..LIMD,SR5

DK.CHARCOAL,TRIM11

 1
53601-01020B3

UCK30,40,VCK30,40..LIMD,SR5

MD.MOON MIST,TRIM10

 1
53601-01020B4

UCK3#,4#,VCK30,40..LIMD,SR5

DK.CHARCOAL,TRIM11

 1
53601-01020E3

UCK30,40,VCK30,40

OAK,TRIM4#

 1
53601-01020B5

UCK3#,4#,VCK30,40..LIMD,SR5

DK.GRAY,TRIM12

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0C010

UCK30,40,VCK30,40

 1
53630-0C010

UCK3#,4#,VCK30,40

 1
Common parts
90080-10105
90080-11265
90080-16073
90105-06192
90105-A0017
90109-A0002
90467-07044
93560-55014
