UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )GSK30,UCK30,40,VCK30,40

Click highlighted areas on diagram

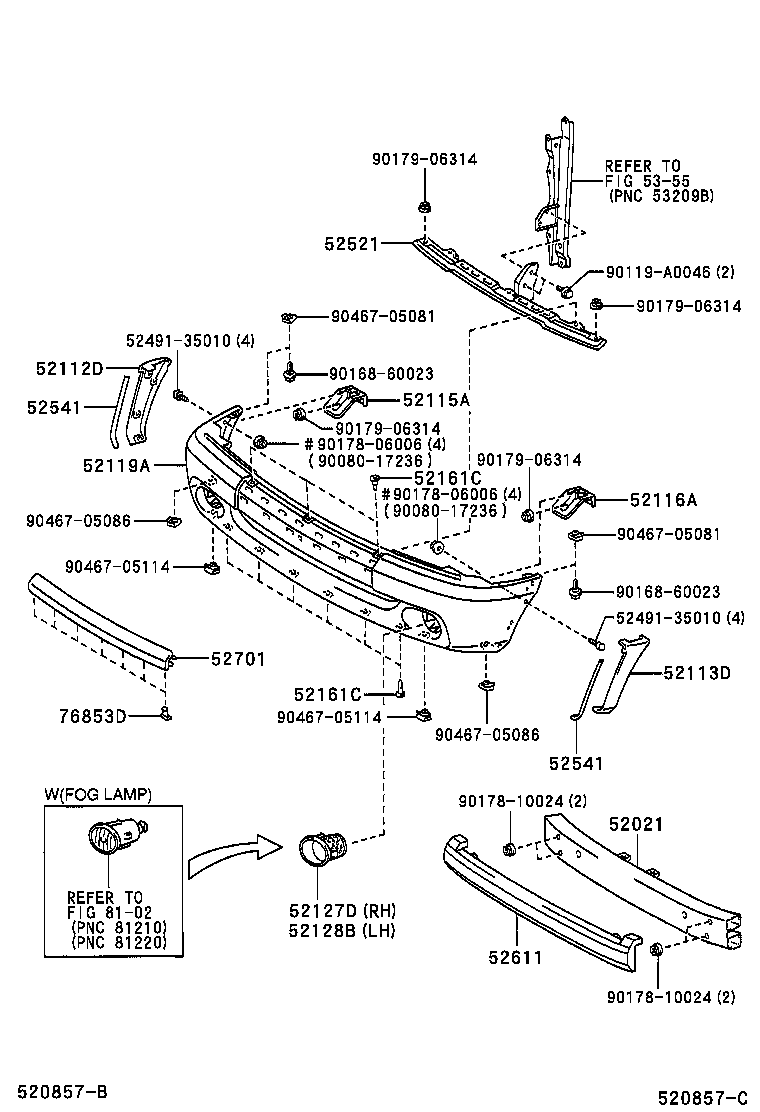

RESIN BUMPER

diagram 52021 52112D 52113D 52115A 52116A 52119A 52127D 52128B 52161C 52161C 5249135010 5249135010 52521 52541 52541 52611 52701 5355 76853D 8102 9008017236 9008017236 90119A0046 9016860023 9016860023 9017806006 9017806006 9017810024 9017810024 9017906314 9017906314 9017906314 9017906314 9046705081 9046705081 9046705086 9046705086 9046705114 9046705114
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0C012

UCK3#,4#,VCK30,40

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-0C901

UCK30,40,VCK30,40..ACB

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-0C901

UCK30,40,VCK30,40..ACB

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0C020

UCK30,40,VCK30,40

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-0C020

UCK30,40,VCK30,40

 1
52119A - COVER, FRONT BUMPER
52119-0C010

VCK30,40;UCK30,40..USA

STEEL BUMPER

 1
52119-0C904

UCK30,40..LIMD

RESIN BUMPER & W(FENDER WHEEL OPENING MOULDING)

 1
52161C - PIECE, FRONT BUMPER
52161-02020

UCK3#,4#,VCK30,40

(L)

 9
52161-16010

UCK3#,4#,VCK30,40

(J)

 9
52161C - PIECE, FRONT BUMPER
52161-02020

UCK3#,4#,VCK30,40

(L)

 9
52161-16010

UCK3#,4#,VCK30,40

(J)

 9
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52506-0C010

UCK30,40,VCK30,40

 1
52541 - PROTECTOR, FRONT BUMPER
52541-34020B2

UCK30,40..LIMD

GRAY,056

 2
52541-34020C1

UCK30,40..LIMD

BLACK,1E3 ,202 ,3Q3 ,6Q7

 2
52541 - PROTECTOR, FRONT BUMPER
52541-34020B2

UCK30,40..LIMD

GRAY,056

 2
52541-34020C1

UCK30,40..LIMD

BLACK,1E3 ,202 ,3Q3 ,6Q7

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0C020

UCK30,40,VCK30,40

 1
Common parts
52491-35010
90080-17236
90119-A0046
90168-60023
90178-06006
90178-10024
90179-06314
90467-05081
90467-05086
90467-05114
Linked diagrams
5355
8102
