UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

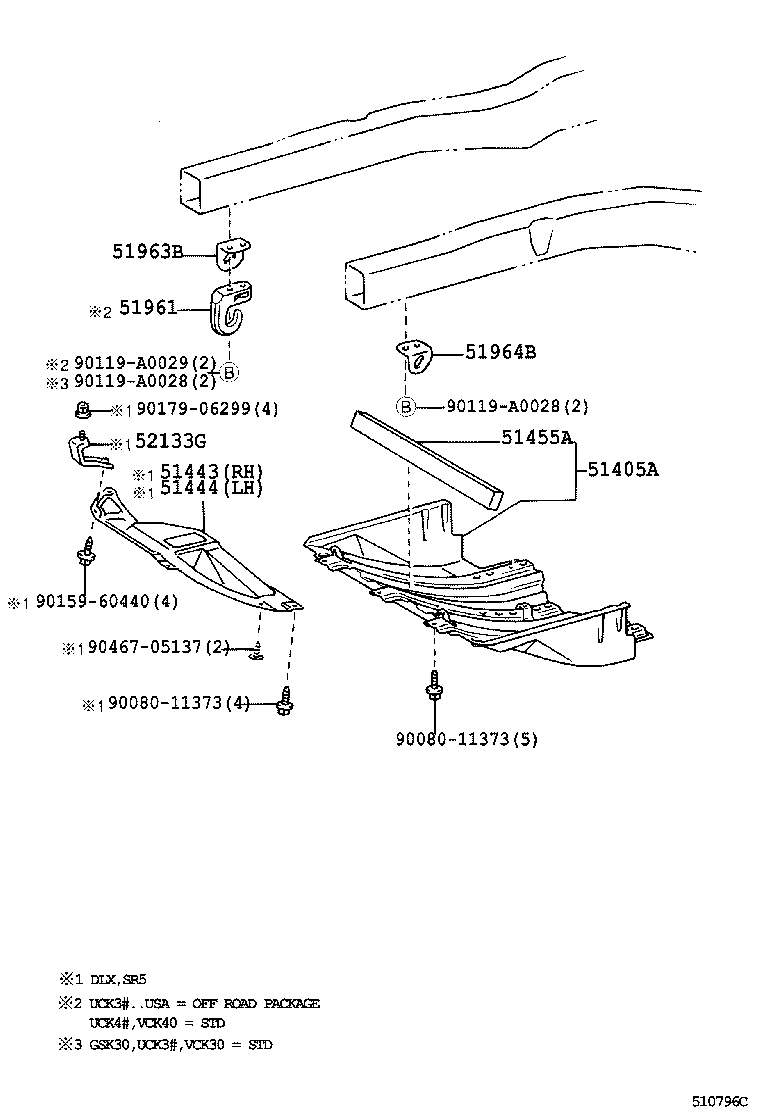

Click highlighted areas on diagram

diagram 51405A 51443 51444 51455A 51961 51963B 51964B 52133G 9008011373 9008011373 90119A0028 90119A0028 90119A0029 9015960440 9017906299 9046705137
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-34010

UCK30..SD..USA

OFF ROAD PACKAGE

 1
51405-34010

UCK30..CND;UCK30..SSD;UCK31,4#,VCK30,40

 1
51405-34020

UCK30,VCK30

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-34010

UCK30,40,VCK30,40

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-34010

UCK30,40,VCK30,40

 1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-34010

UCK3#,4#,VCK30,40

 1
51455-34010

UCK30,40,VCK30,40

 1
51961 - HOOK, NO.1
51961-35051

UCK4#;UCK3#,VCK40..USA

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-0C010

UCK3#,4#,VCK30,40

 1
51963-35070

UCK30,40,VCK30,40

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-0C010

UCK3#,4#,VCK30,40

 1
51964-35050

UCK30,40,VCK30,40

 1
52133G - BRACKET, FRONT BUMPER, RH
52133-34010

UCK30,40,VCK30,40

 4
Common parts
90080-11373
90119-A0028
90119-A0029
90159-60440
90179-06299
90467-05137
