UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

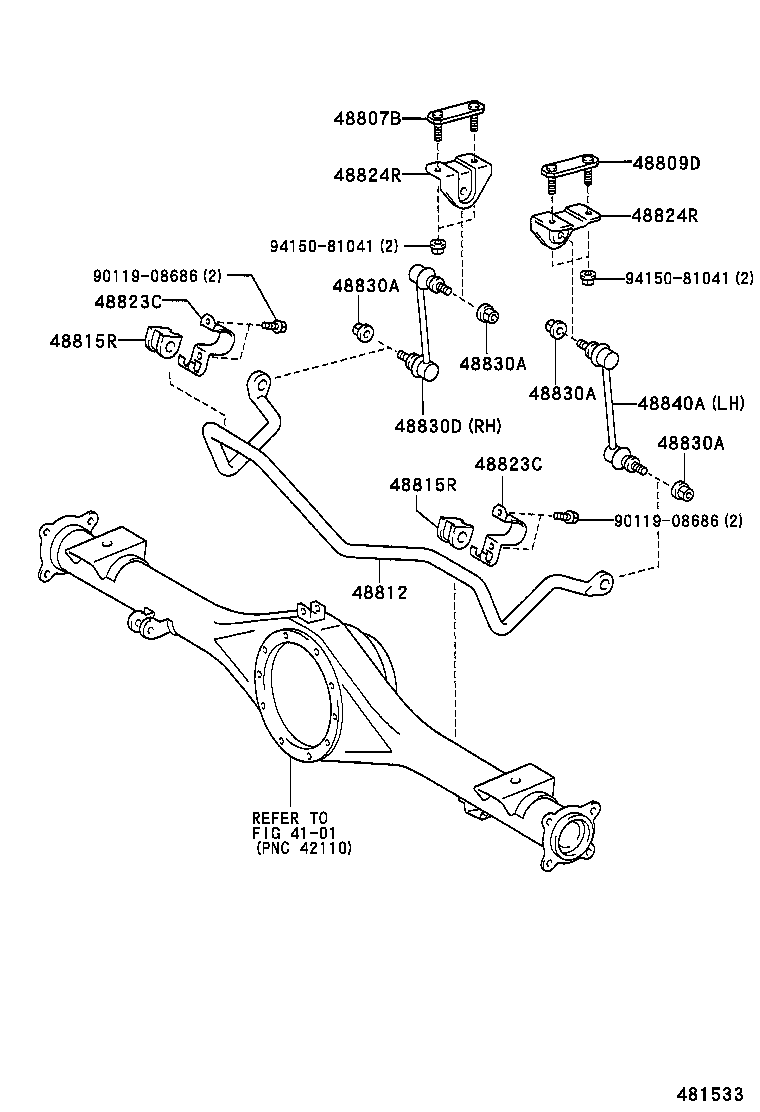

ILLUST NO. 2 OF 3(0208- )UCK30..ACB..USA

Click highlighted areas on diagram

diagram 4101 48807B 48809D 48812 48815R 48815R 48823C 48823C 48824R 48824R 48830A 48830A 48830A 48830A 48830D 48840A 9011908686 9011908686 9415081041 9415081041
Part # Description Qty Price
48807B - BRACKET SUB-ASSY, STABILIZER, RH
48809-AF010

UCK30..USA

 1
48809D - BRACKET SUB-ASSY, STABILIZER, LH
48809-AF010

UCK30..USA

 1
48812 - BAR, STABILIZER, REAR
48812-AF030

UCK30..USA

 1
48815R - BUSH, STABILIZER(FOR REAR)
48818-AF040

UCK30..USA

 2
48815R - BUSH, STABILIZER(FOR REAR)
48818-AF040

UCK30..USA

 2
48823C - COVER, REAR STABILIZER BRACKET
48823-35060

UCK30..USA

 2
48823C - COVER, REAR STABILIZER BRACKET
48823-35060

UCK30..USA

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48824-AF010

UCK30..USA

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48824-AF010

UCK30..USA

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-12144

UCK30..USA

 4
48830A - NUT(FOR REAR STABILIZER LINK)
90179-12144

UCK30..USA

 4
48830A - NUT(FOR REAR STABILIZER LINK)
90179-12144

UCK30..USA

 4
48830A - NUT(FOR REAR STABILIZER LINK)
90179-12144

UCK30..USA

 4
48830D - LINK ASSY, REAR STABILIZER, RH
48830-AF010

UCK30..USA

 1
48840A - LINK ASSY, REAR STABILIZER, LH
48830-AF010

UCK30..USA

 1
Common parts
90119-08686
94150-81041
Linked diagrams
4101
