UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)UCK30,40,VCK30,40

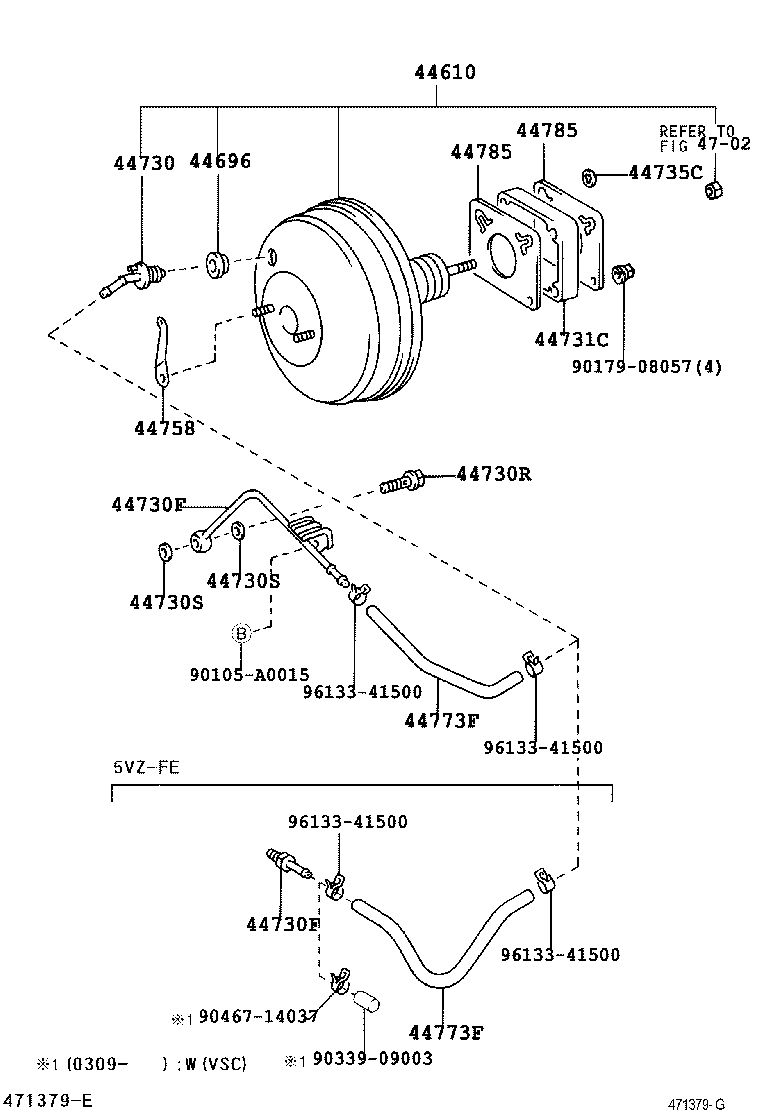

Click highlighted areas on diagram

diagram 44610 44696 44730 44730F 44730F 44730R 44730S 44730S 44731C 44735C 44758 44773F 44773F 44785 44785 4702 90105A0015 9017908057 9033909003 9046714037 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0C010

UCK30,40,VCK30,40

 1
44610-0C011

UCK30,40,VCK30,40

 1
44696 - GROMMET, CHECK VALVE
90480-24015

UCK30,40,VCK30,40

 1
90480-24015

UCK30,40,VCK30,40

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30050

UCK30,40,VCK30,40

 1
44730-30050

UCK30,40,VCK30,40

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90904-05006

UCK3#,4#

 1
90904-05006

UCK30,40

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90904-05006

UCK3#,4#

 1
90904-05006

UCK30,40

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

UCK30,40

 1
90401-12012

UCK3#,4#

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

UCK3#,4#

 2
90430-12005

UCK30,40

 2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

UCK3#,4#

 2
90430-12005

UCK30,40

 2
44731C - BRACKET, BRAKE BOOSTER
44731-35110

UCK30,40,VCK30,40

 1
44731-35110

UCK3#,4#,VCK30,40

 1
44735C - RING, BOOSTER BRACKET STOPPER
44735-30010

UCK30,40,VCK30,40

 2
44735-30010

UCK3#,4#,VCK30,40

 2
44758 - BRACKET, VACUUM CHECK VALVE
44758-35120

UCK30,40,VCK30,40

 1
44758-35120

UCK30,40,VCK30,40

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0C040

UCK3#,4#

 1
44773-0C020

UCK30,40

 1
44773-0C020

UCK30,40

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-0C040

UCK3#,4#

 1
44773-0C020

UCK30,40

 1
44773-0C020

UCK30,40

 1
44785 - GASKET, BRAKE BOOSTER
44785-34010

UCK30,40,VCK30,40

 2
44785-34010

UCK3#,4#,VCK30,40

 2
44785 - GASKET, BRAKE BOOSTER
44785-34010

UCK30,40,VCK30,40

 2
44785-34010

UCK3#,4#,VCK30,40

 2
Common parts
90105-A0015
90179-08057
90339-09003
90467-14037
96133-41500
Linked diagrams
4702
