UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )UCK3#,4#

Click highlighted areas on diagram

TOWING PACKAGE

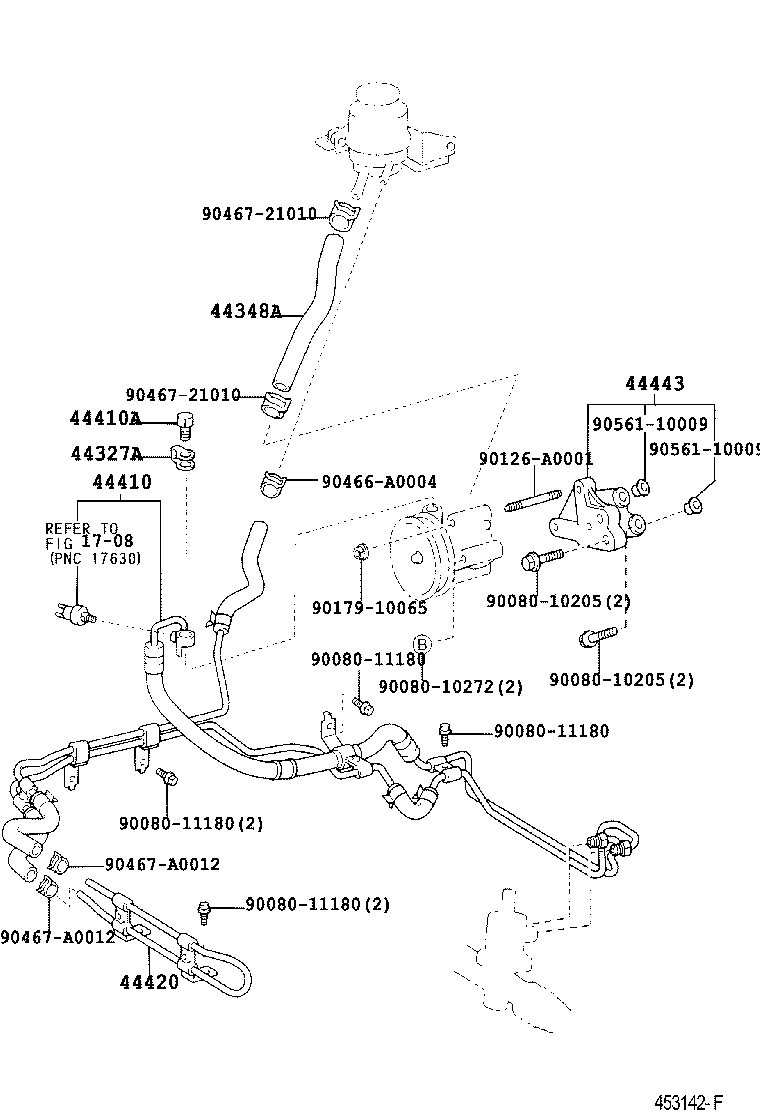

diagram 1708 44327A 44348A 44410 44410A 44420 44443 9008010205 9008010205 9008010272 9008011180 9008011180 9008011180 9008011180 90126A0001 9017910065 90466A0004 9046721010 9046721010 90467A0012 90467A0012 9056110009 9056110009
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-26020

UCK30,40,VCK30,40

 1
44327-30040

UCK3#,4#,VCK30,40

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0C010

UCK3#,4#

 1
44348-0C010

UCK30,40

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-0C020

UCK30,40

 1
44410-0C020

UCK30,40

 1
44410-0C070

UCK30,40

TOWING PACKAGE

 1
44410-0C030

UCK30,40

TOWING PACKAGE

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034

UCK3#,4#,VCK30,40

 1
90401-16034

UCK30,40,VCK30,40

 1
44420 - COOLER ASSY, OIL
44420-0C010

UCK3#,4#

 1
44443 - BRACKET, PUMP
44443-0C010

UCK3#,4#

(L)

 1
44443-60100

UCK30,40

 1
44443-60100

UCK3#,4#

(J)

 1
Common parts
90080-10205
90080-10272
90080-11180
90126-A0001
90179-10065
90466-A0004
90467-21010
90467-A0012
90561-10009
Linked diagrams
1708
