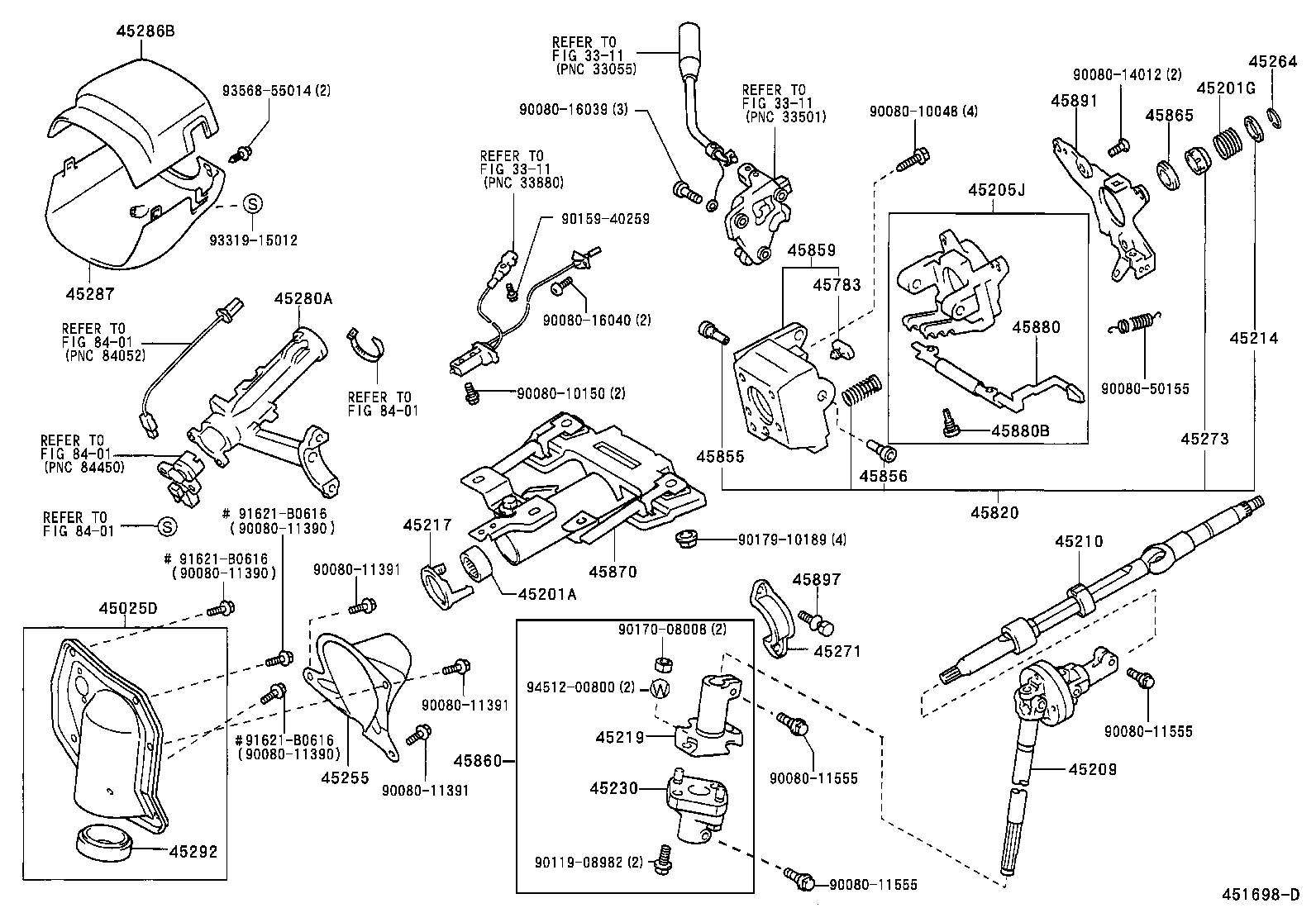

UCK30L-ASSLKA (2002)
Toyota Tundra
(9902-0408)UCK30,40,VCK30,40..4HC
W(TILT STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-0C020 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 45025-0C020 |
UCK3#,4#,VCK30,40..4HC |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 45274-0C010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45274-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90080-50153 |
UCK3#,4#,VCK30,40 |
1 | ||
| 90080-50153 |
UCK30,40,VCK30,40 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-07010 |
UCK30,40,VCK30,40 W(TILT STEERING) |
1 | ||
| 45205-07010 |
UCK3#,4#,VCK30,40 W(TILT STEERING) |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45290-34010 |
UCK30,40,VCK30,40 |
1 | ||
| 45290-34010 |
UCK30,40,VCK30,40 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 45210-0C030 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-07010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45214-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45217 - STOPPER, STEERING MAIN SHAFT | ||||
| 45217-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 45217-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45209-35101 |
UCK30,40,VCK30,40 |
1 | ||
| 45209-35101 |
UCK30,40,VCK30,40 |
1 | ||
| 45209-34040 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35090 |
UCK30,40,VCK30,40 |
1 | ||
| 45230-35090 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-34011 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45255-34010 |
UCK30,40,VCK30,40 |
1 | ||
| 45264 - RING, STEERING COLUMN, NO.2 | ||||
| 45264-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45264-07010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-33010 |
UCK30,40,VCK30,40 |
1 | ||
| 45271-33010 |
UCK30,40,VCK30,40 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-07010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45273-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-34050 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 45280-34050 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45023-0C010B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) MD.MOON MIST,TRIM10 |
1 | ||
| 45023-0C010B0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) DK.CHARCOAL,TRIM11 |
1 | ||
| 45023-0C010E0 |
UCK30,40,VCK30,40..4HC OAK,TRIM4# |
1 | ||
| 45023-0C013E0 |
UCK3#,4#,VCK30,40..4HC OAK,TRIM4# |
1 | ||
| 45023-0C013B2 |
UCK3#,4#,VCK30,40..4HC..(LIMD,SR5) DK.GRAY,TRIM12 |
1 | ||
| 45023-0C013B0 |
UCK3#,4#,VCK30,40..4HC..(LIMD,SR5) DK.CHARCOAL,TRIM11 |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-0C020B1 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(TILT STEERING),MD.MOON MIST,TRIM10 |
1 | ||
| 45287-0C020E0 |
UCK30,40,VCK30,40..4HC W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45287-0C020B0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(TILT STEERING),DK.CHARCOAL,TRIM11 |
1 | ||
| 45287-0C022B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(TILT STEERING),DK.GRAY,TRIM12 |
1 | ||
| 45287-0C022E0 |
UCK30,40,VCK30,40..4HC W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45287-0C023B0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(TILT STEERING),DK.CHARCOAL,TRIM11 |
1 | ||
| 45287-0C022B0 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(TILT STEERING),DK.CHARCOAL,TRIM11 |
1 | ||
| 45287-0C023E0 |
UCK30,40,VCK30,40..4HC W(TILT STEERING),OAK,TRIM4# |
1 | ||
| 45287-0C023B2 |
UCK30,40,VCK30,40..4HC..(LIMD,SR5) W(TILT STEERING),DK.GRAY,TRIM12 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35090 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45292-35090 |
UCK30,40,VCK30,40 |
1 | ||
| 45783 - STOPPER, TILT STEERING, NO.1 | ||||
| 45783-07010 |
UCK30,40,VCK30,40 |
2 | ||
| 45783-07010 |
UCK30,40,VCK30,40 |
2 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-0C010 |
UCK30,40,VCK30,40 |
1 | ||
| 45820-0C020 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45856-07010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45856-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-07010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45856-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45859 - SUPPORT, TILT STEERING HOUSING | ||||
| 45859-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45859-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35171 |
UCK30,40,VCK30,40 |
1 | ||
| 45860-34020 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45860-35171 |
UCK30,40,VCK30,40 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45865-07010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-0C010 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 45870-0C040 |
UCK30,40,VCK30,40..4HC |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45826-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45826-07010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45880B - SCREW(FOR STEERING TILT LEVER) | ||||
| 45831-07010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45831-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-07010 |
UCK30,40,VCK30,40 |
1 | ||
| 45891-07010 |
UCK3#,4#,VCK30,40 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
UCK30,40,VCK30,40 |
2 | ||
| 45897-12020 |
UCK3#,4#,VCK30,40 |
2 | ||
| Common parts | ||||
| 90080-10048 | ||||
| 90080-10150 | ||||
| 90080-11390 | ||||
| 90080-11391 | ||||
| 90080-11555 | ||||
| 90080-14012 | ||||
| 90080-16039 | ||||
| 90080-16040 | ||||
| 90080-50155 | ||||
| 90119-08982 | ||||
| 90159-40259 | ||||
| 90170-08008 | ||||
| 90179-10189 | ||||
| 91621-B0616 | ||||
| 93319-15012 | ||||
| 93568-55014 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3311 | ||||
| 8401 | ||||
