UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)4HC

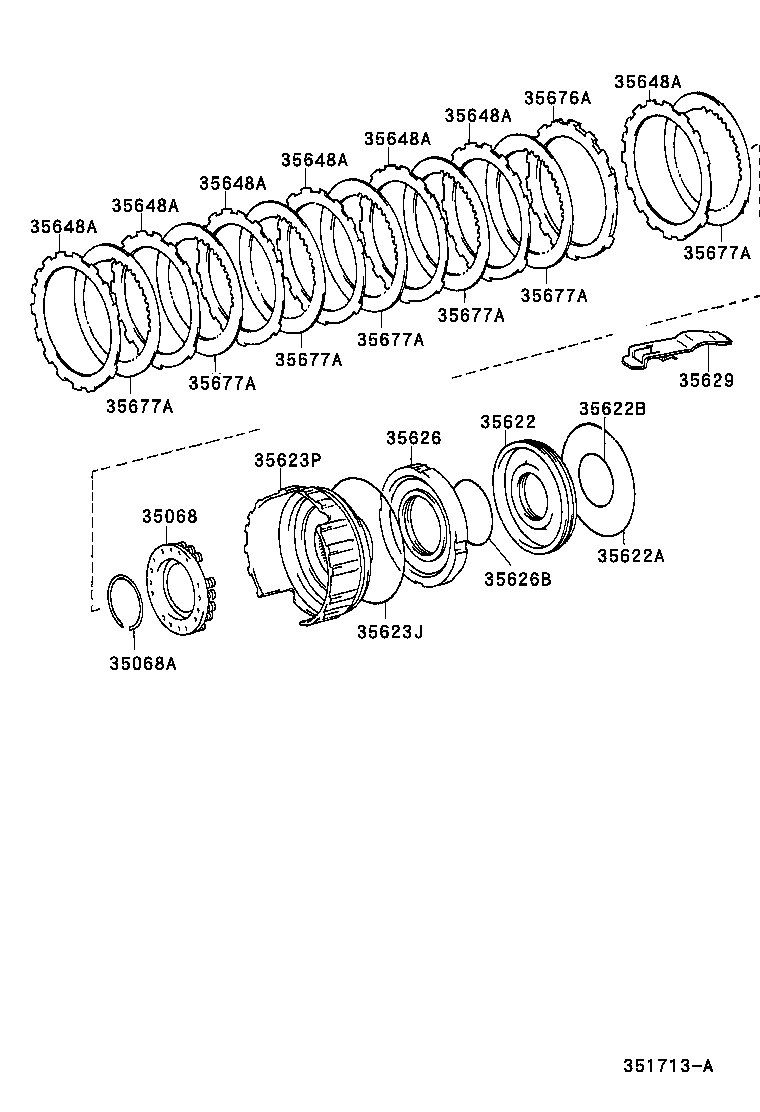

Click highlighted areas on diagram

A340E,A340F

diagram 35068 35068A 35622 35622A 35622B 35623J 35623P 35626 35626B 35629 35648A 35648A 35648A 35648A 35648A 35648A 35648A 35676A 35677A 35677A 35677A 35677A 35677A 35677A 35677A
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-50010

UCK30,40,VCK30,40..4HC

 1
35068-50010

UCK3#,4#,VCK30,40..4HC

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-52262

UCK3#,4#,VCK30,40..4HC

 1
90520-52262

UCK30,40,VCK30,40..4HC

 1
35622 - PISTON, BRAKE, NO.2
35622-30010

UCK3#,4#,VCK30,40..4HC

 1
35622-30010

UCK30,40,VCK30,40..4HC

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99084

UCK30,40,VCK30,40..4HC

 1
90301-99084

UCK3#,4#,VCK30,40..4HC

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-56007

UCK30,40,VCK30,40..4HC

 1
90301-56007

UCK3#,4#,VCK30,40..4HC

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99192

UCK30,40,VCK30,40..4HC

 1
90301-99192

UCK3#,4#,VCK30,40..4HC

 1
35623P - PISTON, 1ST & REVERSE BRAKE, NO.2
35623-14011

UCK30,40

 1
35623-14011

UCK3#,4#

 1
35626 - SLEEVE, BRAKE REACTION
35626-30020

UCK3#,4#,VCK30,40..4HC

 1
35626-30020

UCK30,40,VCK30,40..4HC

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-67005

UCK30,40,VCK30,40..4HC

 1
90301-67005

UCK3#,4#,VCK30,40..4HC

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22020

UCK3#,VCK30..4HC

 1
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

UCK30,40

 7
35648-30031

UCK3#,4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

UCK30,40

 7
35648-30031

UCK3#,4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

UCK30,40

 7
35648-30031

UCK3#,4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

UCK30,40

 7
35648-30031

UCK3#,4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

UCK30,40

 7
35648-30031

UCK3#,4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

UCK30,40

 7
35648-30031

UCK3#,4#

 7
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

UCK30,40

 7
35648-30031

UCK3#,4#

 7
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-30110

UCK30,40,VCK30,40..4HC

T=5.4

 1
35676-50020

UCK30,40,VCK30,40..4HC

T=4.8

 1
35676-50040

UCK30,40,VCK30,40..4HC

T=4.4

 1
35676-50050

UCK30,40,VCK30,40..4HC

T=4.2

 1
35676-50060

UCK30,40,VCK30,40..4HC

T=4.0

 1
35676-30100

UCK3#,4#,VCK30,40..4HC

T=5.2

 1
35676-50030

UCK30,40,VCK30,40..4HC

T=4.6

 1
35676-30100

UCK30,40,VCK30,40..4HC

T=5.2

 1
35676-50010

UCK30,40,VCK30,40..4HC

T=5.0

 1
35676-50030

UCK3#,4#,VCK30,40..4HC

T=4.6

 1
35676-50050

UCK3#,4#,VCK30,40..4HC

T=4.2

 1
35676-50020

UCK3#,4#,VCK30,40..4HC

T=4.8

 1
35676-50060

UCK3#,4#,VCK30,40..4HC

T=4.0

 1
35676-30110

UCK3#,4#,VCK30,40..4HC

T=5.4

 1
35676-50010

UCK3#,4#,VCK30,40..4HC

T=5.0

 1
35676-50040

UCK3#,4#,VCK30,40..4HC

T=4.4

 1
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30180

UCK3#,4#

 7
35677-30130

UCK30,40

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30180

UCK3#,4#

 7
35677-30130

UCK30,40

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30180

UCK3#,4#

 7
35677-30130

UCK30,40

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30180

UCK3#,4#

 7
35677-30130

UCK30,40

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30180

UCK3#,4#

 7
35677-30130

UCK30,40

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30180

UCK3#,4#

 7
35677-30130

UCK30,40

 7
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30180

UCK3#,4#

 7
35677-30130

UCK30,40

 7
