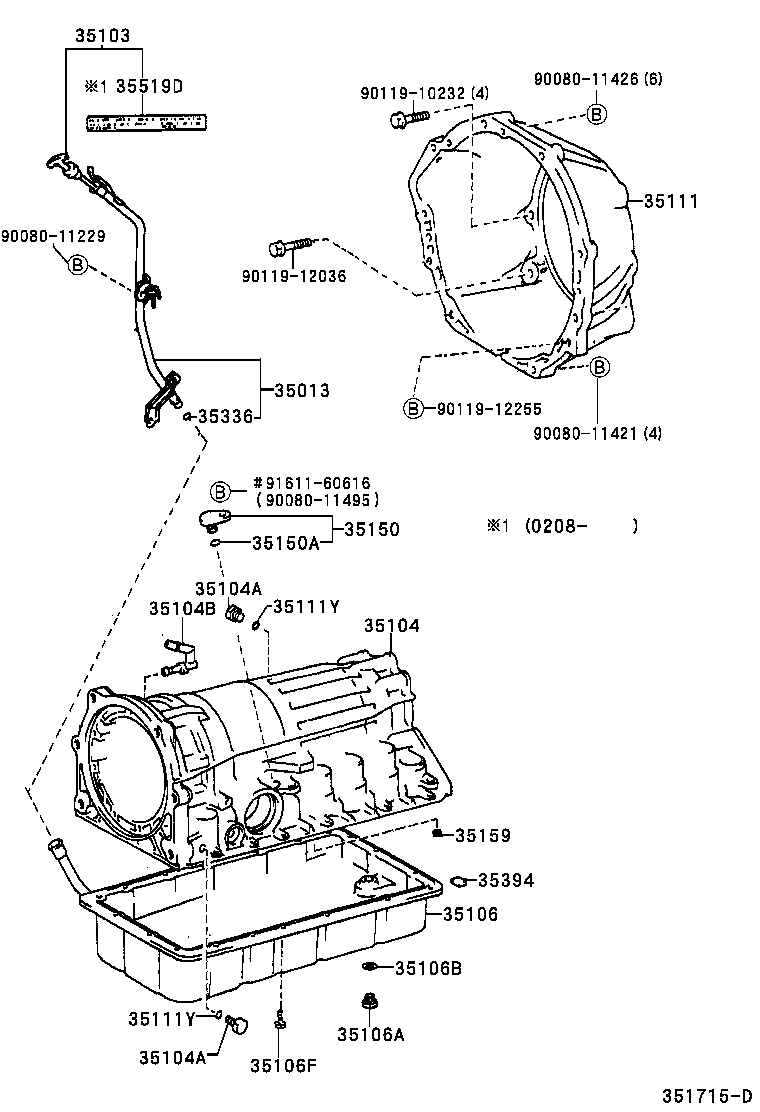

Toyota Tundra UCK30 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-34070	UCK30,40	02/1999 - 08/2002	1
35013-34070	UCK3#,4#	08/2002 - 08/2004	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-34140	UCK3#,4#	08/2002 - 08/2004	1
35103-34090	UCK30,40	02/1999 - 08/2002	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30170	UCK30	02/1999 - 08/2000	1
35104-22070	UCK3#	08/2002 - 08/2004	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	UCK3#,4#,VCK30,40..4HC	08/2002 - 08/2004	2
90341-08001	UCK30,40,VCK30,40..4HC	02/1999 - 08/2002	2
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001	UCK3#,4#,VCK30,40..4HC	08/2002 - 08/2004	2
90341-08001	UCK30,40,VCK30,40..4HC	02/1999 - 08/2002	2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03108	UCK30,VCK30..4HC	02/1999 - 08/2002	1
90930-03108	UCK3#,VCK30..4HC	08/2002 - 08/2004	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-34040	UCK3#,4#	08/2002 - 08/2004	1
35106-34040	UCK30,40	02/1999 - 08/2002	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10011	UCK31,4#,VCK40..4HC	08/2002 - 08/2004	1
90341-10006	UCK30,40,VCK30,40..4HC	02/1999 - 08/2002	1
90341-10018	UCK30,VCK30..4HC	08/2002 - 09/2003	1
90341-10011	UCK30,VCK30..4HC	09/2003 - 08/2004	1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010	UCK31,4#,VCK40..4HC	06/2003 - 08/2004	1
35178-30010	UCK30,40,VCK30,40..4HC	02/1999 - 08/2002	1
35178-30010	UCK30,VCK30..4HC	09/2003 - 08/2004	1
35178-50010	UCK30,VCK30..4HC	08/2002 - 09/2003	1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513	UCK30,40,VCK30,40..4HC	02/1999 - 08/2002	19
90119-06513	UCK3#,4#,VCK30,40..4HC	08/2002 - 08/2004	19
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-60100	UCK30,40	02/1999 - 08/2002	1
35111-60100	UCK3#,4#	08/2002 - 08/2004	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	UCK3#,4#,VCK30,40..4HC	08/2002 - 08/2004	2
90301-06196	UCK30,40,VCK30,40..4HC	02/1999 - 08/2002	2
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	UCK3#,4#,VCK30,40..4HC	08/2002 - 08/2004	2
90301-06196	UCK30,40,VCK30,40..4HC	02/1999 - 08/2002	2
35150 - PLUG ASSY, TRANSMISSION CASE
35150-30010	UCK30,40	02/1999 - 08/2000	1
35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
90301-09012	UCK30,40	02/1999 - 08/2000	1
35159 - GASKET, BRAKE DRUM
35159-30010	UCK3#,4#,VCK30,40..4HC	08/2002 - 08/2004	1
35159-30010	UCK30,40,VCK30,40..4HC	02/1999 - 08/2002	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09011	UCK30,40,VCK30,40..4HC	02/1999 - 08/2002	1
90301-09011	UCK3#,4#,VCK30,40..4HC	08/2002 - 08/2004	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	UCK30,VCK30..4HC	02/1999 - 08/2002	3
35394-30011	UCK3#,4#,VCK30,40..4HC	08/2002 - 08/2004	3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20030	UCK3#,4#,VCK30,40..4HC	08/2002 - 08/2004	1
Common parts
90080-11229
90080-11421
90080-11426
90080-11495
90119-10232
90119-12036
90119-12255
91611-60616

UCK30L-ASSLKA (2002)

(9902-0408)UCK3#
