UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )2UZFE

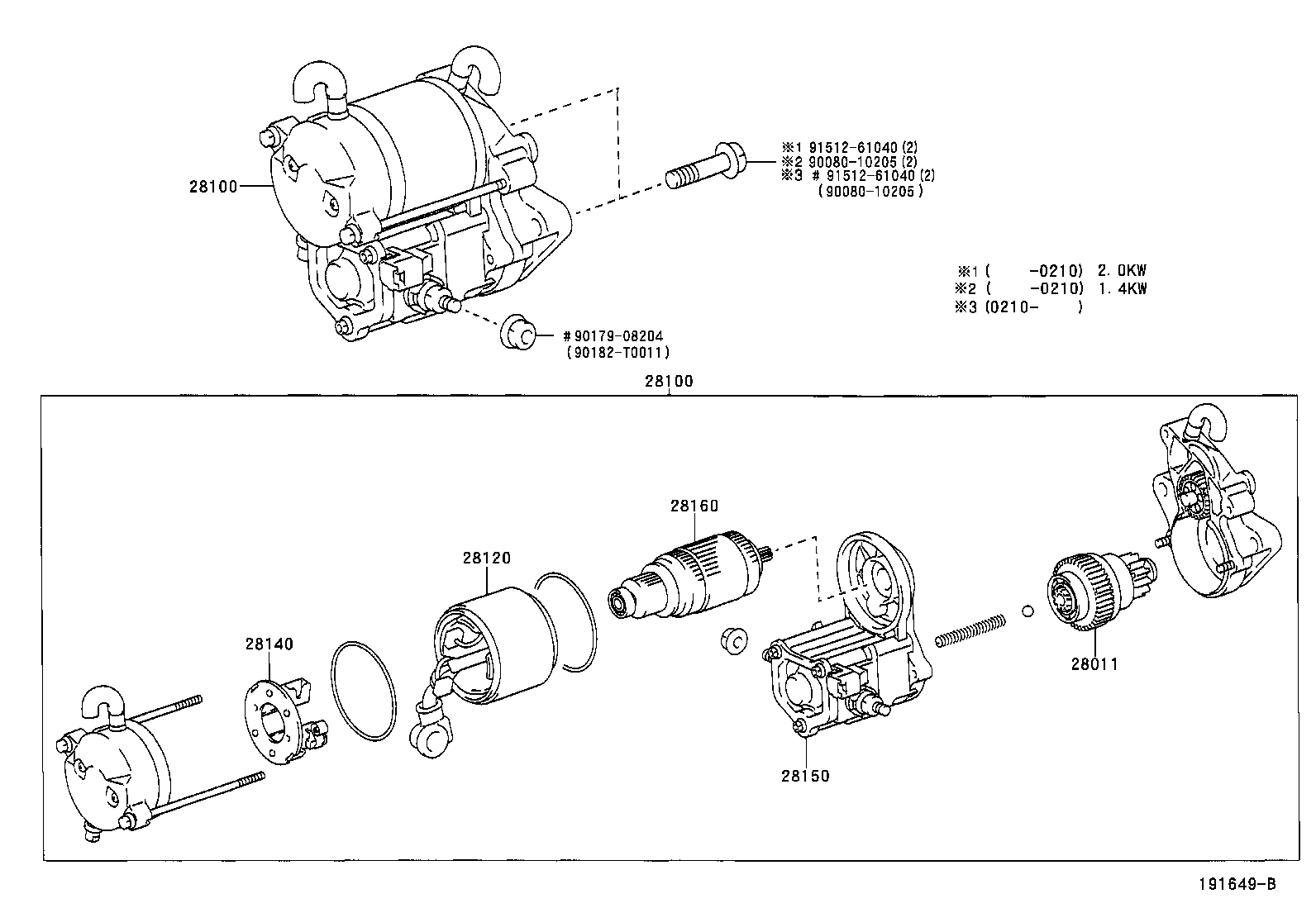

Click highlighted areas on diagram

12V 1.4KW,2.0KW

diagram 28011 28100 28100 28120 28140 28150 28160 9008010205 9008010205 9017908204 90182T0011 9151261040 9151261040
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-50060

2UZFE..UCK3#,4#

12V 2.0KW

 1
28011-50050

2UZFE..UCK30,40..USA

12V 1.4KW

 1
28011-50060

2UZFE..UCK3#,4#

12V 2.0KW

 1
28011-50060

2UZFE..UCK30,40

12V 2.0KW

 1
28011-50050

2UZFE..UCK3#,4#..USA

12V 1.4KW

 1
28100 - STARTER ASSY
28100-50070

2UZFE..UCK30,40

12V 2.0KW

 1
28100-50100

2UZFE..UCK3#,4#

12V 2.0KW

 1
28100-50040

2UZFE..UCK30,40..USA

12V 1.4KW

 1
28100-50101

2UZFE..UCK3#,4#

12V 2.0KW

 1
28100-50090

2UZFE..UCK3#,4#..USA

12V 1.4KW

 1
28100 - STARTER ASSY
28100-50070

2UZFE..UCK30,40

12V 2.0KW

 1
28100-50100

2UZFE..UCK3#,4#

12V 2.0KW

 1
28100-50040

2UZFE..UCK30,40..USA

12V 1.4KW

 1
28100-50101

2UZFE..UCK3#,4#

12V 2.0KW

 1
28100-50090

2UZFE..UCK3#,4#..USA

12V 1.4KW

 1
28120 - YOKE ASSY, STARTER
28120-50070

2UZFE..UCK3#,4#

12V 2.0KW

 1
28120-50070

2UZFE..UCK30,40

12V 2.0KW

 1
28120-50040

2UZFE..UCK3#,4#..USA

12V 1.4KW

 1
28120-50040

2UZFE..UCK30,40..USA

12V 1.4KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-54380

2UZFE..UCK3#,4#

12V 2.0KW

 1
28140-54380

2UZFE..UCK30,40

12V 2.0KW

 1
28140-76070

2UZFE..UCK30,40..USA

12V 1.4KW

 1
28140-54380

2UZFE..UCK3#,4#

12V 2.0KW

 1
28140-76070

2UZFE..UCK3#,4#..USA

12V 1.4KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-50041

2UZFE..UCK30,40..USA

12V 1.4KW

 1
28150-50100

2UZFE..UCK3#,4#

12V 2.0KW

 1
28150-50080

2UZFE..UCK3#,4#..USA

12V 1.4KW

 1
28150-50071

2UZFE..UCK30,40

12V 2.0KW

 1
28150-50100

2UZFE..UCK3#,4#

12V 2.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-75120

2UZFE..UCK3#,4#

12V 2.0KW

 1
28160-74070

2UZFE..UCK30,40..USA

12V 1.4KW

 1
28160-75120

2UZFE..UCK30,40

12V 2.0KW

 1
28160-74070

2UZFE..UCK3#,4#..USA

12V 1.4KW

 1
Common parts
90080-10205
90179-08204
90182-T0011
91512-61040
