UCK30L-ASSLKA (2002)
Toyota Tundra
(0208-0408)2UZFE..UCK30,40 ; (0408-0508)2UZFE..UCK30,40
12V 80A

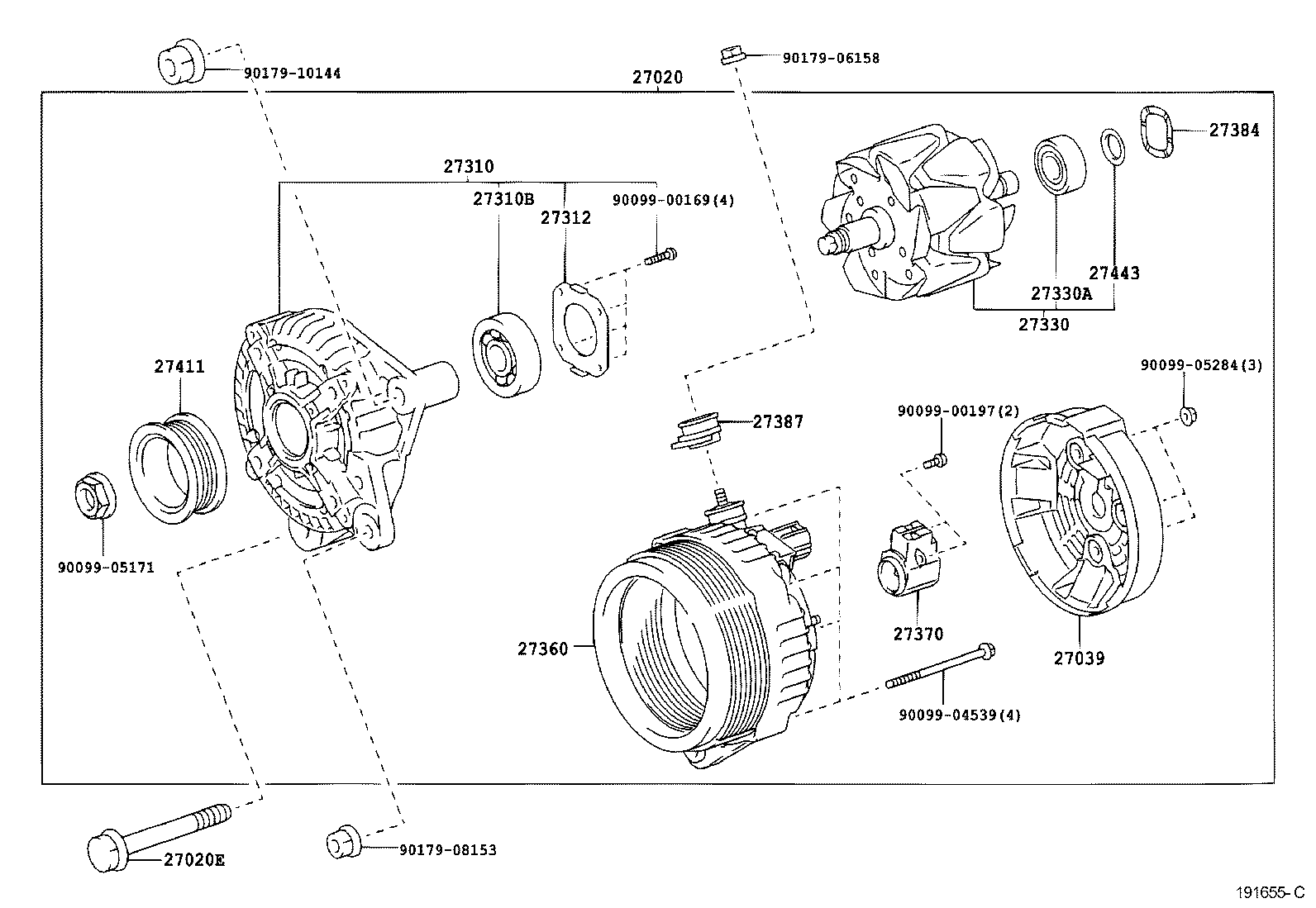

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0F010 |
2UZFE..UCK30,40 12V 70A |
1 | ||
| 27060-0F040 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27060-0F020 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27060-50300 |
2UZFE..UCK30,40 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90119-10791 |
2UZFE..UCK3#,4# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-50370 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27330-67100 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 27330-0A100 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27330-62220 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 80A |
1 | ||
| 27330-50070 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-0A030 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27357-67100 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 27357-22200 |
2UZFE,5VZFE..UCK30,40,VCK30,40 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-50370 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27370-58320 |
2UZFE..UCK30,40 12V 70A |
1 | ||
| 27370-75060 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 80A |
1 | ||
| 27370-75060 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 80A,100A |
1 | ||
| 27370-0F060 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-46080 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27411-50290 |
2UZFE..UCK30,40 12V 70A |
1 | ||
| 27411-0A050 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27411-46080 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27411-50290 |
2UZFE..UCK30,40 12V 80A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50040 |
2UZFE,5VZFE..UCK30,40,VCK30,40 |
1 | ||
| 27700-50030 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A,80A,100A |
1 | ||
| 27700-62030 |
2UZFE..UCK30,40 12V 70A |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-10144 | ||||
(0208-0408)2UZFE ; (0408- )2UZFE
12V 100A,130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0F010 |
2UZFE..UCK30,40 12V 70A |
1 | ||
| 27060-0F040 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27060-0F020 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27060-50300 |
2UZFE..UCK30,40 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90119-10791 |
2UZFE..UCK3#,4# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-67100 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 27039-50370 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27039-0F060 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27039-50250 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0F010 |
2UZFE..UCK30,40 12V 70A |
1 | ||
| 27310-50060 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27310-50310 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27310-0F060 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10002 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 90099-10199 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 90099-10142 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 90068-10142 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0A020 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27312-72100 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 27312-72100 |
2UZFE..UCK3#,4# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-50370 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27330-67100 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 27330-0A100 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27330-62220 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 80A |
1 | ||
| 27330-50070 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 90099-10216 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 90099-10194 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0F040 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27360-50370 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-50370 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27370-58320 |
2UZFE..UCK30,40 12V 70A |
1 | ||
| 27370-75060 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 80A |
1 | ||
| 27370-75060 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 80A,100A |
1 | ||
| 27370-0F060 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27384-16380 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 27384-0A020 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27384-0A020 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 27387-20130 |
2UZFE..UCK3#,4# (J) |
1 | ||
| 27387-42021 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 80A,100A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-46080 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27411-50290 |
2UZFE..UCK30,40 12V 70A |
1 | ||
| 27411-0A050 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27411-46080 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| 27411-50290 |
2UZFE..UCK30,40 12V 80A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2UZFE,5VZFE..UCK30,40,VCK30,40 12V 70A |
1 | ||
| 27443-0A020 |
2UZFE..UCK30,40 12V 100A |
1 | ||
| 27443-0A020 |
2UZFE..UCK3#,4# 12V 130A |
1 | ||
| 27443-63020 |
2UZFE..UCK30,40 12V 130A |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
| 90179-08153 | ||||
| 90179-10144 | ||||
