UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

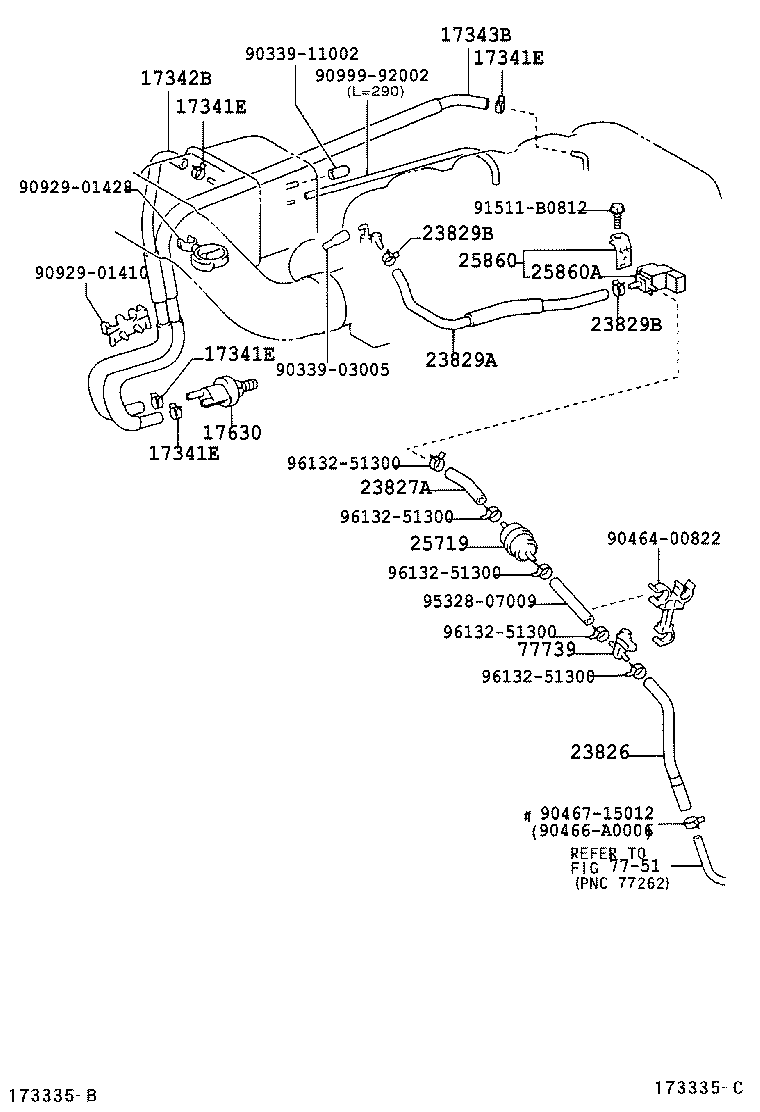

ILLUST NO. 2 OF 2(0208-0408)2UZFE

Click highlighted areas on diagram

diagram 17341E 17341E 17341E 17341E 17342B 17343B 17630 23826 23827A 23829A 23829B 23829B 25719 25860 25860A 7751 77739 9033903005 9033911002 9046400822 90466A0006 9046715012 9092901410 9092901428 9099992002 91511B0812 9532807009 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90466-10001

2UZFE..UCK30,40

 4
96132-51000

2UZFE..UCK3#,4#

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90466-10001

2UZFE..UCK30,40

 4
96132-51000

2UZFE..UCK3#,4#

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90466-10001

2UZFE..UCK30,40

 4
96132-51000

2UZFE..UCK3#,4#

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90466-10001

2UZFE..UCK30,40

 4
96132-51000

2UZFE..UCK3#,4#

 4
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50140

2UZFE..UCK3#,4#

 1
17342-50140

2UZFE..UCK30,40

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50120

2UZFE..UCK30,40

 1
17343-50120

2UZFE..UCK3#,4#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-16040

2UZFE..UCK3#,4#

 1
17630-16040

2UZFE..UCK30,40

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-62040

2UZFE..UCK30,40

 1
23826-0F010

2UZFE..UCK3#,4#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-50070

2UZFE..UCK30,40

 1
23827-0F010

2UZFE..UCK3#,4#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-50070

2UZFE..UCK3#,4#

 1
23829-50070

2UZFE..UCK30,40

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2UZFE..UCK3#,4#

 2
90467-13070

2UZFE..UCK30,40

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2UZFE..UCK3#,4#

 2
90467-13070

2UZFE..UCK30,40

 2
25719 - TANK, VACUUM SURGE
25719-62050

2UZFE..UCK30,40

 1
25719-20020

2UZFE..UCK3#,4#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-50100

2UZFE..UCK30,40

 1
25860-50160

2UZFE..UCK3#,4#

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12173

2UZFE..UCK30,40

 1
90910-12259

2UZFE..UCK3#,4#

 1
77739 - VALVE, EVAP SERVICE PORT
77739-06010

UCK30,40

 1
77739-06010

UCK3#,4#

 1
Common parts
90339-03005
90339-11002
90464-00822
90466-A0006
90467-15012
90929-01410
90929-01428
90999-92002
91511-B0812
95328-07009
96132-51300
Linked diagrams
7751
