UCK30L-ASSLKA (2002)

Toyota Tundra

Production Aug 2002 - Aug 2004
Engine 2UZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9902-0408)2UZFE

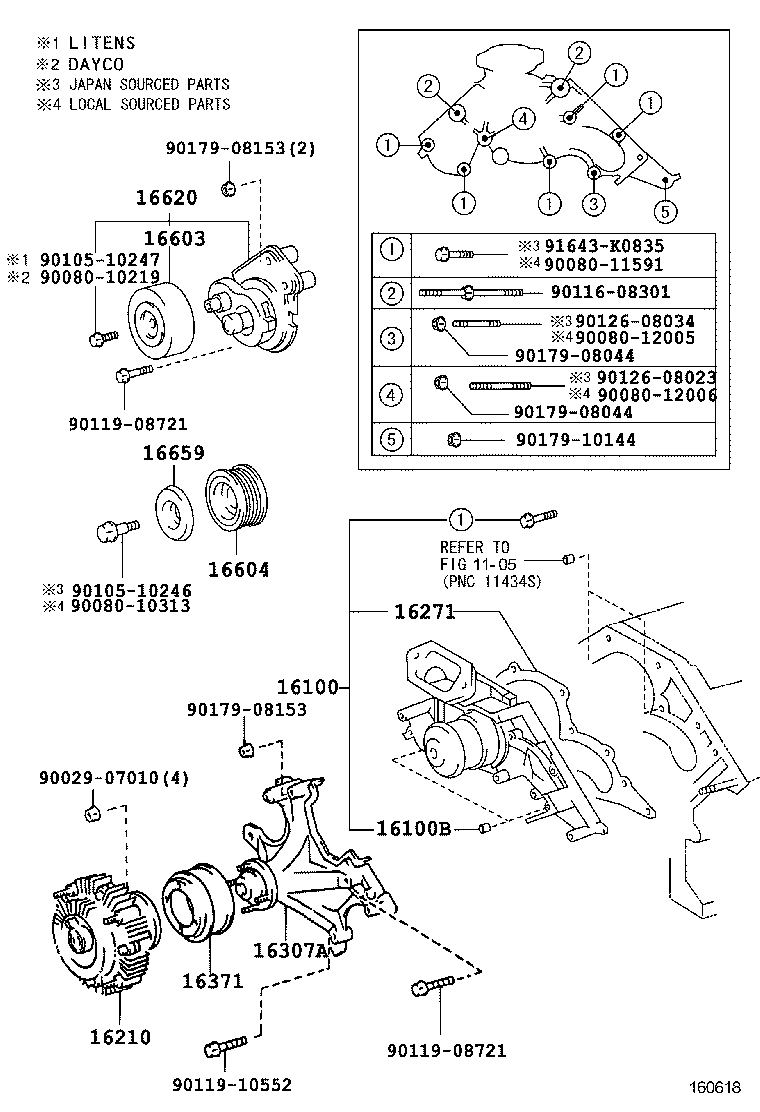

Click highlighted areas on diagram

diagram 1105 16100 16100B 16210 16271 16307A 16371 16603 16604 16620 16659 9002907010 9008010219 9008010313 9008011591 9008012005 9008012006 9010510246 9010510247 9011608301 9011908721 9011908721 9011910552 9012608023 9012608034 9017908044 9017908044 9017908153 9017908153 9017910144 91643K0835
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59275

2UZFE..UCK30,40

(J)

 1
16100-59275

2UZFE..UCK3#,4#

(J)

 1
16100-09200

2UZFE..UCK3#,4#

(L)

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

2UZFE..UCK3#,4#

 2
90253-11021

2UZFE..UCK30,40

 2
16210 - COUPLING ASSY, FLUID
16210-50090

2UZFE..UCK3#,4#

 1
16210-50080

2UZFE..UCK30,40

 1
16271 - GASKET, WATER PUMP
16271-0F010

2UZFE..UCK3#,4#

(L)

 1
16271-50010

2UZFE..UCK30,40

(J)

 1
16271-50010

2UZFE..UCK3#,4#

(J)

 1
16307A - BRACKET SUB-ASSY, FAN
16307-50012

2UZFE..UCK30,40

(J)

 1
16307-50012

2UZFE..UCK3#,4#

(J)

 1
16307-0F010

2UZFE..UCK3#,4#

(L)

 1
16371 - PULLEY, FAN
16371-50040

2UZFE..UCK30,40

(J)

 1
16371-0F010

2UZFE..UCK3#,4#

(L)

 1
16371-50040

2UZFE..UCK3#,4#

(J)

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-0W030

2UZFE..UCK3#,4#

DAYCO

 1
16603-0W010

2UZFE..UCK3#,4#

LITENS

 1
16603-0W010

2UZFE..UCK30,40

 1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-50030

2UZFE..UCK3#,4#

(J)

 1
16604-50030

2UZFE..UCK30,40

(J)

 1
16604-0F010

2UZFE..UCK3#,4#

(L)

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W036

2UZFE..UCK30,40

 1
16620-0W100

2UZFE..UCK3#,4#

 1
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-50022

2UZFE..UCK30,40

 1
16659-50022

2UZFE..UCK3#,4#

 1
Common parts
90029-07010
90080-10219
90080-10313
90080-11591
90080-12005
90080-12006
90105-10246
90105-10247
90116-08301
90119-08721
90119-10552
90126-08023
90126-08034
90179-08044
90179-08153
90179-10144
91643-K0835
